Description

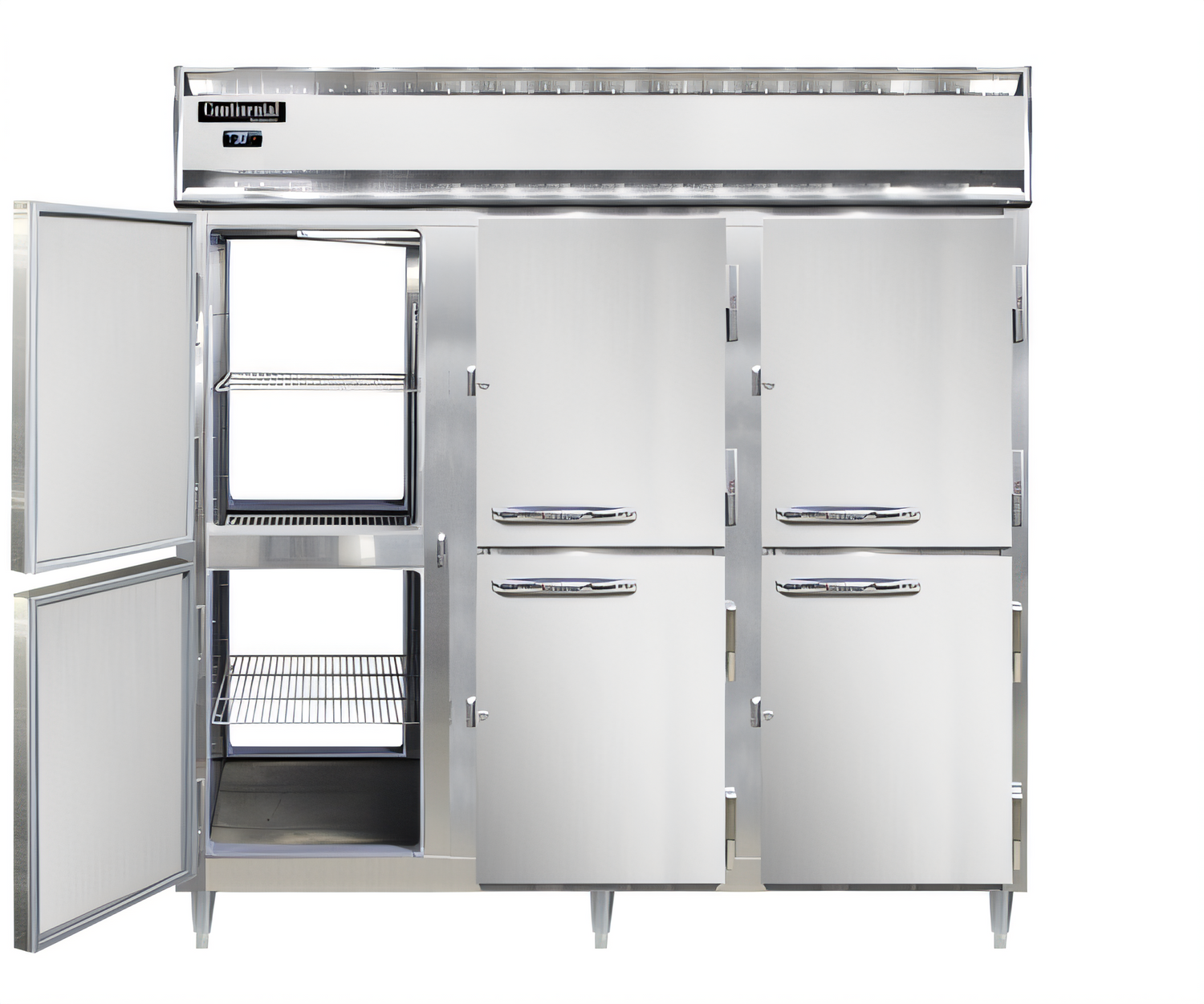

Designer Line Pass-Thru Heated Cabinet – 3 Section, Half-Door
Model DL3W-PT-SS-HD | 72 cu. ft. | Stainless Steel Exterior & InteriorBuilt for high-volume kitchens that refuse to compromise on food quality or workflow efficiency, Continental Refrigerator’s Designer Line pass-thru warmer keeps plated meals, pans and trays hot, safe and ready to serve. A top-mounted, self-contained heating system circulates 90 °F – 180 °F air uniformly throughout the 72-cu.-ft. cabinet, while narrow half-height doors minimize heat loss during busy service windows.
Why You’ll Love It

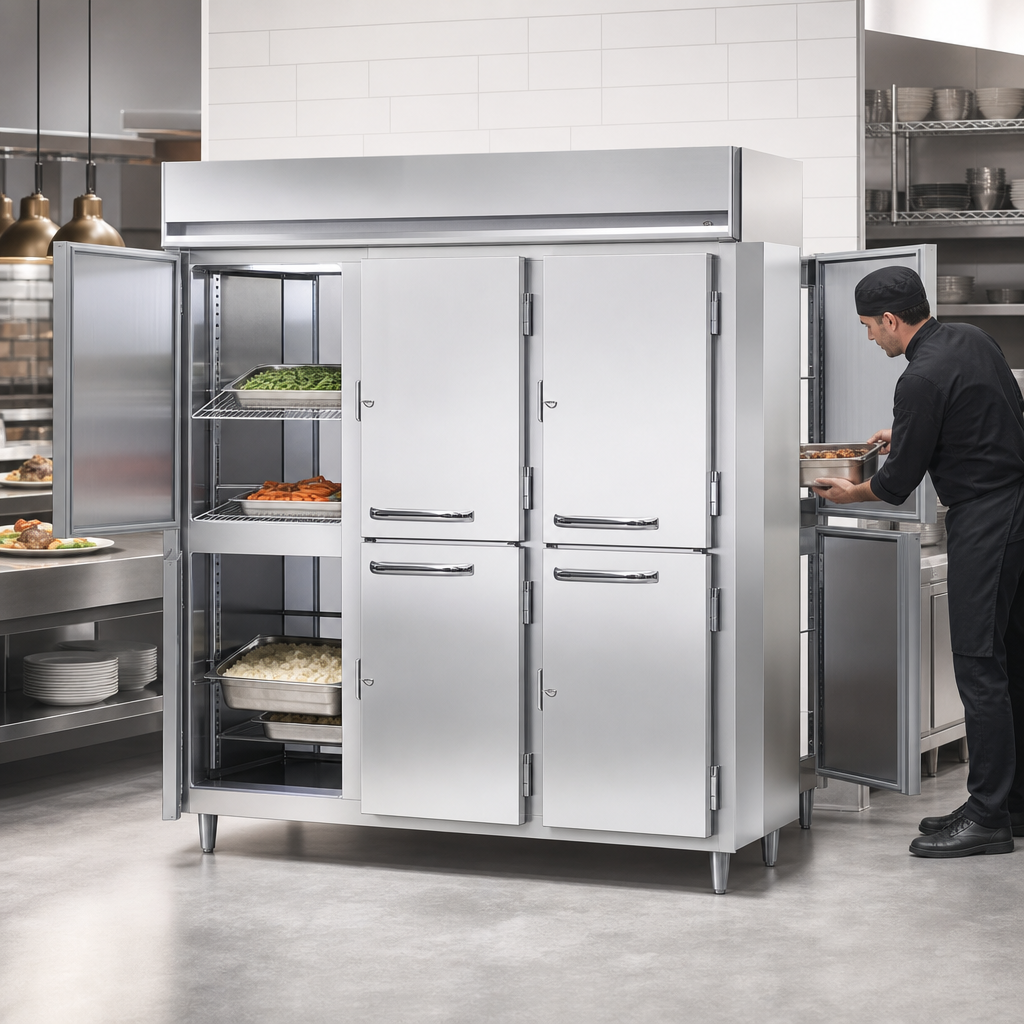

- Pass-Thru Convenience – Load from the prep side, pull from the service side to streamline plating and reduce kitchen traffic.
- Even, Reliable Heat – Top-mounted plenum with circulating fan and ducted airflow eliminates hot & cold spots.

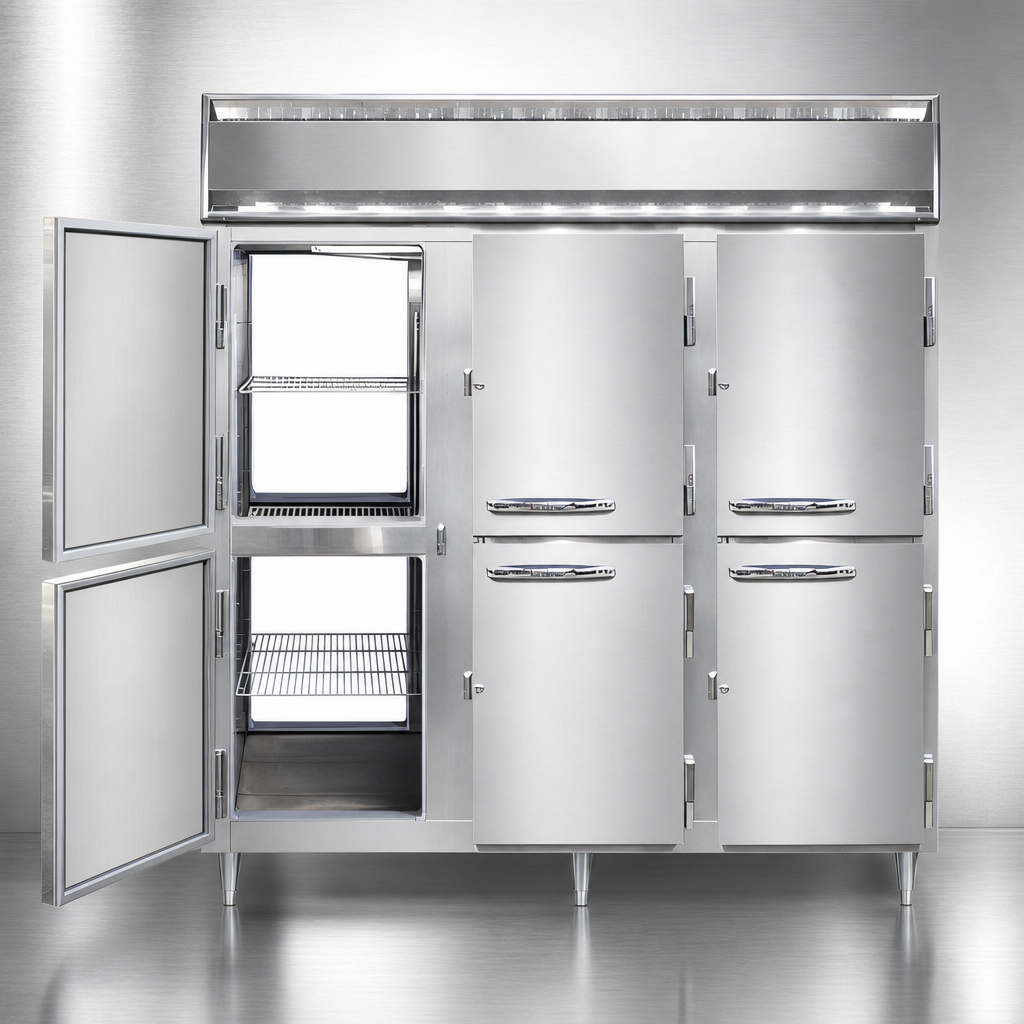

- Rock-Solid Construction – All-stainless exterior & interior stand up to daily commercial abuse and simplify sanitation.
- 9 Heavy-Duty Shelves Included – Chrome-plated steel shelves (3 per section) adjust on pilaster strips for custom layouts.
- Smart Electronic Control – Digital temperature display, set-point adjustment, and audible hi-low alarm safeguard food safety.
- Energy-Saving Half Doors – Self-closing, lift-off doors with Santoprene™ gaskets limit heat loss and speed access.
- Field-Ready – Pre-wired for 208-230V/60/1 hard-wire connection; cETLus & NSF listed.
At-a-Glance Specifications
| Capacity | 72 cu. ft. / 2039 L |
|---|---|
| Sections / Doors | 3 sections | 6 narrow half-height, pass-thru doors |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Shelves Supplied | 9 chrome-plated steel (adjustable) |
| Exterior / Interior | Stainless steel front, sides, top & interior |
| Overall Dimensions (W × D × H) | 78" × 35 3⁄8" × 83 1⁄4" (with 6" legs) |
| Depth – Doors Open 90° | 55 1⁄2" |
| Clear Door Opening | 19 3⁄8" W × 27 1⁄2" H (each half door) |
| Electrical | 208-230 V / 60 Hz / 1 Ø • 13.9 A • 3000 W (hard-wired) |
| Listings | cETLus, NSF |
Built for the Long Haul
- 3" non-CFC, high-density polyurethane insulation locks heat inside.
- Polished chrome workflow handles and cam-lift, lift-off hinges for easy cleaning.
- Magnetic, snap-in gaskets swap out tool-free to maintain an airtight seal.
- Stainless steel strip heaters in the cabinet base prevent floor-level heat loss.
- Adjustable 6" stainless legs standard; optional casters available.
- Cylinder locks on every door for overnight security.
Popular Factory Options
- Additional chrome or stainless-steel shelves
- Pan-slide assemblies for sheet pans or hotel pans
- 4" or 5" heavy-duty casters (locking or non-locking)
- Custom laminate end panels or finishes
- Correctional-grade packages (security screws, mesh covers, hasps)
Installation clearance: provide at least 12" above and 3" at sides & rear for proper ventilation.
