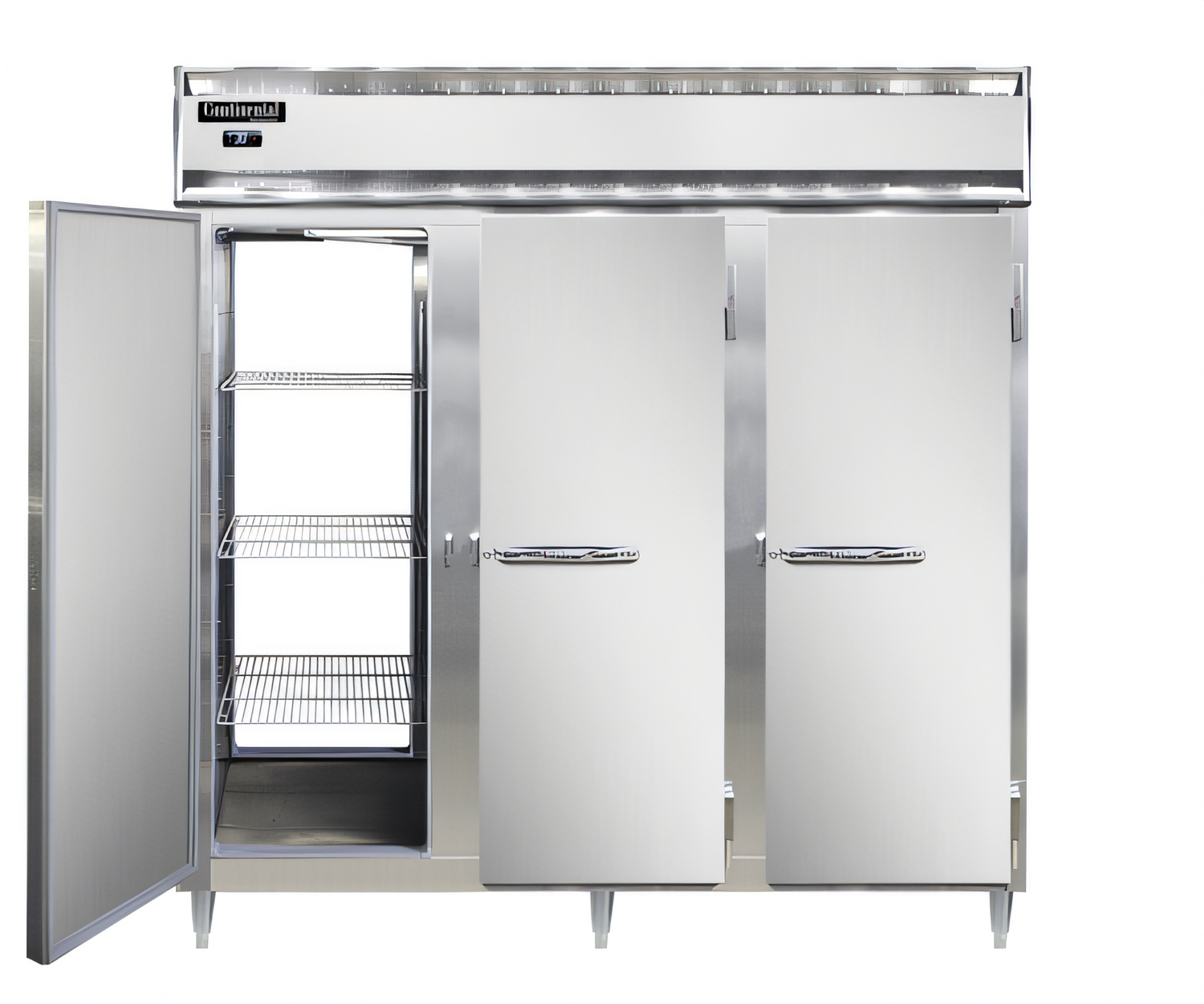

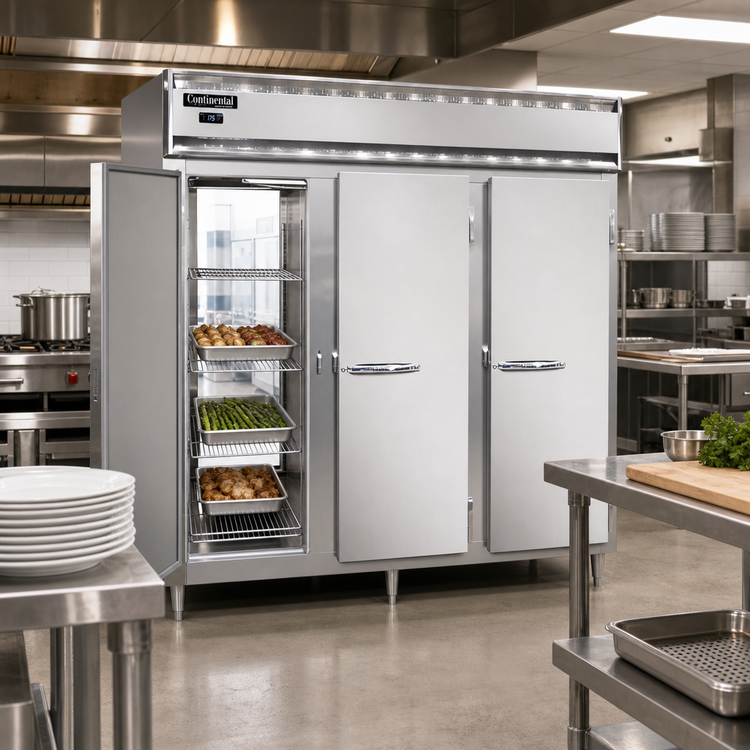

Continental Refrigerator DL3W-SS-PT Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL3W-SS-PT Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL3W-SS-PT Designer Line Heated Cabinets &...
Description
Designer Line DL3W-PT-SS Pass-Thru Heated Cabinet
3-Section • 72 cu. ft. • Stainless Steel Exterior & InteriorBuilt for demanding commercial kitchens, the Continental Refrigerator Designer Line DL3W-PT-SS delivers gentle, even heat to keep plated meals, pans, or trays at a ready-to-serve temperature. A self-contained top-mounted heating system plus full stainless-steel construction make this pass-thru warmer a rugged, operator-friendly solution for institutional, hospitality, and catering applications.
Performance & Construction Highlights

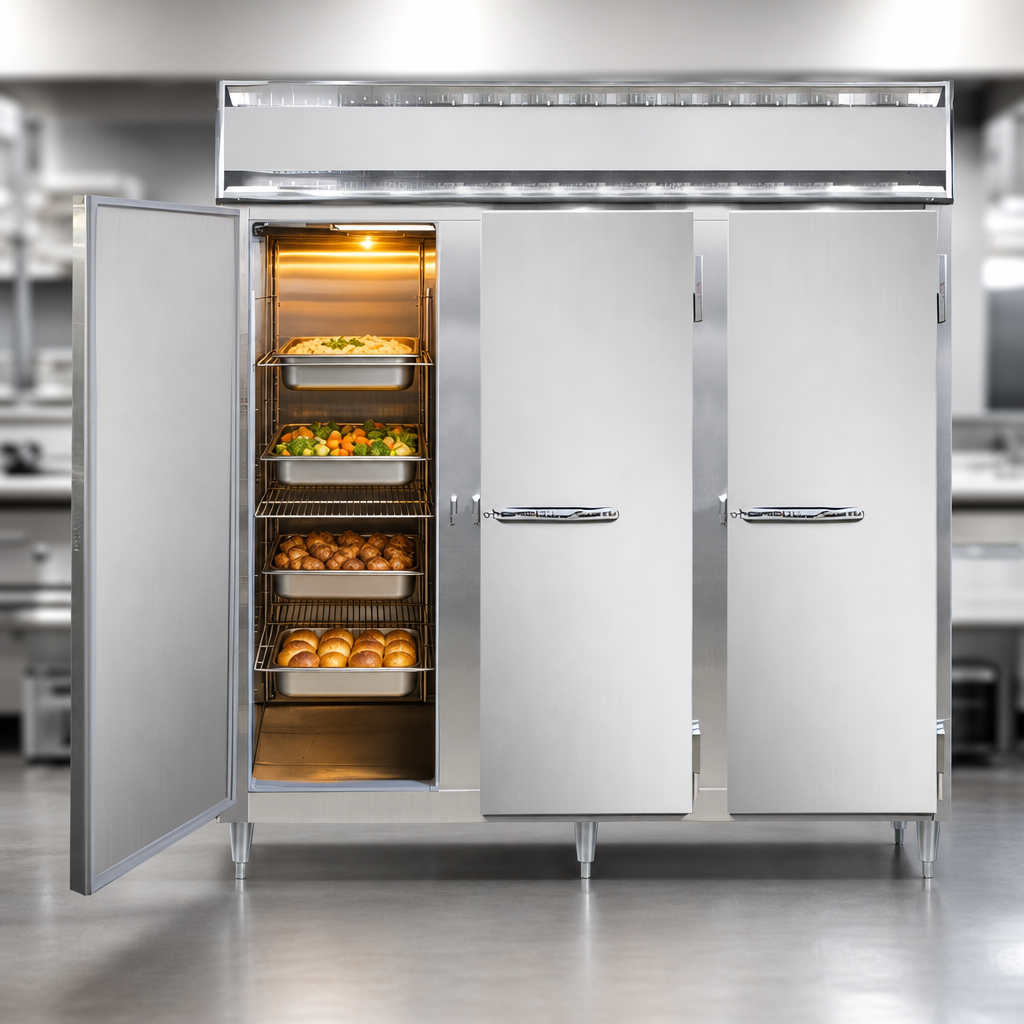

- Self-contained, performance-rated heating system with circulating fan for fast recovery.
- 90 °F – 180 °F temperature range controlled by an electronic digital controller with hi-low alarm.

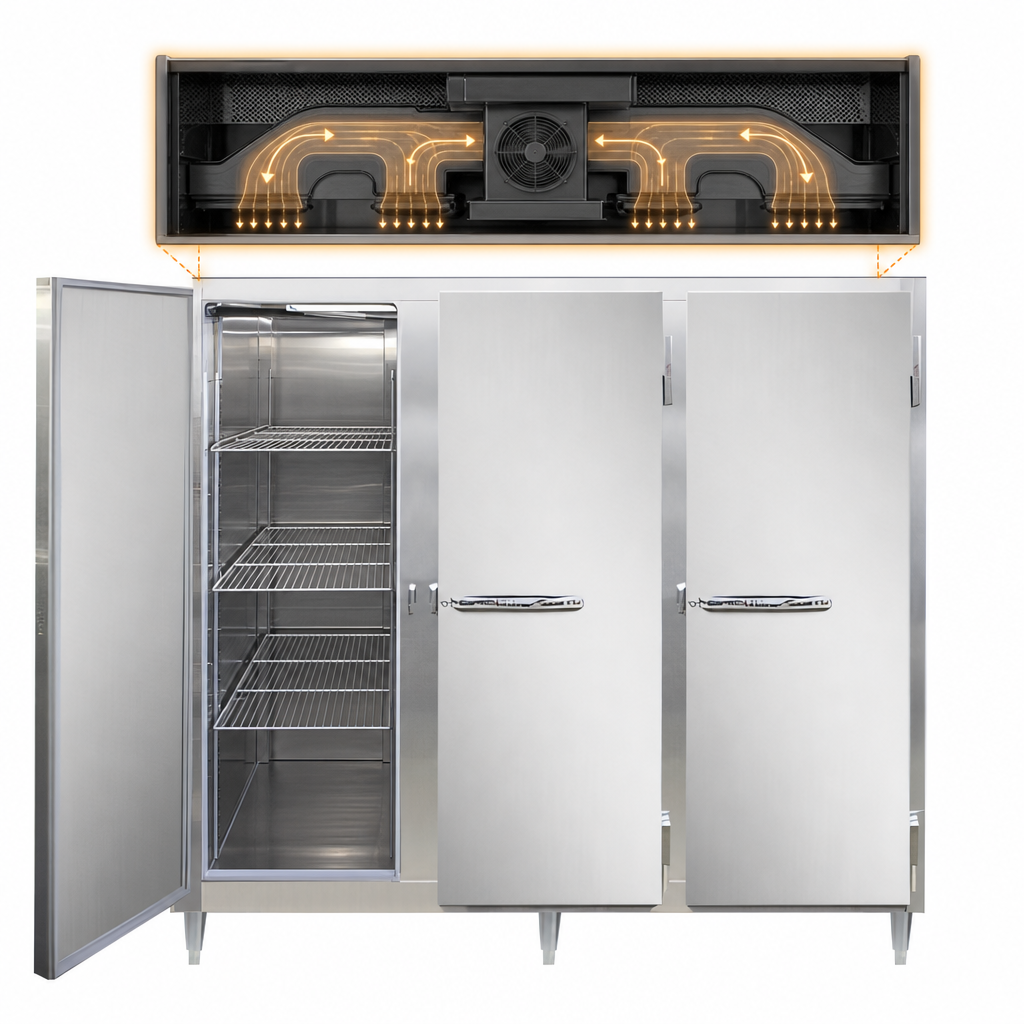

- Top-mounted “plenum plug” and proprietary air-flow ducts bathe every shelf in consistent heat.
- Heavy-duty stainless steel exterior and interior withstands daily abuse and simplifies sanitation.
- Three narrow, full-height pass-thru doors provide double-sided access to streamline workflow.
- Doors are self-closing on cam-lift hinges and feature polished chrome handles, magnetic gaskets & keyed locks.
- 3″ foamed-in-place, non-CFC polyurethane insulation maximizes energy efficiency.
- Nine adjustable, chrome-plated shelves (3 per section) hold up to 61.2 ft² of product.
- 6″ adjustable stainless steel legs for easy leveling and floor clearance.
- Certified to cETLus and NSF standards; proudly designed & assembled in the USA.
Technical Specifications
| Model | DL3W-PT-SS |
|---|---|
| Type | Pass-Thru Heated Cabinet, 3-Section |
| Net Capacity | 72 cu. ft. / 2039 L |
| Exterior Dimensions (W × D × H) | 78" × 35 3⁄8" × 83 1⁄4" (1981 × 899 × 2115 mm) (height includes 6" legs) |
| Depth (less doors) | 32" / 813 mm |
| Depth (doors 90°) | 55 1⁄2" / 1410 mm |
| Door Clear Opening | 19 3⁄8" W × 58 5⁄8" H (492 × 1489 mm) |
| Number of Doors / Shelves | 3 doors / 9 shelves |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W, hard-wired (no cord/plug supplied) |
| Shipping Weight | Approx. 685 lb / 311 kg (crated) |
| Certifications | cETLus, NSF |
Popular Factory Options
- Additional chrome-plated or stainless steel shelves
- Pan or tray slide assemblies
- Casters in lieu of legs
- Automatic LED interior lighting
- Custom laminates or correctional-facility hardware
Options may require extended lead-times • Contact us for details and pricing.
Continental Refrigerator backs this unit with industry-leading factory support. Please refer to the latest manufacturer’s warranty statement for coverage details.
