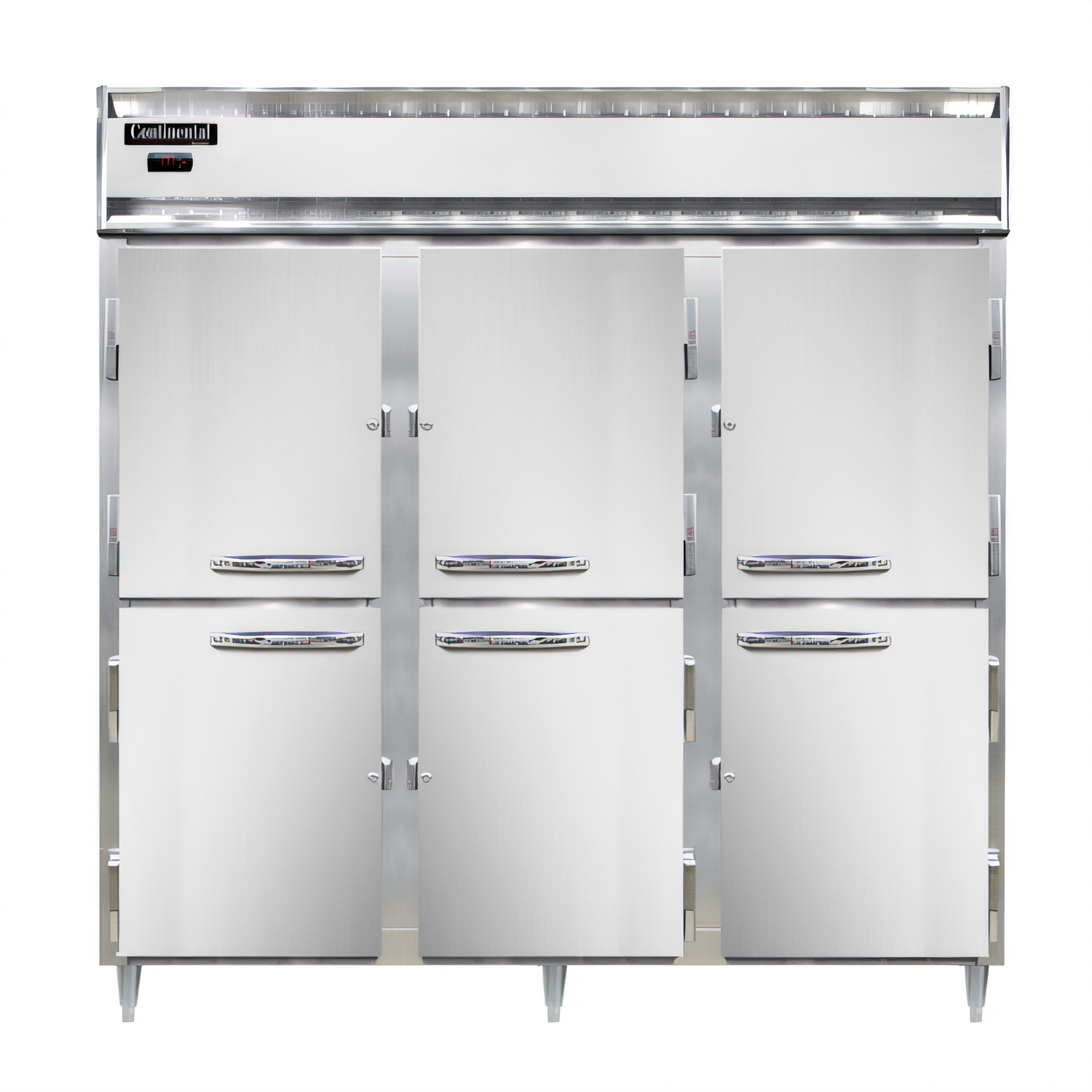

Designer Line 3-Section Reach-In Heated Cabinet (DL3W-SS-HD)
by Continental RefrigeratorKeep cooked foods hot, safe, and ready for service with the Designer Line 72 cu. ft. reach-in warmer from Continental Refrigerator. Built for demanding commercial kitchens, this heavy-duty cabinet pairs precise electronic temperature control with rugged, all-stainless-steel construction.
Key Advantages
- Self-contained, performance-rated heating system maintains 90 °F – 180 °F.
- Top-mounted heating plenum with circulating fan and exclusive air-flow ducts ensures even cabinet temperatures.
- All-stainless-steel exterior and interior for superior durability and sanitation.
- Six narrow half-height, self-closing doors minimize heat loss and speed section-by-section access.
- Electronic controller with bright digital display plus hi-low temperature alarm.
- 3" non-CFC polyurethane insulation locks in heat and trims energy costs.
- Nine heavy-duty chrome-plated shelves (adjustable) ride on reinforced pilaster strips.
- Magnetic Santoprene™ door gaskets and polished chrome workflow handles for an airtight, ergonomic seal.
- Adjustable 6" stainless steel legs simplify cleaning underneath the unit.
- cETLus & NSF listed for food-service safety and sanitation.
At-a-Glance Specs
| Capacity | 72 cu. ft. (2039 L) |
|---|---|
| Sections / Doors | 3 sections • 6 half-height doors |
| Shelves Included | 9 heavy-duty chrome shelves (3 per section) |
| Temperature Range | 90 °F – 180 °F / 32 °C – 82 °C |
| Construction | Stainless steel exterior & interior |
| Overall Dimensions (W × D × H) | 78" × 35 3⁄8" × 83 1⁄4" (incl. 6" legs) |
| Clear Door Opening | 19 3⁄8" W × 27 1⁄2" H (each half door) |
| Electrical | 208-230 V / 60 Hz / 1-ph • 13.9 A • 3000 W (field wired, no cord/plug) |
| Shipping Weight | ≈ 685 lb (311 kg) |
| Certifications | cETLus, NSF |
| Origin | Proudly designed & assembled in the USA |
Built for Busy Kitchens
- Cam-action, lift-off hinges for fast door removal during deep cleaning.
- Cylinder locks on every door help safeguard your prepared foods.
- Stainless steel strip heaters in the cabinet base eliminate cold spots.
- Optional add-ons: extra shelves, pan slide assemblies, casters, correctional-grade security packages and more (contact us for details).
Looking for a custom configuration or special electrical requirements? Our equipment specialists are ready to help.
