Continental Refrigerator  |  Designer Line  |  SKU: DL3W-SA-PT-HD

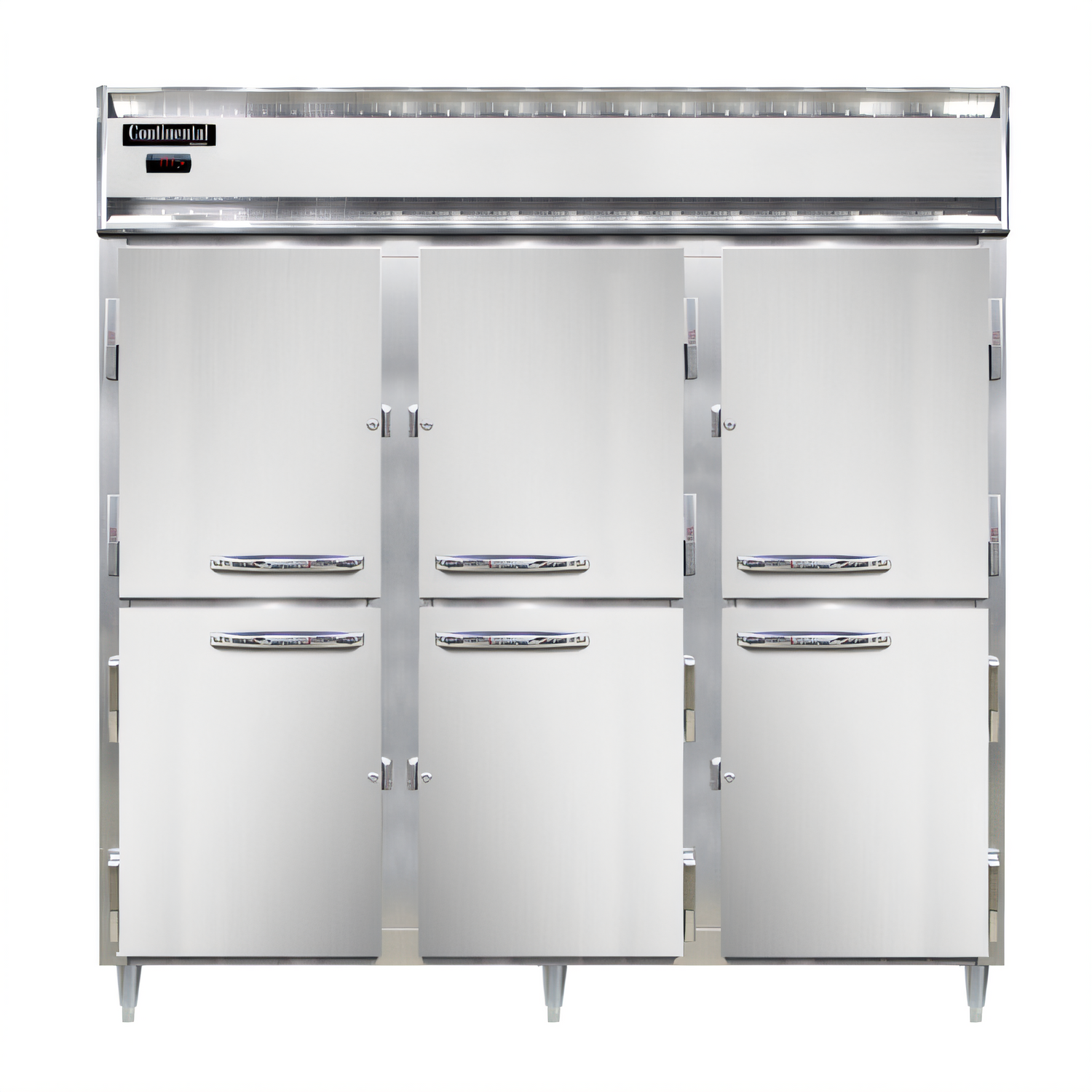

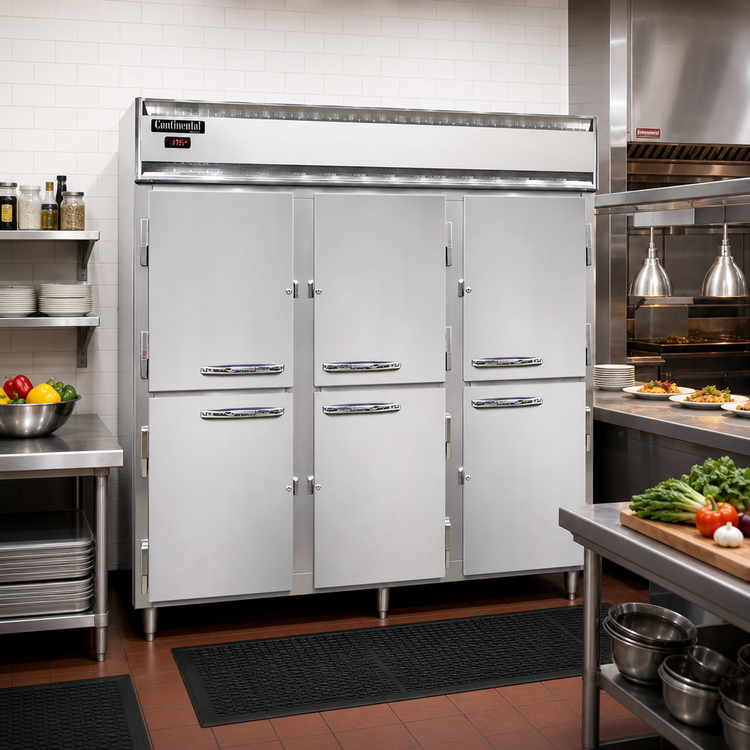

Continental Refrigerator DL3W-SA-PT-HD Designer Line Heated Cabinets & Holding Shelves

$22,808.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty Owner's manual Map policy Installation & operation
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Designer Line Pass-Thru Heated Cabinet

Model DL3W-PT-SA-HD • 72 cu. ft. • Three-Section • Half-Height Doors

Bring hot holding and workflow efficiency to the heart of your kitchen with Continental Refrigerator’s Designer Line DL3W-PT-SA-HD. This 72 cu. ft. pass-thru warmer keeps food at a precise 90°–180°F while allowing staff to load from the back and serve from the front—perfect for banquet facilities, institutional kitchens, and high-volume restaurants.

Top Reasons You’ll Love It

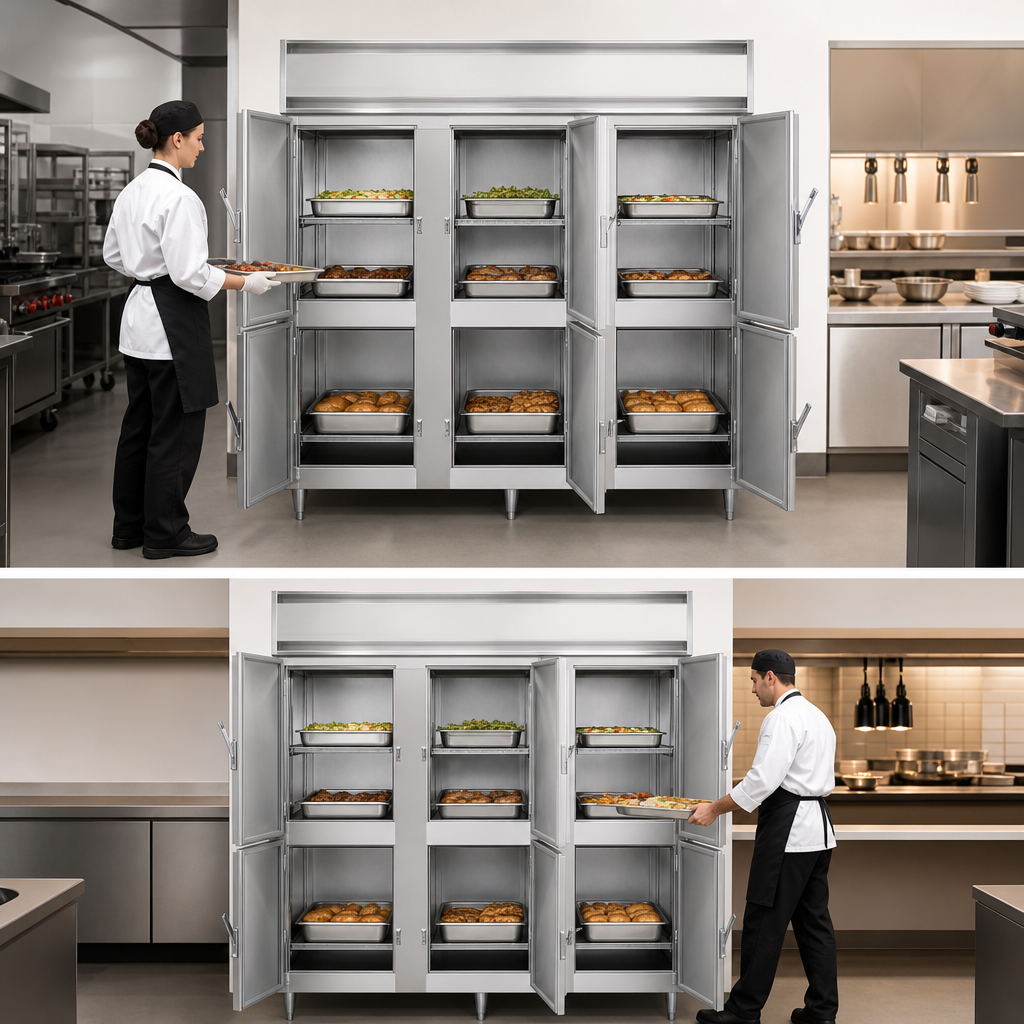

  • Pass-thru design speeds plating & service with full access from both sides.
  • Electronic control with digital temperature display & hi-low alarm for worry-free holding.
  • Performance-rated, self-contained heating system with circulating fan for uniform heat.
  • Stainless steel exterior & aluminum interior stand up to daily commercial abuse.
  • Six narrow half-height doors reduce heat loss and improve ergonomics.
  • 3 heavy-duty chrome shelves per section (9 total) on adjustable pilaster strips.
  • Self-closing doors with magnetic Santoprene™ gaskets and cylinder locks.
  • 3" foamed-in-place, non-CFC polyurethane insulation maximizes energy efficiency.
  • Adjustable 6" stainless steel legs (casters available).
  • Certified cETLus & NSF for electrical & sanitation compliance.

Specifications

Capacity 72 cu. ft. / 2039 L

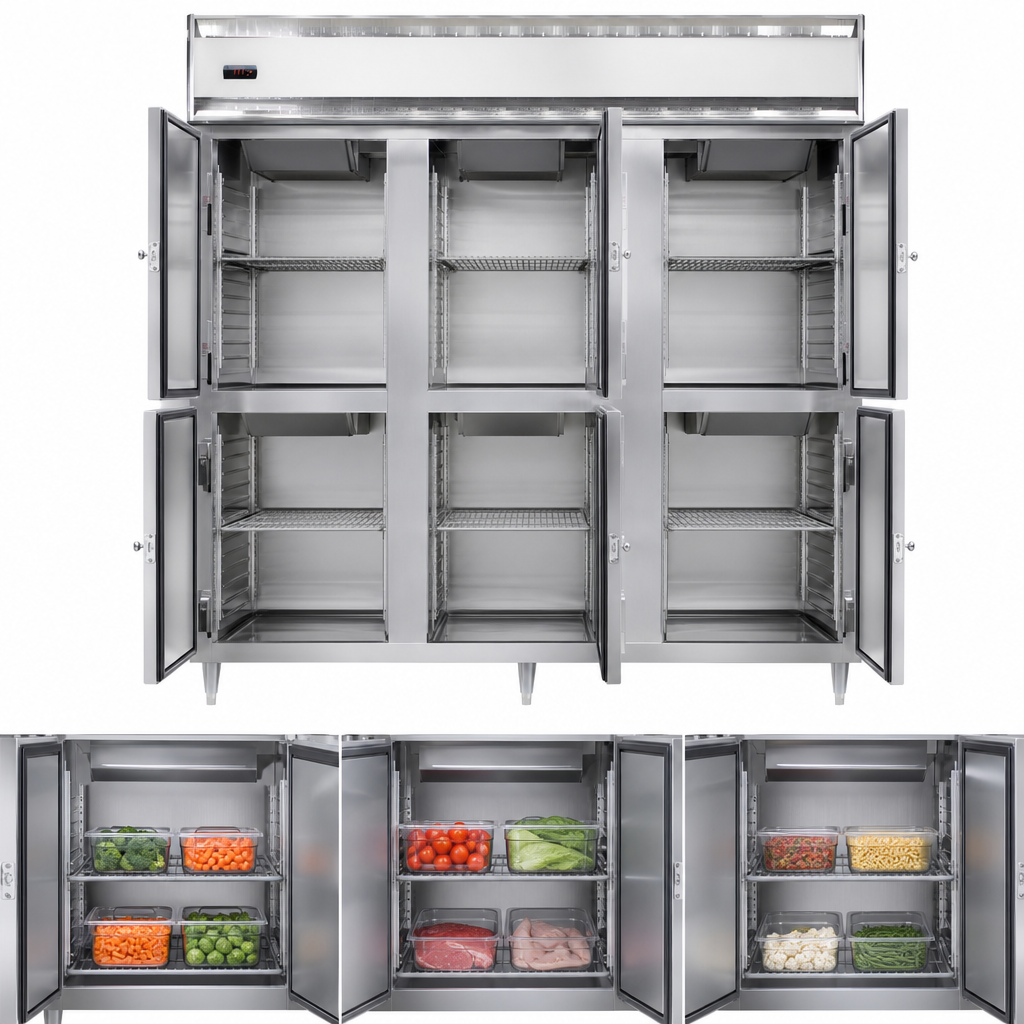

Sections / Doors 3 sections  |  6 half-height doors (pass-thru)
Shelves Supplied 9 chrome-plated shelves (3 per section)
Temperature Range 90°F – 180°F (32°C – 82°C)
Exterior Construction Stainless steel front, sides & top
Interior Construction Corrosion-resistant aluminum
Overall Dimensions (WxDxH) 78" x 35 3/8" x 83 1/4"
(1981 mm x 899 mm x 2115 mm)
Door Opening 19 3/8" W x 27 1/2" H (each half door)
Shelf Area 61.2 sq ft / 5.7 m2
Electrical 208-230V / 60Hz / 1-ph  |  13.9 A  |  3000 W (hard-wired)
Certifications cETLus, NSF

Popular Factory Options

  • Automatic LED interior lighting
  • Additional or stainless steel shelves
  • Pan slide assemblies
  • Casters in place of legs
  • Custom laminates & correctional-facility security packages

Contact us for lead times, pricing, or any special configuration requirements.

Installation Clearance: Provide at least 12" (305 mm) of space above the cabinet and 3" (76 mm) on the rear and sides when installing next to walls or under low ceilings.

Specifications subject to change without notice. Designer Line® is a registered trademark of Continental Refrigerator.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

78.0in

Depth

38.75in

Shipping Weight

820.0lbs

Exterior Finish

all stainless steel exterior

Size

3 section

Doors

half-size hinged solid

Depth (front - back)

standard

Interior configuration

shelves

Interior Finish

aluminum interior

Thermometer

exterior digital

Specifications

Designer Line Heated Cabinet, pass-thru, three-section, 72 cu. ft. capacity, (3) shelves per section, stainless steel exterior, aluminum interior, standard depth cabinet, narrow half-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
