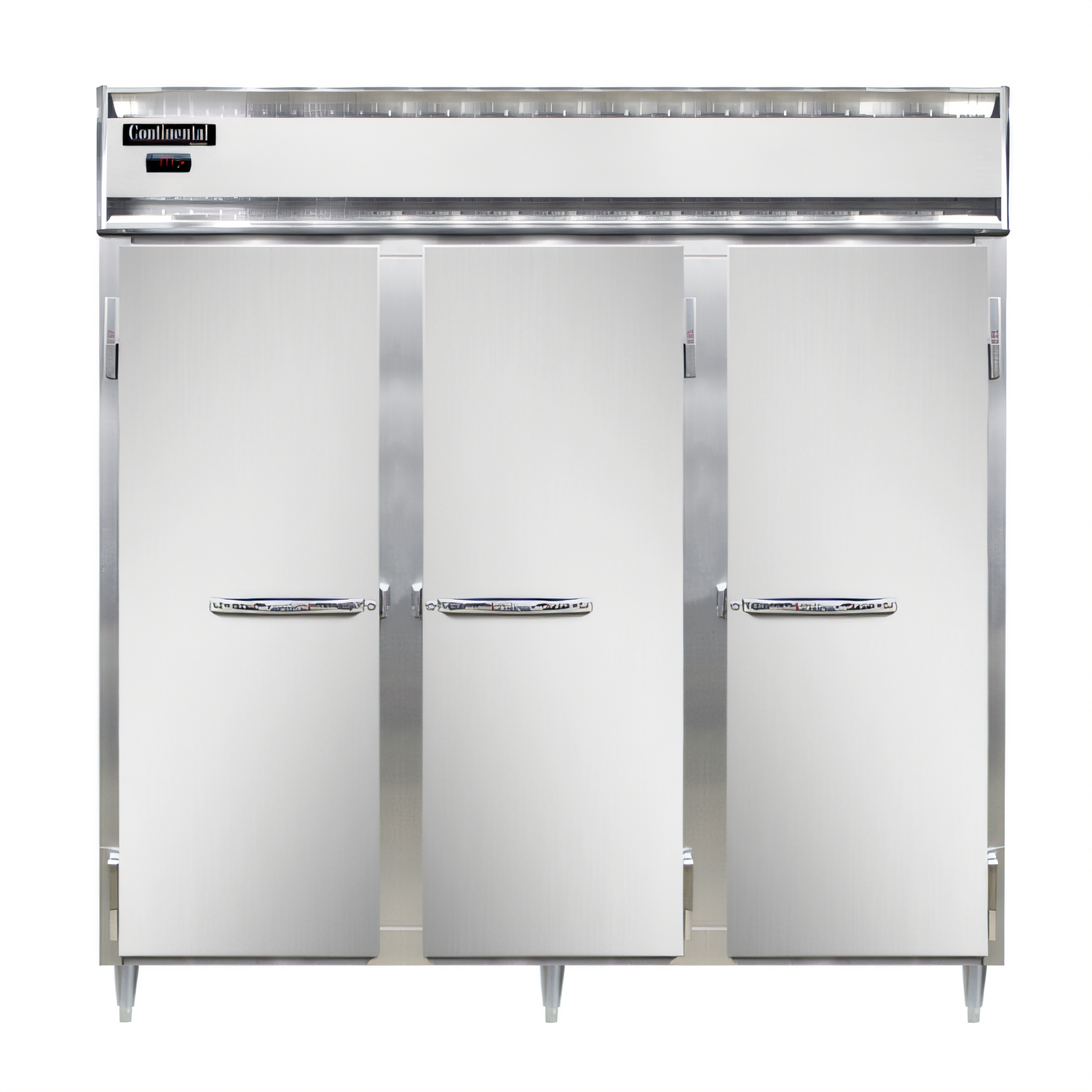

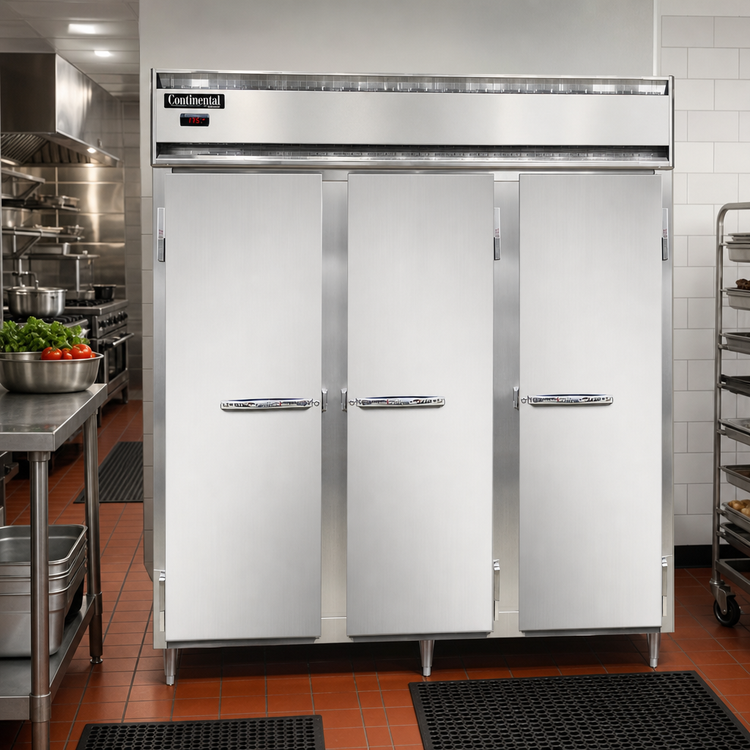

Continental Refrigerator Designer Line DL3W-SA-PT 3-Section Pass-Thru Heated Holding Cabinet
Continental Refrigerator Designer Line DL3W-SA-PT 3-Section Pass-Thru Heated Holding Cabinet
72 cu. ft., Stainless Steel Exterior, Aluminum Interior, Standard Depth
Designed for maximum efficiency and durability, the Continental Refrigerator Designer Line DL3W-SA-PT ensures optimal food holding temperatures in a convenient pass-thru design.
- Large 72 cubic feet capacity with three sections and nine chrome plated shelves to accommodate high-volume needs.
- Pass-thru design allows for loading and unloading from either side, enhancing kitchen workflow.
- Robust stainless steel exterior and aluminum interior construction for durability and easy cleaning.
- Equipped with a self-contained, top-mounted heating system with a temperature range of 90°F to 180°F.
- Features an electronic controller with digital display and hi-low alarm for precise temperature monitoring and food safety.
- Energy-efficient 3" non-CFC polyurethane foam insulation maintains stable internal temperatures.
Overall Dimensions:
78.0"W x 38.75"D x 83.25"HProduct Weight:

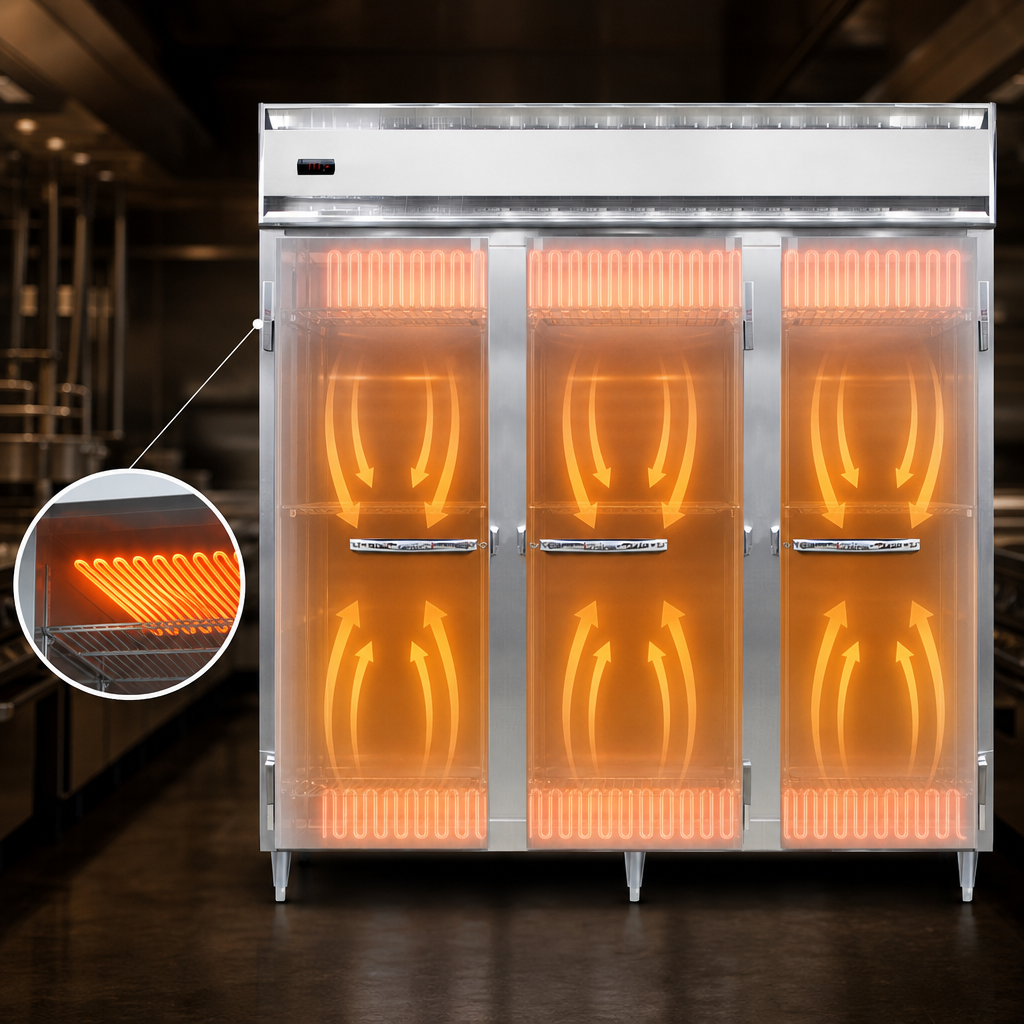

820.0 lbSelf-Contained Heating System
Performance-rated heating system with a temperature range of 90°F to 180°F, ideal for holding various hot foods.

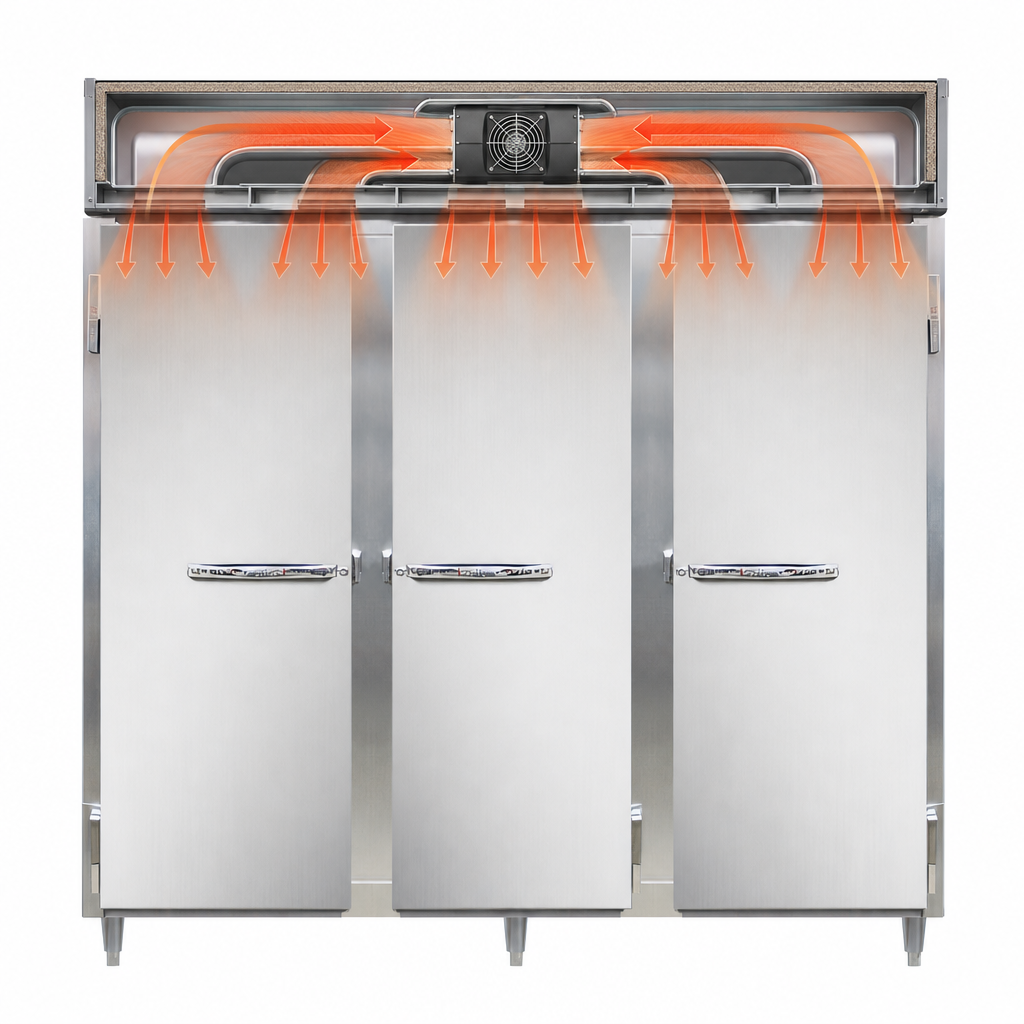

Top-Mounted Heating Plenum
Features a top-mounted heating plenum 'plug' with a circulating fan and unique air flow distribution ducts for even heat distribution throughout the cabinet.
Heavy-Duty Insulation
Constructed with 3" non-CFC polyurethane foam insulation to ensure superior temperature retention and energy efficiency.
Workflow Door Handles
Equipped with smooth, polished chrome workflow door handles for comfortable and easy operation.
Cam Action, Lift-Off Hinges
Durable cam action, lift-off hinges provide smooth door operation and allow for easy door removal for cleaning or service.
Self-Closing Doors
Self-closing doors help minimize temperature fluctuations and conserve energy by ensuring doors are always properly shut.
Magnetic Snap-In Door Gaskets
Santoprene™ magnetic snap-in door gaskets provide a positive seal and are easily replaceable for maintenance.
Cylinder Locks
A cylinder lock in each door provides added security for cabinet contents.
Heavy-Duty Shelving
Includes heavy-duty, chrome plated steel shelves with heavy-duty pilaster strips for adjustable storage configurations.
Adjustable Stainless Steel Legs
Supported by adjustable 6" stainless steel legs for leveling and easy cleaning underneath the unit.
Automatic Interior Lighting
Automatic interior lighting illuminates the cabinet for better visibility of contents.
Electronic Controller with Digital Display
Advanced electronic control system with a digital display for precise temperature management and a hi-low alarm for critical temperature alerts.
Stainless Steel Strip Heaters
Features stainless steel strip heaters located in the base of the interior for consistent heating.
Certifications & Compliance
Warranty & Protection
6 Year Parts and Labor Warranty
