Continental Refrigerator DL3W-SA-HD Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL3W-SA-HD Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL3W-SA-HD Designer Line Heated Cabinets &...
Description

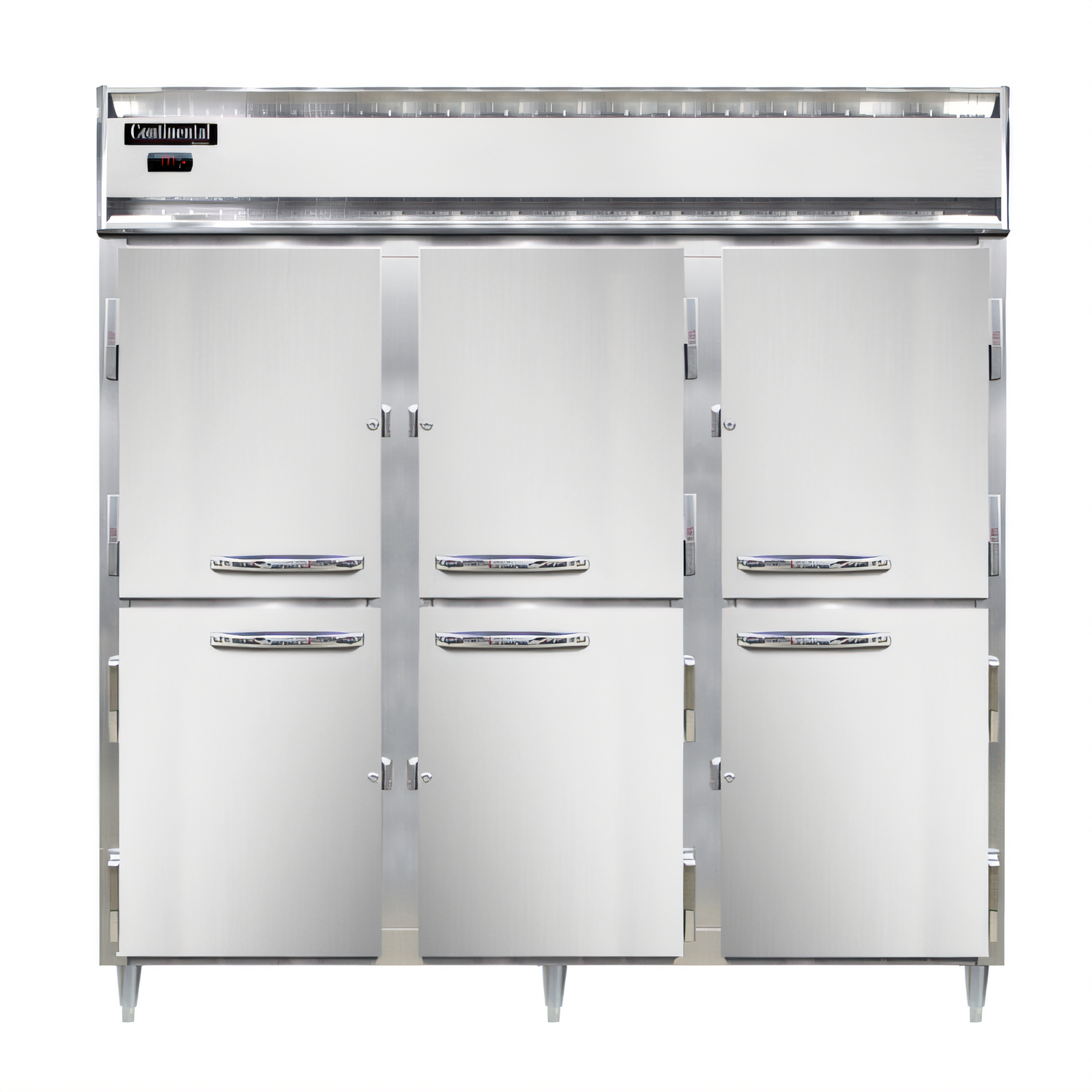

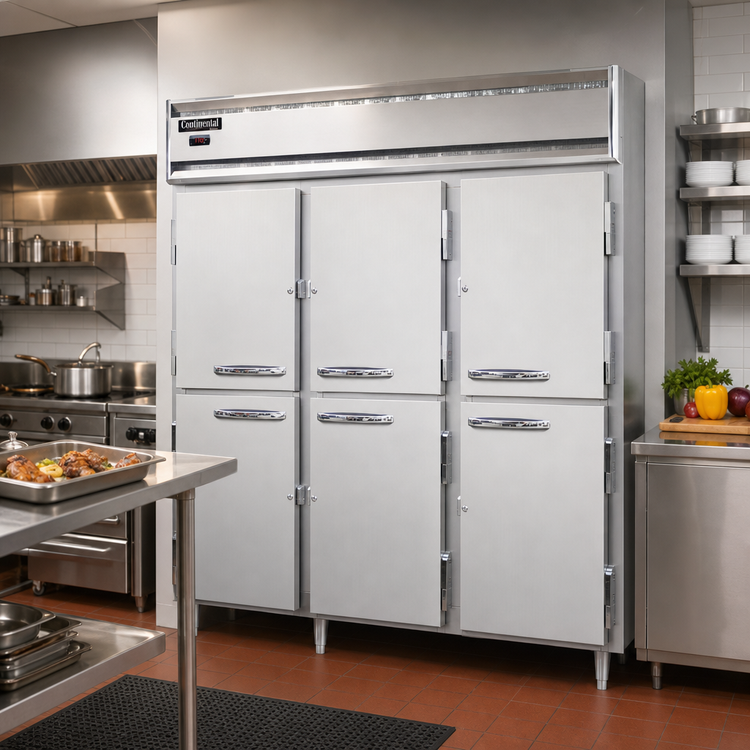

Designer Line DL3W-SA-HD Heated Cabinet
Three-section reach-in warmer • stainless steel exterior / aluminum interiorKeep plated entrées, sides, and baked goods hot, safe, and ready to serve with the Continental Refrigerator Designer Line DL3W-SA-HD. Offering 72 cu. ft. of holding capacity behind six space-saving half doors, this heavy-duty reach-in warmer pairs precise digital controls with the rugged construction chefs have trusted for decades.
Key Benefits
- 90 – 180 °F temperature range governed by a self-contained, performance-rated heating system.
- Top-mounted “plug” heating plenum with high-volume fan and exclusive air-flow ducts for even cabinet temps.

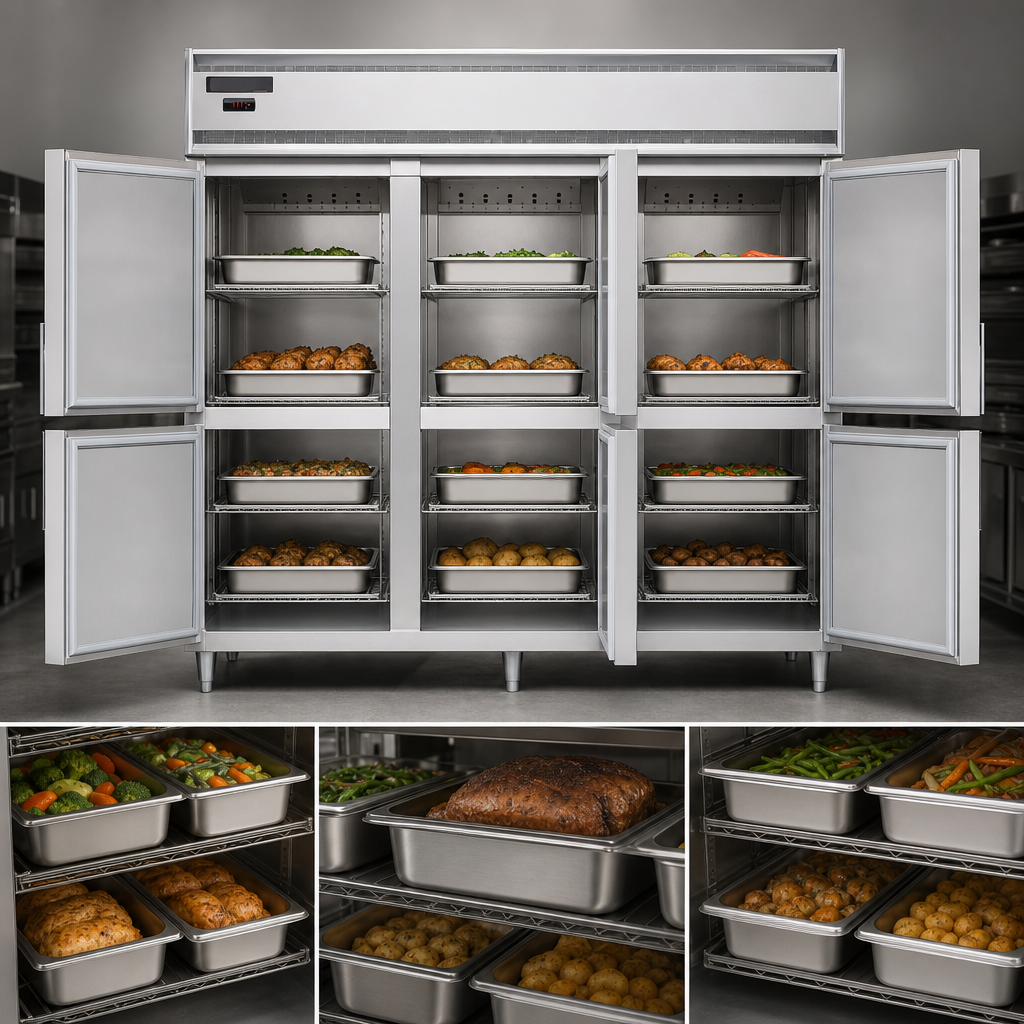

- Six narrow half-height doors minimize heat loss and speed access to individual zones.
- 3″ foamed-in-place, non-CFC polyurethane insulation maximizes energy efficiency.
- Digital controller with bright read-out plus hi/low temperature alarm for HACCP compliance.

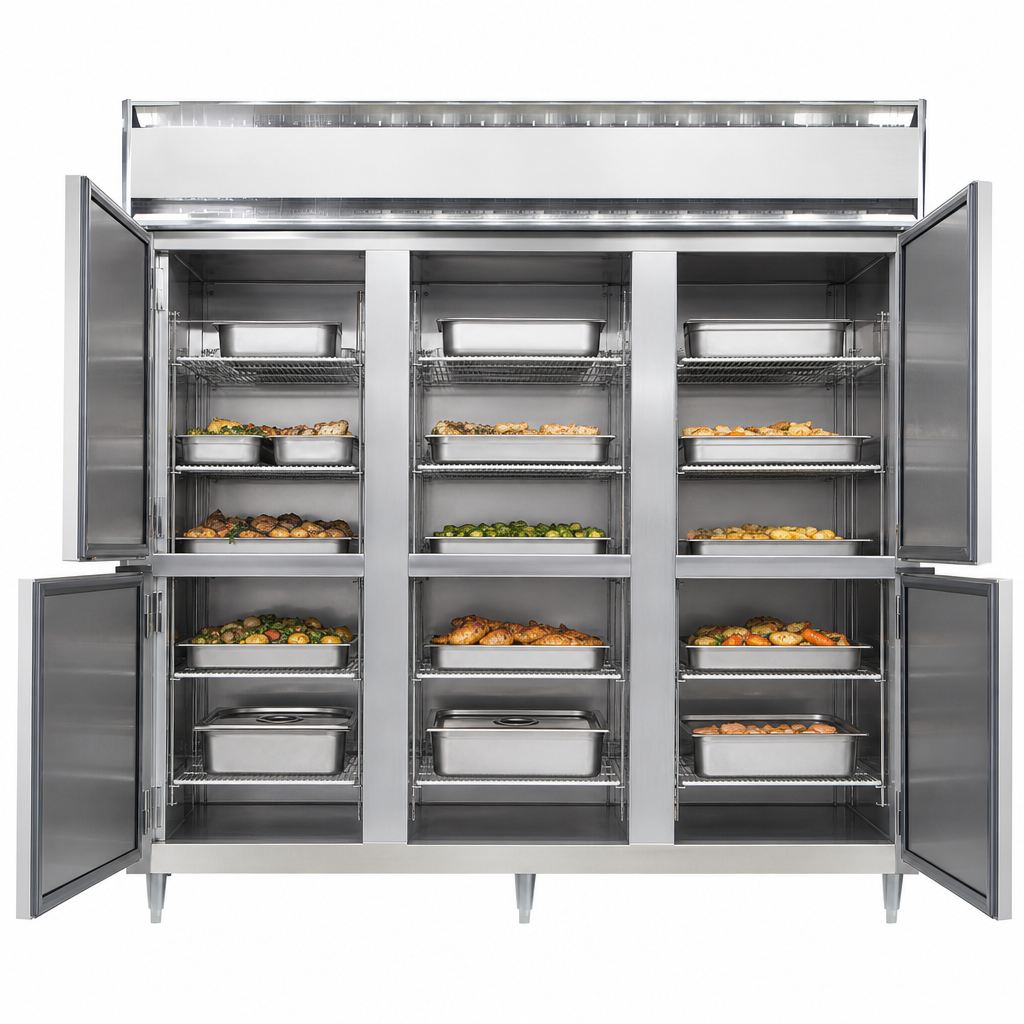

- Nine chrome-plated steel shelves (3 per section) on heavy-duty pilaster strips—easily reposition to suit pans.
- Self-closing doors with chrome workflow handles, lift-off cam hinges, magnetic Santoprene™ gaskets & cylinder locks.
- Stainless steel strip heaters in cabinet base help eliminate interior condensation.
- Adjustable 6″ stainless steel legs provide a level stance and easy cleaning access.
- cETLus listed & NSF certified for sanitation and electrical safety.
Technical Specifications
| Model | DL3W-SA-HD |
|---|---|
| Capacity | 72 cu. ft. (2039 L) |
| Sections / Doors | 3 sections / 6 half-height doors |
| Shelves Supplied | 9 chrome-plated (3 per section) |
| Shelf Area | 61.2 sq ft (5.7 m²) |
| Temperature Range | 90 °F – 180 °F (32 – 82 °C) |
| Exterior / Interior | Stainless steel / Aluminum |
| Dimensions (W × D × H) | 78″ × 35 3⁄8″ × 83 1⁄4″ (incl. 6″ legs) |
| Electrical | 208-230 V / 60 Hz / 1-phase • 13.9 A • 3 kW • 3-wire |
| Net Weight | ≈ 650 lb (295 kg) |
| Certifications | cETLus, NSF |
Popular Factory Options
- Casters for mobility
- LED interior lighting
- Additional shelves or pan-slide assemblies
- All-stainless interior upgrade (model DL3W-SS-HD)
- Correctional-facility security packages
Need a custom door swing, special laminate, or alternate electrical spec? Reach out to our food-service team for a tailored quote on the full Continental Refrigerator Designer Line portfolio.
