Description

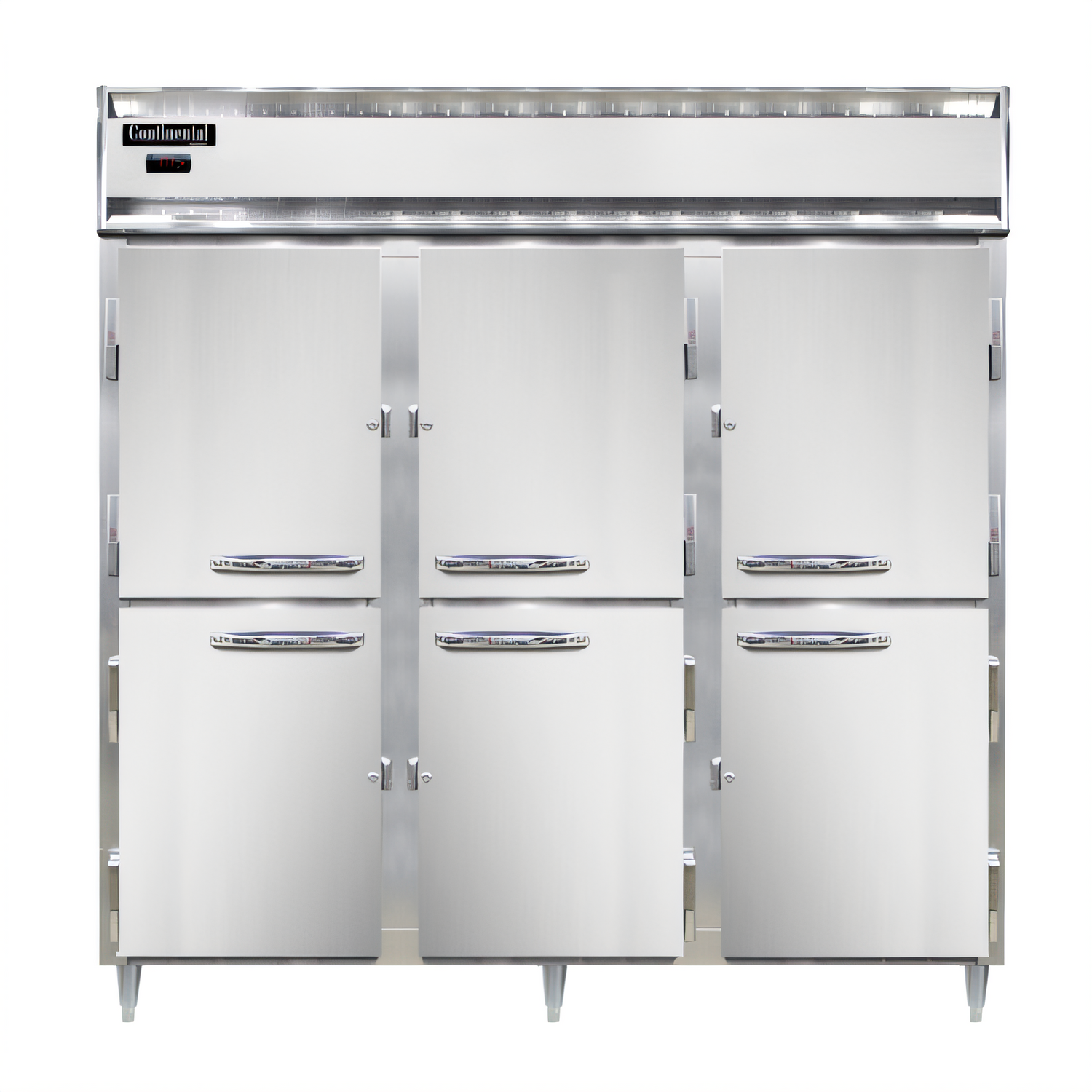

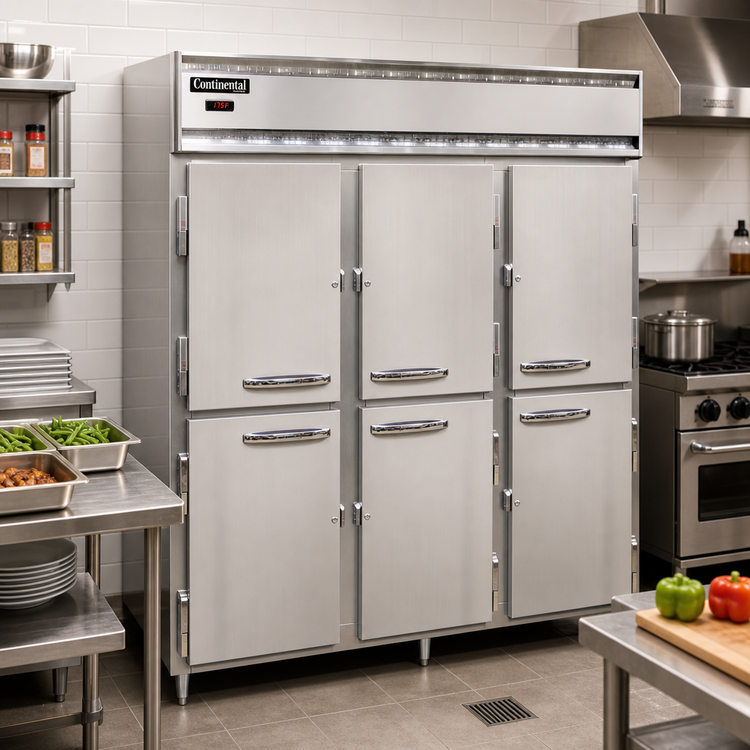

Designer Line DL3W-PT-HD Pass-Thru Heated Cabinet
3-section • 72 cu. ft. • narrow half-height doorsMove plated meals, proofed dough, or banquet pans seamlessly from kitchen to serving line. Continental Refrigerator’s Designer Line pass-thru warmer delivers tight, even heat from 90 °F – 180 °F, rock-solid construction, and the workflow-boosting convenience only a true pass-thru design can provide.
Why You’ll Love It
- Self-contained, top-mounted heating plenum with high-volume circulating fan for fast recovery and uniform cabinet temps.
- Electronic controller with bright digital display & Hi-Low alarm—know your holding temperature at a glance.
- Six narrow half-height doors (three per side) minimize heat loss and maximize aisle clearance.

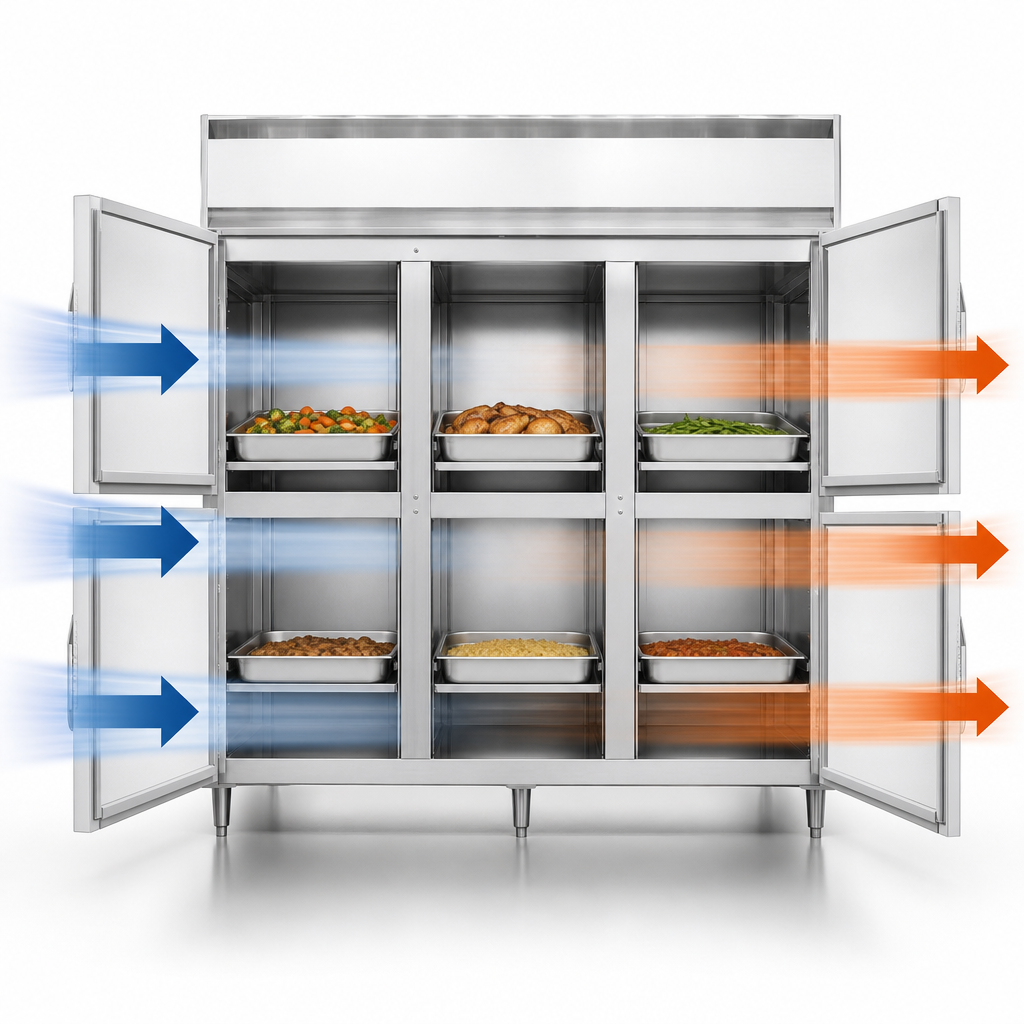

- Pass-thru configuration keeps production & service areas separated yet fully connected.

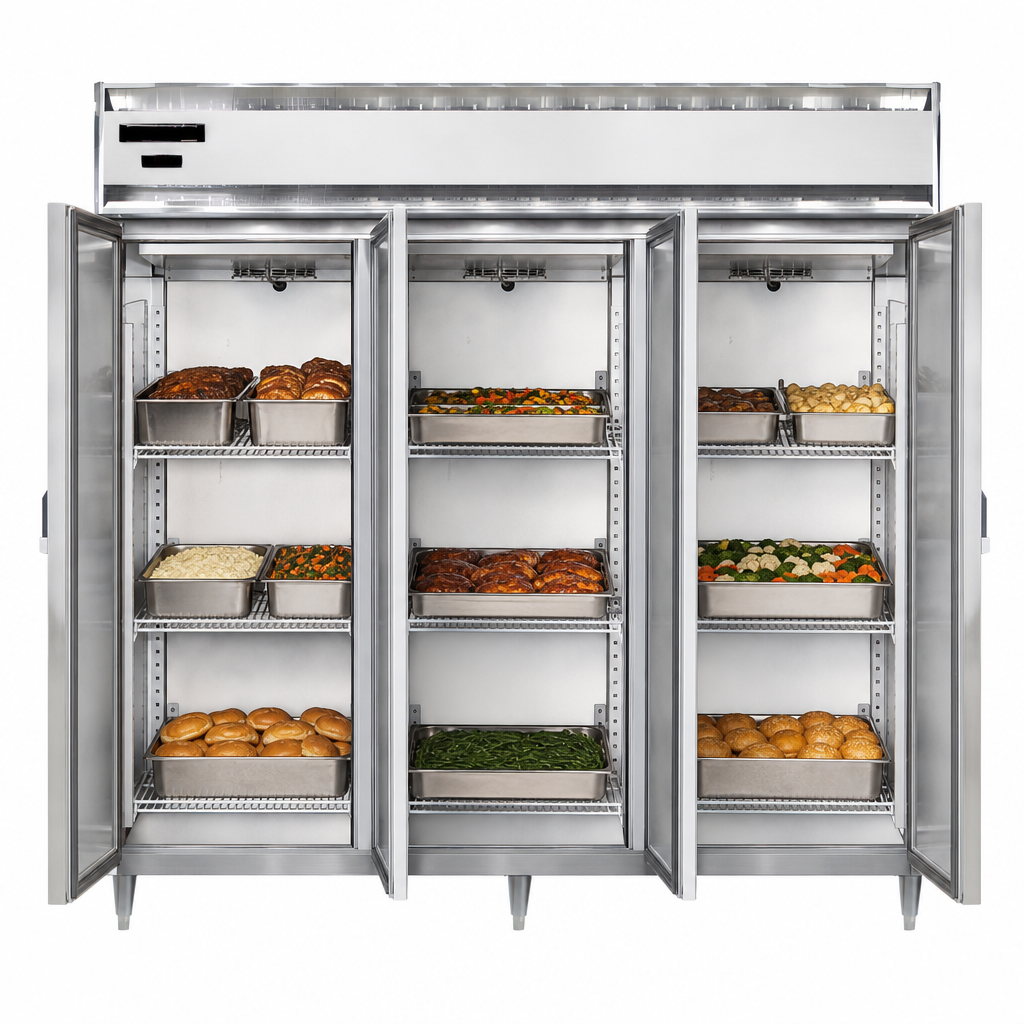

- Three heavy-duty chrome shelves per section (9 total) on rugged pilaster strips—no tools needed to reposition.
- Field-adjustable 6 in. stainless steel legs for easy floor cleaning and leveling.
- cETLus & NSF listed; proudly designed & assembled in the USA.
Built to Work as Hard as You Do
- Stainless steel front & doors with aluminum interior and end panels—tough, lightweight, and corrosion-resistant.
- 3 in. foamed-in-place, Non-CFC polyurethane insulation locks heat inside while cutting energy use.
- Smooth, polished chrome workflow handles plus cam-lift, lift-off hinges for effortless door removal.
- Self-closing doors with magnetic Santoprene™ gaskets and individual cylinder locks.
- Stainless steel strip heaters in cabinet base prevent cold floors from sapping heat.
Specifications
| Capacity | 72 cu. ft. (2039 L) |
|---|---|
| Sections / Doors | 3 sections / 6 narrow half-height doors (pass-thru) |
| Included Shelves | 9 chrome-plated shelves (3 per section) |
| Temperature Range | 90 °F – 180 °F |
| Exterior Dimensions (W × D × H) | 78 in. × 35 3⁄8 in. (inc. handles) × 83 1⁄4 in. (1981 × 899 × 2115 mm) |
| Door Opening | 19 3⁄8 in. W × 27 1⁄2 in. H (492 × 699 mm) |
| Shelf Area | 61.2 sq ft (5.7 m²) |
| Electrical | 208–230 V / 60 Hz / 1 φ, 13.9 A, 3000 W, 3-wire (no cord/plug supplied) |
| Shipping Weight | 650 lb (295 kg) |
| Certifications | cETLus, NSF |
Popular Factory Options (contact us for lead times)
- Automatic interior LED lighting
- Additional or stainless steel shelves
- Pan or tray-slide assemblies
- Casters in place of legs
- Custom laminates & correctional-grade security packages
Specifications are subject to change without notice. Always refer to the serial tag & wiring diagram before installation.
