Continental Refrigerator  |  Designer Line  |  SKU: DL3W

Continental Refrigerator DL3W Designer Line Heated Cabinets & Holding Shelves

$15,470.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty Map policy Installation & operation
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Designer Line DL3W Reach-In Heated Cabinet – 72 cu. ft.

Three-Section | 90°F-180°F Holding Range | cETLus & NSF Listed

Give every plate the just-made taste it deserves. Continental Refrigerator’s Designer Line DL3W keeps cooked foods at precise serving temperatures while its sleek profile and durable construction stand up to the busiest commercial kitchens.

Key Features

  • Spacious 72 cu. ft. interior divided into three independently sealed sections.
  • Performance-rated, self-contained heating system maintains 90°F-180°F.

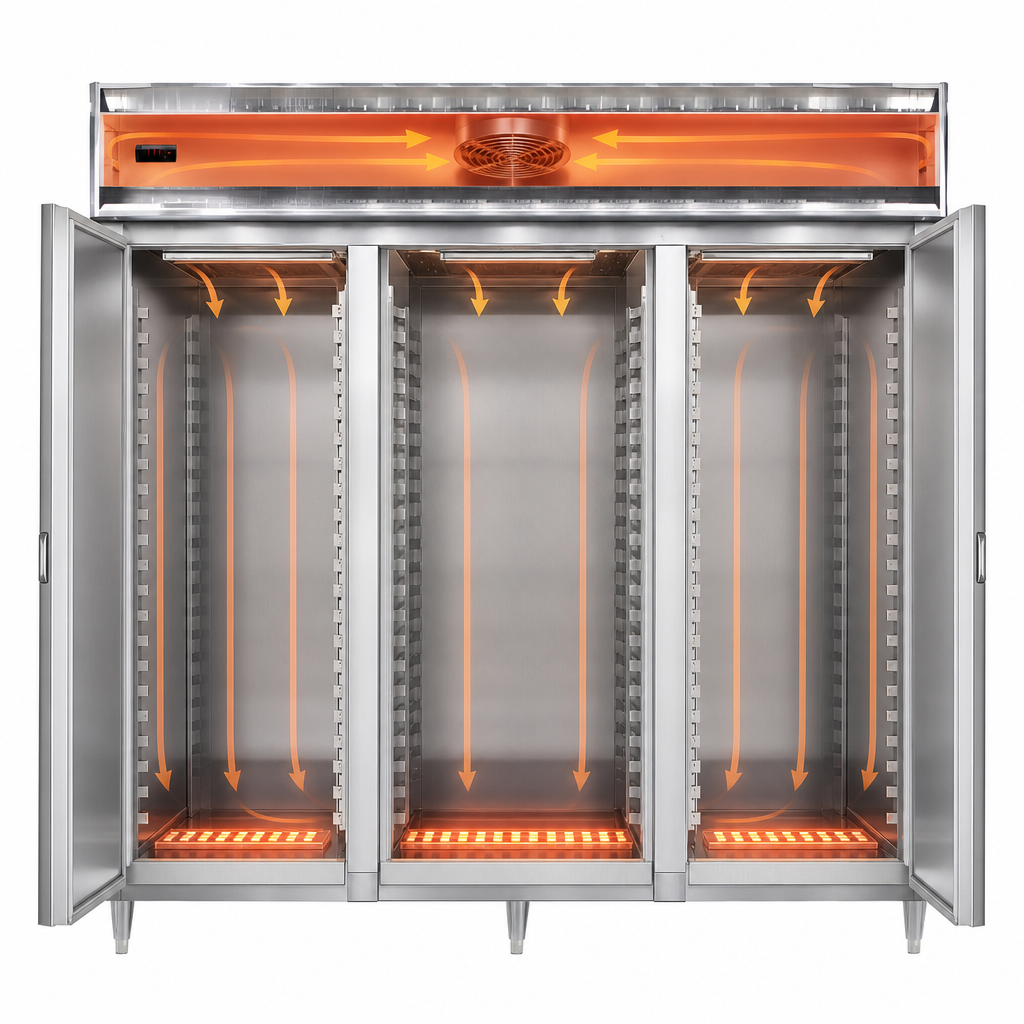

  • Top-mounted plenum “plug” & fan deliver even, rapid heat recovery.
  • All-digital microprocessor with LED display, set-point memory, and hi-low temp alarm.

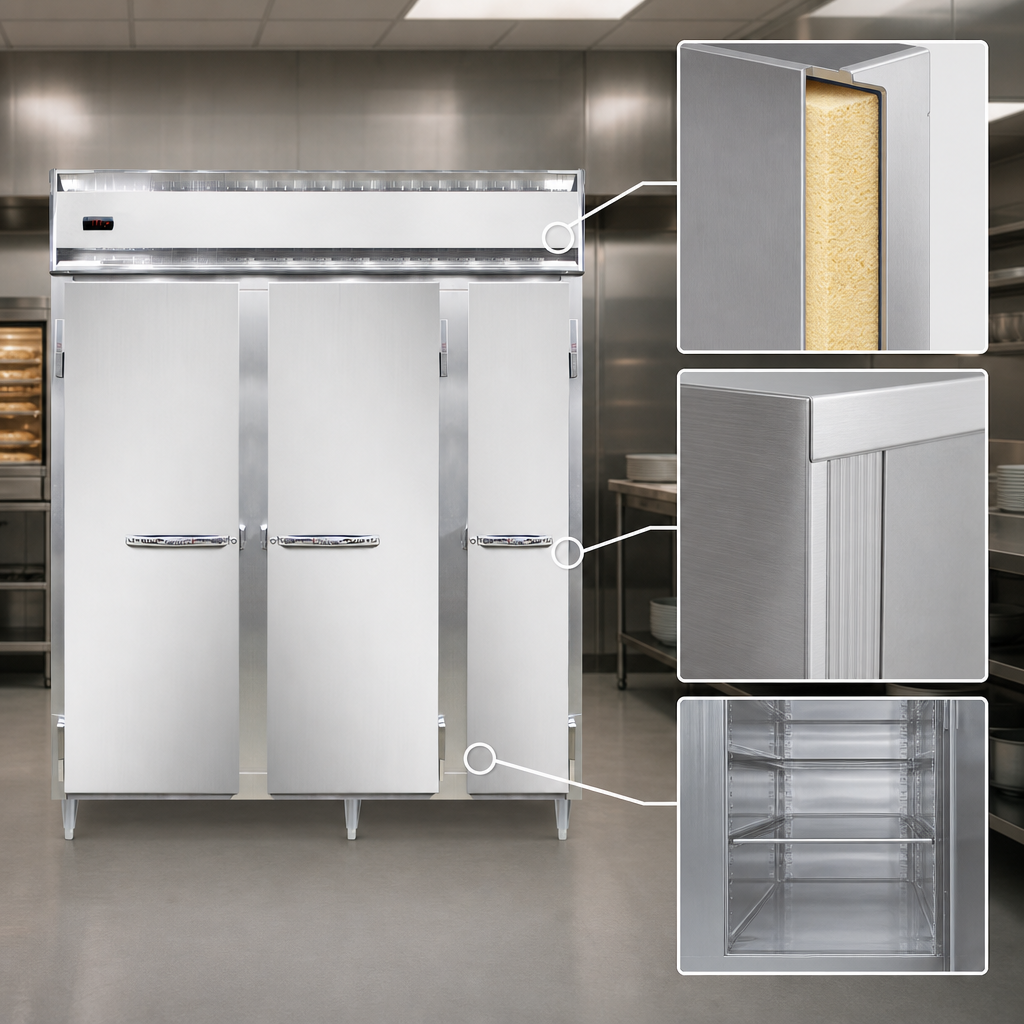

  • Stainless steel front & doors with aluminum sides and interior—built to last and easy to clean.
  • Narrow, full-height self-closing doors on cam-lift hinges with magnetic Santoprene™ gaskets & door locks.
  • Automatic LED interior lighting plus 9 heavy-duty chrome shelves (adjustable; 3 per section).
  • 3" foamed-in-place, zero-CFC insulation for superior heat retention and energy savings.
  • Adjustable 6" stainless steel legs for effortless leveling and floor sanitation.

At-a-Glance Specs

Model DL3W (Designer Line)
Capacity 72 cu. ft. / 2039 L
Sections / Doors 3 sections / 3 narrow full-height doors
Temperature Range 90°F – 180°F
Shelves 9 chrome-plated steel, adjustable
Shelf Area 61.2 sq. ft. (5.7 m²)
Exterior Finish Stainless steel front; aluminum ends & back
Interior Finish Embossed aluminum with stainless strip heaters in base
Insulation 3" non-CFC polyurethane foam

Dimensions

Width (overall) 78" / 1981 mm
Depth (overall incl. handles) 35 3⁄8" / 899 mm
Depth (doors open 90°) 55 1⁄2" / 1410 mm
Height (overall incl. 6" legs) 83 1⁄4" / 2115 mm
Clear Door Opening 19 3⁄8" W × 58 5⁄8" H

Electrical & Shipping

Voltage 208-230 V / 60 Hz / 1-ph
Total Amps / Wattage 13.9 A / 3,000 W
Cord & Plug Field wired (no cord supplied)
Shipping Weight Approx. 650 lb / 295 kg
Crated Dimensions 90" W × 42" D × 85 1⁄2" H
Installation Note: Provide at least 12" clearance above and 3" at the rear and sides for proper ventilation. Unit must be hard-wired by a qualified electrician.

Peace-of-Mind Warranty

Covered by Continental Refrigerator’s industry-leading 7-year parts, labor & compressor warranty when installed and maintained per manufacturer guidelines.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

78.0in

Depth

35.38in

Shipping Weight

650.0lbs

Interior Finish

aluminum interior

Size

3 section

Interior configuration

shelves

Doors

hinged solid

Exterior Finish

stainless steel & aluminum exterior

Depth

standard depth

Specifications

Designer Line Heated Cabinet, reach-in, three-section, 72 cu. ft. capacity, (3) shelves per section, aluminum exterior & interior, stainless steel front & doors, standard depth cabinet, narrow full-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
