Continental Refrigerator DL2WE-PT-HD Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL2WE-PT-HD Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL2WE-PT-HD Designer Line Heated Cabinets ...
Description

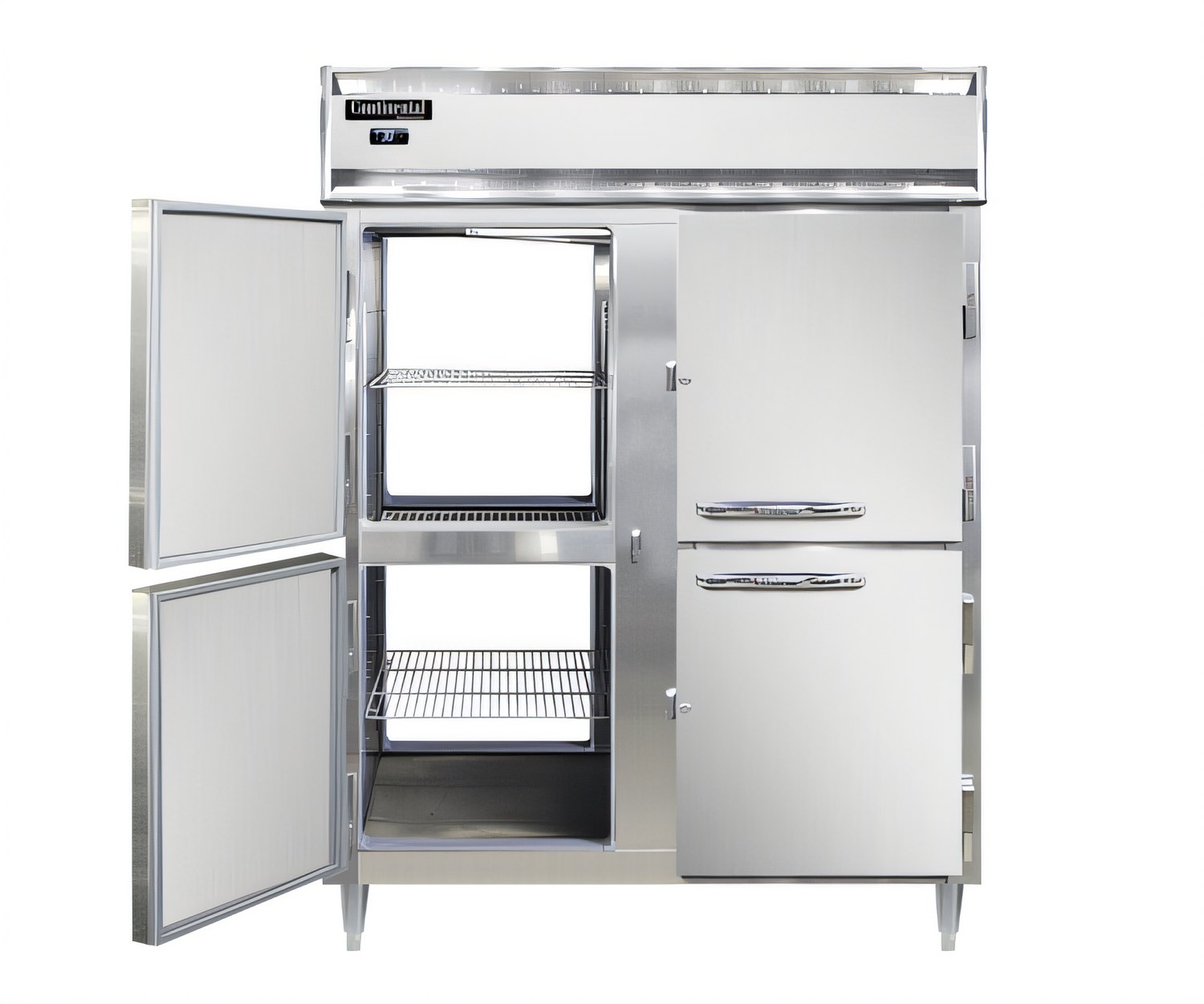

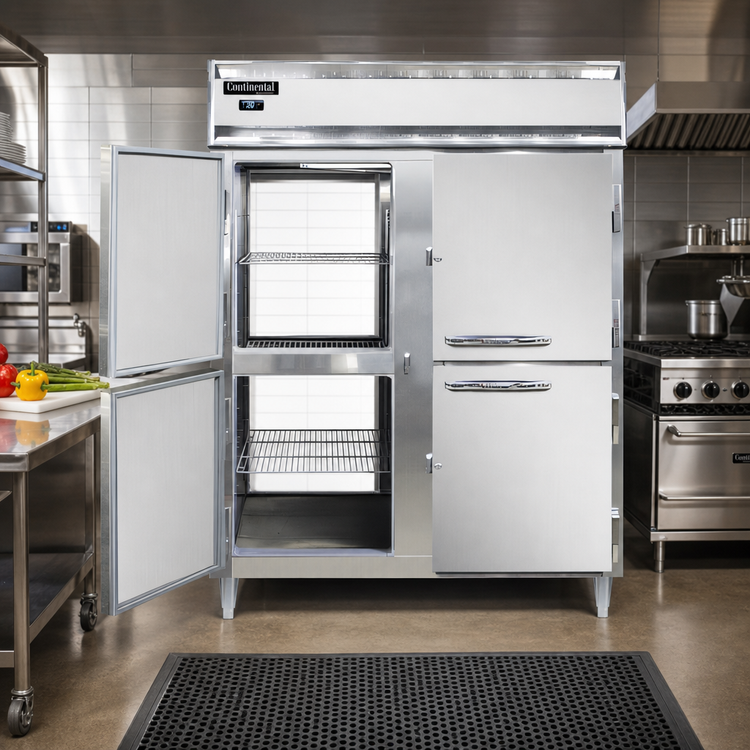

Designer Line Extra-Wide Pass-Thru Heated Cabinet – 52 cu. ft.
Model DL2WE-PT-HD | Two-section warmer with half doorsKeep entrées, sides and plated meals at perfect serving temperatures while streamlining traffic between prep and service areas. Continental Refrigerator’s Designer Line pass-thru warmer delivers rock-solid construction, even heat distribution and intuitive digital controls on both sides of the line.
Standard Features
- Self-contained, performance-rated heating system (90 °F – 180 °F)
- Top-mounted heating plenum “plug” with high-volume circulating fan
- Electronic controller with digital temperature display & hi-low alarm

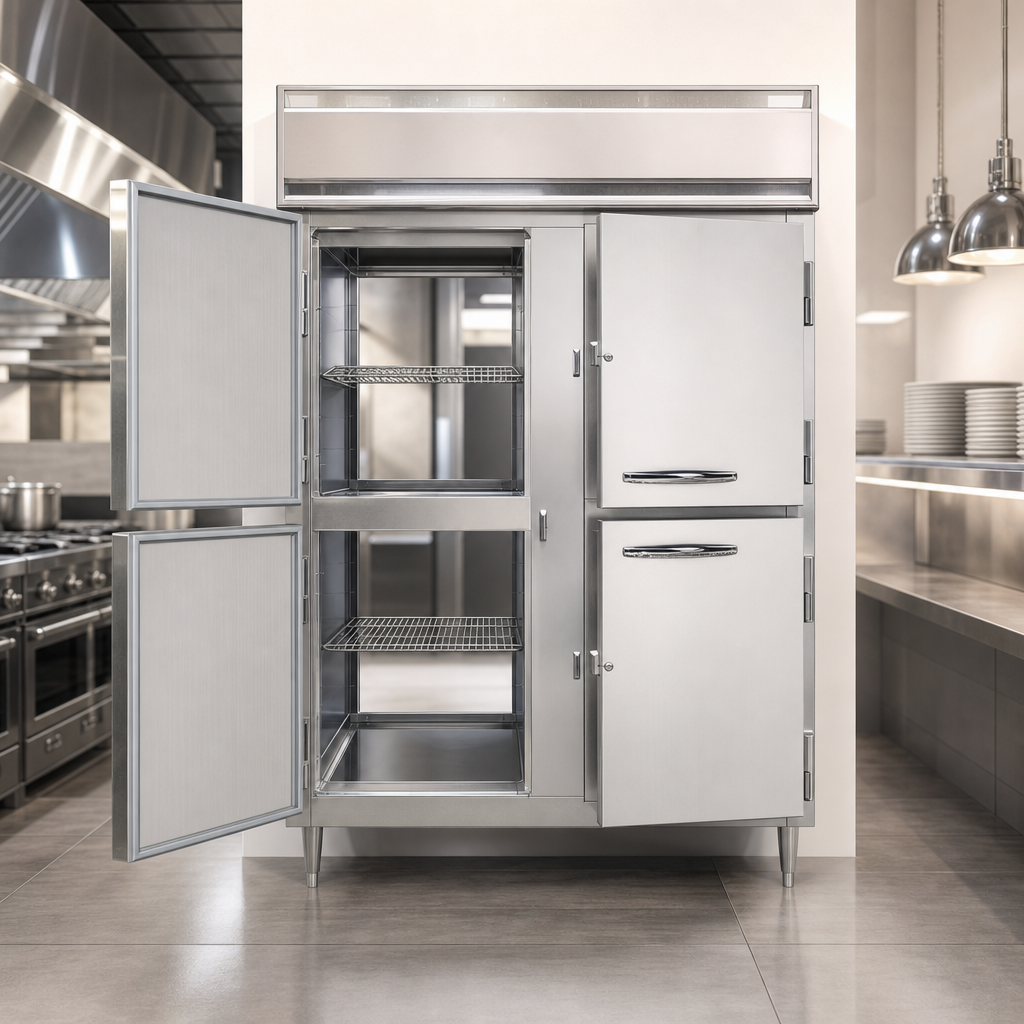

- Extra-wide 57 in. pass-thru design with 8 self-closing half doors
- Stainless steel front & doors; durable aluminum ends and interior
- 3" foamed-in-place, non-CFC polyurethane insulation
- Smooth chrome workflow handles, cam-lift hinges & cylinder locks
- (6) heavy-duty chrome-plated shelves on rugged pilaster strips
- Adjustable 6" stainless steel legs
- Magnetic Santoprene™ snap-in door gaskets for a tight seal
- Stainless steel strip heaters in cabinet base for added heat stability
- cETLus & NSF listed • Designed & assembled in the USA
At-a-Glance Specifications
| Model | DL2WE-PT-HD |
|---|---|
| Capacity | 52 cu. ft. (1472 L) |

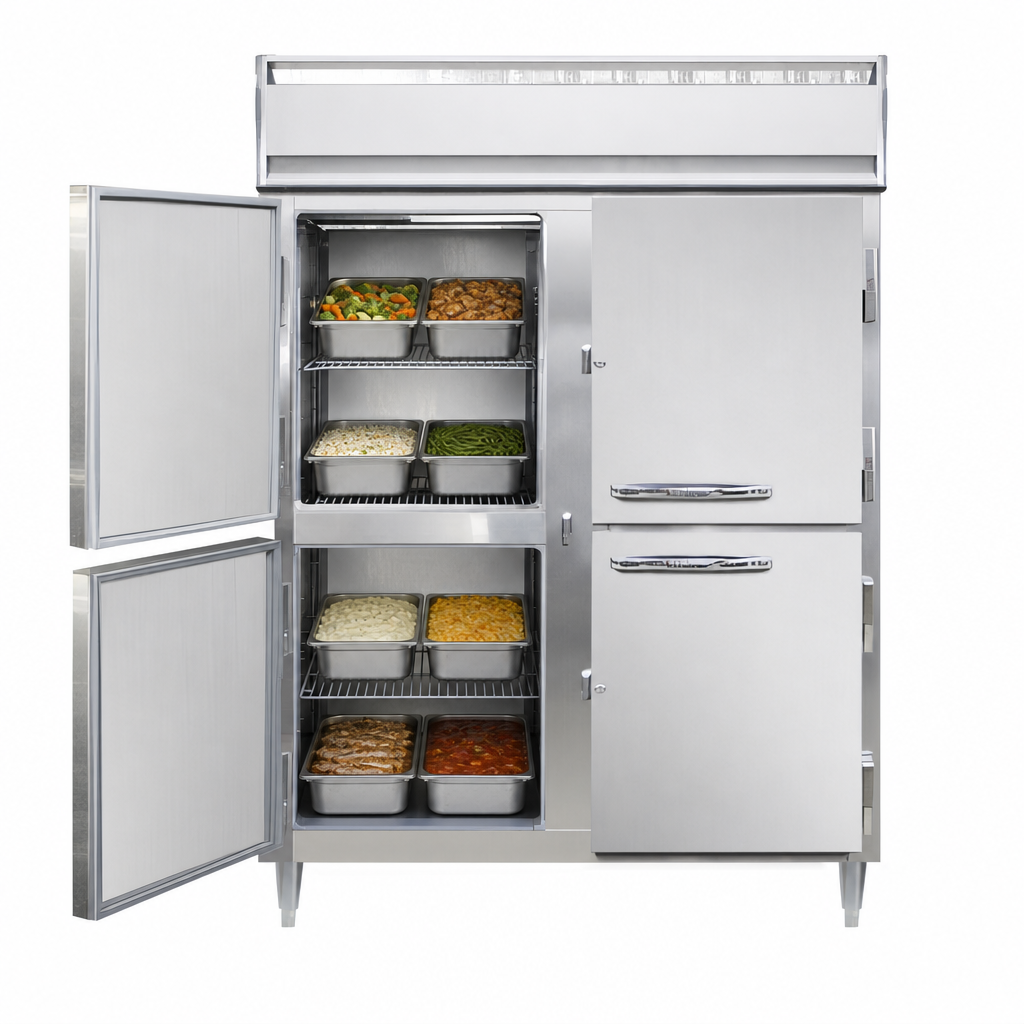

| Sections / Doors | 2 sections / 8 hinged half doors (pass-thru) |
| Shelves Supplied | 6 chrome-plated steel (3 per section) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior Dimensions | 57" W × 38 3/4" D × 83 1/4" H (with handles & 6" legs) |
| Interior Depth | 32" (doors removed) |
| Clear Door Opening | 21 7/8" W × 27 1/2" H (each half door) |
| Insulation | 3" foamed-in-place polyurethane |
| Electrical | 208–230 V / 60 Hz / 1 Ph • 10.6 A • 2250 W (field-wired; no cord/plug) |
| Shipping Weight | ≈ 590 lb (268 kg) |
| Certifications | cETLus, NSF |
Installation clearance: allow 12" on top and 3" at sides & rear when placed against walls or under low ceilings.
Popular Options & Accessories
- Automatic interior LED lighting
- Additional or stainless steel shelves
- Universal pan & tray slides
- Swivel or locking casters
- Custom laminate finishes
- Correctional-grade security packages
- Special electrical configurations or door rehanging
Looking for a different configuration? Contact us to customize a Designer Line warmer for your operation.
