Description

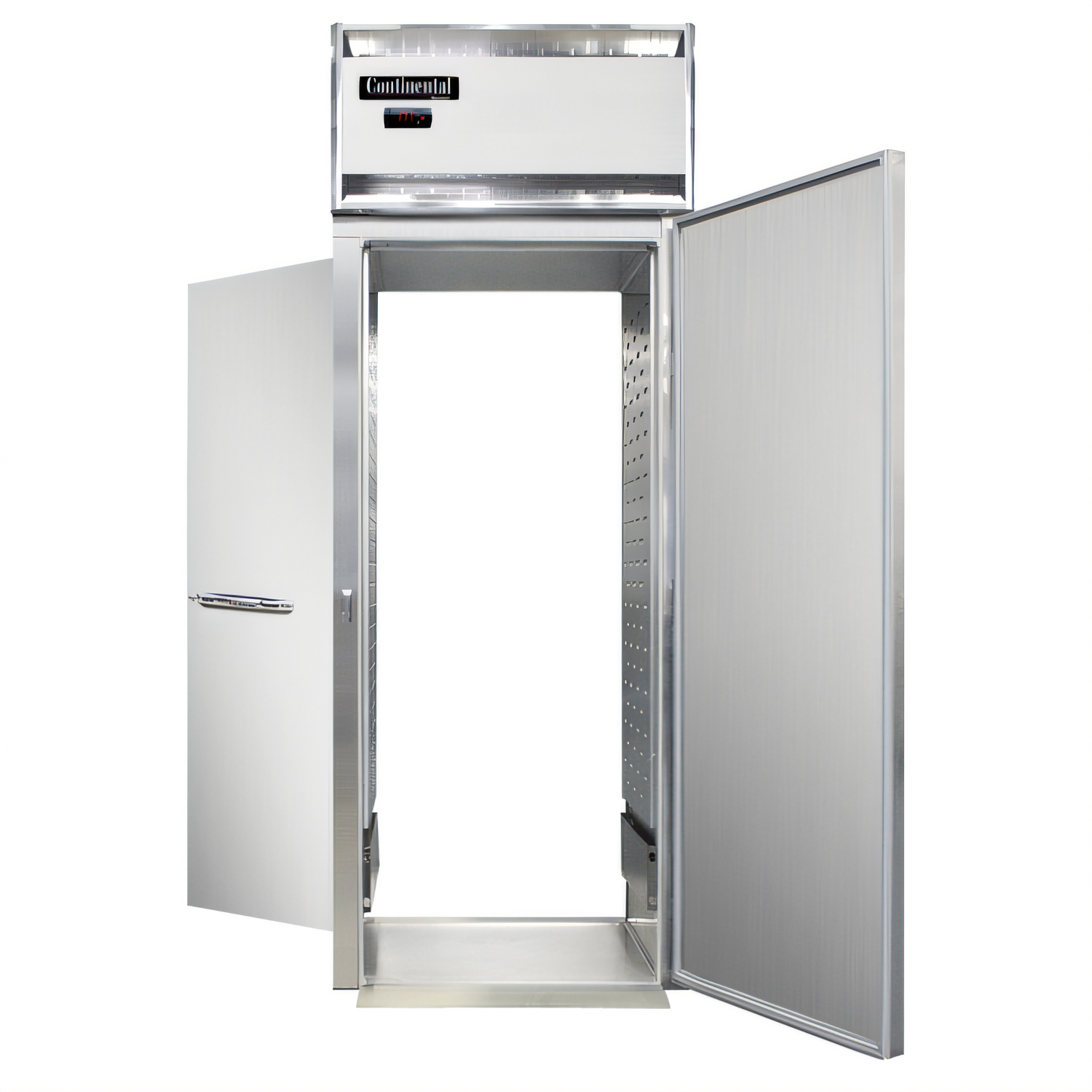

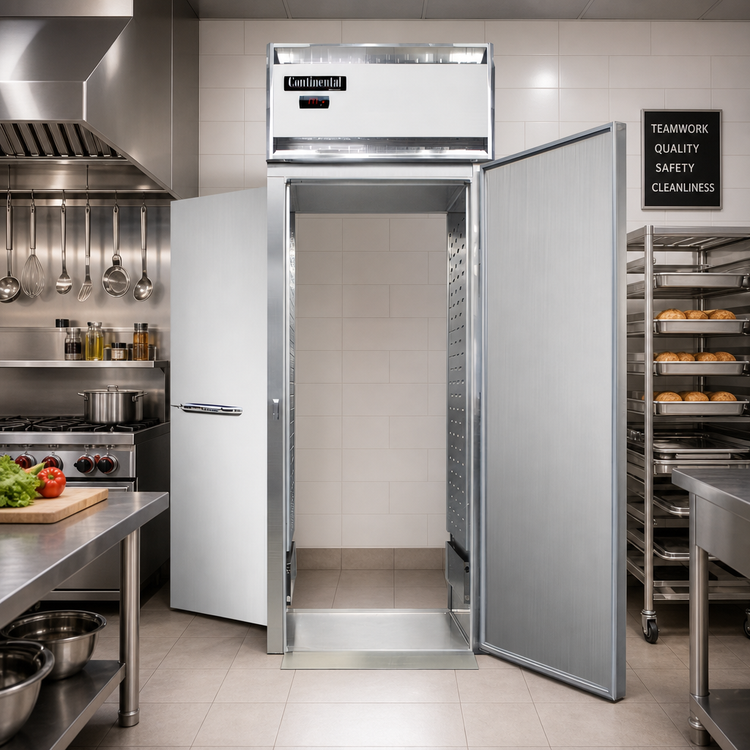

Designer Line Roll-Thru Warmer – 1 Section, Stainless Steel (Model DL1WI-SS-RT)
32 cu. ft. capacity • accepts one 66¼" pan rack • 90-180 °F holding rangeBuilt for busy institutional and commercial kitchens, the Continental Refrigerator Designer Line roll-thru warmer keeps plated meals, sheet pans, or full racks hot and ready for service while streamlining cart flow from prep to pass-through. 360° stainless-steel construction, intuitive digital controls, and an easy-service “plug” heat system deliver rock-solid performance shift after shift.
Key Features
- Self-contained, performance-rated “plug” heating system pre-settable from 90 °F – 180 °F (32 °C – 82 °C)
- Precision electronic controller with large digital temperature display and hi-/low temperature alarm

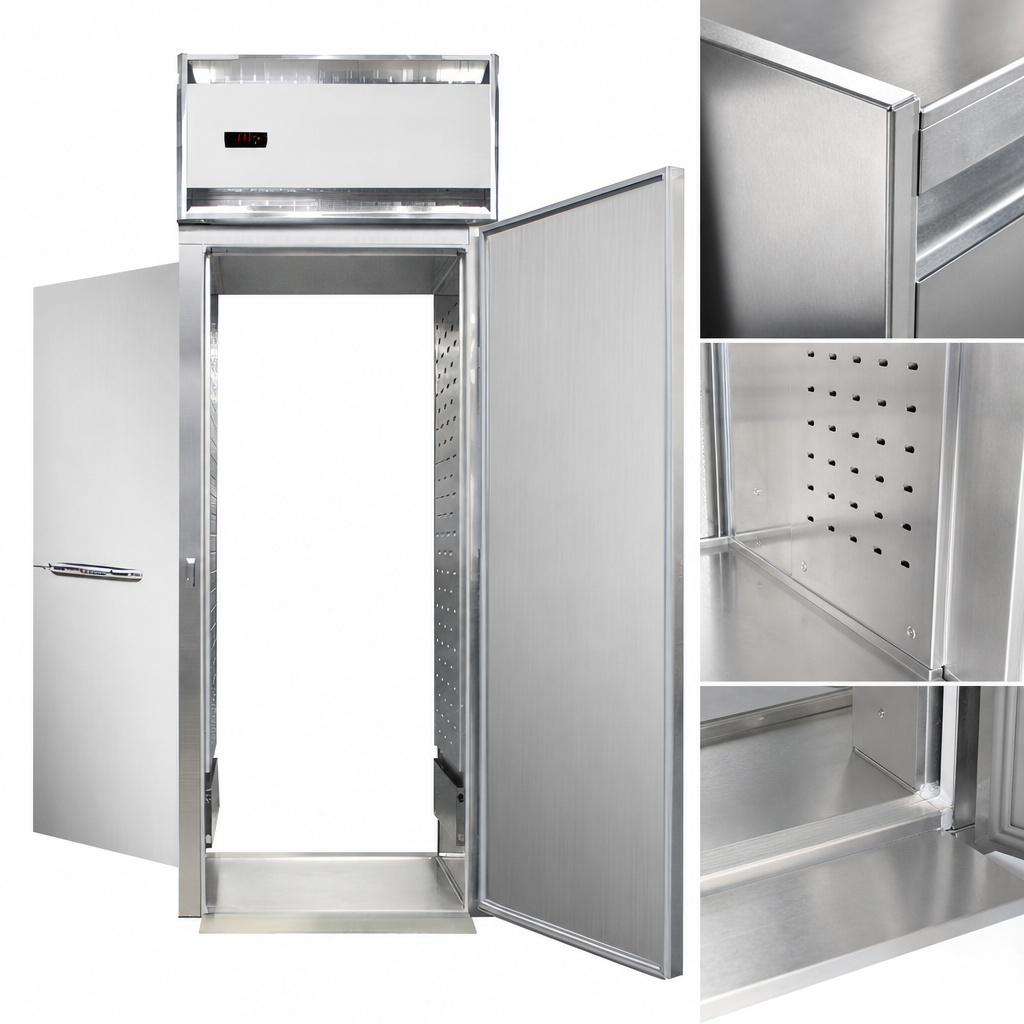

- Full stainless-steel exterior & interior for maximum durability and quick sanitation
- Roll-thru design with 66 ½" high opening — fits one standard rack up to 27" W × 29" D × 66 ¼" H (rack not included)

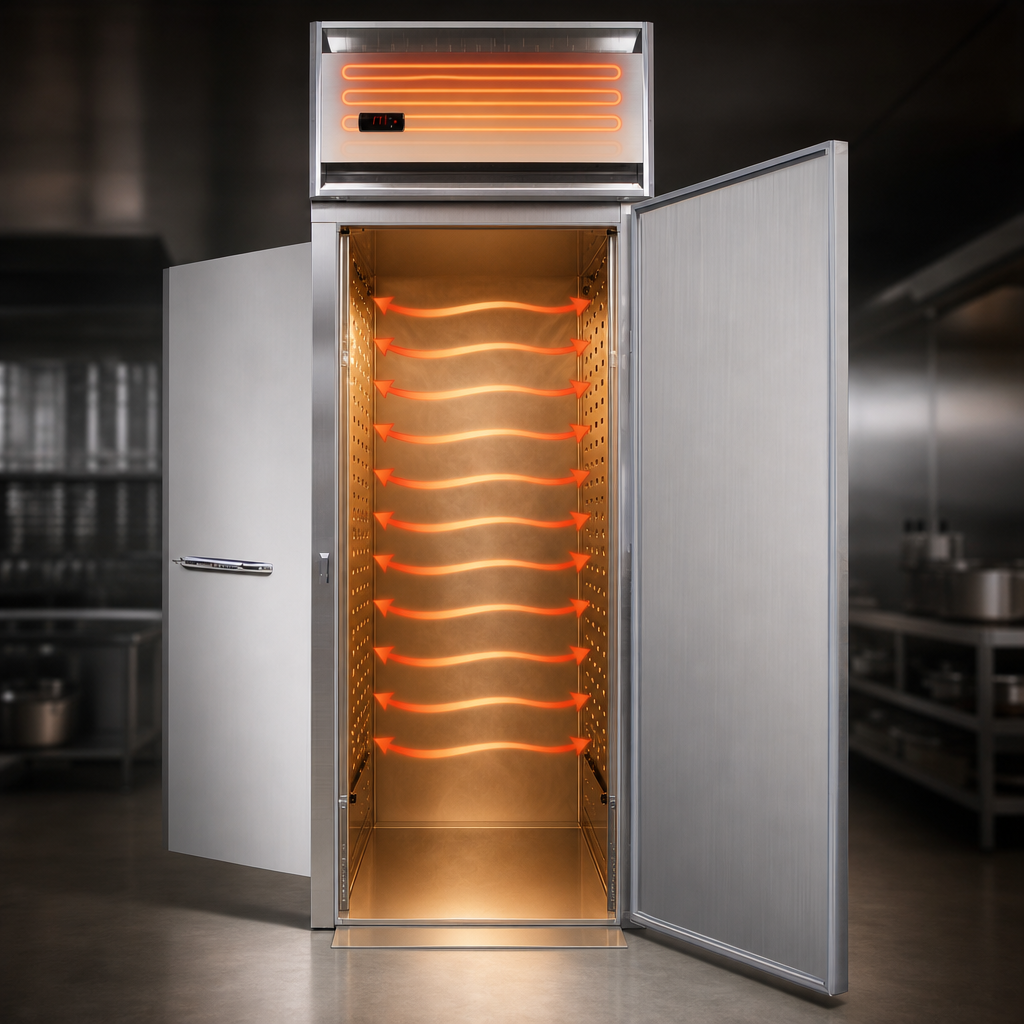

- Unique air-flow distribution ducts ensure even heat from top to bottom
- 3" foamed-in-place, non-CFC polyurethane insulation locks in heat and reduces energy use
- Pair of self-closing, full-height solid doors (front & rear) with
• polished chrome workflow handles
• cam-lift, lift-off hinges
• magnetic Santoprene™ gaskets
• keyed cylinder lock - Removable side panels and heater “plug” module for fast, tool-free service access
- cETLus & NSF listed; proudly designed and assembled in the USA
Specifications
| Capacity | 32 cu. ft. (906 L) |
|---|---|
| Rack Capacity | 1 × pan / sheet-pan rack (27" W × 29" D × 66 ¼" H max.) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior / Interior | Stainless steel / Stainless steel |
| Overall Dimensions | 35 ¼" W × 38 ¾" D × 86" H |
| Clear Door Opening | 27 ⅜" W × 66 ½" H |
| Doors | 2 full-height solid (roll-thru) |
| Insulation | 3" foamed-in-place, non-CFC polyurethane |
| Electrical | 208-230 V / 60 Hz / 1 Ø, 7.3 A, 1500 W, hard-wired (no cord & plug supplied) |
| Shipping Weight | Approx. 485 lb (220 kg) |
| Clearances | 12" top, 3" each side when installed against walls or under low ceilings |
| Certifications | cETLus, NSF |
Popular Options & Accessories (factory installed)
- Removable stainless-steel rack guides
- Removable stainless-steel ramps
- Chrome or additional stainless shelves
- Half doors
- Rehinging (left / right swing) or coverless hinges
- Correctional packages: one-way security screws, locking hasp, stainless mesh cover
- Special electrical configurations
Racks are not supplied with the cabinet. Always refer to the printed manufacturer spec sheet for complete installation, clearance, and warranty details.
