Continental Refrigerator DL1WE-SS-PT-HD Designer Line Heated Cabine...
Description

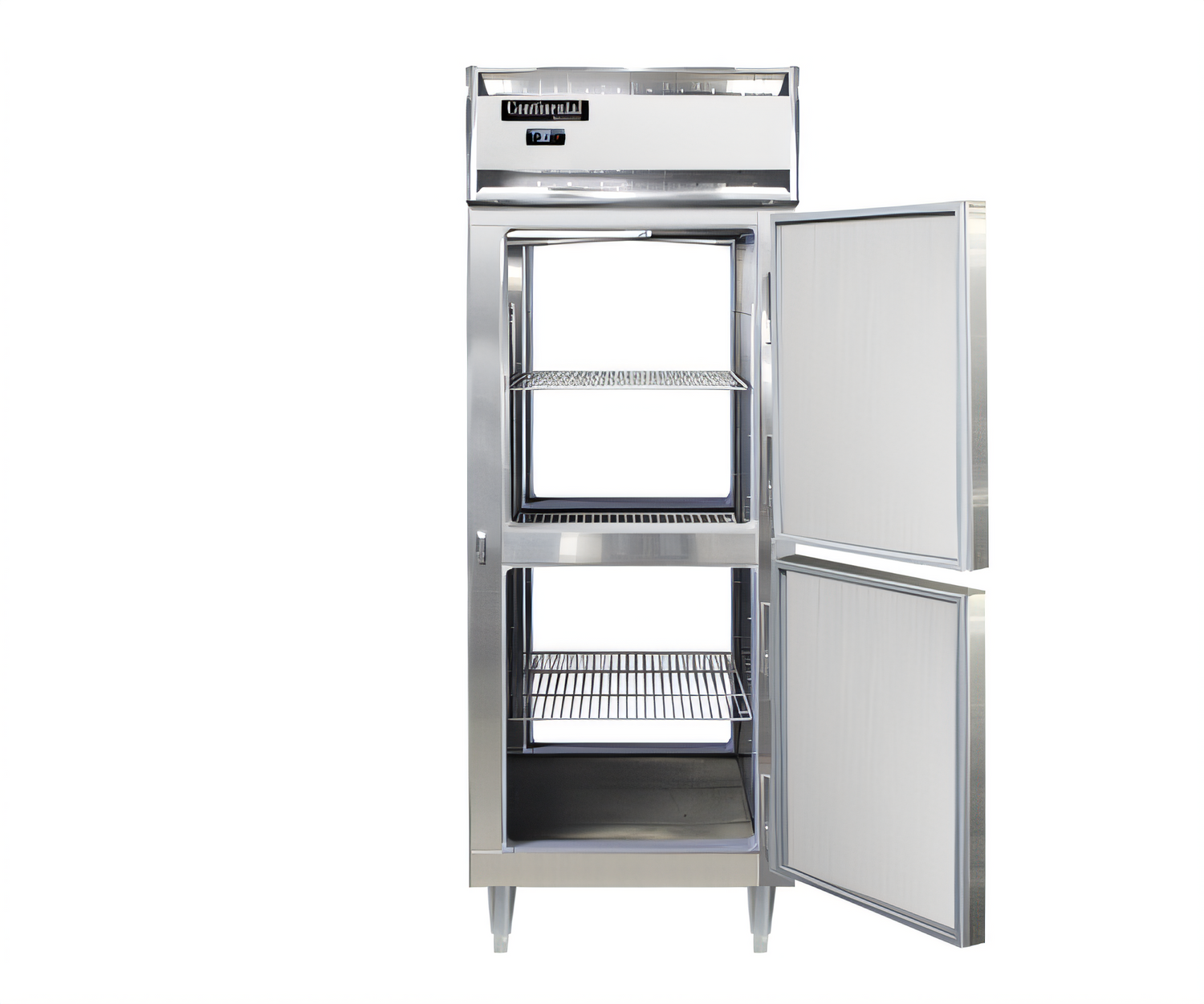

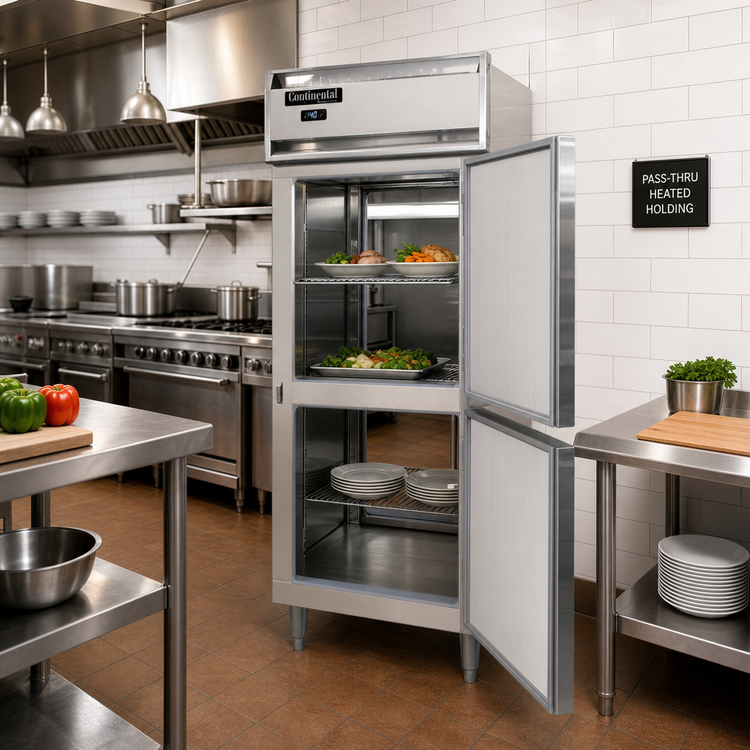

Designer Line Extra-Wide Pass-Thru Heated Cabinet – Model DL1WE-PT-HD
22 cu. ft • 1-Section • 4 Half Doors • Stainless Steel Exterior & InteriorKeep plated meals, sheet pans or hotel pans perfectly hot and ready for service with Continental Refrigerator’s premium Designer Line warmer. The DL1WE-PT-HD combines a powerful self-contained heating system with rugged all-stainless construction and true pass-thru convenience—ideal for high-volume kitchens that need seamless flow between prep and the front of house.
Top Reasons You’ll Love It
- Wide 22 cu. ft capacity holds up to 15 tray slides (9 upper / 6 lower) on three heavy-duty chrome shelves.
- 90 °F – 180 °F self-contained heating system with ceiling-mounted plenum, circulating fan, and stainless strip heaters in base for even warmth.

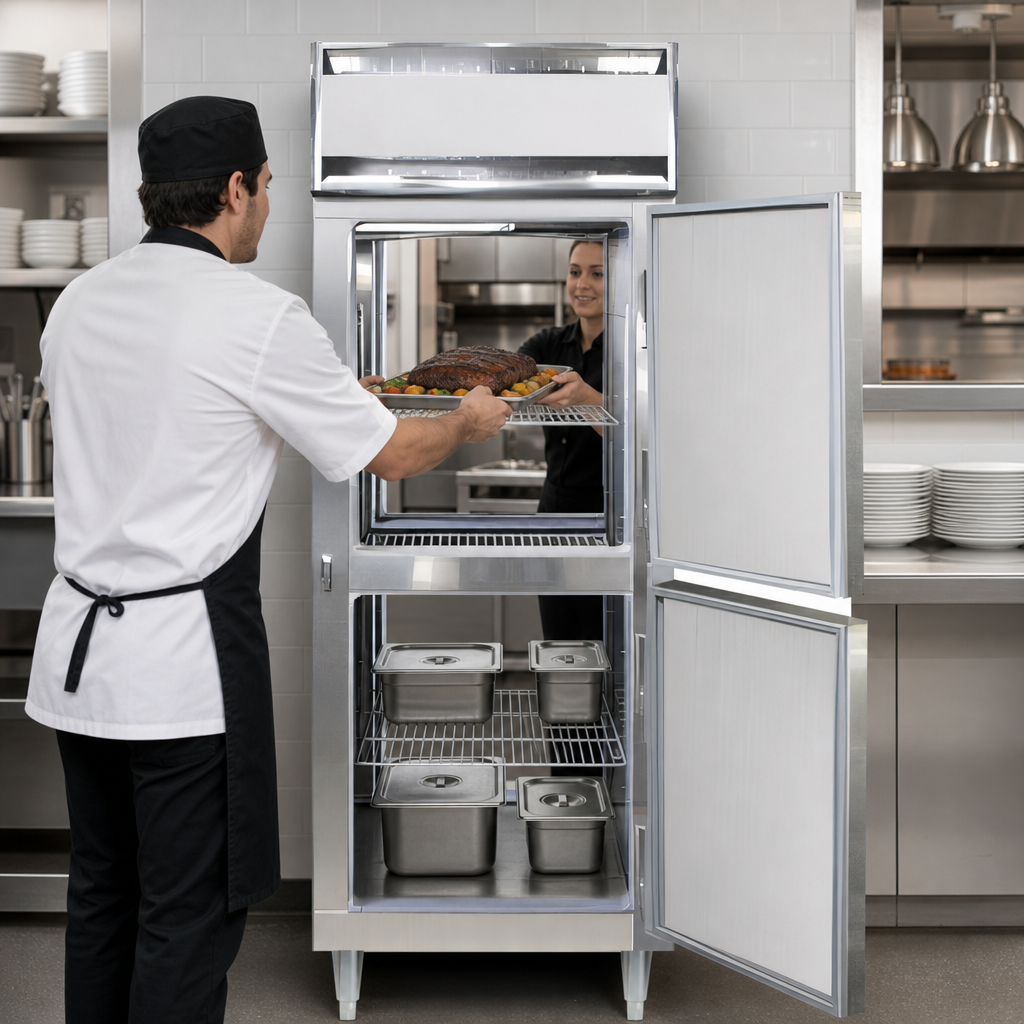

- True pass-thru design with four locking, self-closing half doors—speed up workflow while limiting heat loss.
- Electronic controller with bright digital temperature read-out plus hi-low audible/visual alarm.
- 3" thick, non-CFC polyurethane insulation locks in heat; magnetic Santoprene™ gaskets pop out for fast cleaning.
- Durable all-stainless cabinet inside & out, adjustable 6" stainless legs, and chrome workflow door handles.
- Field-proven in the USA and backed by a 7-year parts, labor & compressor warranty.
At-a-Glance Specs
| Capacity | 22 cu. ft / 623 L |
|---|---|
| Interior Temp. Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Overall Dimensions (W × D × H) | 28 1/2" × 38 3/4" × 83 1/4" (724 × 984 × 2 115 mm, incl. 6" legs) |
| Door Style | (4) Hinged half doors, front & rear pass-thru, cam-lift hinges, cylinder locks |
| Shelves (Standard) | (3) Chrome-plated steel, adjustable on pilaster strips |

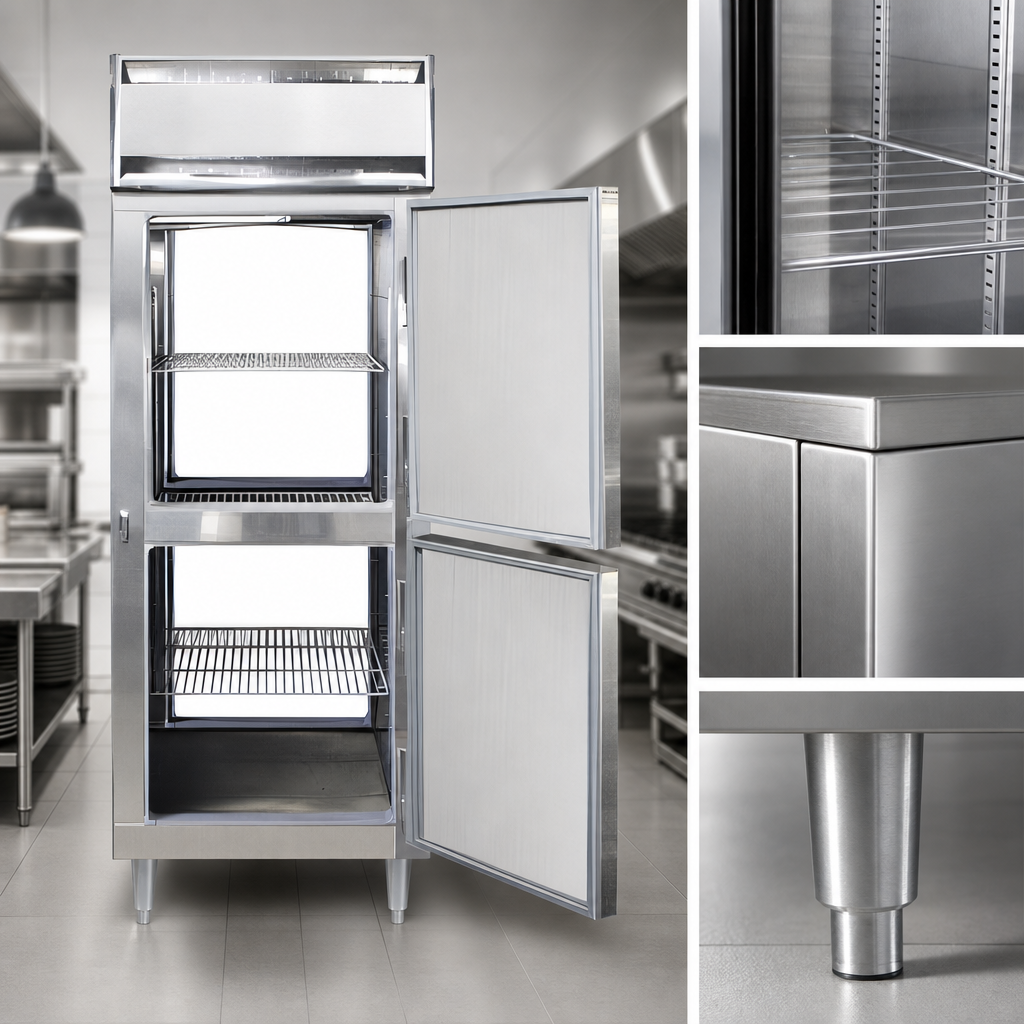

| Construction | Stainless steel exterior & interior, 3" foamed-in-place insulation |
| Electrical | 208-230 V / 60 Hz / 1-ph, 7.2 A, 1 500 W, hard-wired |
| Certifications | cETLus, NSF, Made in USA |
| Warranty | 7-Year parts, labor & compressor |
Smart Design Details
- Air-flow distribution ducts ensure every shelf reaches set temperature—no hot or cold spots.
- Automatic interior lighting illuminates cabinet when a door is opened.
- Magnetic, snap-in gaskets remove tool-free for sanitation compliance.
- Chrome-plated workflow handles stay cool to the touch.
- Optional upgrades: additional shelves, universal pan slides, casters, correctional packages and more (contact factory).
Need a different door swing, custom laminate, or special electrical configuration? Ask our product specialists— Continental offers extensive Designer Line modifications to fit any kitchen layout.
