Description

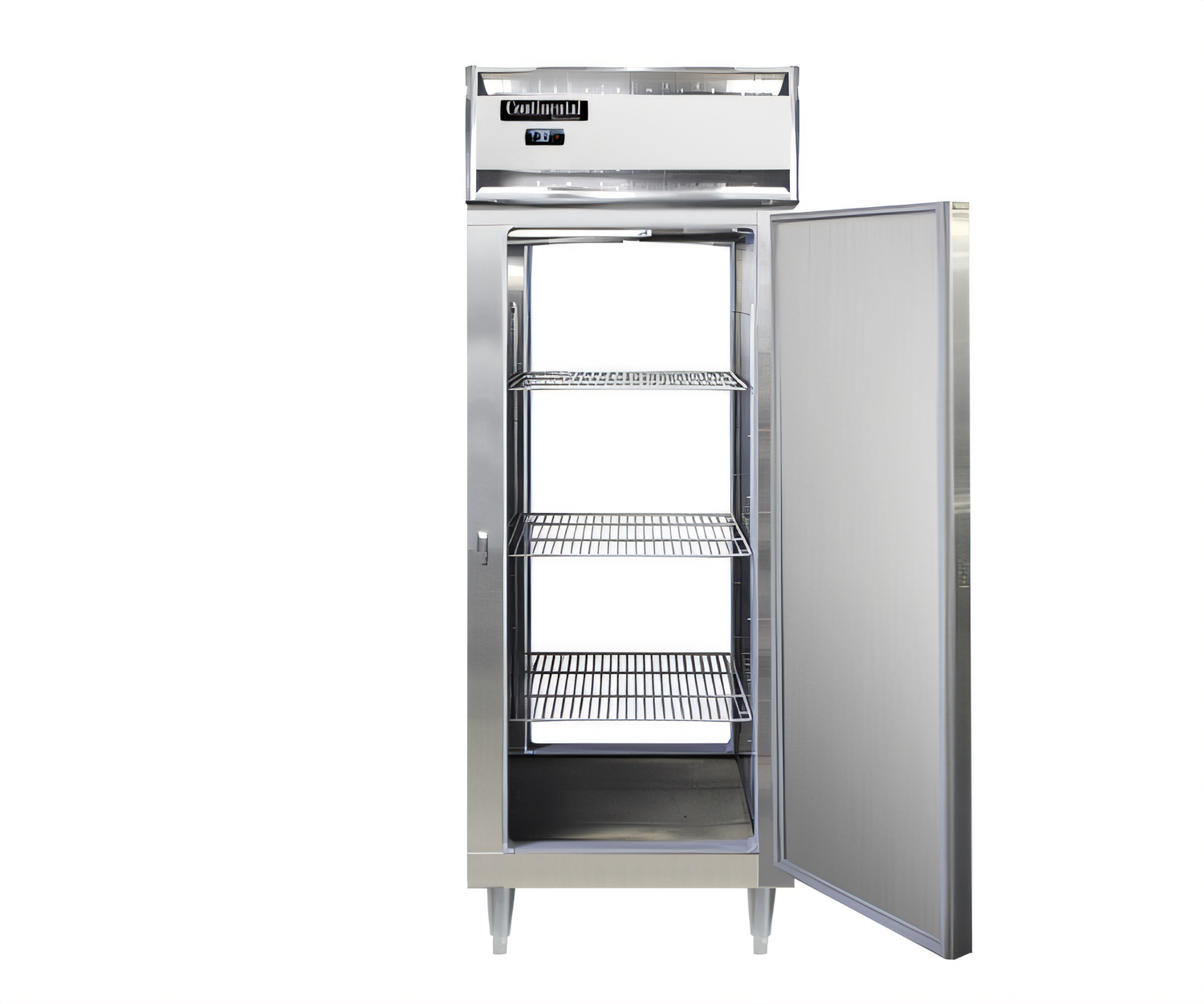

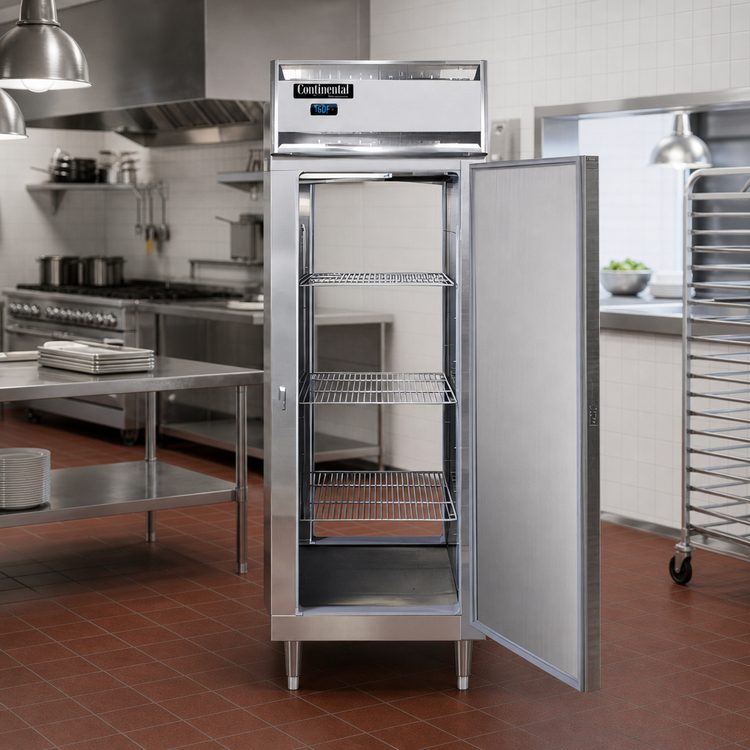

Designer Line 1-Section Extra-Wide Pass-Thru Heated Cabinet
Model DL1WE-SS-PT • 22 cu ft (623 L)Keep plated meals, trays, and pans at safe serving temperatures with Continental Refrigerator’s premium Designer Line pass-thru warmer. A self-contained heating system, all-stainless construction, and front-to-back access make this cabinet a dependable workhorse for kitchens that demand durability, food-safe holding, and fast workflow on both sides of the line.
Highlights
- Heats from 90 °F – 180 °F (32 °C – 82 °C) with even, fan-assisted airflow
- Pass-thru design with two self-closing doors for easy load-and-serve operation

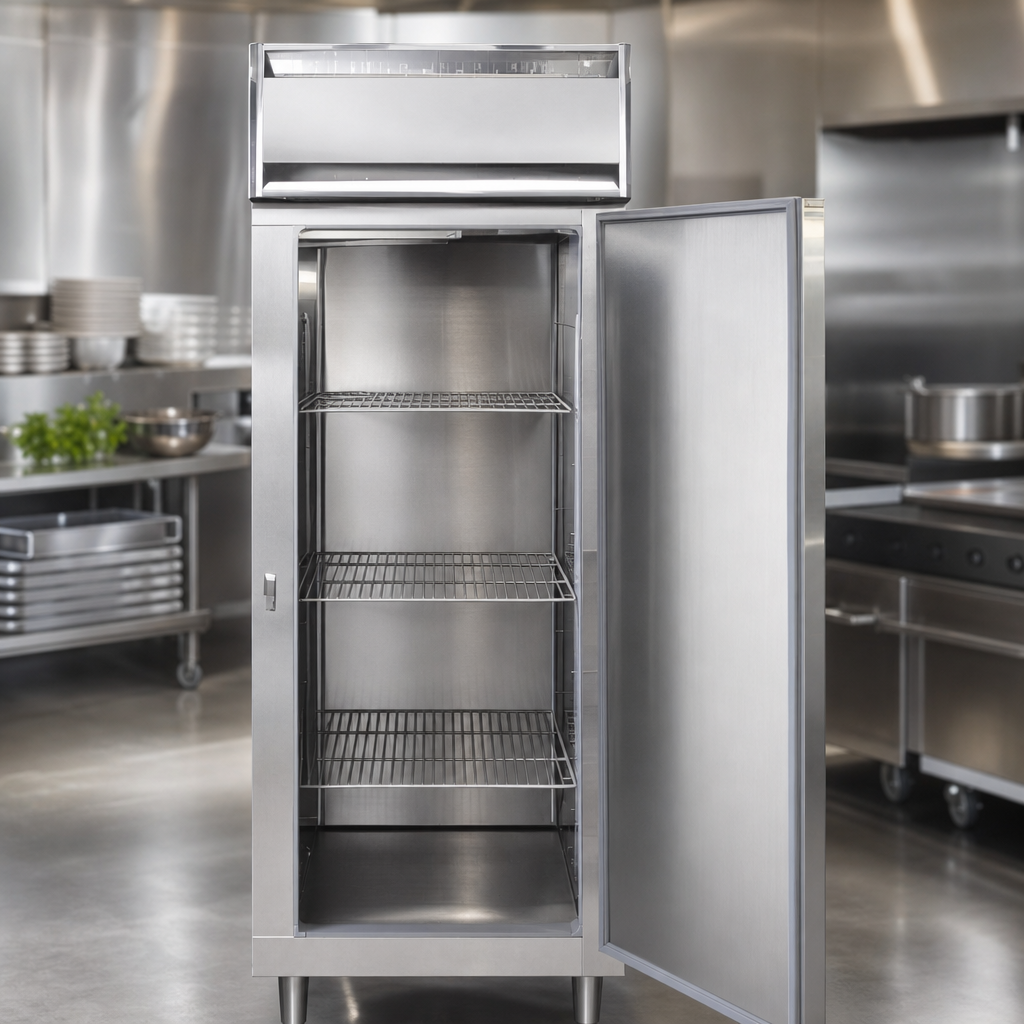

- All stainless-steel exterior and interior for maximum hygiene and longevity
- Electronic microprocessor controller with bright digital display & hi-low temperature alarm
- 3 heavy-duty chrome shelves on adjustable pilaster strips (up to 19 tray slides)
- 3″ non-CFC polyurethane insulation locks in heat and slashes energy use
- Magnetic Santoprene™ snap-in door gaskets & cylinder locks on each door
- Adjustable 6″ stainless-steel legs for easy floor cleaning and leveling
- cETLus & NSF certified for commercial foodservice
Performance & Controls
- Top-mounted heating plenum “plug” delivers consistent airflow throughout cabinet
- Self-contained, 1500 W system—no remote heat source required
- Built-in hi-low temperature alarm helps maintain HACCP compliance
- Optional interior lighting available (factory installed, up-charge applies)
Rugged Cabinet Construction
- Smooth chrome workflow handles & lift-off cam hinges for quick service access
- Stainless-steel strip heaters in cabinet base minimize condensation
- Field-reversible, lockable doors with full-width 21 ⅞″ (556 mm) clear opening
- Ships on sturdy skid; optional casters, extra shelves, or universal pan slides available
Technical Specifications
| Capacity | 22 cu ft / 623 L |
|---|---|
| Shelf Area | 22.2 sq ft / 2.1 m² |
| Shelves Included | 3 chrome-plated wire (adjustable) |
| Door Configuration | 2 hinged, self-closing (pass-thru) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior Dimensions (W × D × H) | 28 ½″ × 38 ¾″ × 83 ¼″ (724 × 984 × 2115 mm) height includes 6″ legs |
| Electrical | 208-230 V / 60 Hz / 1-phase, 7.2 A, 1500 W, 3-wire hard-wired (no cord/plug) |
| Shipping Weight | 336 lb / 152 kg |
| Certifications | cETLus, NSF |
Installation requires a licensed electrician. Provide at least 12″ clearance above and 3″ on sides & rear for safe operation and service access.
