Continental Refrigerator DL1WE-SA-PT-HD Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL1WE-SA-PT-HD Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL1WE-SA-PT-HD Designer Line Heated Cabine...
Description

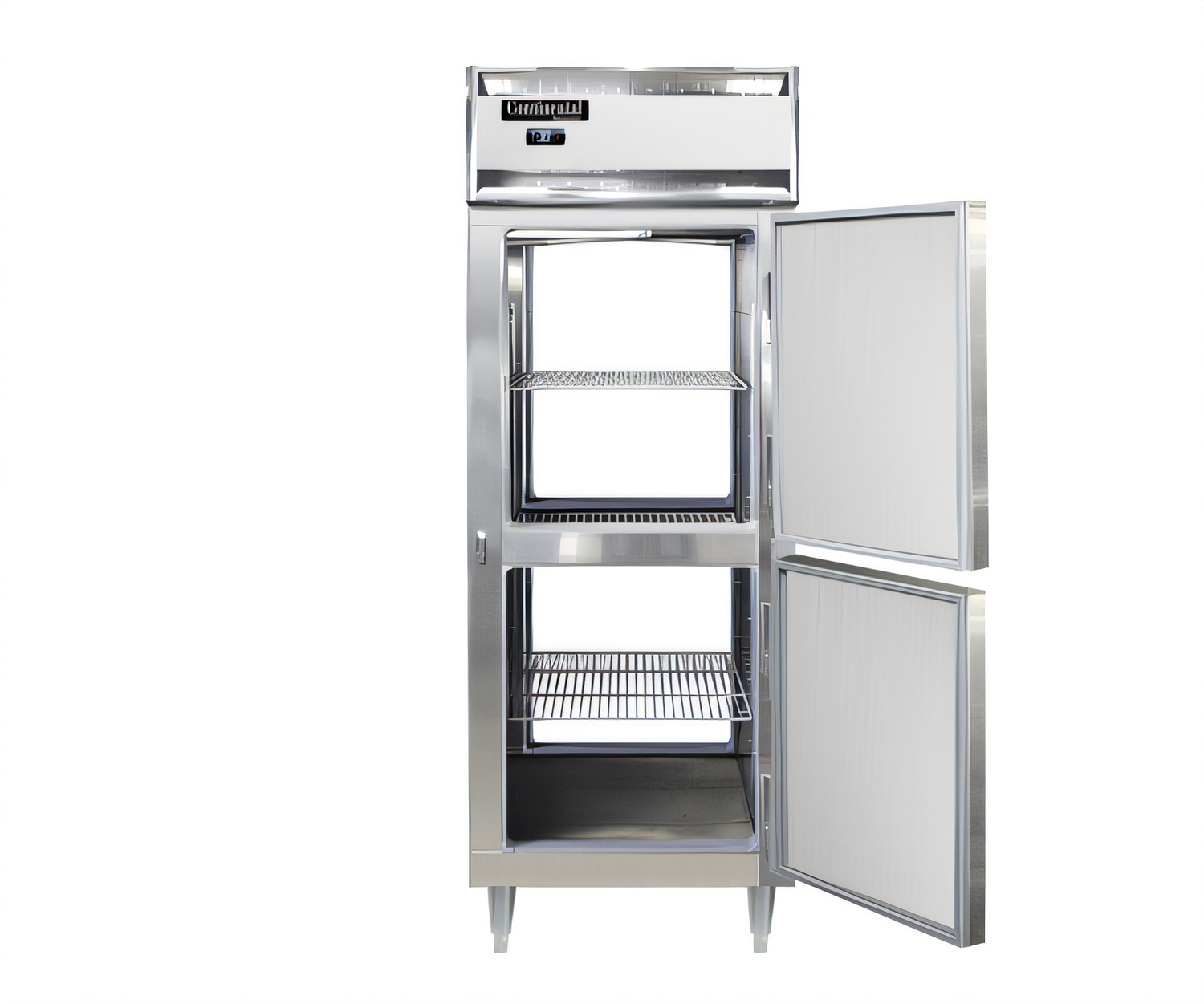

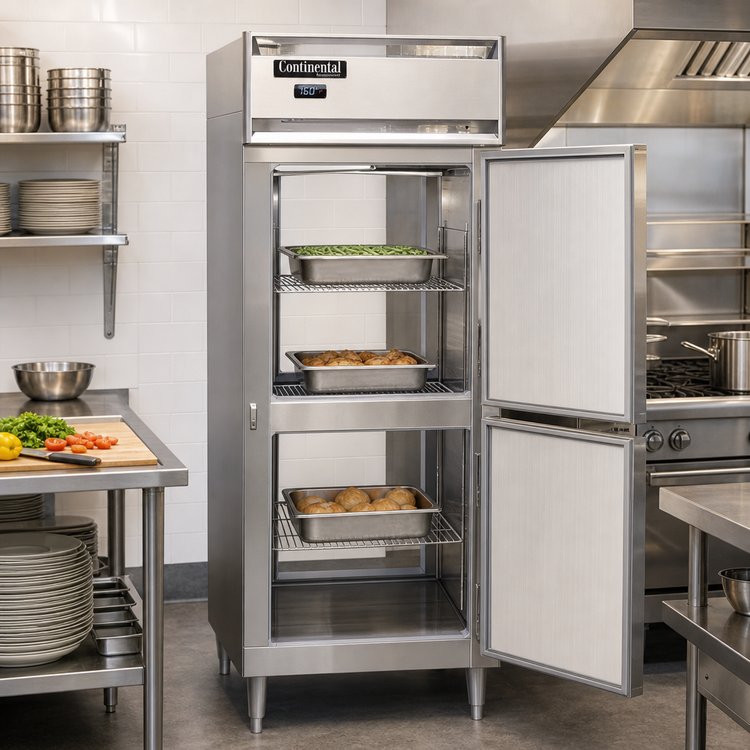

Designer Line Extra-Wide Pass-Thru Heated Cabinet
Model DL1WE-SA-PT-HD • 1-Section • 22 cu. ft.Keep plated meals, sheet pans, or hotel pans hot and table-ready on both sides of the line. Continental Refrigerator’s Designer Line pass-thru warmer combines heavy-duty construction with precise electronic temperature control, giving chefs the speed of a hot cabinet and the workflow efficiency of a pass-thru design—all in just 28 ½" of floor space.
Standard Features & Benefits
- Self-contained heating system maintains 90°F – 180°F with top-mounted plenum and circulating fan for even air distribution.

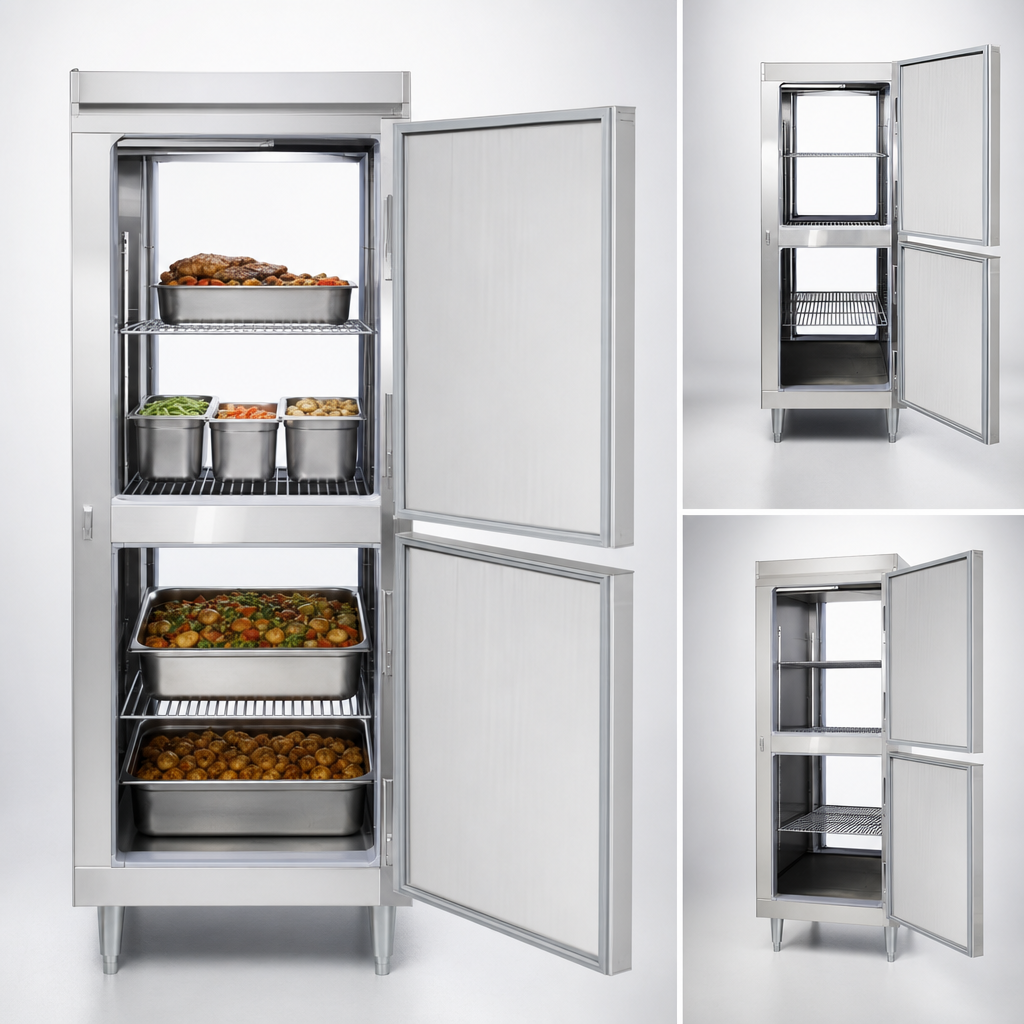

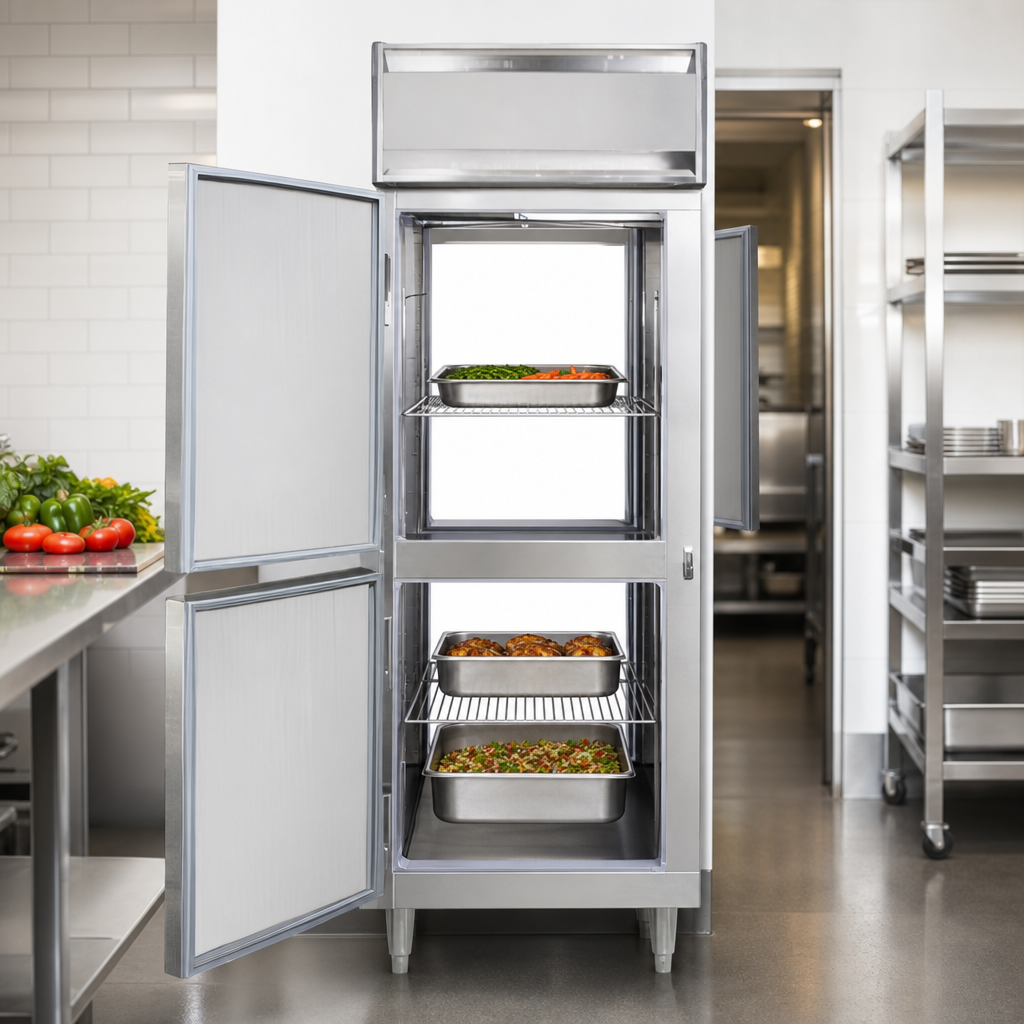

- Extra-wide pass-thru layout lets staff load from the kitchen side and pull from the service side without back-tracking.
- Half-door design (4 doors total) minimizes heat loss and shortens recovery time.
- All stainless-steel exterior resists dents, scratches, and harsh cleaning chemicals; easy-clean aluminum interior.
- 3" non-CFC polyurethane insulation locks in heat and lowers energy use.
- Electronic controller with large digital display, hi-low alarm, and intuitive set-point adjustments.
- Heavy-duty chrome shelves on adjustable pilaster strips—rated for full-size sheet pans.
- Self-closing, lift-off hinged doors with magnetic Santoprene™ gaskets and cylinder locks.
- Adjustable 6" stainless-steel legs simplify floor cleaning and leveling.
- cETLus & NSF listed; proudly designed & assembled in the USA.
Specifications
| Capacity | 22 cu. ft. (623 L) |
|---|---|
| Overall Dimensions (W × D × H) | 28 ½" × 38 ¾" × 83 ¼" |
| Interior Shelves | 3 chrome-plated steel (adjustable) |
| Door Type / Quantity | Hinged half doors, front & rear (4 total) |
| Temperature Range | 90°F – 180°F |
| Voltage / Phase | 208-230 V / 1-Ph, 60 Hz (hard-wired) |
| Total Amps / Watts | 7.2 A / 1500 W |
| Electrical Connection | Field-wired; 10 ft. cord/plug not supplied |
| Shipping Weight | Approx. 320 lb (145 kg) |
| Certifications | cETLus, NSF |
Popular Factory Options (lead time & upcharge apply)
- Automatic LED interior lighting
- Additional chrome or stainless-steel shelves
- Universal pan slides or tray slides
- 6" heavy-duty casters (swivel or locking)
- Custom laminate finishes
- Correctional packages (security screws, mesh covers, etc.)
Continental Refrigerator backs its Designer Line warmers with an industry-leading warranty program. Refer to the official warranty statement for complete coverage details and exclusions.
