Description

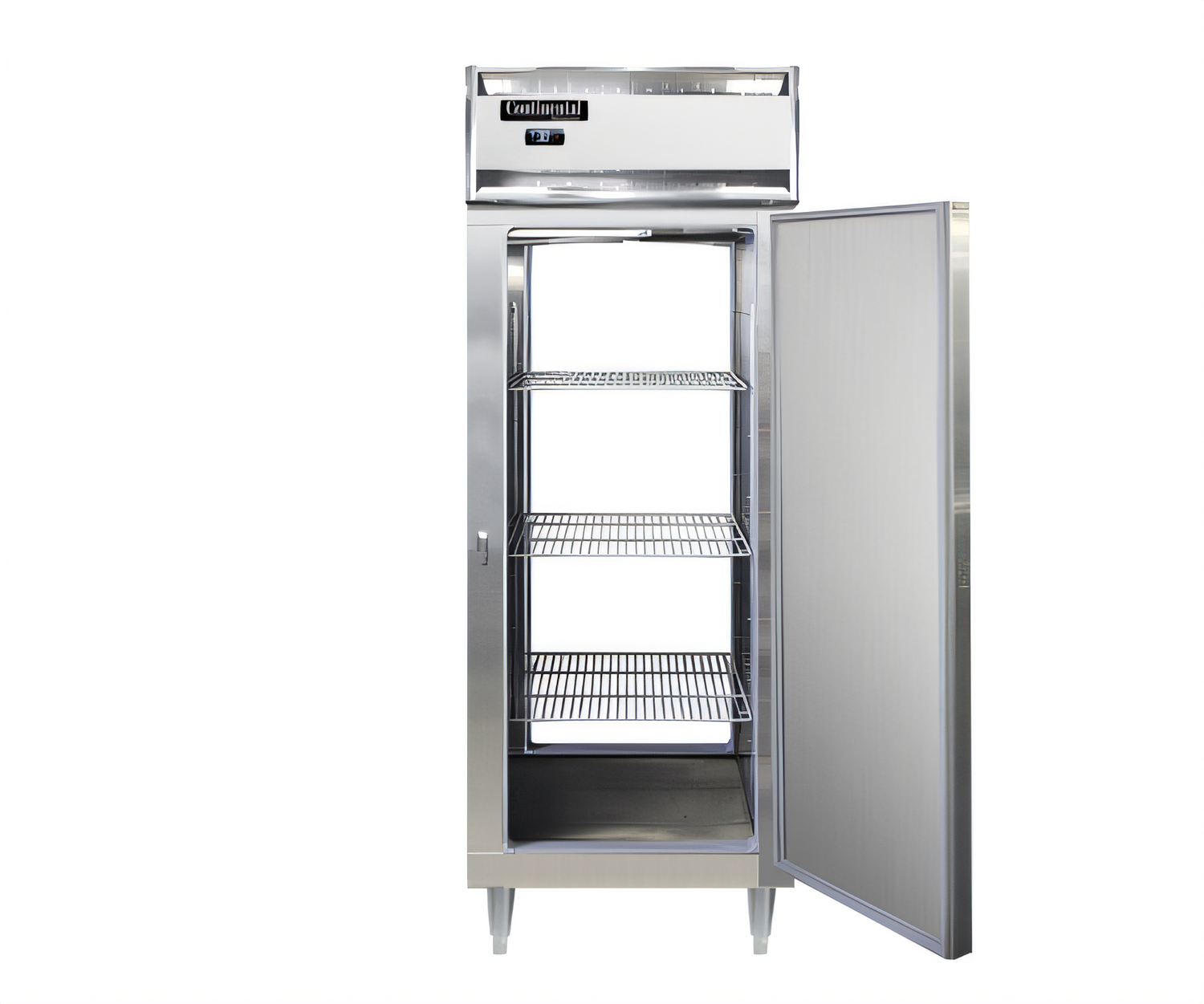

Designer Line Extra-Wide Pass-Thru Heated Cabinet
Model DL1WE-SA-PT • by Continental RefrigeratorKeep plated meals, hotel pans and trays hot, safe and ready for service with Continental Refrigerator’s Designer Line one-section pass-thru warmer. Built for demanding commercial kitchens, this 22 cu. ft. cabinet combines even, fan-assisted heat with an all-stainless exterior that looks as good on the customer side as it does on the cook line.
Performance & Construction Highlights
- Self-contained heating system maintains 90 °F – 180 °F.
- Top-mounted heating plenum with high-output circulating fan for uniform cabinet temperature.
- Electronic controller with large digital display plus hi-/low temperature alarm.

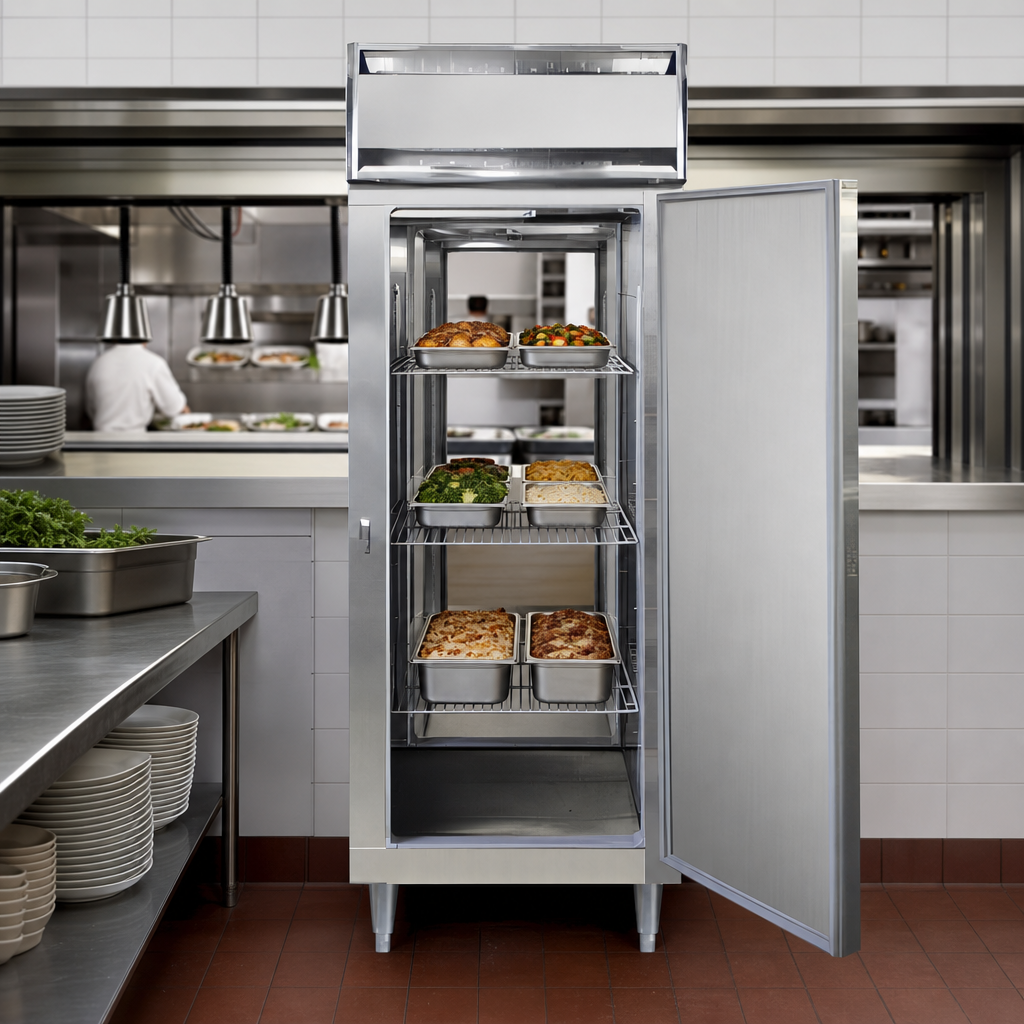

- Extra-wide pass-thru layout speeds plating and service on both sides of the line.
- Durable stainless steel exterior with corrosion-resistant aluminum interior.
- 3" thick non-CFC polyurethane insulation locks in heat and saves energy.
- (2) self-closing, lift-off hinged doors with polished chrome workflow handles & cylinder locks.
- Magnetic Santoprene™ gaskets for a tight seal and quick replacement when needed.
- Includes 3 heavy-duty chrome-plated shelves; field-adjustable pilaster strips accept optional pan slides.
- Adjustable 6" stainless steel legs for easy floor cleaning and optimal clearance.
- cETLus & NSF listed for electrical and sanitation compliance.
At-a-Glance Specs
| Capacity | 22 cu. ft. (623 L) |
|---|---|
| Exterior / Interior | Stainless steel / Aluminum |

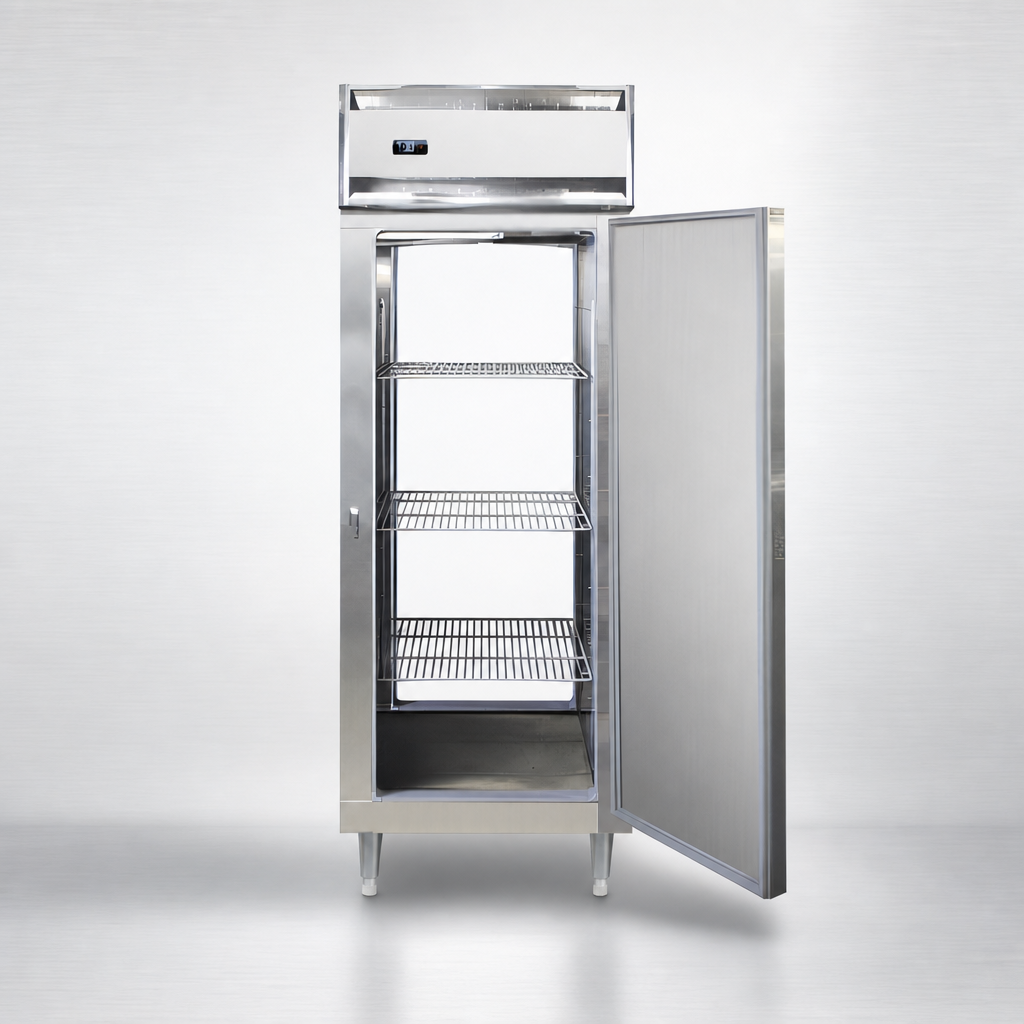

| Configuration | 1 section, extra-wide pass-thru |
| Doors | 2 hinged, self-closing, lockable |
| Shelves Included | 3 chrome-plated steel (19 pan-slide capacity with optional slides) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Overall Dimensions | 28 1/2" W × 38 3/4" D × 83 1/4" H (including 6" legs) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 7.2 A, 1,500 W (3-wire hard-wired connection) |
| Ship Weight | Approx. 336 lb (152 kg) |
Smart Options (Factory-Installed)
- Additional shelves or stainless steel shelf upgrade
- Universal pan slides for mixed pan sizes
- 4" or 6" heavy-duty casters
- Automatic interior LED lighting
- Custom laminates or correctional-facility security packages
Covered by Continental Refrigerator’s limited warranty. Consult the enclosed warranty statement for complete terms. Specifications are subject to change without notice.
