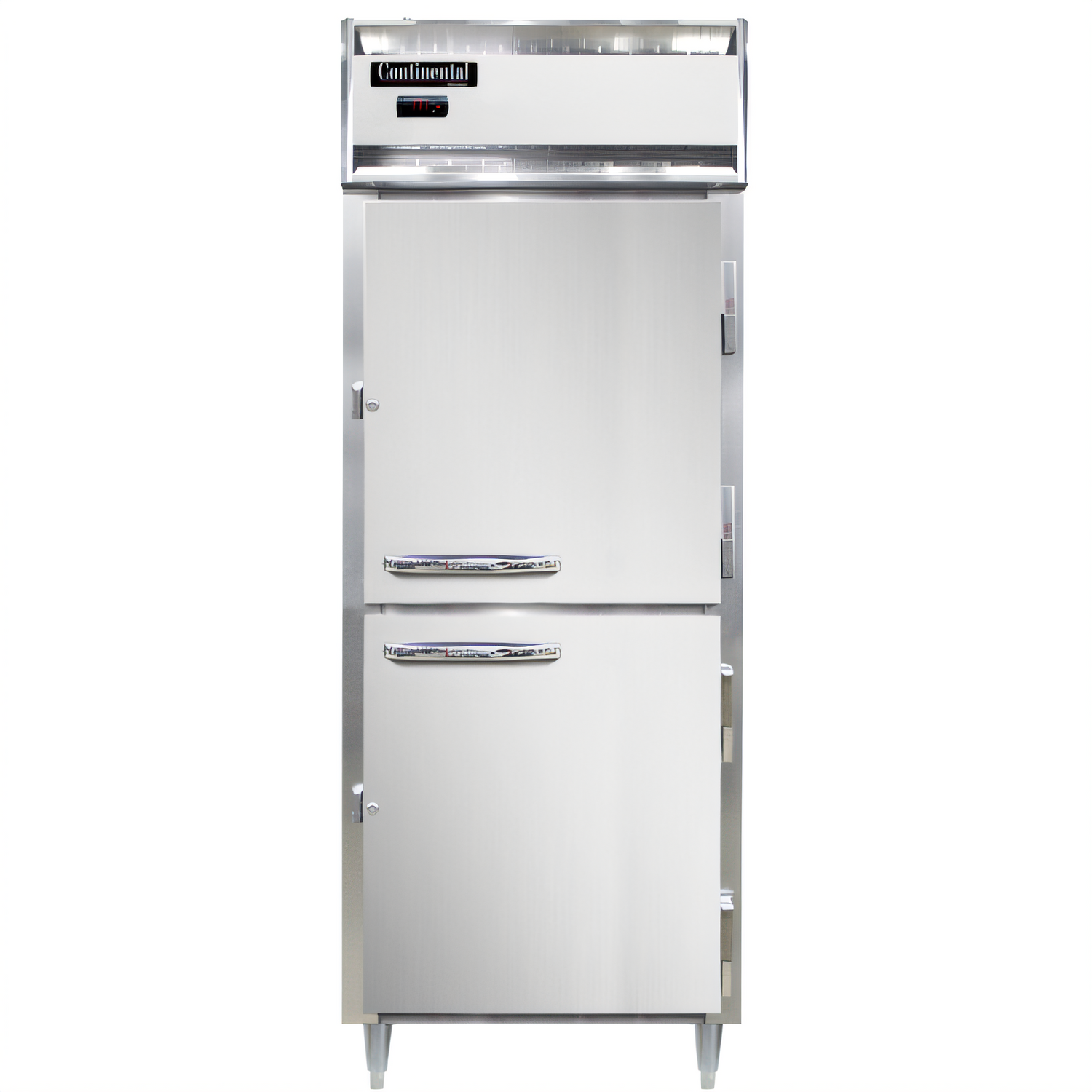

Continental Refrigerator DL1WE-SA-HD Designer Line One-Section Extra-Wide Heated Holding Cabinet with Half Doors

SKU: DL1WE-SA-HD
$9,157.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Continental Refrigerator DL1WE-SA-HD Designer Line One-Section Extra-Wide Heated Holding Cabinet with Half Doors

22 cu. ft. Capacity, Stainless Steel Exterior, Aluminum Interior, Floor Model

Experience superior food holding performance with the Continental Refrigerator DL1WE-SA-HD, designed for consistent temperature maintenance and durability in busy commercial kitchens.

  • Maintains food at safe and ready-to-serve temperatures from 90°F to 180°F.
  • Features a robust stainless steel exterior and corrosion-resistant aluminum interior for lasting performance.
  • Equipped with self-closing, hinged half-doors for energy efficiency and convenient access.
  • Advanced electronic control with digital display and hi-low alarm ensures precise temperature management.
  • Boasts 3 inches of non-CFC polyurethane foam insulation for optimal heat retention.
  • Proudly designed and assembled in the U.S.A. for quality assurance.

Overall Dimensions:

28.5"W x 35.38"D x 83.25"H

Product Weight:

320.0 lb

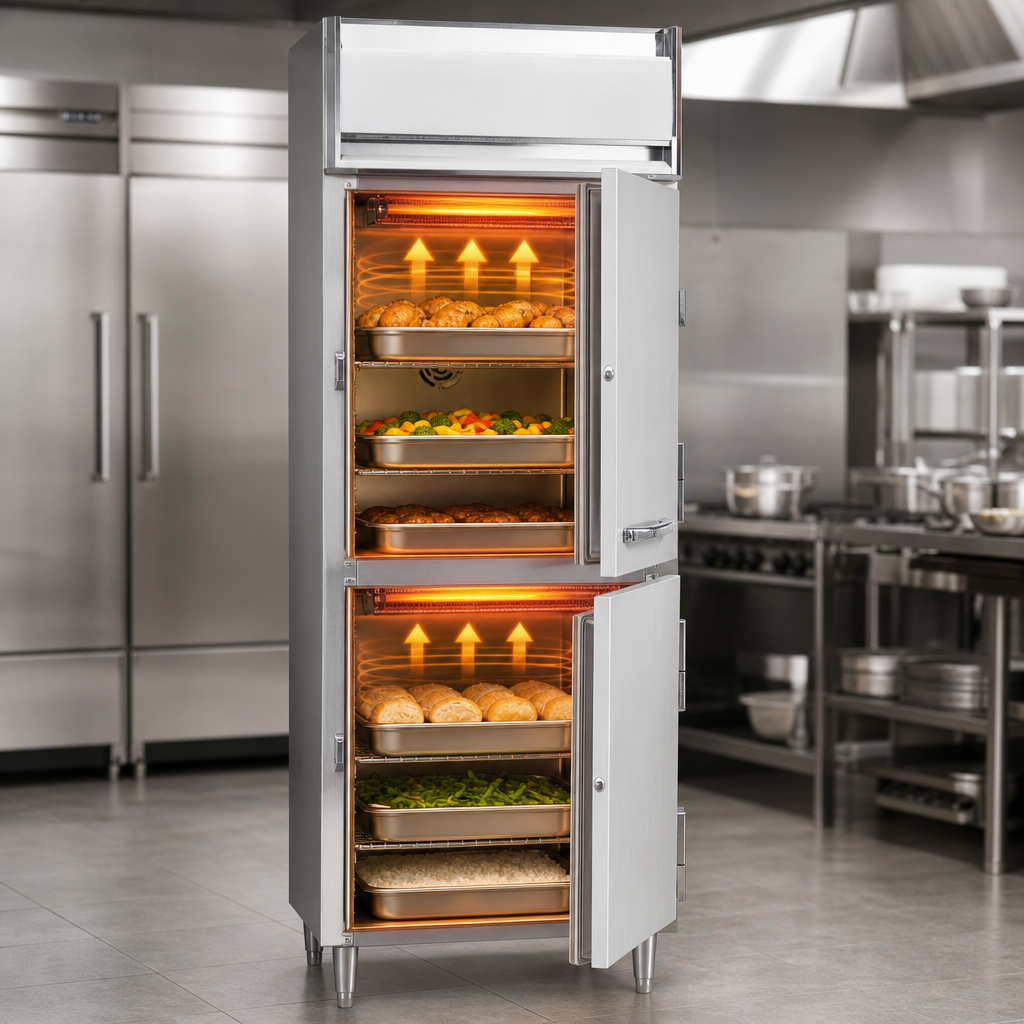

Self-Contained Heating System

Performance-rated heating system with a wide temperature range of 90°F to 180°F, ensuring food stays warm and ready.

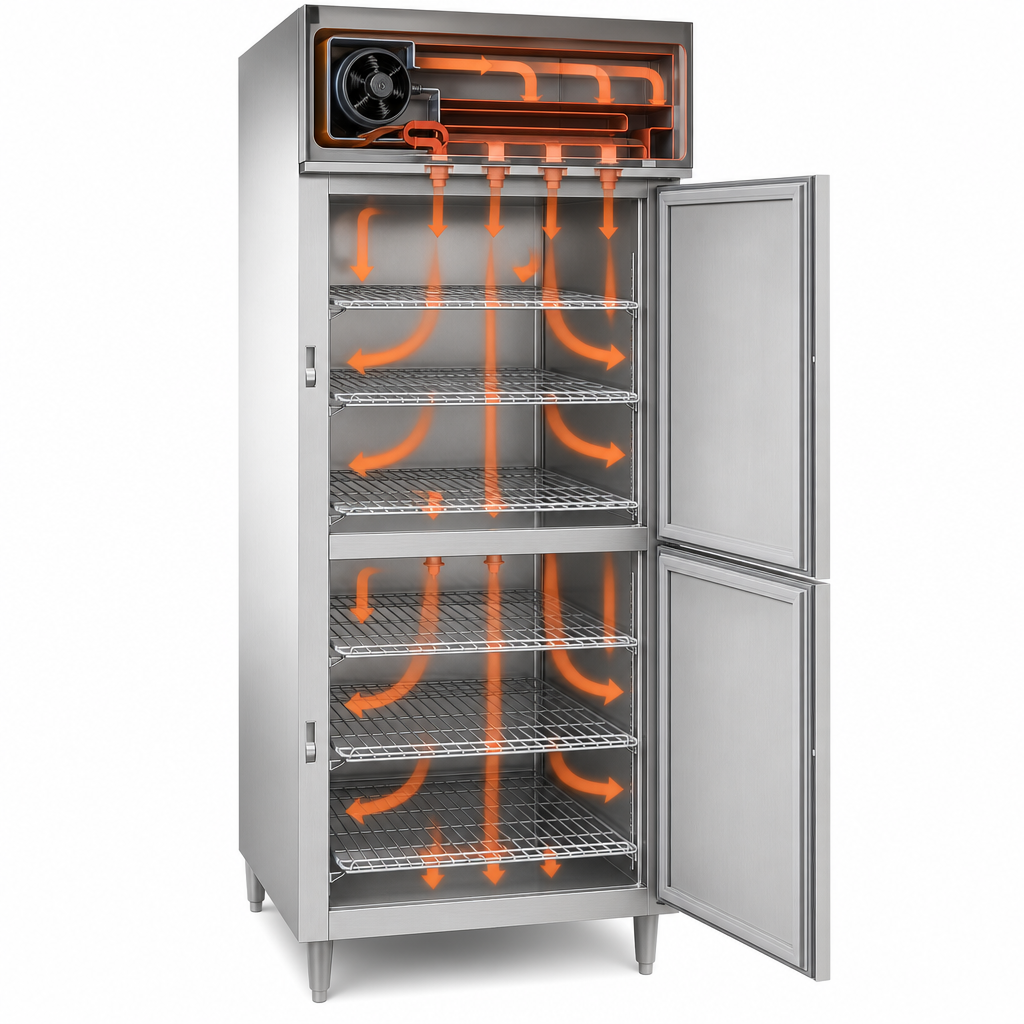

Optimized Air Flow

Top-mounted heating plenum 'plug' with a circulating fan and unique air flow distribution ducts for uniform heat throughout the cabinet.

Durable Construction

Features a stainless steel exterior and aluminum interior, built for the demands of commercial use.

Superior Insulation

Cabinet is insulated with 3 inches of non-CFC polyurethane foam, providing excellent heat retention and energy efficiency.

Ergonomic Door Handles

Smooth, polished chrome workflow door handles are designed for ease of use and durability.

Reliable Door Operation

Equipped with cam action, lift-off hinges and self-closing doors for convenience, energy savings, and security with cylinder locks.

Magnetic Snap-In Gaskets

Santoprene™ door gaskets provide a tight seal, are easy to clean, and are simple to replace.

Adjustable Shelving

Comes with three heavy-duty, chrome-plated steel shelves supported by durable pilaster strips for flexible storage options.

Electronic Control

User-friendly electronic controller with a digital display for precise temperature monitoring and a hi-low alarm for critical temperature alerts.

Interior Lighting

Automatic interior lighting illuminates the cabinet contents for easy visibility.

Base Heating Elements

Stainless steel strip heaters are strategically located in the base of the interior for effective and consistent heating.

Adjustable Legs

Includes adjustable 6-inch stainless steel legs for proper height and leveling.

Type Heated Holding Cabinet
Style Reach-In
Installation Type Floor Model (With 6" legs)
Compartments 1
Capacity 22 cu. ft.
Pan Capacity 9 Full-Size Pans (top section), 6 Full-Size Pans (bottom section)
Number of Doors 2
Door Style Half-Size Hinged Solid
Number of Shelves 3
Shelf Area 22.2 sq. ft.
Exterior Finish Stainless Steel
Interior Finish Aluminum
Controls Electronic with Digital Display
Temperature Range 90°F to 180°F
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 7.2 Amps
Watts 1500 Watts
Shipping Width 29 Inches
Shipping Depth 36 Inches
Shipping Height 84 Inches
Shipping Weight 320.0 lb
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

6-Year Parts & Labor, 7-Year Compressor Warranty

Frequently Asked Questions

This heated holding cabinet can maintain temperatures ranging from 90°F to 180°F, ideal for keeping various food items warm and ready to serve.
The DL1WE-SA-HD model features a durable stainless steel exterior and a corrosion-resistant aluminum interior, offering both longevity and easy cleaning.
Yes, the cabinet is equipped with self-closing half-doors that have cam action, lift-off hinges and include a cylinder lock in each door for security.
The cabinet comes with 3 heavy-duty chrome-plated steel shelves. It has a tray slide capacity of 9 full-size pans in the top section and 6 full-size pans in the bottom section if using universal pan slides.
If the cabinet is located directly against a wall or under a low ceiling, a minimum clearance of 12 inches is required on top and 3 inches on the sides and rear for proper ventilation and operation.
