Description

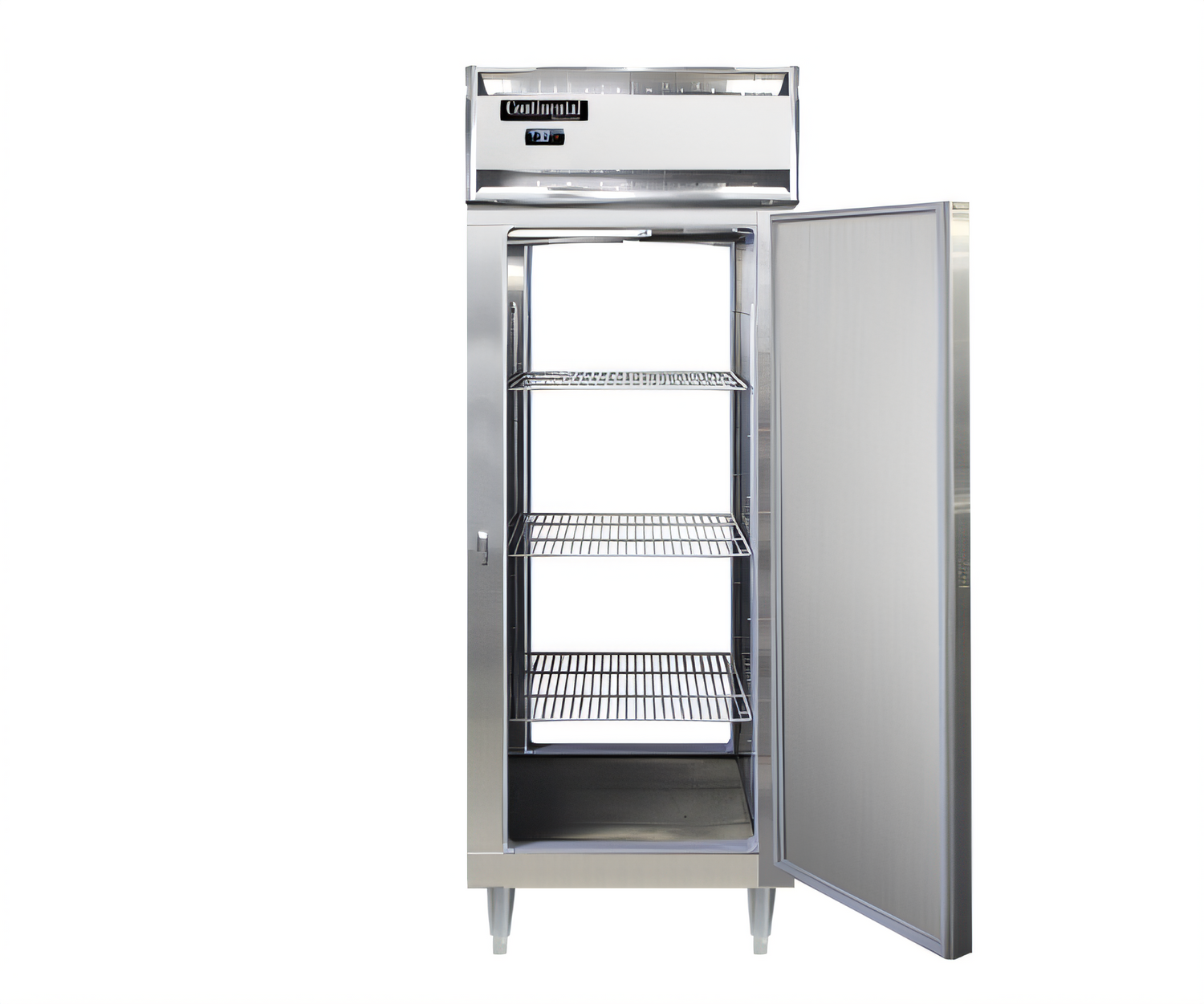

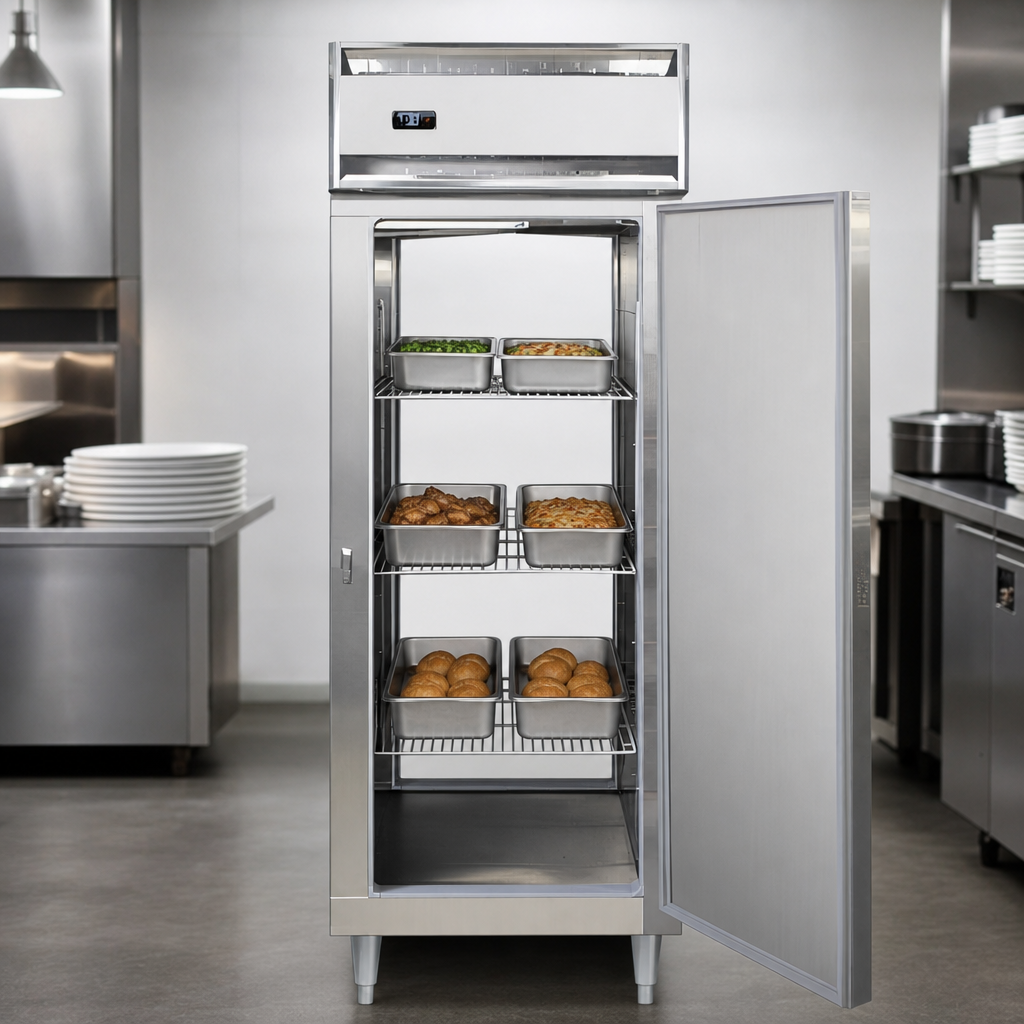

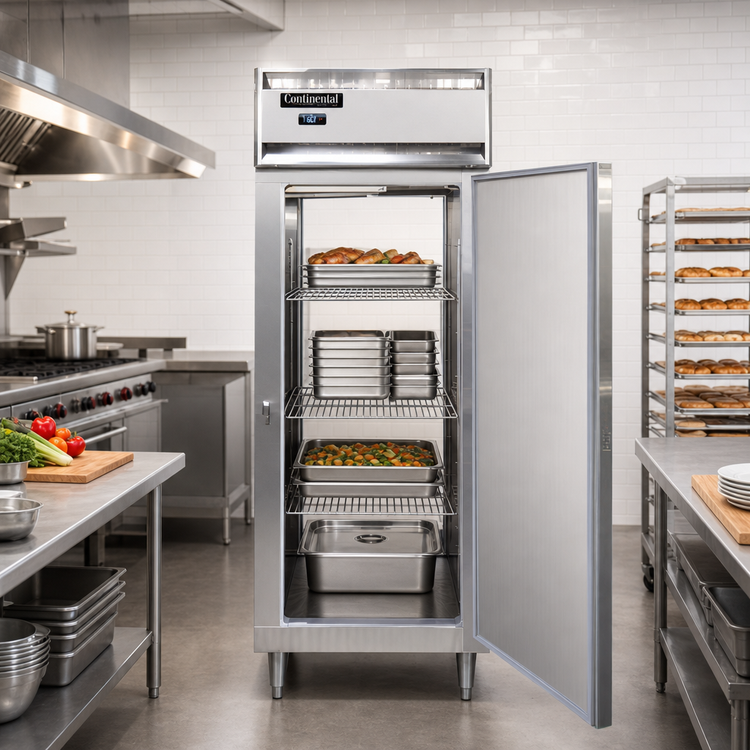

Designer Line Extra-Wide Pass-Thru Heated Cabinet – 22 cu. ft.
Model DL1WE-PT | Continental RefrigeratorKeep plated meals, sheet pans or hotel pans hot, safe and ready for service on both sides of the line. The DL1WE-PT combines Continental’s rugged construction with a precision electronic warming system—perfect for busy kitchens that need reliable, pass-thru holding without sacrificing valuable floor space.
Key Features
- Self-contained heating system with 90 °F – 180 °F range
- Top-mounted heating plenum & high-velocity fan for even air circulation
- Extra-wide pass-thru design—load from the prep area, unload at the servery
- Stainless steel front & doors; aluminum ends and interior for strength & lighter weight
- Three heavy-duty chrome-plated shelves on robust pilaster strips (adjustable)
- Electronic controller with bright digital display plus hi-low temperature alarm
- Self-closing lift-off doors with polished chrome handles, magnetic Santoprene™ gaskets & cylinder locks
- 3" CFC-free polyurethane insulation maximizes heat retention & energy efficiency
- Adjustable 6" stainless steel legs for easy sanitation beneath the cabinet (optional casters available)
- cETLus & NSF listed—fully compliant for commercial foodservice operations
Specifications
| Capacity | 22 cu. ft. (623 L) |
|---|---|
| Configuration | 1 section / 2 pass-thru hinged doors |
| Included Shelves | 3 adjustable chrome-plated steel |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Width | 28 1/2" (724 mm) |
| Depth (incl. handle) | 38 3/4" (984 mm) |
| Height (with 6" legs) | 83 1/4" (2115 mm) |
| Clear Door Opening | 21 7/8" W × 58 5/8" H (556 × 1489 mm) |
| Shelf Area | 22.2 sq. ft. (2.1 m²) |
| Electrical | 208–230 V / 60 Hz / 1 Ø, 7.2 A, 1500 W (hard-wired) |
| Shipping Weight | 320 lb (145 kg) |
| Certifications | cETLus, NSF |
Popular Options & Accessories
- Automatic LED interior lighting
- Additional or stainless steel shelves
- Universal pan slides (up to 19 tray capacity)
- Heavy-duty casters in place of legs
- Custom laminate finishes
- Correctional packages (security screws, locking hasp, mesh covers, coverless hinges)
Proudly designed & assembled in the USA by Continental Refrigerator. Specifications subject to change without notice.
