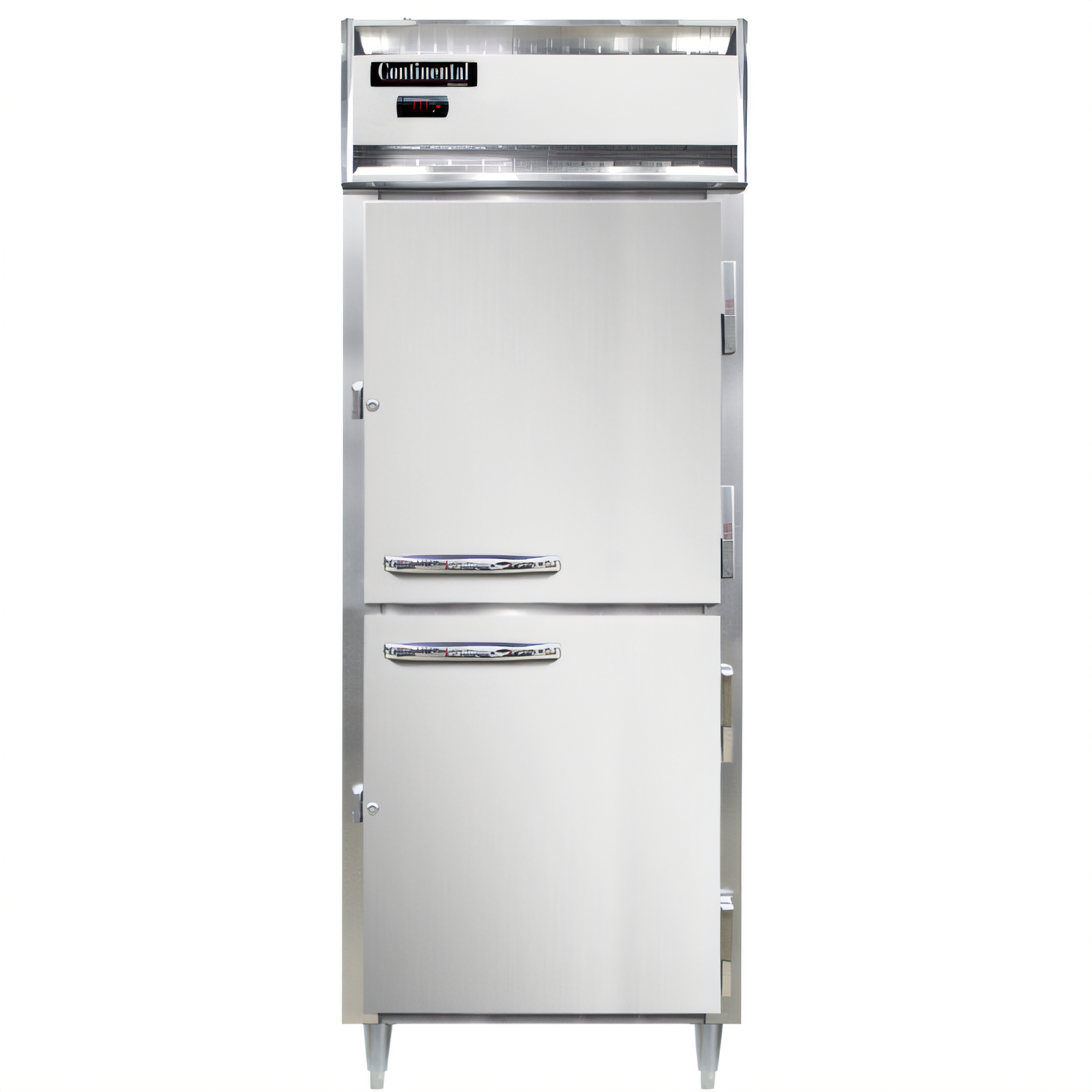

Designer Line™ Heated Cabinet – Model DL1WE-HD
1-Section • Extra-Wide Reach-In • Half-Door • 22 cu ftGive plated meals, sheet pans, or hotel pans a perfectly-warmed home with the Continental Refrigerator Designer Line DL1WE-HD. Built for demanding commercial kitchens, this extra-wide 22 cu. ft. cabinet delivers precise, even heat from 90°F–180°F while its space-saving half doors minimize temperature loss and improve workflow. Rugged construction, intuitive digital controls, and heavy-duty shelving make it a long-term partner for banquets, QSRs, institutions, and anywhere hot food has to hold its quality.
Key Performance & Construction Features

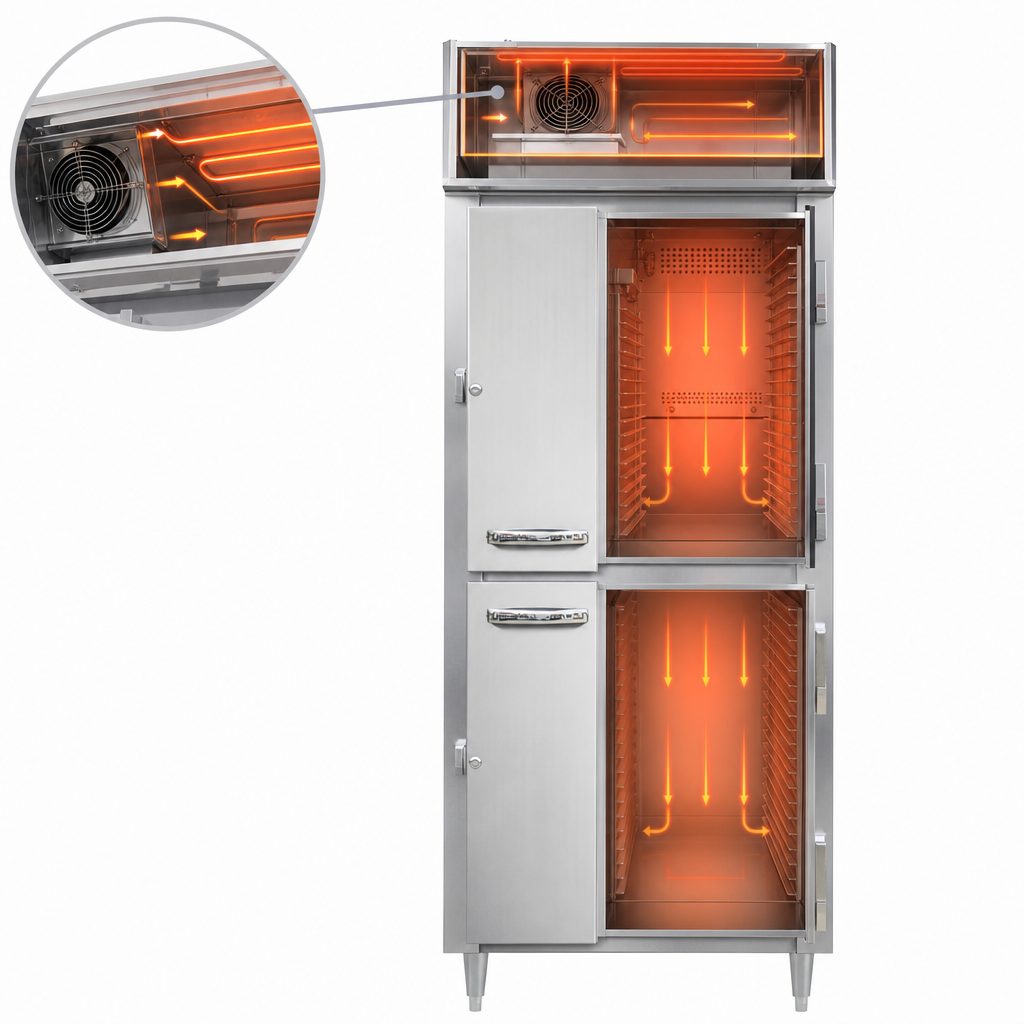

- Self-contained, performance-rated heating system with top-mounted plenum and high-volume fan.

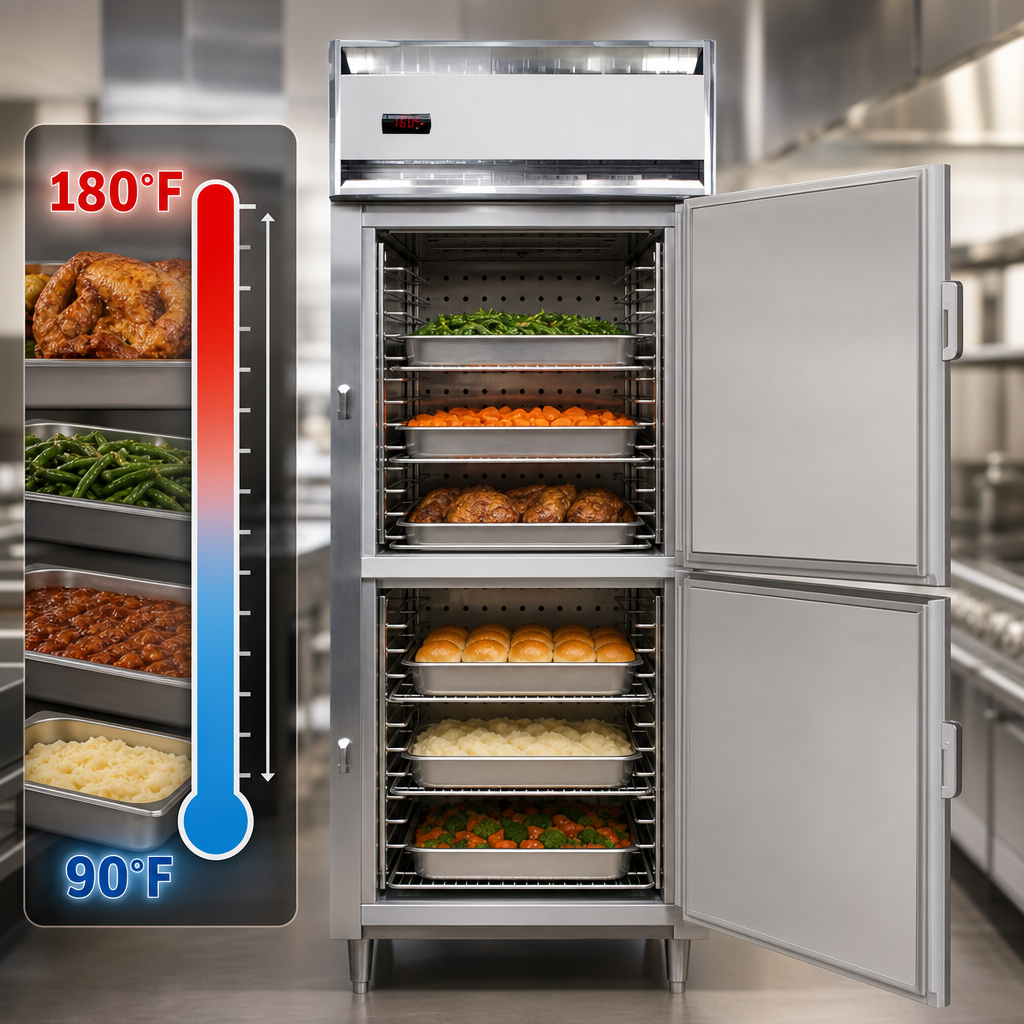

- 90°F – 180°F operating range with electronic controller, bright digital display, and hi/low temperature alarm.
- Unique air-flow ducts bathe every shelf in consistent heat for uniform holding.
- 3" thick, CFC-free polyurethane insulation locks in heat and slashes energy loss.
- Stainless steel front & half doors; durable aluminum interior and end panels resist corrosion.
- Smooth, polished chrome workflow handles and cam-lift, self-closing hinges.
- Replaceable Santoprene™ magnetic gaskets and a cylinder lock on each door for tight, secure seals.
- (3) heavy-duty chrome-plated shelves on robust pilaster strips – adjustable to match your pan mix.
- Stainless strip heaters in the cabinet base prevent cold-spots on bottom storage level.
- Adjustable 6" stainless steel legs standard; field-install casters available.
- Automatic LED interior lighting enhances visibility (no warm-up time or bulb burn-outs).
At-a-Glance Specifications
| Capacity | 22 cu. ft. (623 L) |
|---|---|
| Doors | 2 half-height, right-hinged (field-rehinging optional) |
| Shelves (included) | 3 chrome-plated steel, adjustable |
| Overall Dimensions (W × D × H) | 28 ½" × 35 ⅜" × 83 ¼" (including 6" legs & handles) |
| Clear Door Opening | 21 ⅞" W × 27 ½" H (per half door) |
| Shelf Area | 22.2 sq ft (2.1 m²) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 7.2 A, 1500 W (three-wire feed, cord & plug not supplied) |
| Shipping Weight | 290 lb (132 kg), crated |
| Approvals | cETLus, NSF |
Minimum clearance: 12" on top, 3" at rear and sides when installed beneath low ceilings or against walls. Specifications subject to change without notice.
Popular Factory Options & Accessories
- Full stainless exterior or interior upgrades
- Additional chrome or all-stainless shelves
- Universal pan slides for 18" × 26" sheet pans or 12 × 20 hotel pans
- 6" or 5" heavy-duty casters (locking front)
- Stainless steel case back for island placement
- Correctional packages – security screws, mesh door guards, lock hasps, coverless hinges
- Special electrical configurations (consult factory)
Certifications & Compliance
- cETLus listed for electrical safety in the U.S. & Canada
- NSF certified for use in commercial foodservice operations
- Proudly designed & assembled in the U.S.A.
