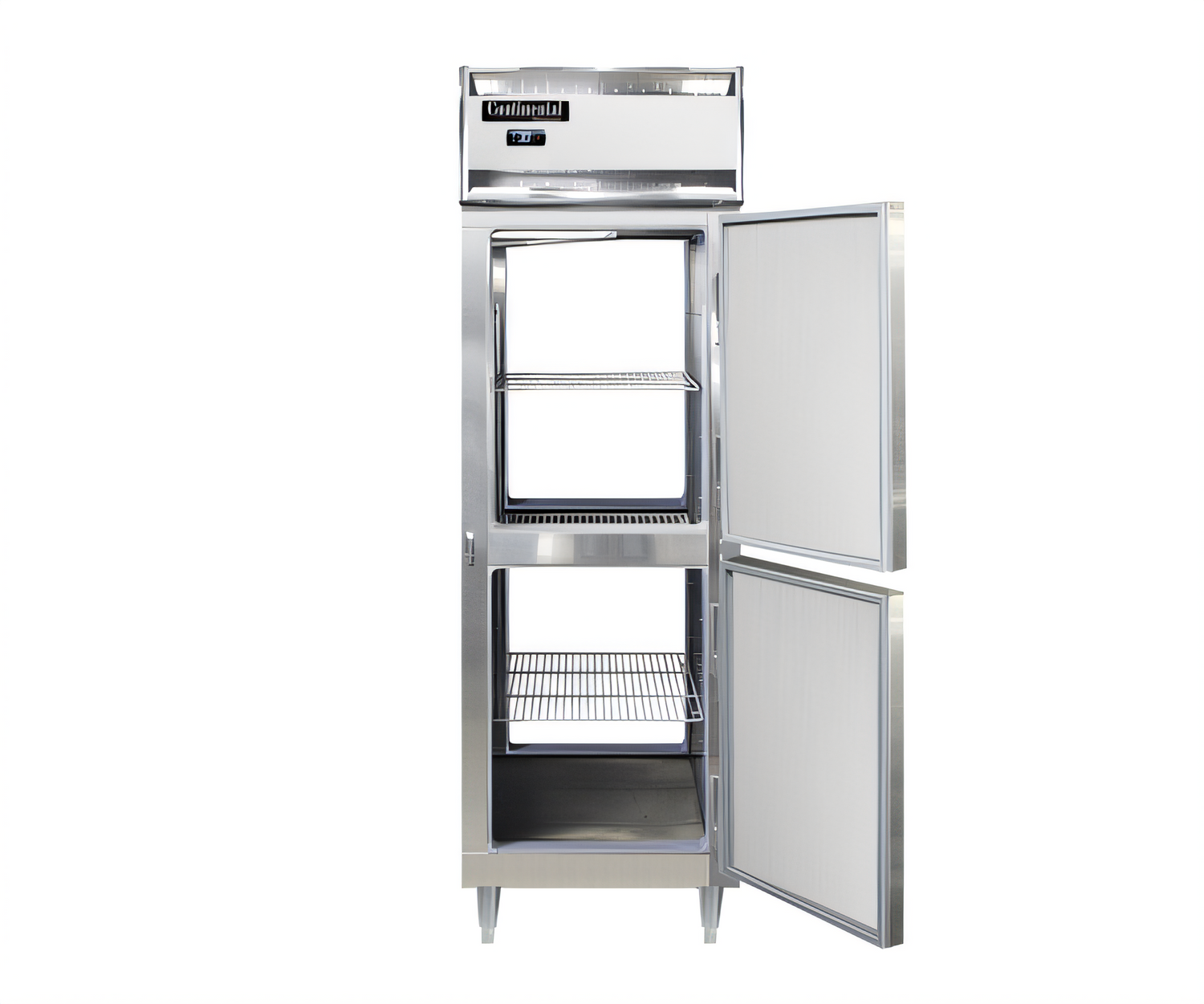

Designer Line 21 cu. ft. Pass-Thru Heated Cabinet – Half Doors
Model DL1W-PT-SA-HD • Continental RefrigeratorKeep plated meals, sheet pans, or hotel pans hot, organized, and instantly accessible from either side of the cookline with Continental Refrigerator’s Designer Line pass-thru warmer. At just 26" wide, this one-section cabinet slips easily into tight footprints while still delivering a roomy 21 cu. ft. of heated holding space.
Key advantages
- Self-contained heating system maintains 90 °F – 180 °F
- Top-mounted plenum with circulating fan for uniform air flow

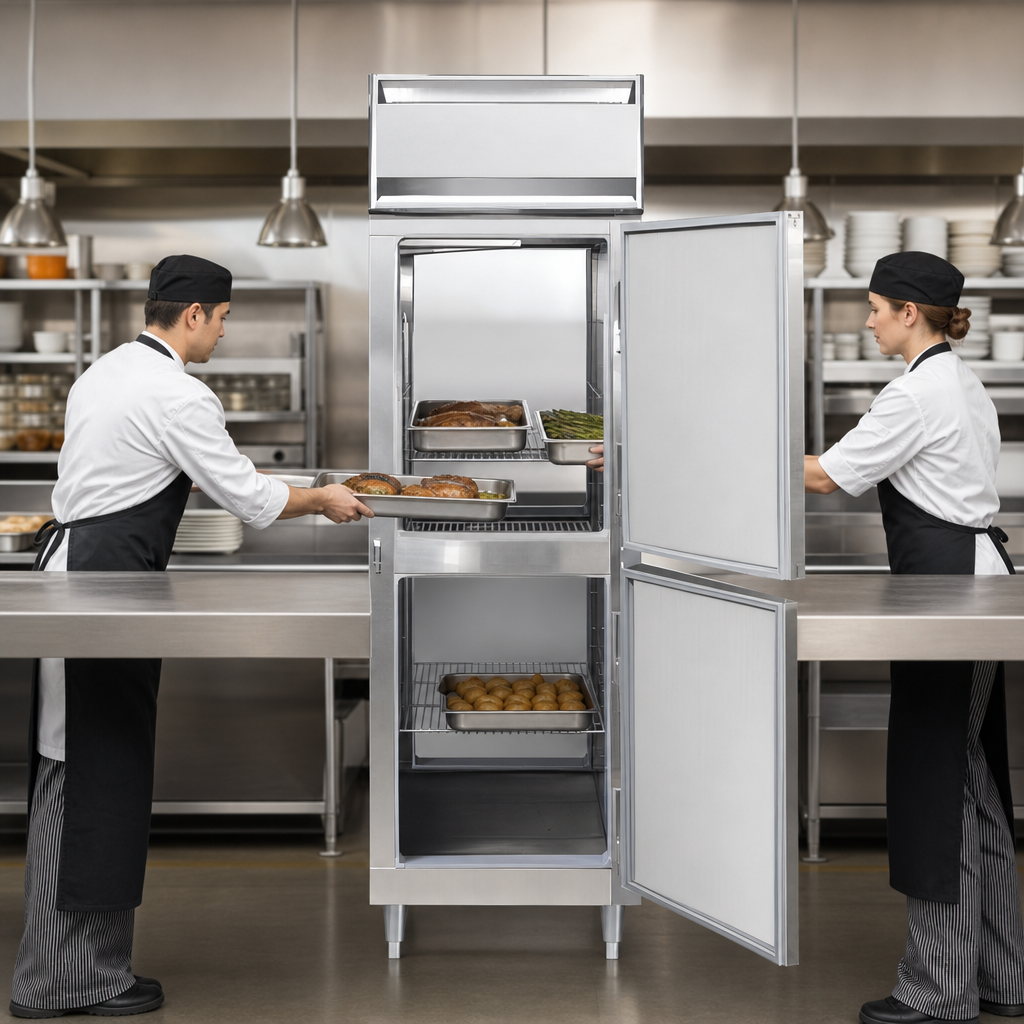

- Pass-thru layout with four narrow half-height doors – load in the prep area, pull from the service side

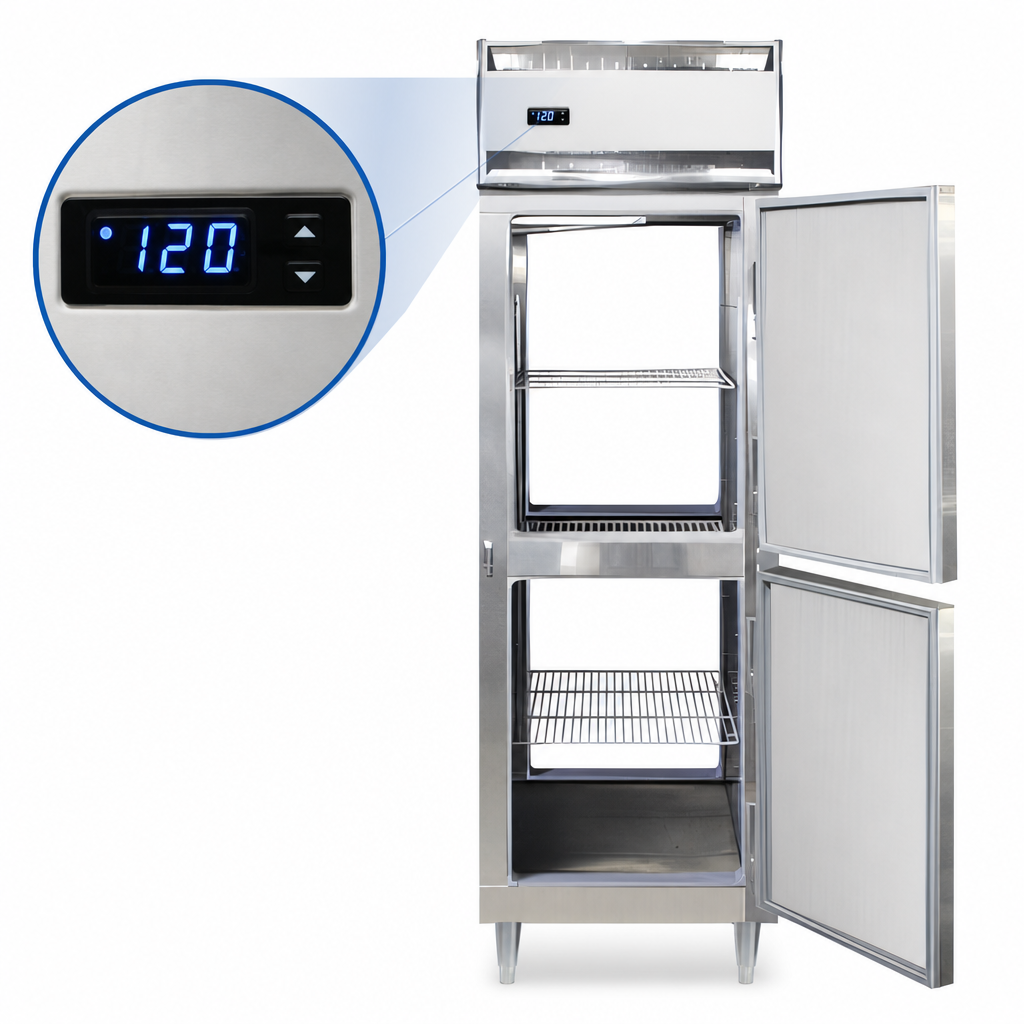

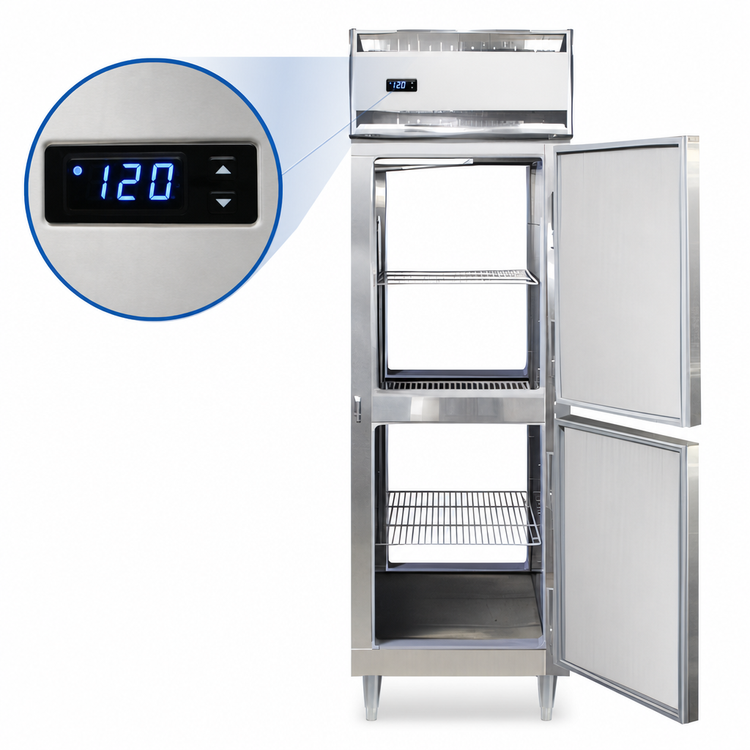

- Intuitive electronic controller with digital temperature display & hi-low alarm
- Heavy-duty chrome-plated steel shelves (3 included) on adjustable pilaster strips
- Stainless steel exterior resists dents, scratches & daily wear; easy-clean aluminum interior
- 3" non-CFC polyurethane insulation locks in heat and lowers energy use
- Self-closing, lift-off doors with replaceable Santoprene™ gaskets & cylinder locks
- Adjustable 6" stainless steel legs for quick leveling
- Certified cETLus | NSF • Proudly designed & assembled in the USA
Performance & construction details
- Stainless steel strip heaters in the cabinet base provide additional radiant heat
- Smooth, polished chrome workflow door handles stand up to countless openings
- Magnetic “snap-in” gaskets swap out in seconds—no tools required
- Optional factory-installed interior lighting, extra shelves, pan slides, or casters available
Specifications
| Capacity | 21 cu. ft. / 595 L |
|---|---|
| Temperature range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior / Interior | Stainless steel / Aluminum |
| Overall dimensions (W × D × H) | 26" × 35 3⁄8" × 83 1⁄4" (660 × 899 × 2115 mm) |
| Depth (doors open 90°) | 55 1⁄2" (1410 mm) |
| Door opening | 19 3⁄8" W × 27 1⁄2" H (per half-door) |
| Number of doors / shelves | 4 half doors / 3 shelves |
| Shelf area | 20.4 sq. ft. (1.9 m²) |
| Electrical | 208-230 V, 60 Hz, 1-phase • 7.2 A • 1500 W (field-wired) |
| Shipping weight | ≈ 300 lb (136 kg) |
Clearance & installation
Need a different door swing, extra tray slides, or correctional-grade security options? Contact us for factory-configured solutions and lead times.
