Description

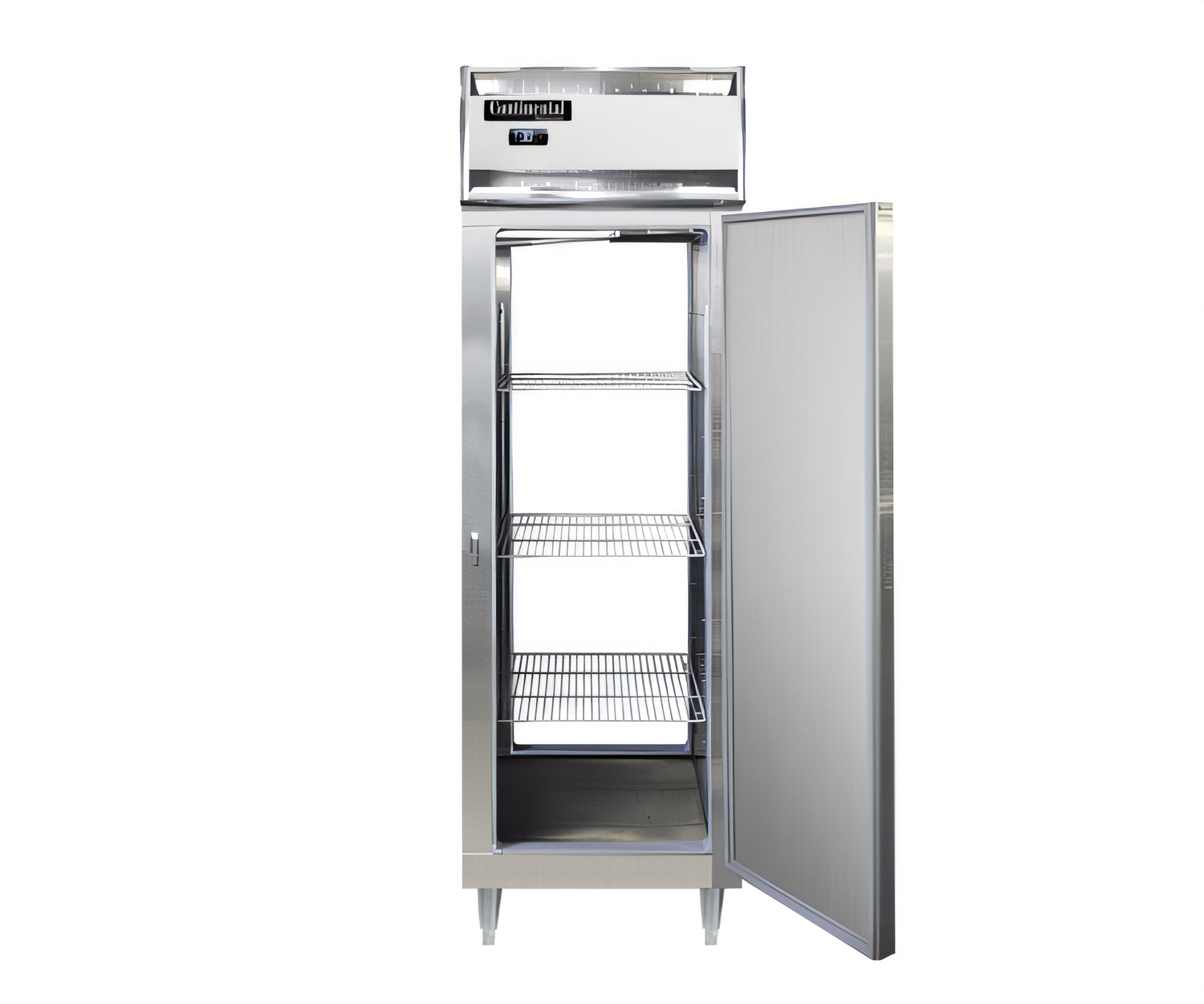

Designer Line™ Pass-Thru Heated Cabinet – 1 Section
Model DL1W-PT | 21 cu. ft. | Continental RefrigeratorBring back-of-house durability and front-of-house style together. The Designer Line DL1W-PT keeps prepared foods at safe serving temperatures while its pass-thru design streamlines workflow between the kitchen and service side.
Key benefits
- Self-contained heating system maintains 90 °F – 180 °F (32 °C – 82 °C).
- Top-mounted heater plenum with high-volume circulating fan for even heat distribution.

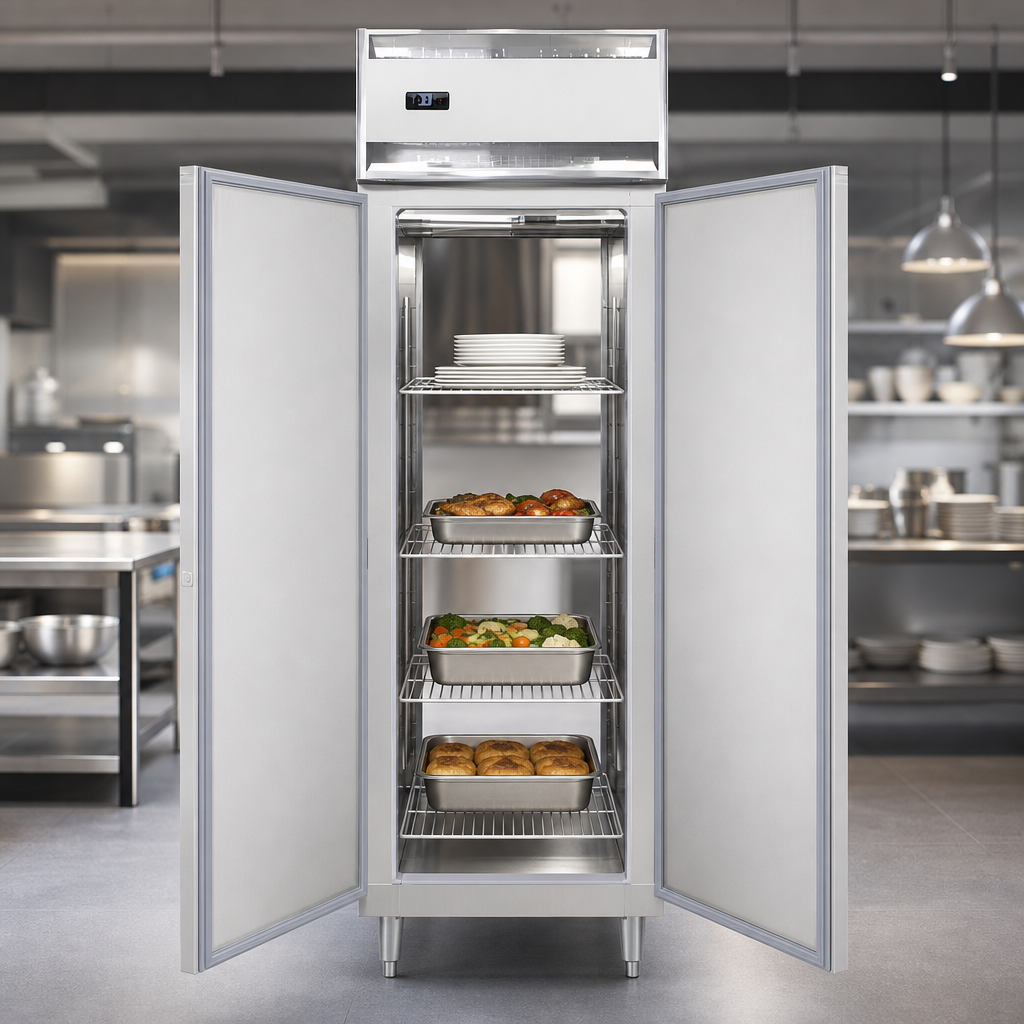

- Narrow, full-height doors on both sides for true pass-thru convenience.

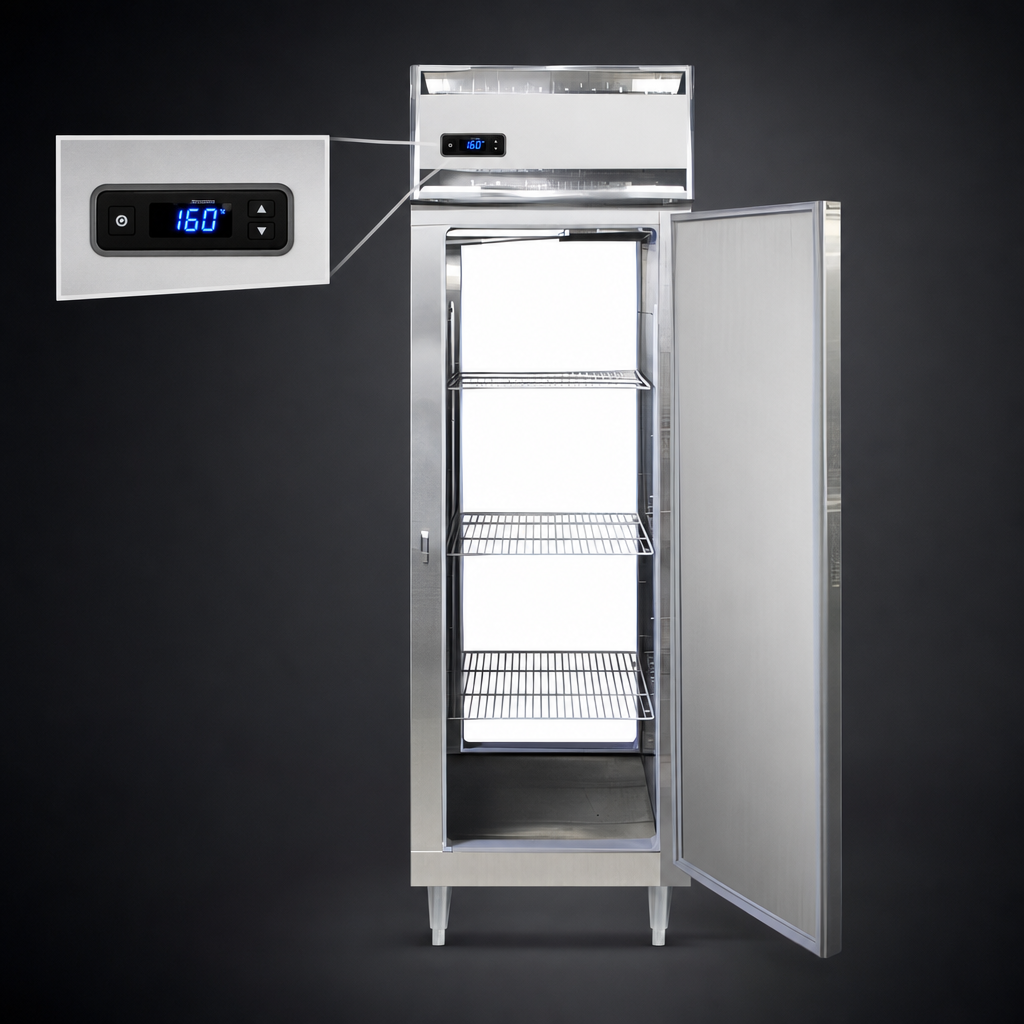

- Intuitive electronic controller with bright digital display and hi-low temperature alarm.
- Stainless-steel exterior pairs with an easy-to-clean aluminum interior.
- 3″ thick, CFC-free polyurethane insulation locks in heat and cuts energy costs.
- Three heavy-duty, adjustable chrome shelves included; pilasters accept additional shelves or pan slides.
- Self-closing doors with magnetic Santoprene™ gaskets, cam-lift hinges, chrome handles, and factory-installed locks.
- Adjustable 6″ stainless-steel legs for easy leveling and floor clearance.
- cETLus and NSF listed for electrical safety and food-contact sanitation.
Specifications
| Capacity | 21 cu. ft. (595 L) |
|---|---|
| Exterior Dimensions (W × D × H) | 26″ × 35 3⁄8″ × 83 1⁄4″ (including 6″ legs & handle) |
| Door Style / Qty | Pass-thru, full-height / 2 |
| Shelves Supplied | 3 chrome-plated steel, adjustable |
| Temperature Range | 90 °F – 180 °F |
| Controller | Digital, °F/°C selectable, hi-low alarm |
| Electrical | 208–230 V / 60 Hz / 1-ph, 7.2 A, 1,500 W (hard-wired) |
| Clear Door Opening | 19 3⁄8″ W × 58 5⁄8″ H |
| Net Shelf Area | 20.4 sq ft (1.9 m²) |
| Shipping Weight | 284 lb (129 kg) |
| Listings | cETLus, NSF |
Popular options (factory-installed)
- Extra chrome-plated or stainless-steel shelves
- Pan slide assemblies (holds up to 19 trays)
- 4″ or 5″ locking casters
- Automatic interior LED lighting
- Custom laminate fronts & finishes
- Correctional security packages (one-way screws, mesh covers, locking hasp)
Installation clearance: allow at least 12″ above and 3″ on the sides & rear when positioning against a wall or under a low ceiling.
