Continental Refrigerator  |  Designer Line  |  SKU: DL1W-SA

Continental Refrigerator DL1W-SA Designer Line Heated Cabinets & Holding Shelves

$8,232.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Map policy Warranty
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

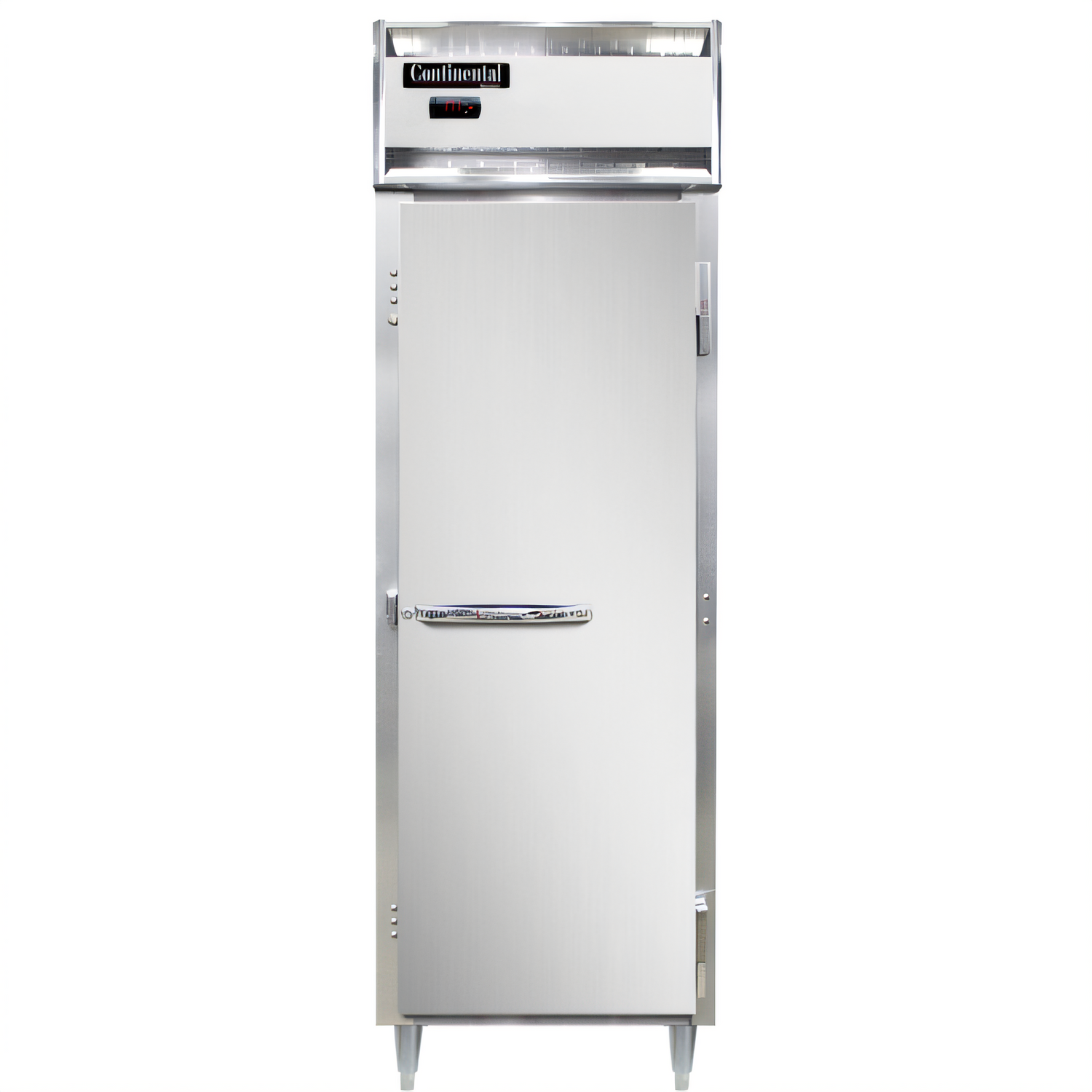

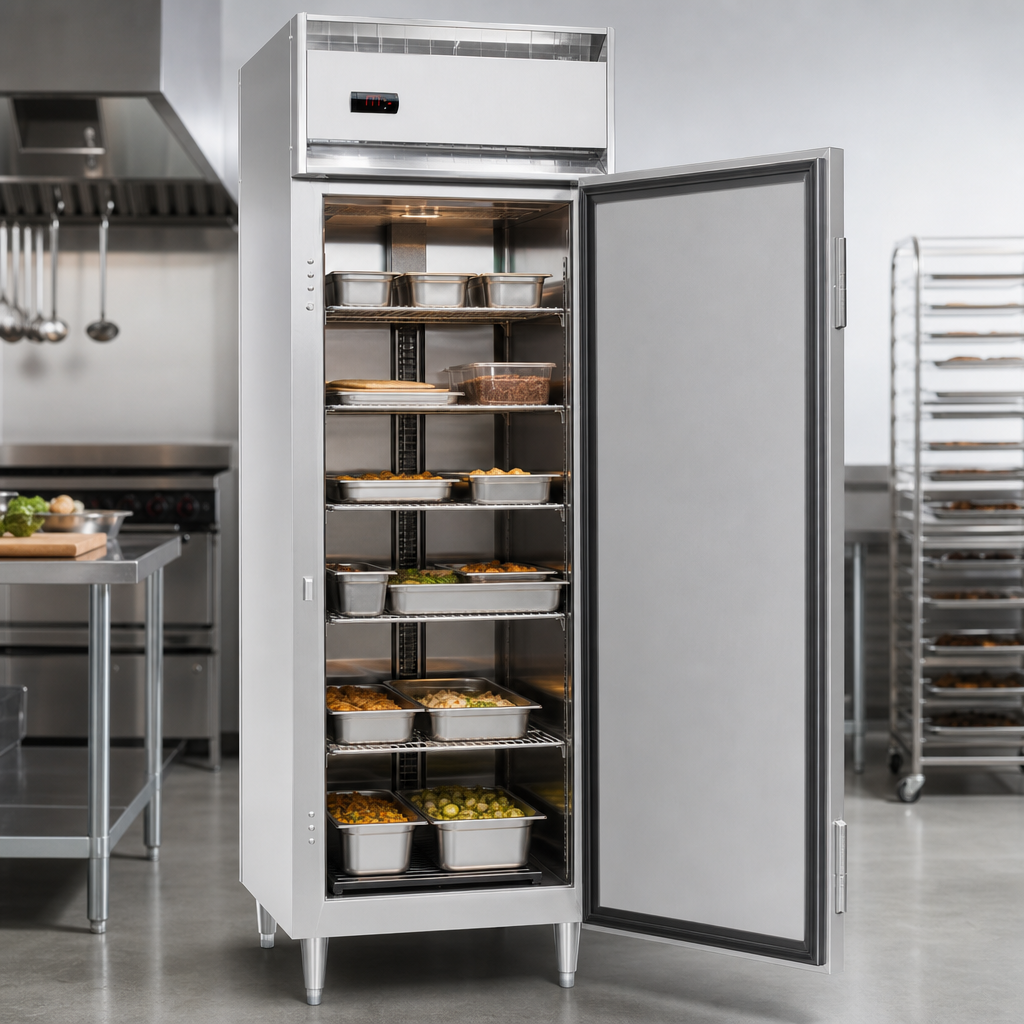

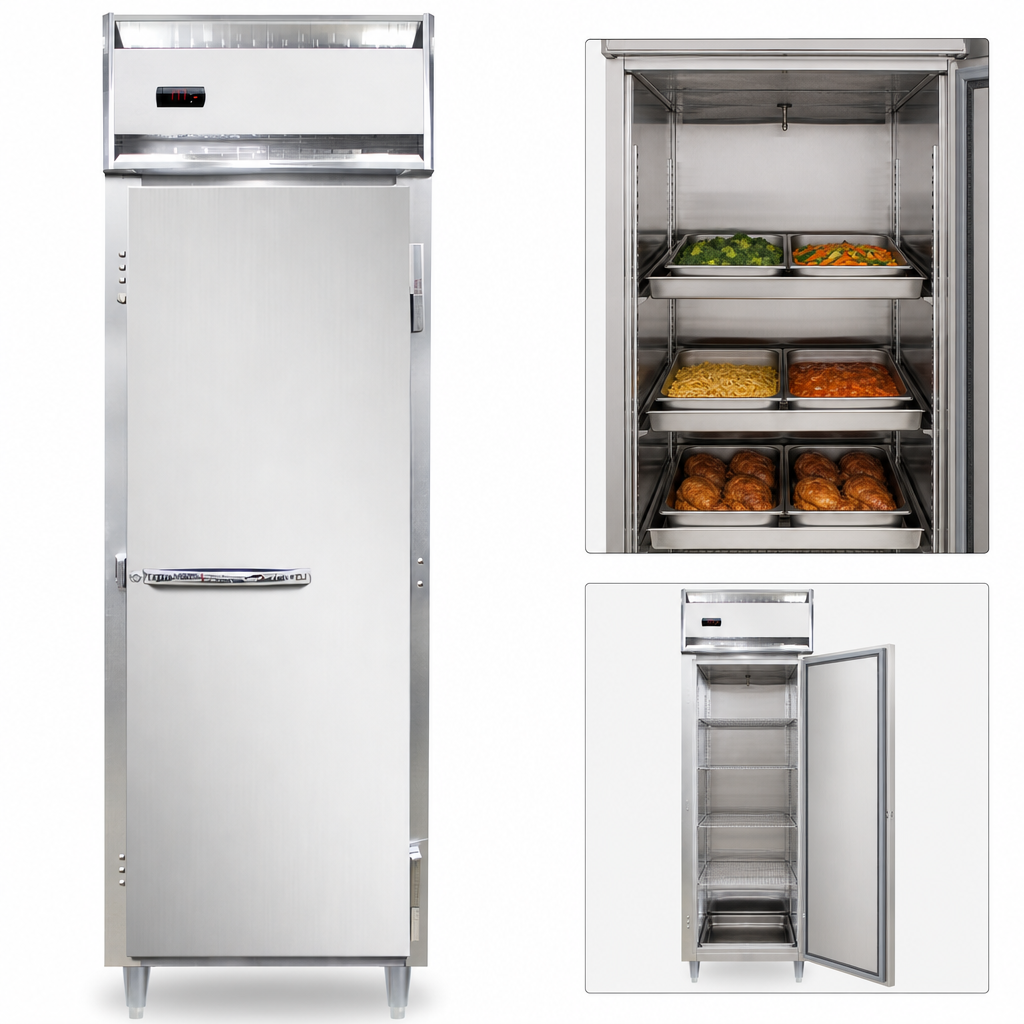

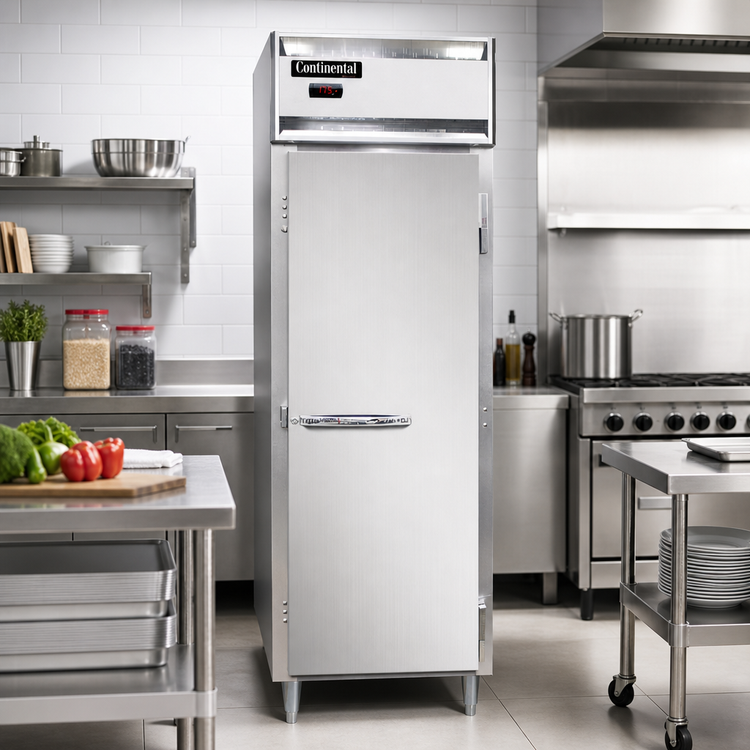

Designer Line™ Reach-In Heated Cabinet – 1 Section

Model DL1W-SA | 21 cu ft | Stainless Steel Exterior / Aluminum Interior

Keep plated meals, sheet pans, and hotel pans at perfect serving temperature without sacrificing floor space. Continental Refrigerator’s Designer Line™ DL1W-SA reach-in warmer pairs a space-saving 26 inch footprint with a powerful, self-contained heating system and the rugged build quality food-service professionals demand.

Key Performance Features
  • Self-contained, performance-rated heating system maintains 90 °F – 180 °F (32 °C – 82 °C).
  • Top-mounted plenum “plug” and high-velocity fan deliver even, gentle airflow throughout the cabinet.
  • Electronic controller with large digital display, push-button set-points, and Hi-/Lo temperature alarm.
  • 3″ thick, non-CFC polyurethane insulation locks in heat and reduces energy use.
  • Full-height, self-closing door with cam-lift hinges, chrome workflow handle, magnetic Santoprene™ gasket, and cylinder lock.
  • (3) heavy-duty chrome-plated shelves (20.4 ft²) on reinforced pilaster strips; 19-tray slide capacity.
  • Adjustable 6″ stainless steel legs for quick leveling; optional casters available.
  • cETLus & NSF listed—meets strict electrical safety and sanitation standards.
At-a-Glance Specs
Net Capacity 21 cu ft (595 L)
Temperature Range 90 °F – 180 °F
Overall Dimensions 26″ W × 35 3⁄8″ D × 83 1⁄4″ H (with 6″ legs)
Depth (less door) 32″
Door Opening 19 3⁄8″ W × 58 5⁄8″ H
Sections / Doors 1 narrow full-height door (field-rehingeable)
Shelves Included (3) adjustable chrome-plated steel
Construction Stainless steel exterior & door / aluminum interior liner
Electrical 208-230 V / 60 Hz / 1-phase, 7.2 A, 1.5 kW, hard-wire (no cord/plug)
Shipping Weight Approx. 284 lb (crated)
Certifications cETLus, NSF
Factory-Installed Options (extra cost)
  • Automatic interior LED lighting
  • Additional shelves or pan-slide assemblies
  • Stainless steel interior liner (Model DL1W-SS)
  • Stainless steel case back
  • 6″ heavy-duty casters (locking front)
  • Custom laminates or correctional-grade security packages
Installation Note: Provide at least 12″ clearance above and 3″ at the sides and rear when positioning the cabinet against a wall or under a low ceiling. A dedicated 208-230 V, single-phase circuit is required.

Looking for a different size or configuration? Ask about additional Designer Line™ warmers, shelves, and accessories.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

26.0in

Depth

35.38in

Shipping Weight

300.0lbs

Interior Finish

aluminum interior

Exterior Finish

all stainless steel exterior

Interior configuration

shelves

Doors

hinged solid

Depth

standard depth

Size

1 section

Specifications

Designer Line Heated Cabinet, reach-in, one-section, 21 cu. ft. capacity, (3) shelves, stainless steel exterior, aluminum interior, standard depth cabinet, narrow full-height doors, electronic control with digital display, hi-low alarm, cETLus, NSF
