Description

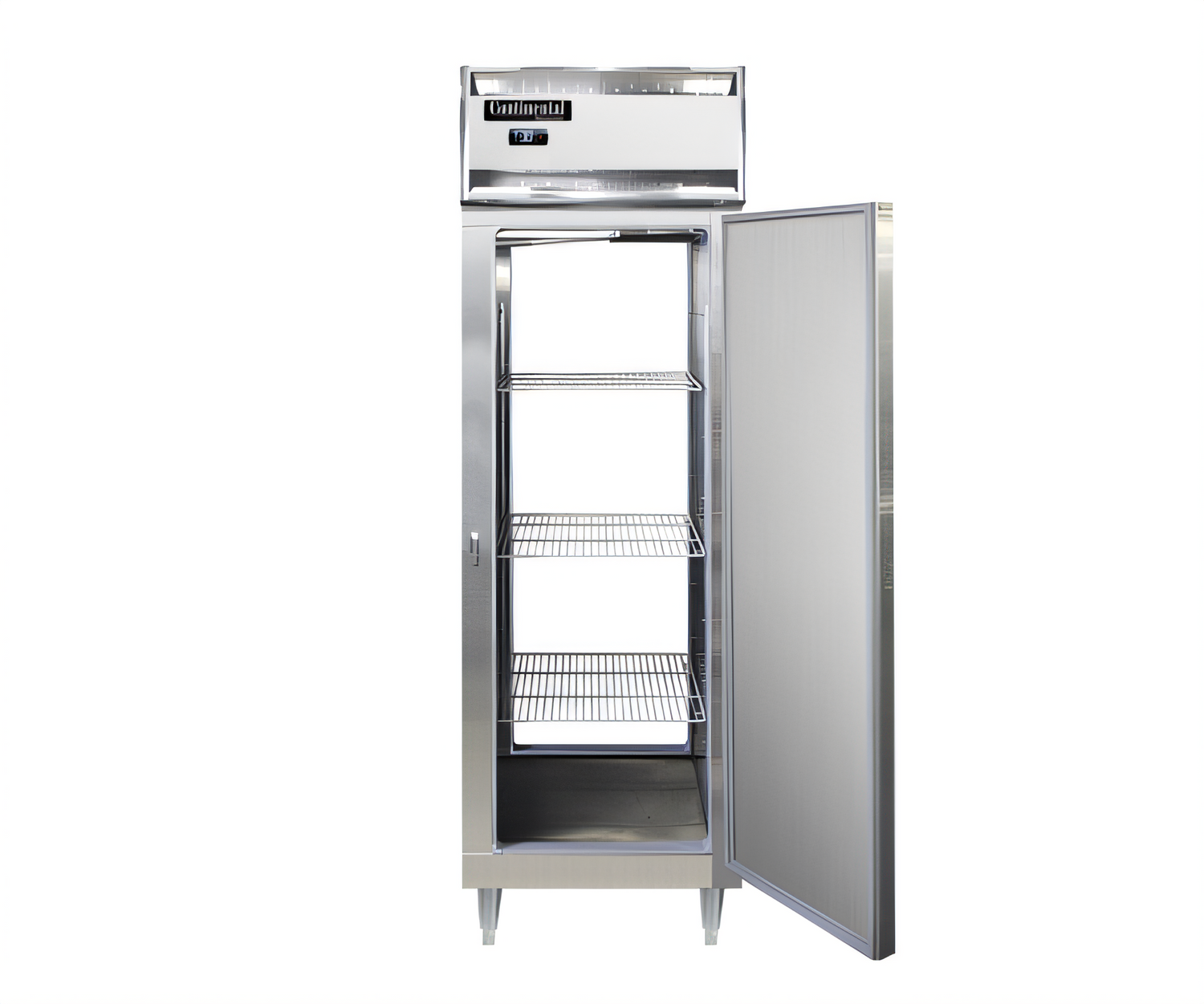

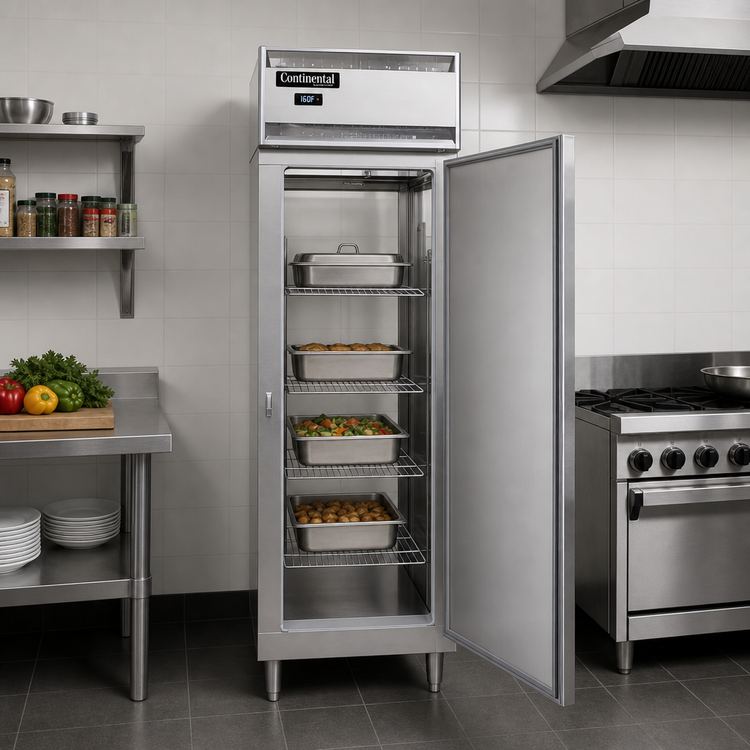

Continental Refrigerator DL1W-PT Designer Line Pass-Thru Heated Cabinet
21 cu. ft. • One-Section • Standard Depth • Pass-Thru DoorsKeep plates, pans, and take-out orders hot, safe, and ready to serve. The Designer Line DL1W-PT combines Continental’s rugged construction with a precise, self-contained heating system that maintains 90 °F – 180 °F—even through the rush. A narrow footprint, full-height pass-thru doors, and digital controls make this warmer an easy fit on the cookline or in a plating corridor.
Standard Features
- Self-contained heating system with top-mounted plenum & circulating fan for uniform cabinet temperature
- 90 °F – 180 °F set point, regulated by an electronic controller with digital display & hi-low temperature alarm
- 21 cu. ft. capacity with (3) adjustable heavy-duty chrome-plated shelves (20.4 sq. ft. shelf area)

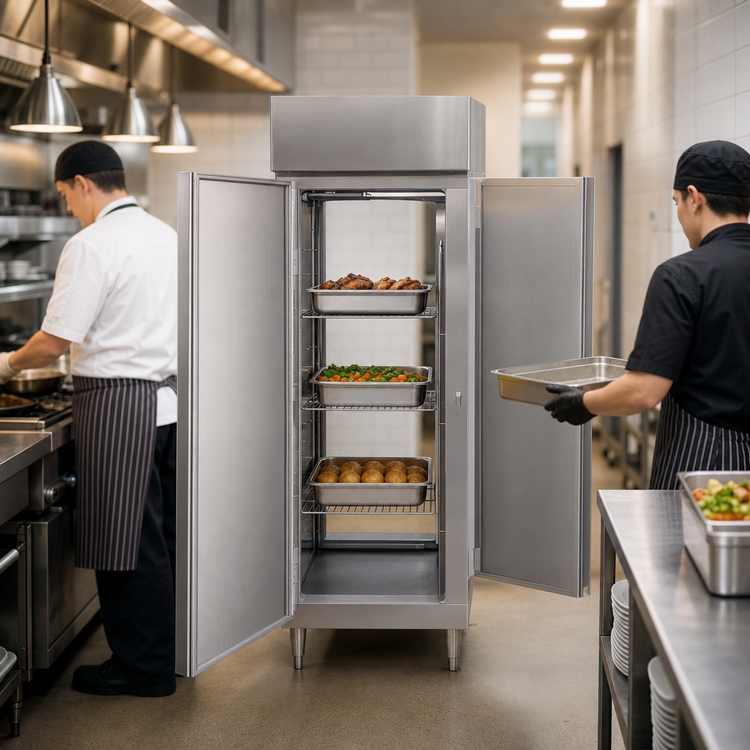

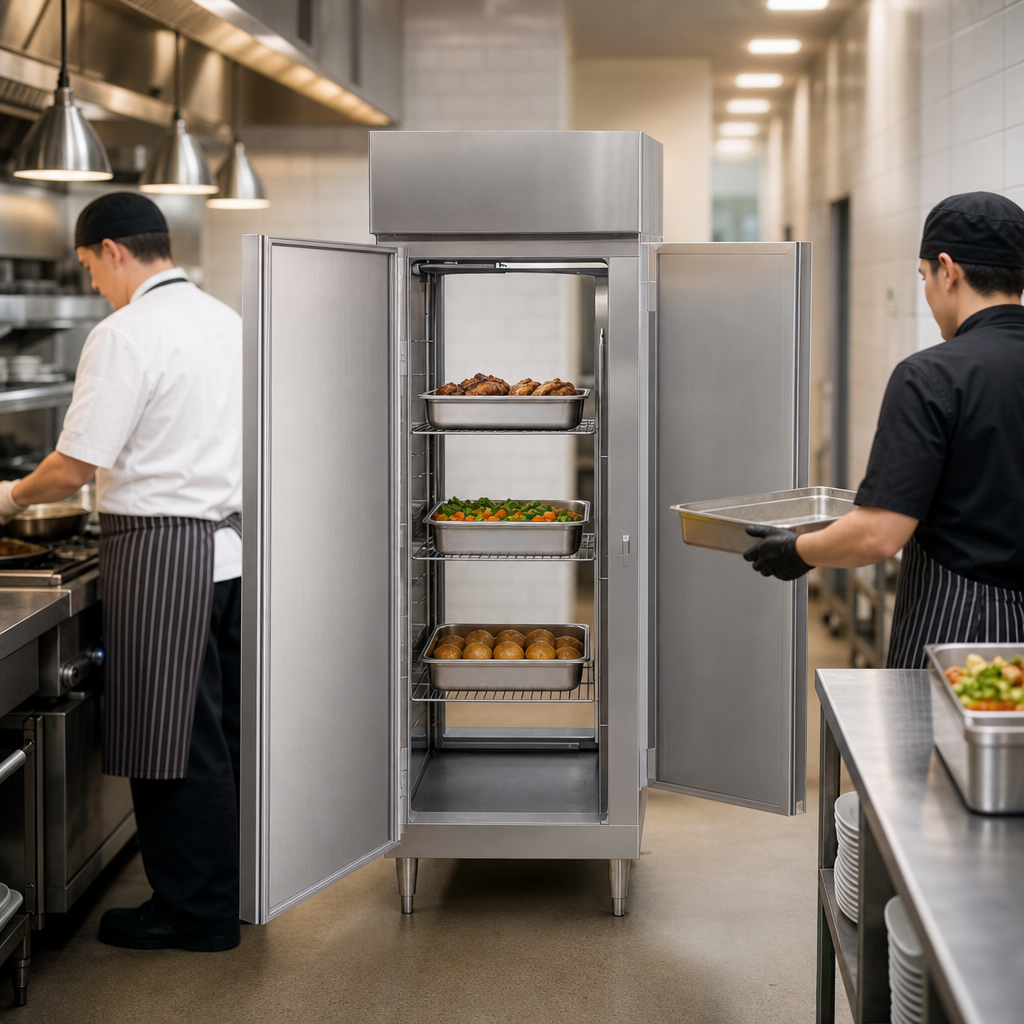

- Pass-thru design: (2) narrow, full-height doors—self-closing, cam-lift hinges & magnetic Santoprene™ gaskets

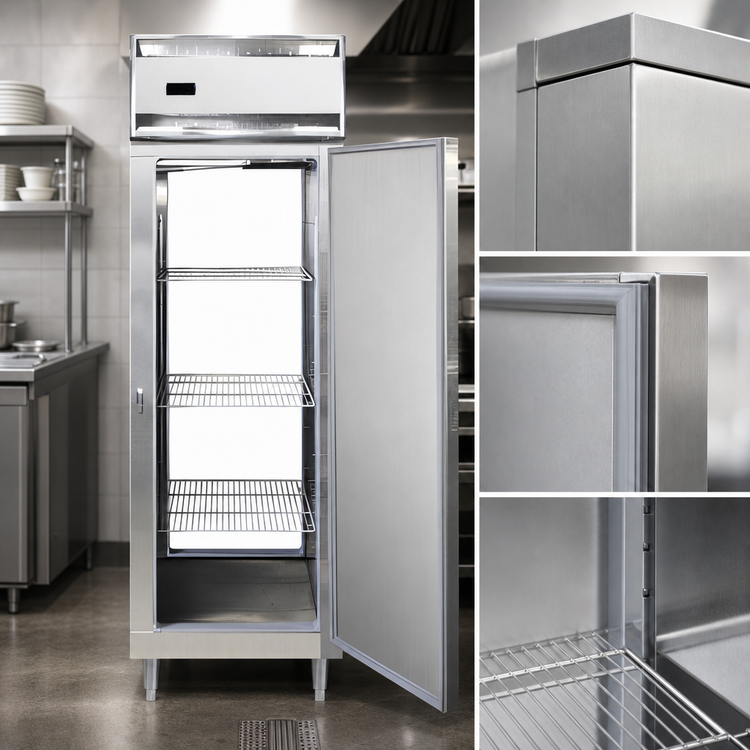

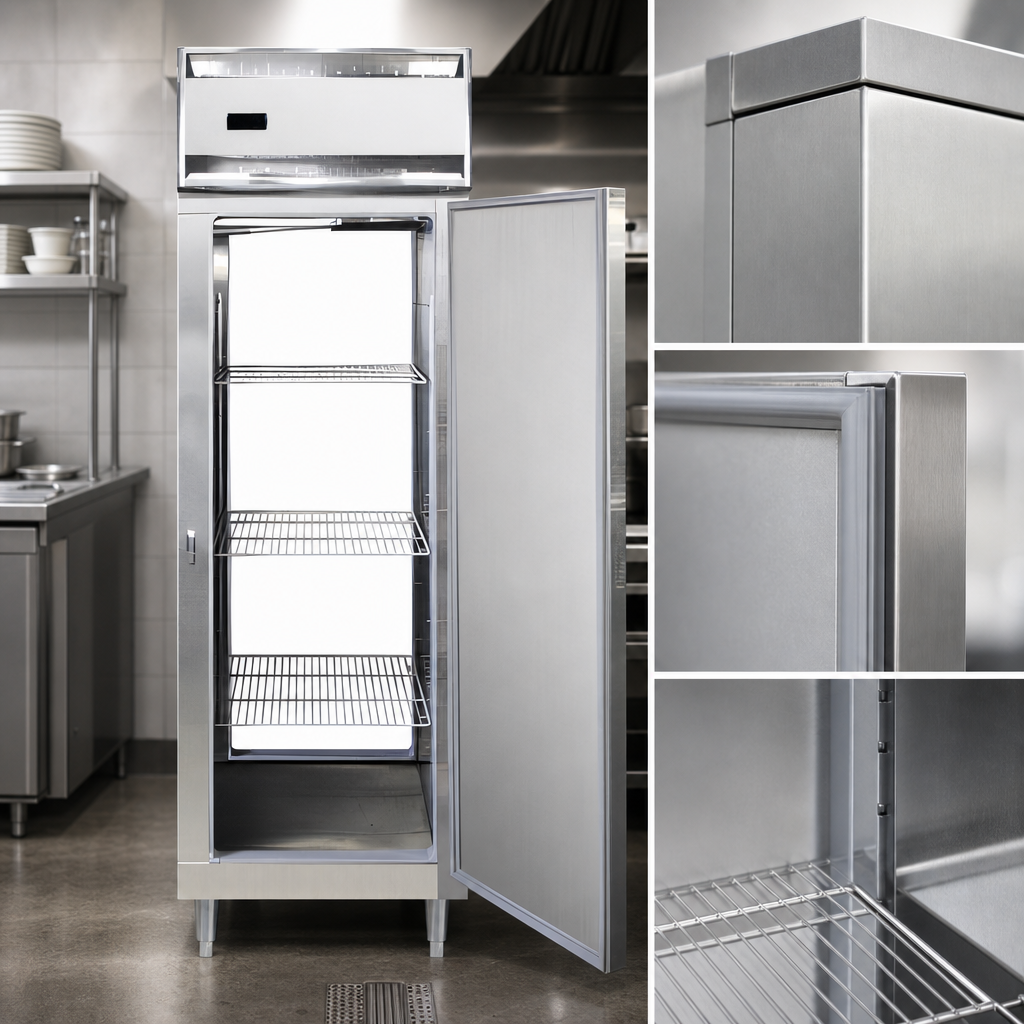

- Stainless steel front & doors, aluminum interior & end panels, plus 3" foamed-in-place insulation
- Automatic LED interior lighting and stainless steel strip heaters in cabinet base
- Smooth polished chrome door handle & cylinder lock for secure workflow
- Adjustable 6" stainless steel legs for effortless floor cleaning
- cETLus & NSF listed
Specifications
| Model | DL1W-PT |
|---|---|
| Capacity | 21 cu. ft. (595 L) |
| Temperature Range | 90 °F – 180 °F (32 °– 82 °C) |
| Exterior | Stainless steel front & doors / aluminum sides |
| Interior | Aluminum with stainless strip heaters |
| Doors | (2) narrow, full-height, pass-thru, self-closing |
| Shelves | (3) chrome-plated, adjustable |
| Overall Dimensions (W × D × H) | 26" × 35 3⁄8" × 83 1⁄4" (incl. 6" legs) |
| Door Opening (W × H) | 19 3⁄8" × 58 5⁄8" |
| Electrical | 208-230 V / 60 Hz / 1-ph, 7.2 A, 1500 W (hard-wire) |
| Shelf Area | 20.4 sq. ft. (1.9 m²) |
| Shipping Weight | Approx. 284 lb (129 kg) |
| Certifications | cETLus, NSF |
Popular Options & Accessories
- Additional chrome-plated or stainless steel shelves
- Pan slide assemblies for sheet pans or trays
- Swivel or locking casters (replace 6" legs)
- Full stainless steel exterior upgrade
- Custom laminate finishes
- Security packages for correctional facilities (mesh covers, tamper-resistant screws, etc.)
Looking for additional configurations or special electrical requirements? Continental Refrigerator can factory-customize this warmer—contact us for details.
