Continental Refrigerator DL1W-HD Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL1W-HD Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL1W-HD Designer Line Heated Cabinets &...
Description

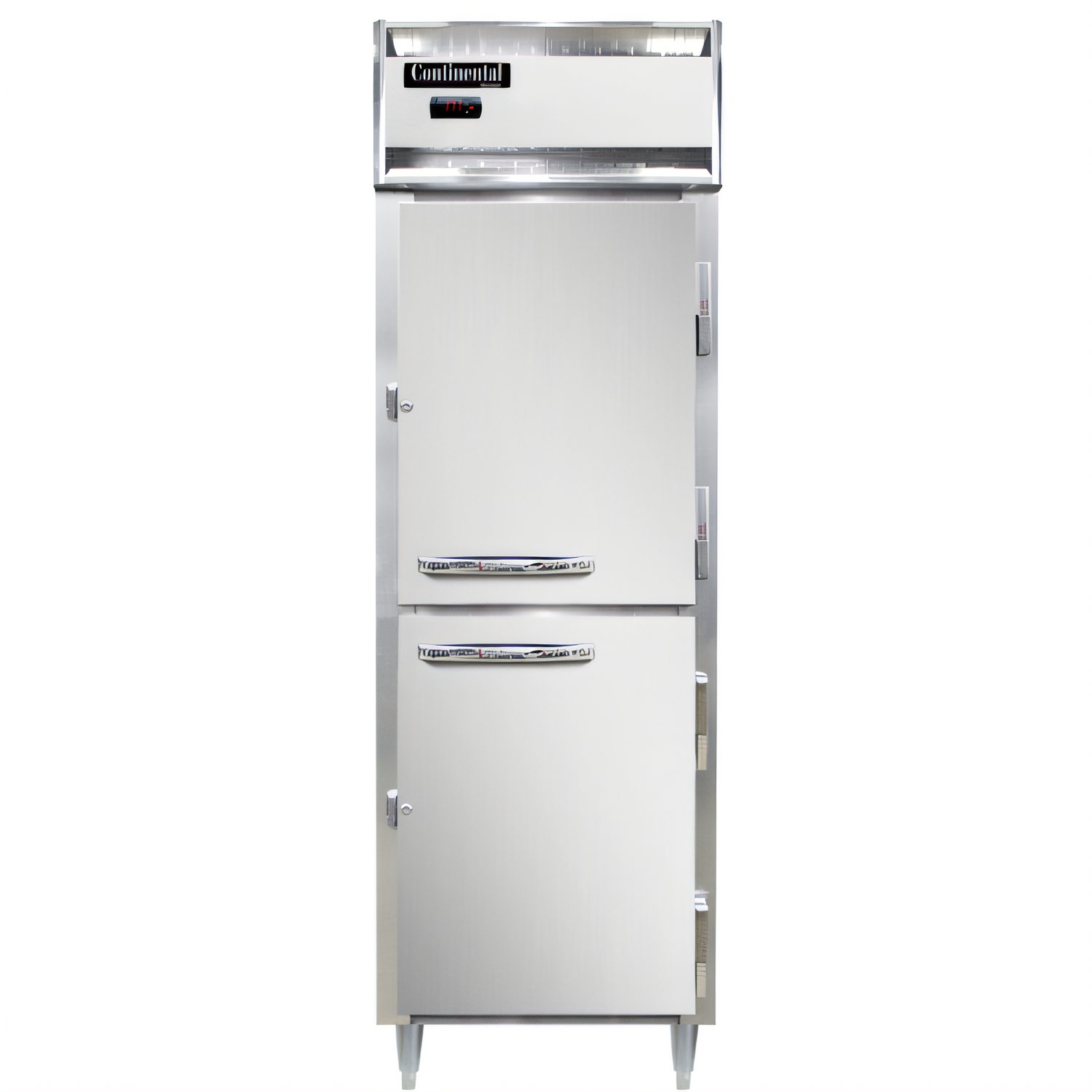

Designer Line DL1W-HD Reach-In Heated Cabinet
21 cu. ft. • one-section • narrow half-height doors • cETLus & NSFHold entrées, plated meals, or sheet-pans at precise serving temperatures while adding a sleek, front-of-house look to your kitchen. Continental Refrigerator’s Designer Line warmer pairs robust stainless-steel durability with an advanced, self-contained heating system for dependable performance shift after shift.
Key Features & Benefits

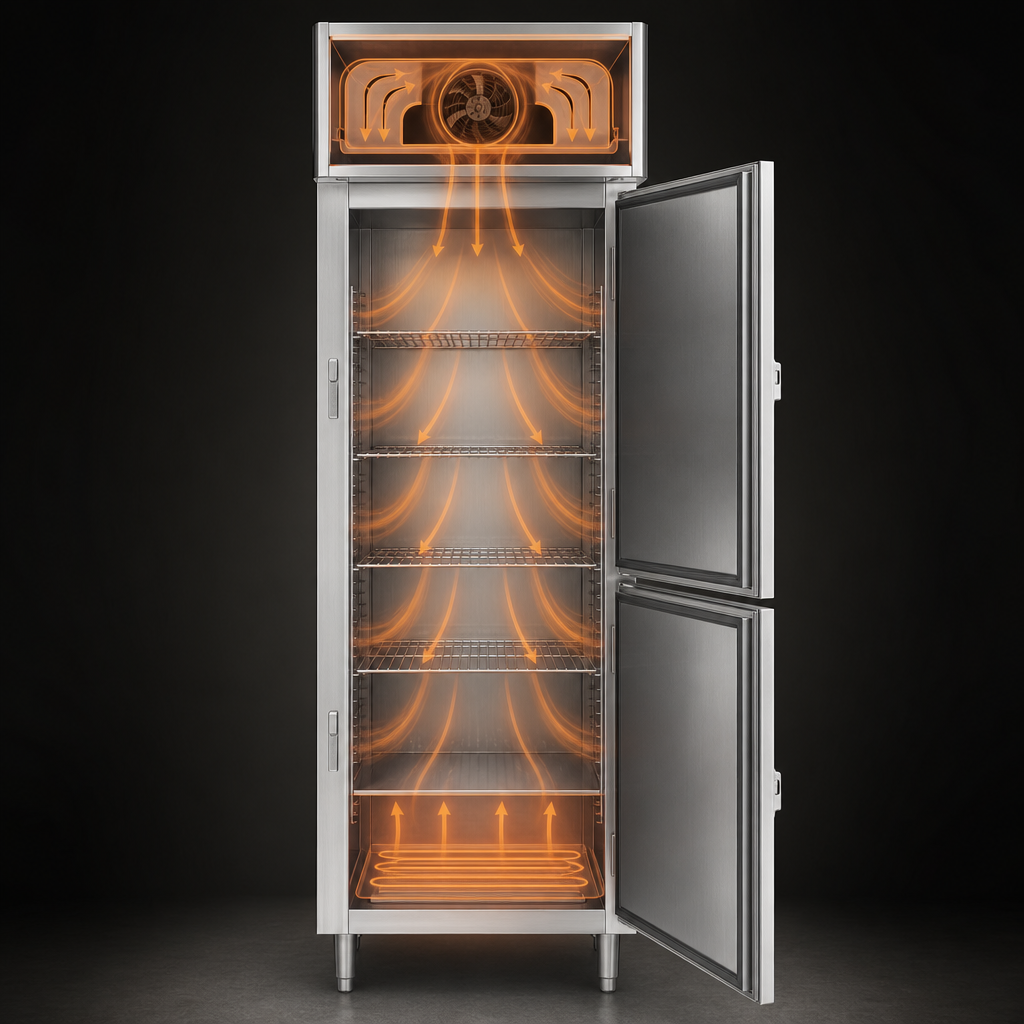

- 90 °F – 180 °F self-contained heating system with top-mounted plenum and high-volume circulating fan for even heat.
- Stainless-steel front & doors with aluminum interior/end panels for a lightweight yet durable build.
- Two narrow half-height doors:
- Self-closing cam-lift hinges
- Magnetic Santoprene™ gaskets for an airtight seal
- Individual cylinder locks for secure overnight storage

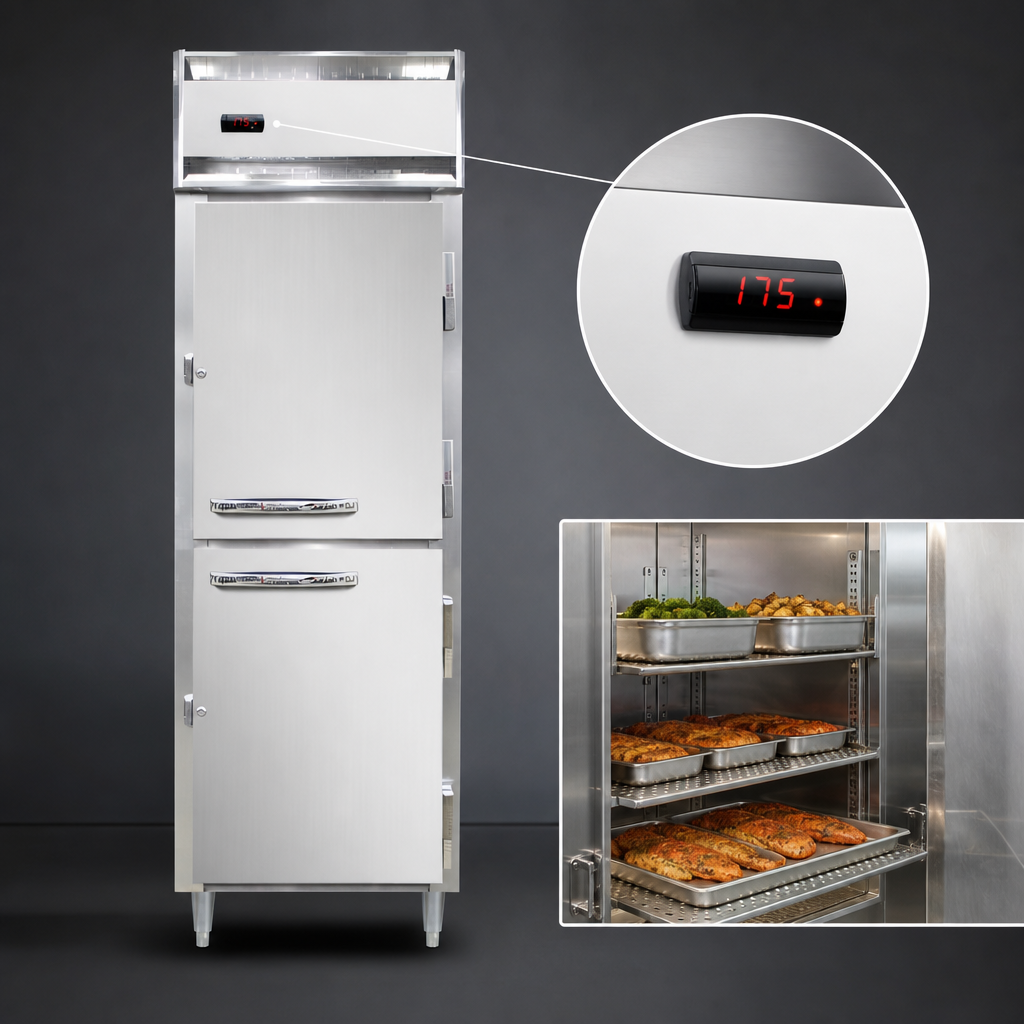

- Electronic controller with large digital temperature read-out plus hi-low audio/visual alarm.
- 3 chrome-plated, heavy-duty shelves on adjustable pilaster strips.
- 3″ foamed-in-place, CFC-free polyurethane insulation to maximize heat retention and energy efficiency.
- Stainless-steel strip heaters in cabinet base reduce condensation on the interior walls.
- Adjustable 6″ stainless-steel legs simplify floor cleaning and leveling.
Technical Specifications
| Model | DL1W-HD (Designer Line Warmer, Half Doors) |
|---|---|
| Capacity | 21 cu. ft. / 595 L |
| Exterior Dimensions (W × D × H) | 26″ × 35 3⁄8″ × 83 1⁄4″ (incl. 6″ legs & handle) |
| Clear Door Opening | 19 3⁄8″ W × 27 1⁄2″ H (each half door) |
| Shelf Area | 20.4 sq ft |
| Temperature Range | 90 °F – 180 °F |
| Electrical | 208-230 V / 60 Hz / 1-ph • 7.2 A • 1500 W (3-wire hard-wire connection, no cord) |
| Shelves Supplied | 3 chrome-plated steel, adjustable |
| Legs / Mobility | 6″ stainless-steel legs (adjustable) |
| Certifications | cETLus • NSF |
| Shipping Weight | ≈ 284 lb |
Popular Factory Options
- Automatic LED interior lighting
- Additional shelves or pan-slide assemblies
- Full stainless-steel exterior or case back
- Swivel or locking casters
Covered by Continental Refrigerator’s outstanding 7-year parts, labor & compressor warranty.
