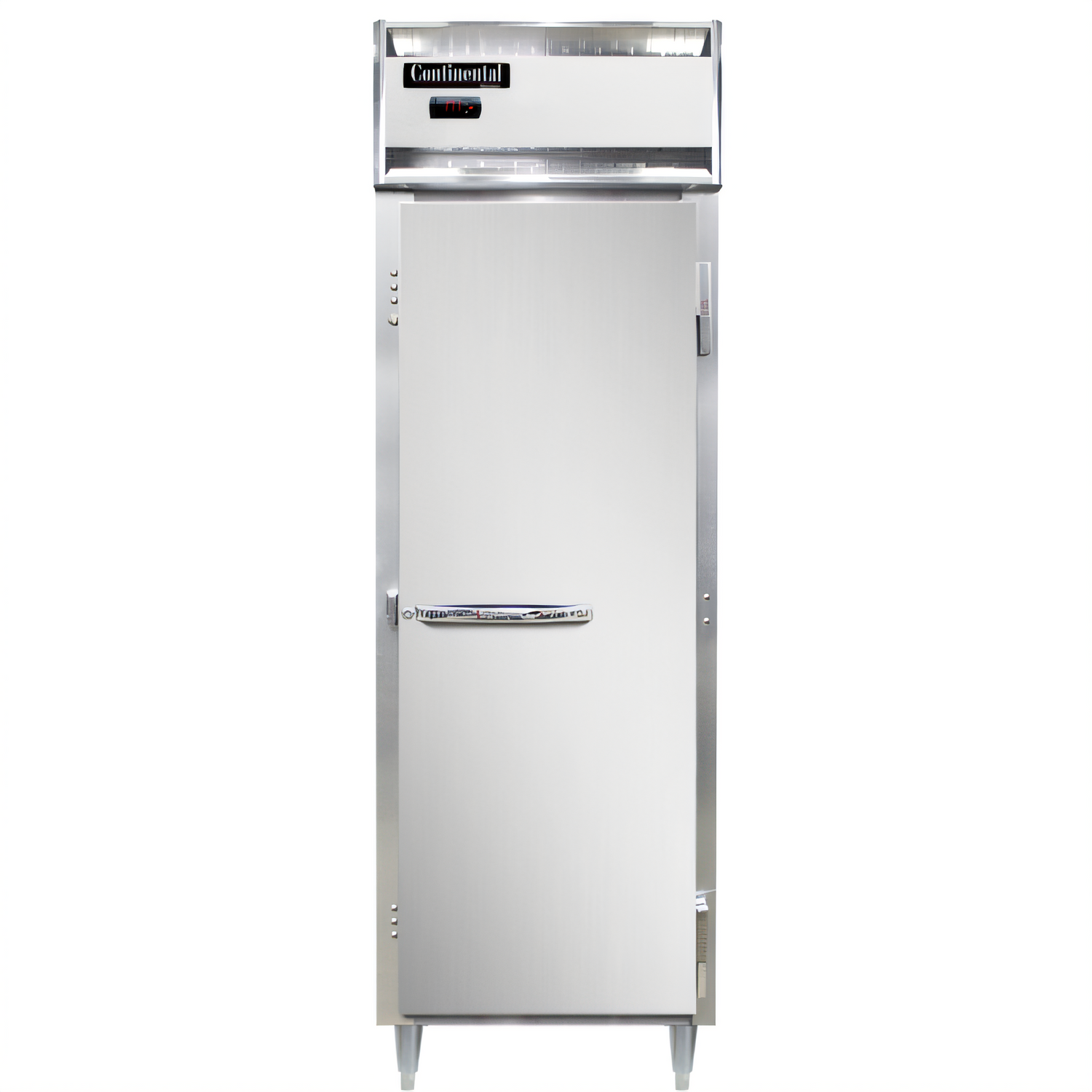

Continental Refrigerator Designer Line DL1W Reach-In Heated Cabinet
1 Section • 21 cu ft • 3 Shelves • Narrow Full-Height DoorBuilt for high-volume kitchens that demand consistent results, the Designer Line DL1W keeps prepared foods safely hot and ready to serve. Its self-contained heating system circulates gentle, even air throughout the cabinet, maintaining a precise 90 – 180 °F holding range while using energy-saving 3 inch insulation. A slim 26-inch footprint slips neatly into cooklines or plate pick-up areas without sacrificing capacity.
Key Features
- Self-contained, top-mounted heating plenum with high-efficiency circulating fan

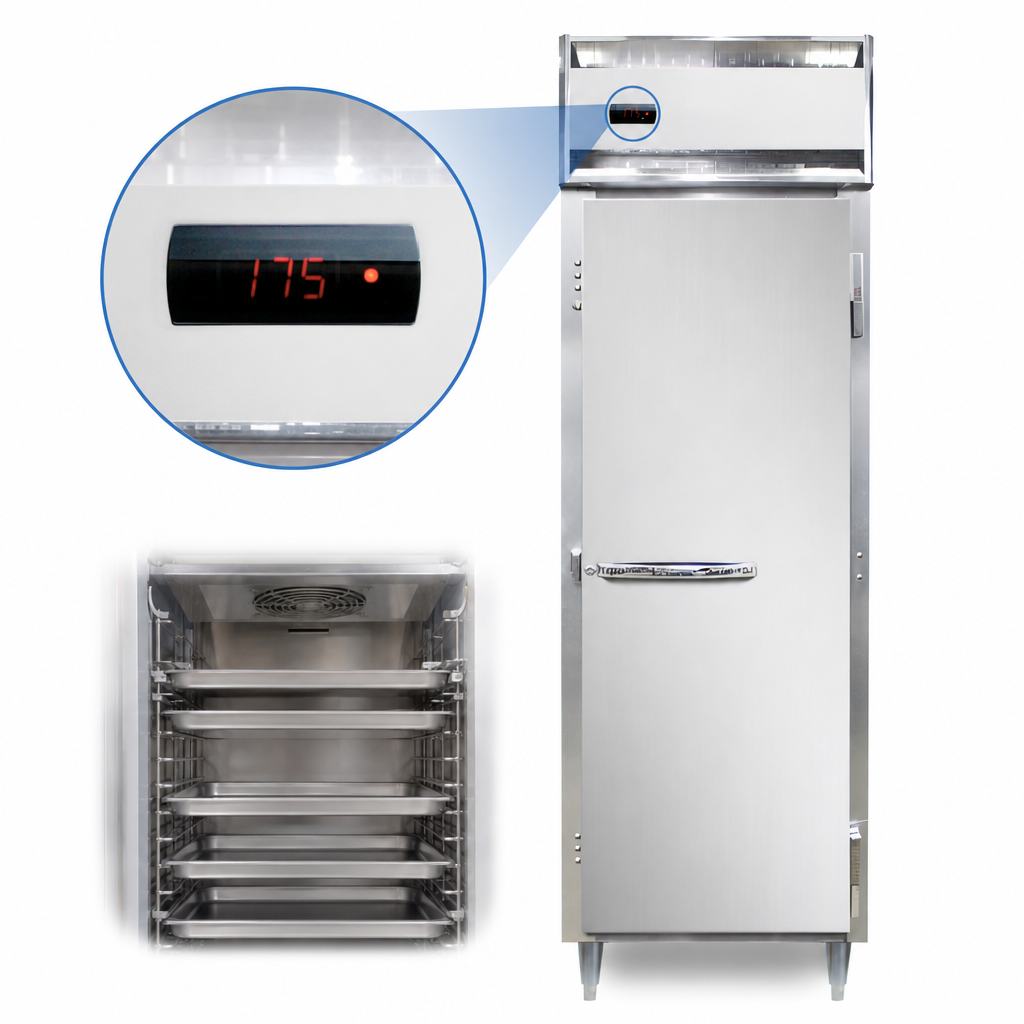

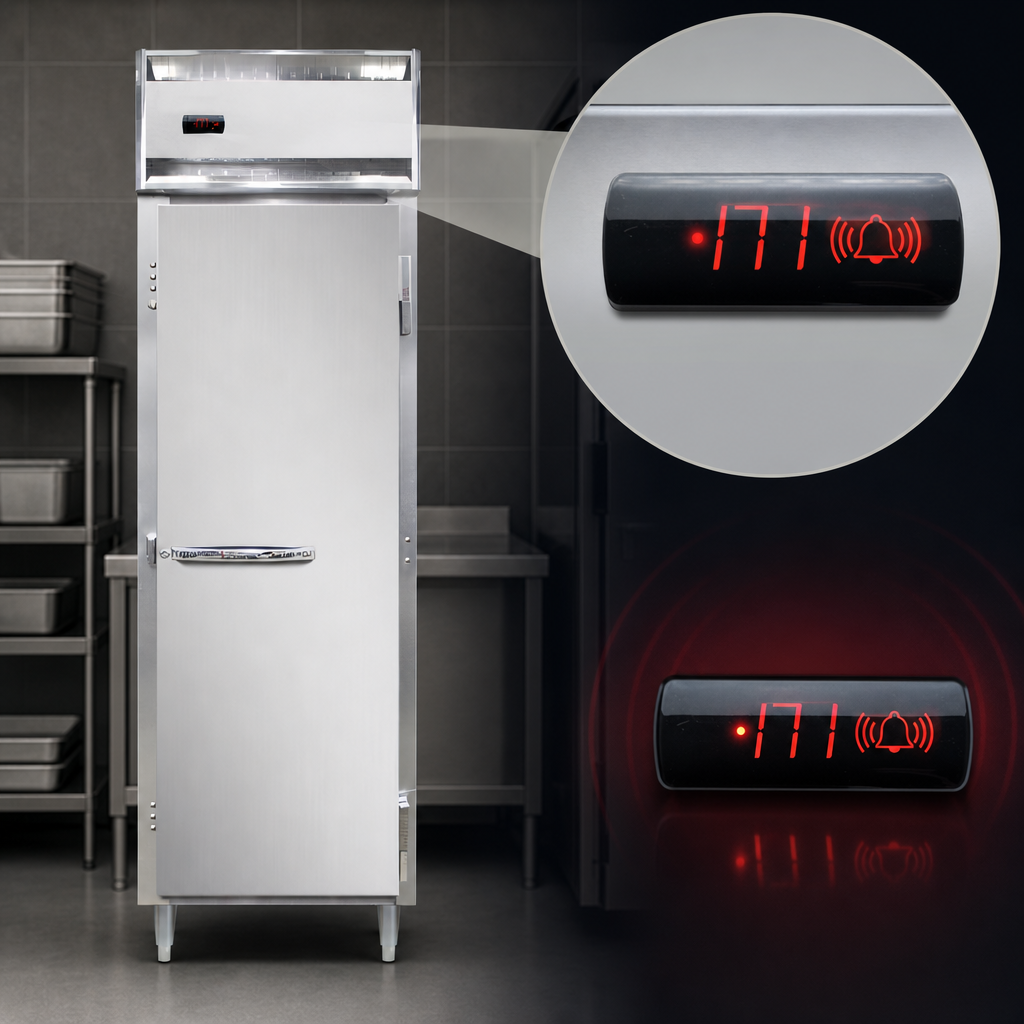

- Electronic controller with bright digital display and hi-/low temperature alarm
- Durable stainless steel front & narrow full-height door; lightweight aluminum sides and interior
- 3 in. non-CFC polyurethane insulation locks in heat and lowers energy costs
- Self-closing door on cam-lift hinges with magnetic Santoprene™ gasket for a positive seal
- Three heavy-duty chrome-plated shelves (20.4 ft² total) on adjustable pilaster strips
- Factory-installed cylinder lock helps secure contents during off-hours
- Adjustable 6 in. stainless steel legs for easy floor cleaning and perfect leveling
- cETLus & NSF listed for electrical safety and sanitation
Specifications
| Model | DL1W (Designer Line Warmer) |
|---|---|
| Capacity | 21 cu ft / 595 L |
| Exterior Dimensions (W × D × H) | 26 in. × 35 3/8 in. × 83 1/4 in. (660 mm × 899 mm × 2115 mm) |
| Shelf Count / Area | 3 shelves / 20.4 ft² |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Electrical | 208-230 V, 60 Hz, 1-phase, 7.2 A, 1500 W (hard-wired, no cord/plug) |
| Door Opening (W × H) | 19 3/8 in. × 58 5/8 in. |
| Construction | Stainless steel front & door / aluminum ends & interior, 3 in. foamed-in-place insulation |
| Approvals | cETLus, NSF |
| Shipping Weight | Approx. 284 lb (129 kg) |
Provide at least 12 in. clearance above the cabinet and 3 in. on each side and rear for proper ventilation.
Popular Factory Options (sold separately)
- Automatic interior LED lighting
- Additional or stainless steel shelves
- Pan slide assemblies (up to 19-tray capacity)
- Casters for easy mobility
- Full stainless steel exterior or stainless steel case back
