Continental Refrigerator  |  Designer Line  |  SKU: DF48N-U-D

Continental Refrigerator DF48N-U-D Designer Line Undercounter & Worktop Refrigeration

$9,738.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Map policy Installation & operation Owner's manual Warranty-hc
Related Searches
Commercial Freezers Commercial Refrigeration Restaurant Equipment Undercounter Freezers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

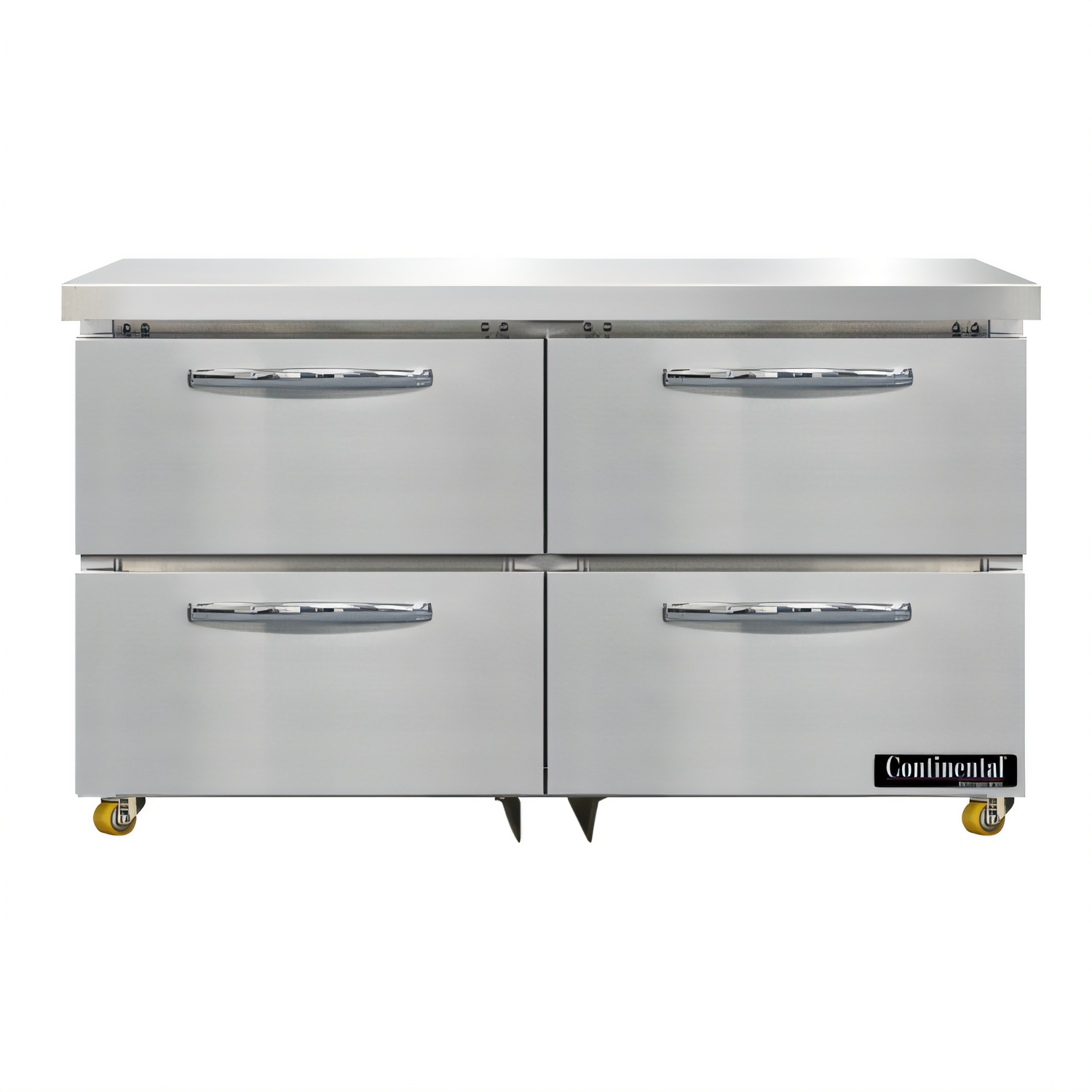

Designer Line 48" Undercounter Freezer – 4-Drawer (Model DF48N-U-D)

by Continental Refrigerator

Bring high-performance freezing to tight prep areas with Continental Refrigerator’s Designer Line DF48N-U-D. This two-section, 0 °F undercounter freezer combines a sleek all-stainless exterior with energy-saving R-290 refrigeration and rugged, chef-friendly drawers that keep frequently used ingredients right where you need them.

Key Features

  • Four heavy-duty stainless steel roll-out drawers with smooth chrome handles
  • Each drawer holds:
    • (1) 12" × 18" × 6" full pan or
    • (1) 1/2-size × 6" plus (1) 1/3-size × 6" pan (pans supplied by others)
  • Front-breathing design — installs flush against walls and equipment

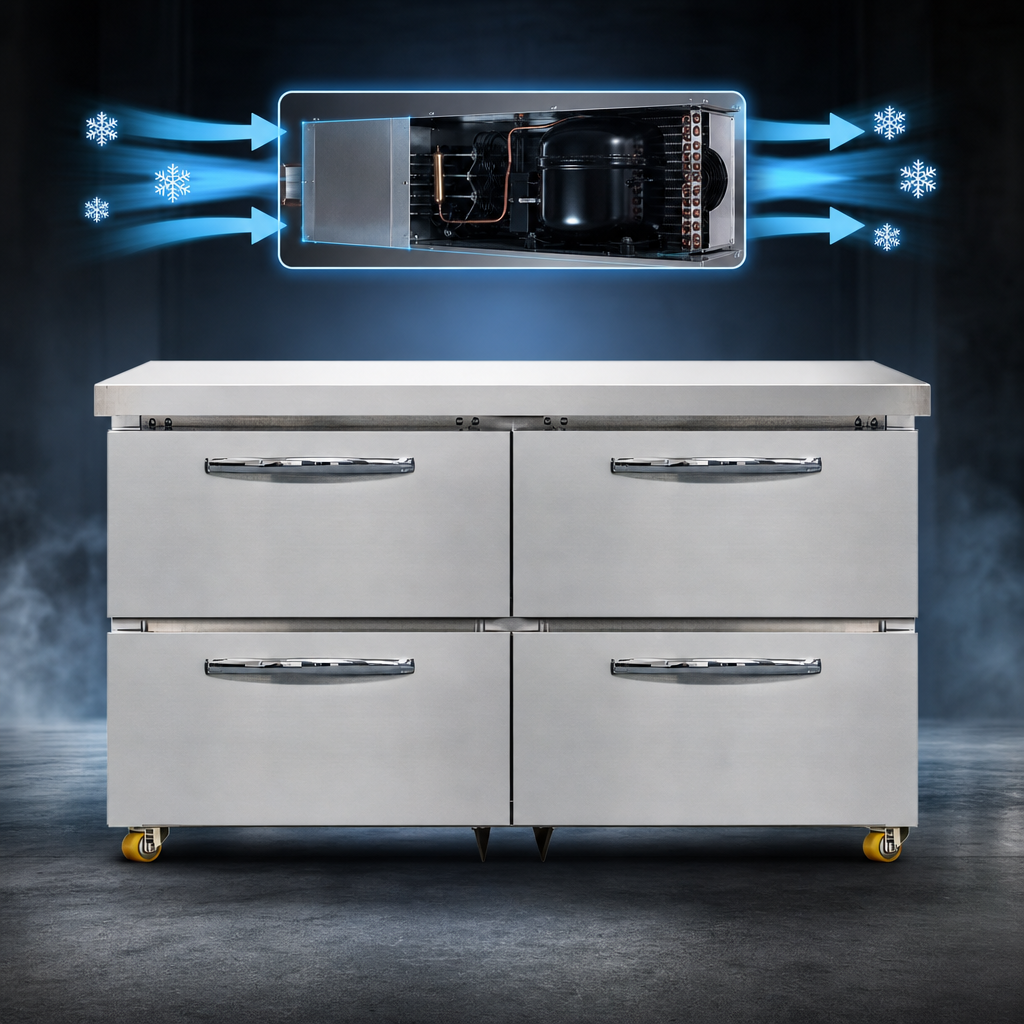

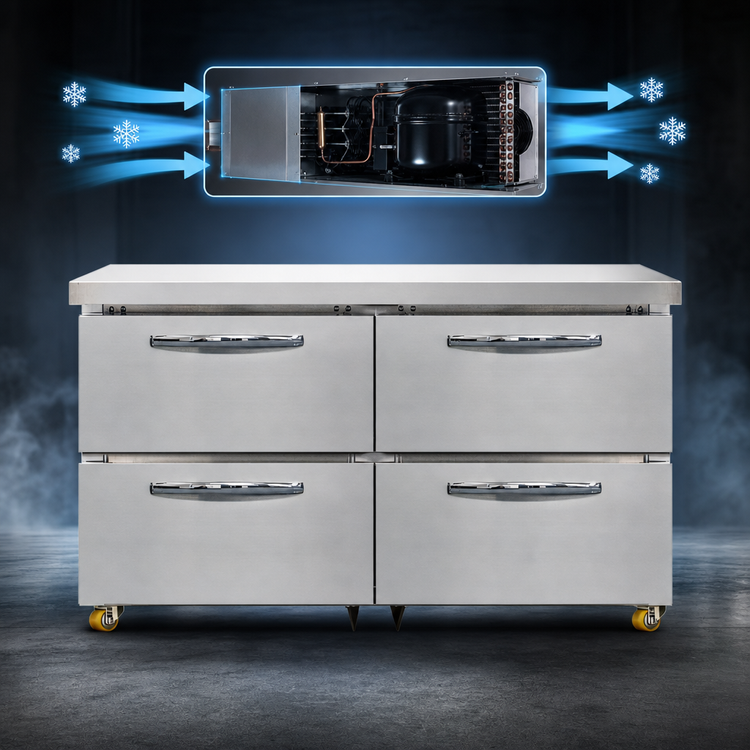

  • Rear-mounted, self-contained 1/2 HP compressor for easy service access
  • Eco-friendly, high-efficiency R-290 hydrocarbon refrigerant
  • Electronic control with back-lit digital temperature display & hi/low alarm
  • Automatic electric defrost with hot-gas condensate evaporator
  • 2" non-CFC polyurethane foam insulation for maximum cold retention
  • 1-3/8" diameter factory-installed plate casters (lockable front)
  • Magnetic, snap-in Santoprene™ drawer gaskets — tool-free replacement
  • NSF & cETLus listed; proudly designed & assembled in the USA

Technical Specifications

Interior volume 13.4 cu ft (379 L)
Temperature range 0 °F  (-18 °C) nominal
Overall width 48" (1219 mm)
Overall depth 32 3/16" (818 mm)  (includes handles & bumpers)
Overall height 31 13/16" (808 mm)  (with casters)
Drawers 4 (two tiers)
Compressor 1/2 HP rear-mounted
BTU capacity 2,078 BTU/hr @ -15 °F evap., 90 °F ambient
Electrical 115 V / 60 Hz / 1-ph, 7.7 A, NEMA 5-15P cord & plug attached
Defrost amps 4.4 A
Shipping weight 370 lb (168 kg)
Note: Pans are shown for illustration only and are not included with the freezer. Ensure the area in front of and beneath the unit remains unobstructed for proper airflow.

Industry-Leading Warranty

Enjoy peace of mind with Continental Refrigerator’s 7-year parts, labor & compressor warranty on all R-290 models — one of the longest, most comprehensive coverages in the industry.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

31.81in

Width

48.0in

Depth

31.56in

Shipping Weight

248.0lbs

Size

2 section

Access Type

drawers

Compressor HP

1/2 HP

Width

48"- 59"

Refrigeration

self-contained, rear mounted

Exterior Finish

all stainless steel exterior

Specifications

Designer Line Undercounter Freezer, 48"W, two-section, (4) drawers, accommodates (1) 12 x 18 x 6 pan per drawer or (1) 1/2 x 6 pan & (1) 1/3 x 6 pans per drawer capacity (supplied by others), stainless steel exterior & interior, stainless steel top, 1-3/8" diameter plate casters, front breathing, electronic control with digital display, hi-low alarm, rear mounted self-contained refrigeration, R290 hydrocarbon refrigerant, 1/2 HP, cETLus, NSF
