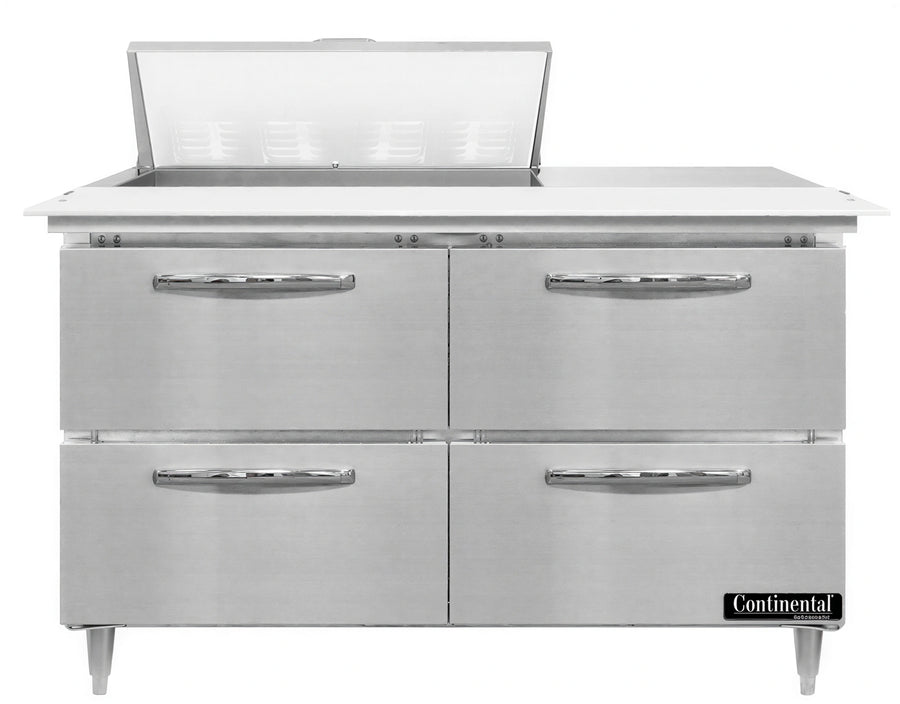

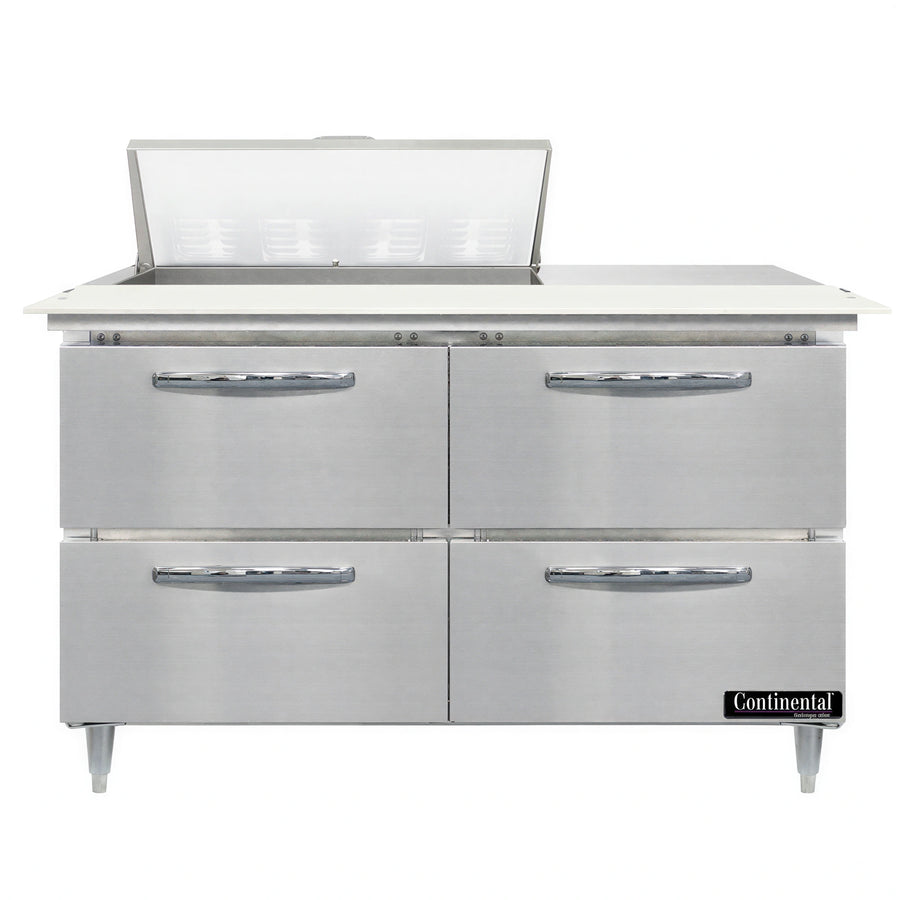

Continental Refrigerator Designer Line D48N8C-D Two-Section Sandwich Prep Table, 4 Drawers, 48" Wide, 8-Pan Top

SKU: D48N8C-D
$11,536.09
Free Shipping

Want to speak to an expert?

The Continental Refrigerator Designer Line D48N8C-D is a two-section sandwich unit with four drawers, eight 1/6-size by 4-inch-deep top pans, and a 19-inch cutting board. Its stainless steel front, top, end panels, and interior support commercial foodservice use.

The unit features rear-mounted, self-contained refrigeration with R-290 refrigerant, an electronic controller with digital display, front breathing, and six adjustable legs.

  • Four stainless steel roll-out drawers with drawer locks
  • Flat insulated night cover
  • Automatic hot gas condensate evaporator
  • Two-inch non-CFC polyurethane foam insulation

Overall Dimensions:

48.0"W x 39.25"D x 43.25"H

Product Weight:

350.0 lb

Eight top pans

Includes eight recessed 1/6-size pans that are 4 inches deep.

Four roll-out drawers

Stainless steel drawers include drawer locks; the authoritative specification states the drawers hold one 12 x 18 x 6 inch pan.

19-inch cutting board

Provides a 19-inch full-length cutting board for sandwich preparation.

R-290 refrigeration

Uses rear-mounted, self-contained refrigeration with R-290 refrigerant.

Electronic control

Electronic controller includes a digital display and off-cycle defrost.

Stainless steel cabinet surfaces

Stainless steel is specified for the front, top, end panels, and interior.

Adjustable support legs

Includes six adjustable stainless steel legs.

Insulated construction

Cabinet uses two-inch non-CFC polyurethane foam insulation and includes a flat insulated night cover.

Net capacity 13.4 cu. ft.
Number of sections 2
Number of drawers 4
Top pan capacity 8 pans
Top pan size 1/6 size x 4 in. deep
Drawer pan capacity (1) 12 x 18 x 6 in. pan
Cutting board depth 19 in.
Refrigerant R-290
Refrigeration Self-contained, rear mounted
Airflow Front breathing
Temperature range 33°F to 41°F
Defrost Off-cycle
Insulation 2 in. non-CFC polyurethane foam
Electrical 115 V / 60 Hz / 1 phase
Total amps 4.8 A
Power connection NEMA 5-15P plug
Condensing unit size 1/4 hp
Refrigeration capacity 1,940 BTU/h

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Seven-year parts, labor, and compressor warranty.

Frequently Asked Questions

It includes eight 1/6-size recessed pans that are 4 inches deep.
The unit has four drawers.
It uses rear-mounted, self-contained refrigeration with R-290 refrigerant.
The listed dimensions are 48.0 inches wide, 39.25 inches deep, and 43.25 inches high, with a listed weight of 350 pounds.
The cutsheet specifies 115 V, 60 Hz, single-phase operation at 4.8 amps with a NEMA 5-15P plug.
The applicable warranty provides seven years of parts, labor, and compressor coverage for qualifying self-contained R-290 units.
