Continental Refrigerator D2FNPTHD Designer Line Reach-In Refrigerators & Freezers
Continental Refrigerator D2FNPTHD Designer Line Reach-In Refrigerators & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator D2FNPTHD Designer Line Reach-In Refrigerat...
Description

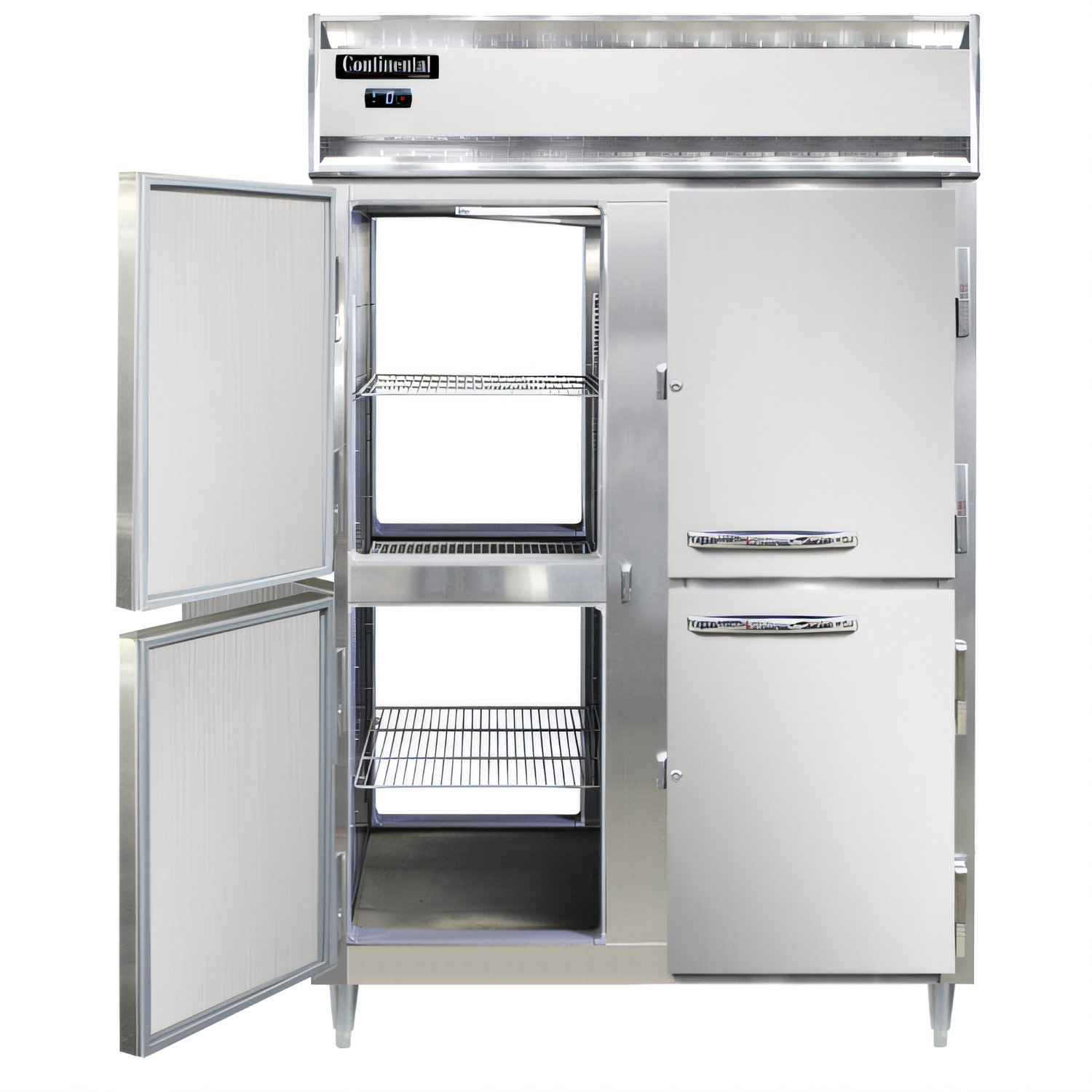

Designer Line™ Pass-Thru Freezer – 2 Section, 50 cu ft
Model D2FNPTHD • Continental RefrigeratorEngineered for high-volume kitchens that demand speed, security and energy savings, the Designer Line Pass-Thru Freezer lets you load from the back and serve from the front—without breaking the cold chain. Its top-mounted “plug” refrigeration system uses natural R-290 refrigerant and is backed by a 7-year parts, labor & compressor warranty.
Key Features

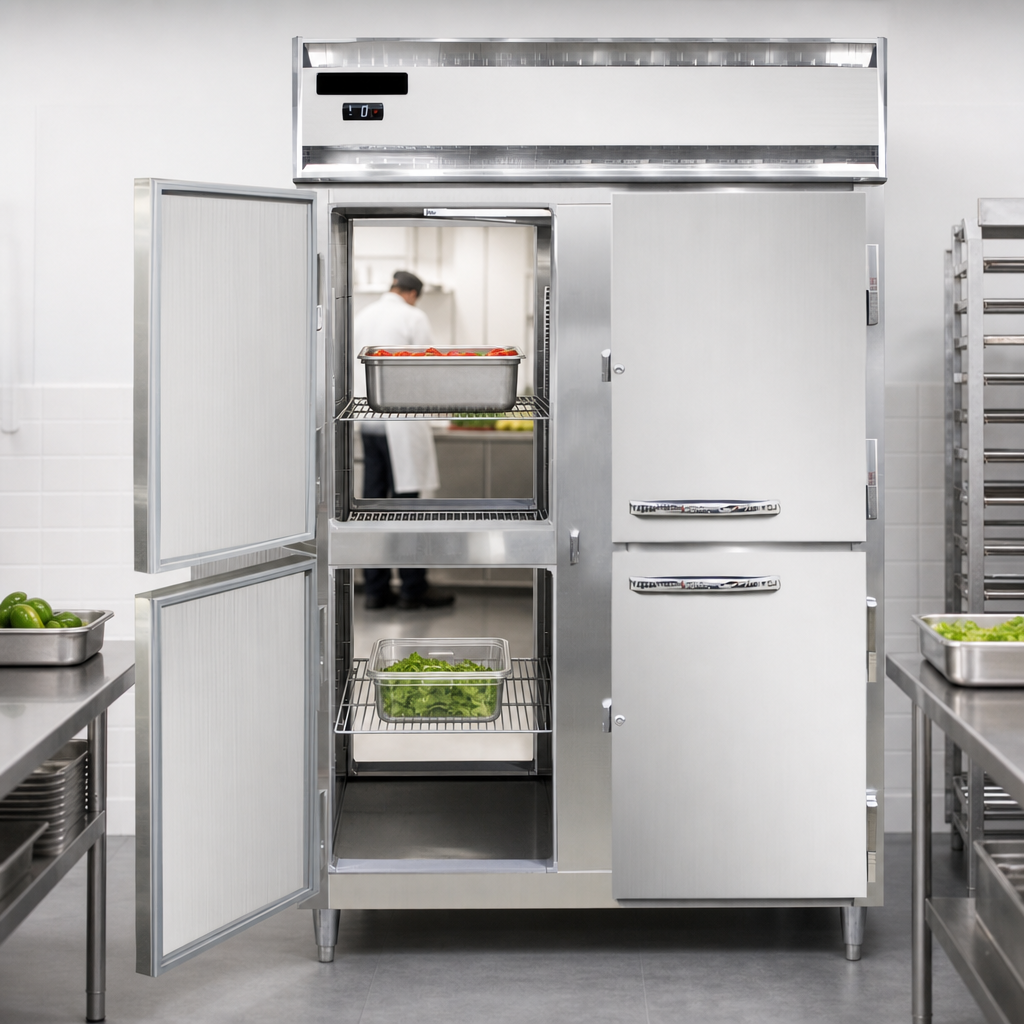

- Pass-thru, two-section cabinet—stock one side, pull from the other.
- 50 cu ft capacity in a standard-depth footprint (52" W × 38-3/4" D).

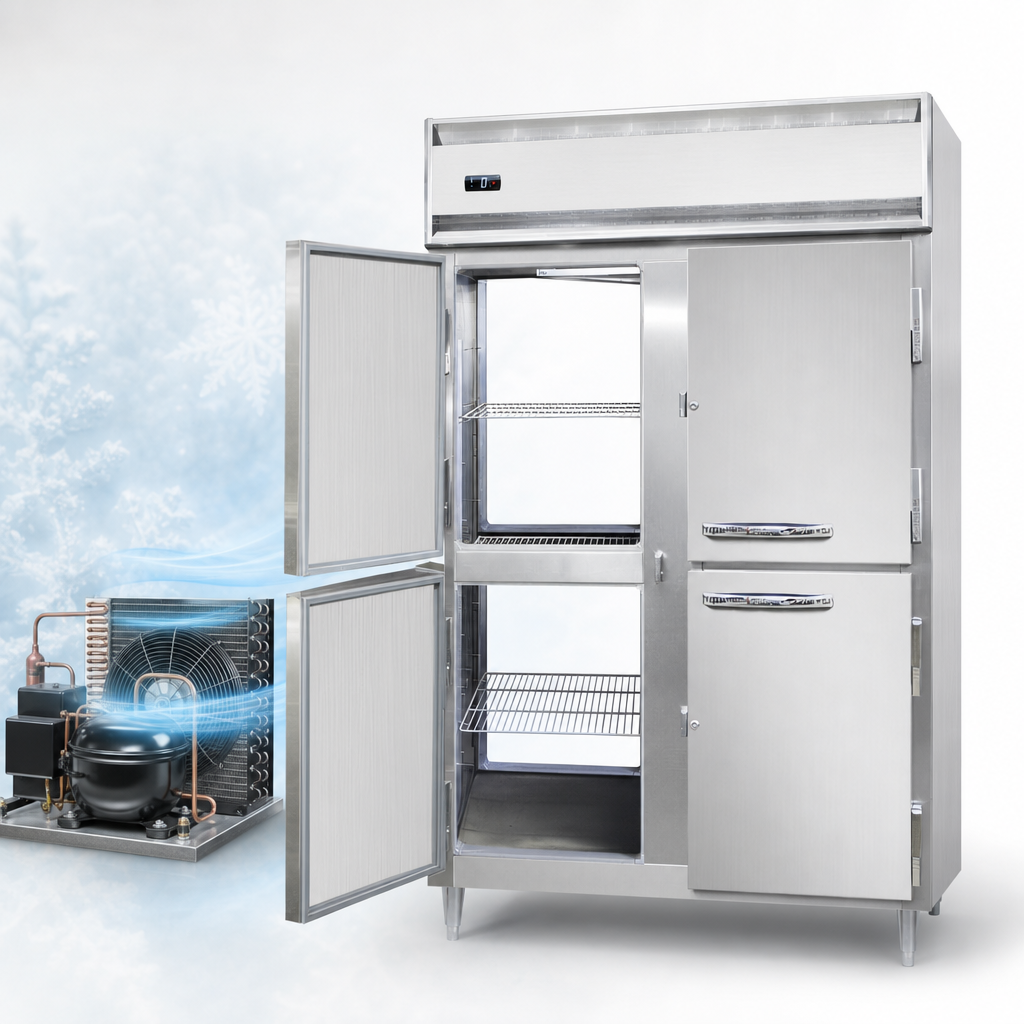

- Top-mounted, self-contained 1 HP refrigeration system charged with eco-friendly R-290.
- Electronic thermostat with large digital display, hi-low temperature alarm & automatic electric defrost.
- Factory-set 0 °F to –5 °F range; field adjustable to –10 °F in 90 °F ambient.
- Eight half-height solid doors minimize cold-air loss; each door includes cylinder lock, cam-lift hinge and self-closing action.
- Stainless steel front with aluminum interior & sides; 3" CFC-free polyurethane insulation.
- Six epoxy-coated wire shelves (40.8 ft²) on heavy-duty pilasters—fully adjustable.
- Bright, energy-efficient LED lighting and magnetic snap-in door gaskets.
- Adjustable 6" stainless steel legs for easy sanitation beneath the cabinet.
Performance & Certifications
- ENERGY STAR® qualified for low operating cost
- cETLus & NSF listed for commercial foodservice
- Natural hydrocarbon refrigerant (R-290) reduces GWP
- Designed & assembled in the USA
Specifications
| Net Capacity | 50.0 cu ft (1416 L) |
|---|---|
| Door Configuration | 8 half-height solid doors, pass-thru |
| Exterior | Stainless steel front, aluminum ends |
| Interior | Aluminum with LED lighting |
| Dimensions (W × D × H) | 52" × 38-3/4" × 83-1/4" (including 6" legs) |
| Shelf Area | 40.8 ft² (6 shelves included) |
| Temperature Range | 0 °F to –5 °F (adjustable to –10 °F) |
| Compressor | 1 HP, top-mounted |
| Cooling Capacity | 2,470 BTU/hr @ +25 °F evap., 90 °F ambient |
| Electrical | 115 V / 60 Hz / 1-ph • 8.9 A • NEMA 5-15P cord & plug |
| Refrigerant | R-290 (natural HC) |
| Certifications | ENERGY STAR®, cETLus, NSF |
| Warranty | 7-year parts, labor & compressor (USA/Canada) |
Why Choose the Designer Line?
- Field-removable refrigeration “plug” simplifies service and minimizes downtime.
- Pass-thru design streamlines workflow between prep and service areas.
- Industry-leading 7-year comprehensive warranty for peace of mind.
- Energy-saving construction and components lower lifetime operating costs.
Looking for casters, extra shelving or other accessories? Contact us for factory-approved options and lead times. Specifications are subject to change without notice.
