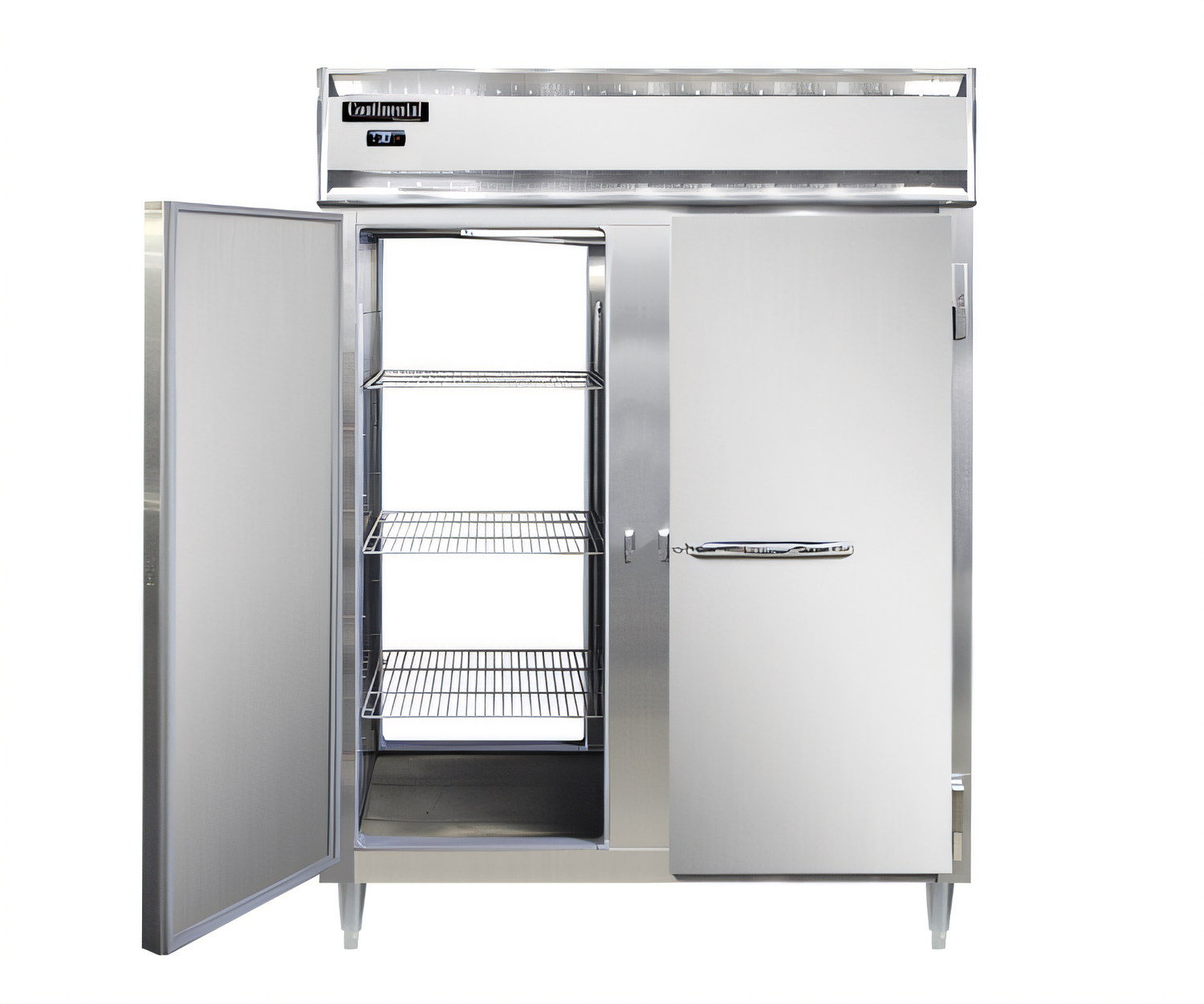

Continental Refrigerator D2FENSSPT Designer Line Wide Pass-Thru Freezer, 2-Section, All Stainless Steel, 57"W
Continental Refrigerator D2FENSSPT Designer Line Wide Pass-Thru Freezer, 2-Section, All Stainless Steel, 57"W
2-Section, Wide, Pass-Thru, Self-Contained, R-290 Refrigerant
Engineered for demanding commercial kitchens, the Continental Refrigerator D2FENSSPT provides reliable zero-degree freezing with convenient pass-thru access and durable all-stainless steel construction.
- Two-section wide pass-thru design allows efficient loading and unloading from both sides.
- Features a robust all-stainless steel exterior and interior for superior hygiene and longevity.
- Utilizes a self-contained, top-mounted refrigeration system with natural, high-efficiency R-290 refrigerant.
- Maintains precise temperatures from 0°F to -5°F, adjustable down to -10°F for optimal food preservation.
- Equipped with electronic controls, a digital display, hi-low alarm, and bright LED interior lighting.
- Includes cylinder door locks, cam-action lift-off hinges, and self-closing doors for secure and convenient operation.
- Designed and assembled with pride in the U.S.A., ensuring quality and reliability.

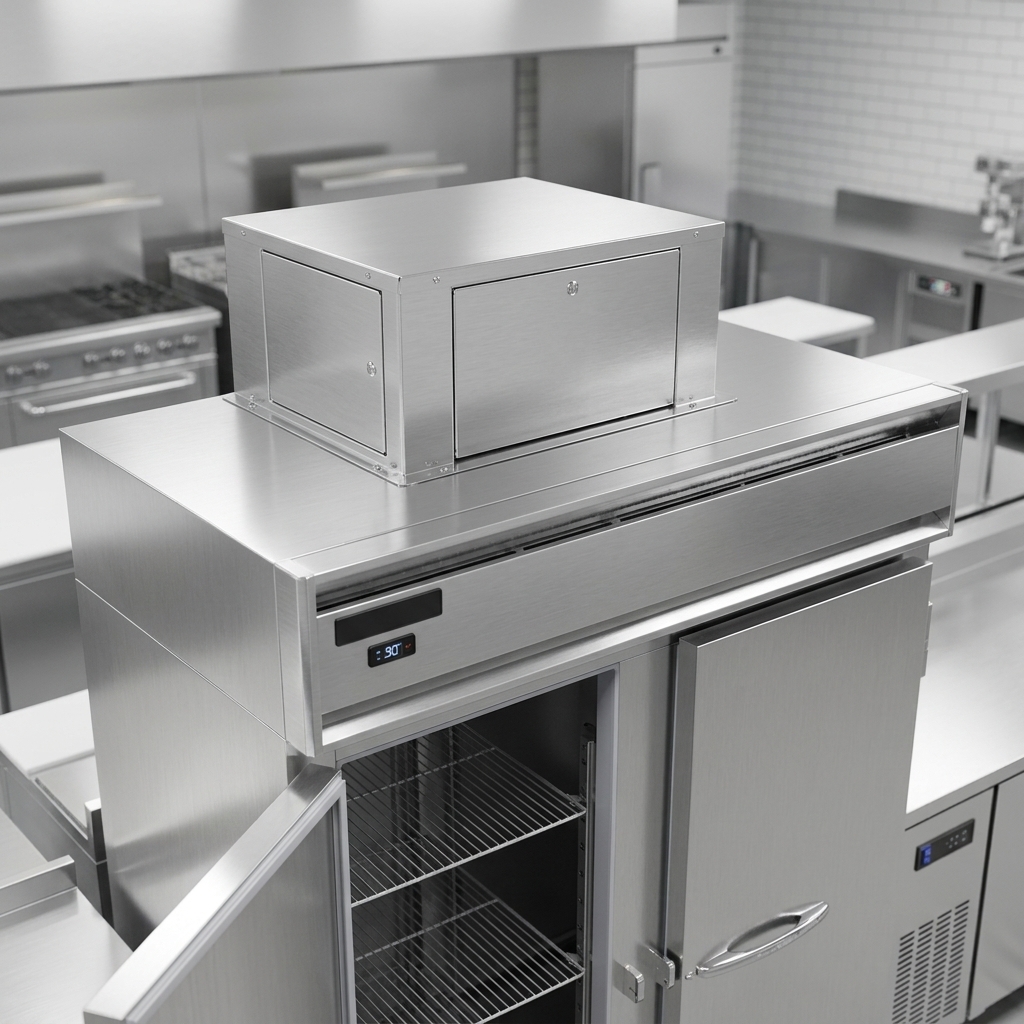

Self-Contained Refrigeration System
Performance-rated 'plug' refrigeration system that is readily accessible on top of the cabinet, separated from the food zone for easy maintenance.

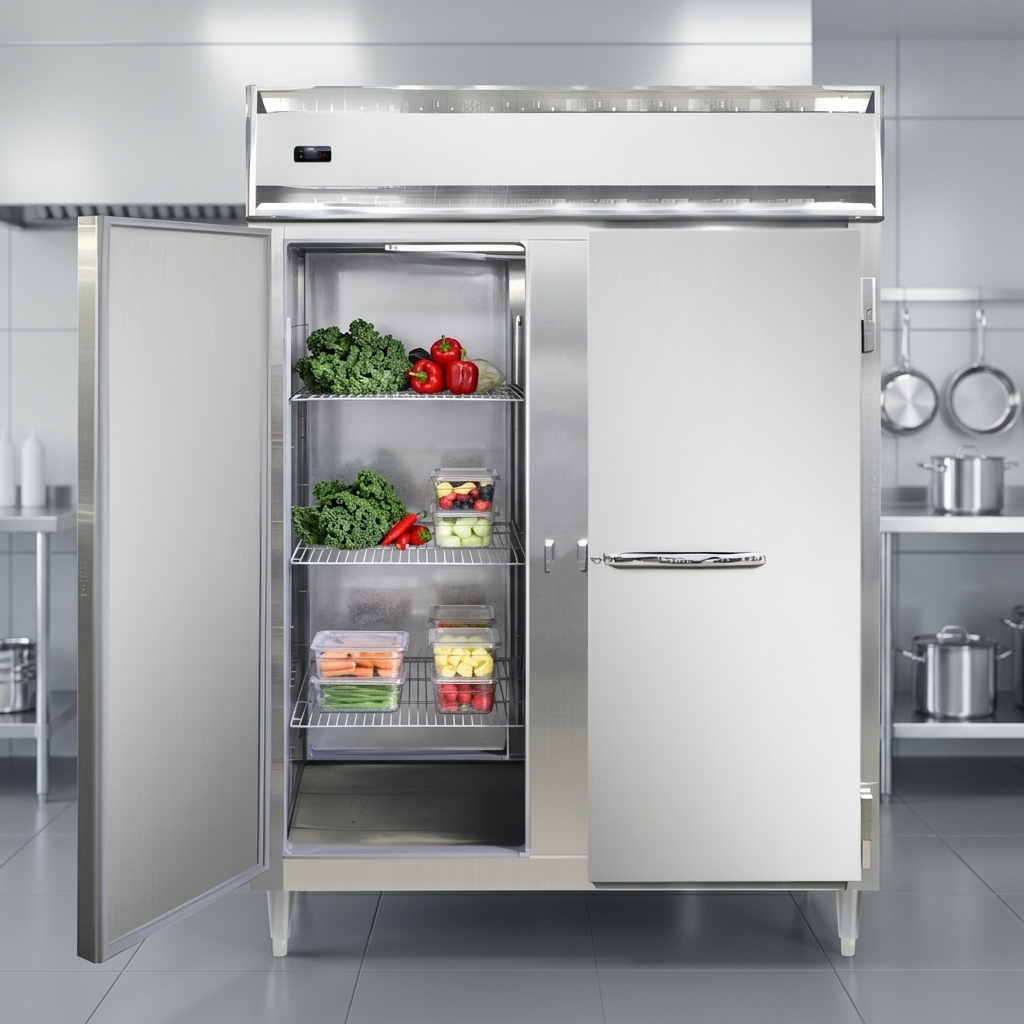

R-290 Refrigerant
Uses natural, environmentally safe, high-efficiency R-290 hydrocarbon refrigerant that meets all federal and state regulatory requirements.

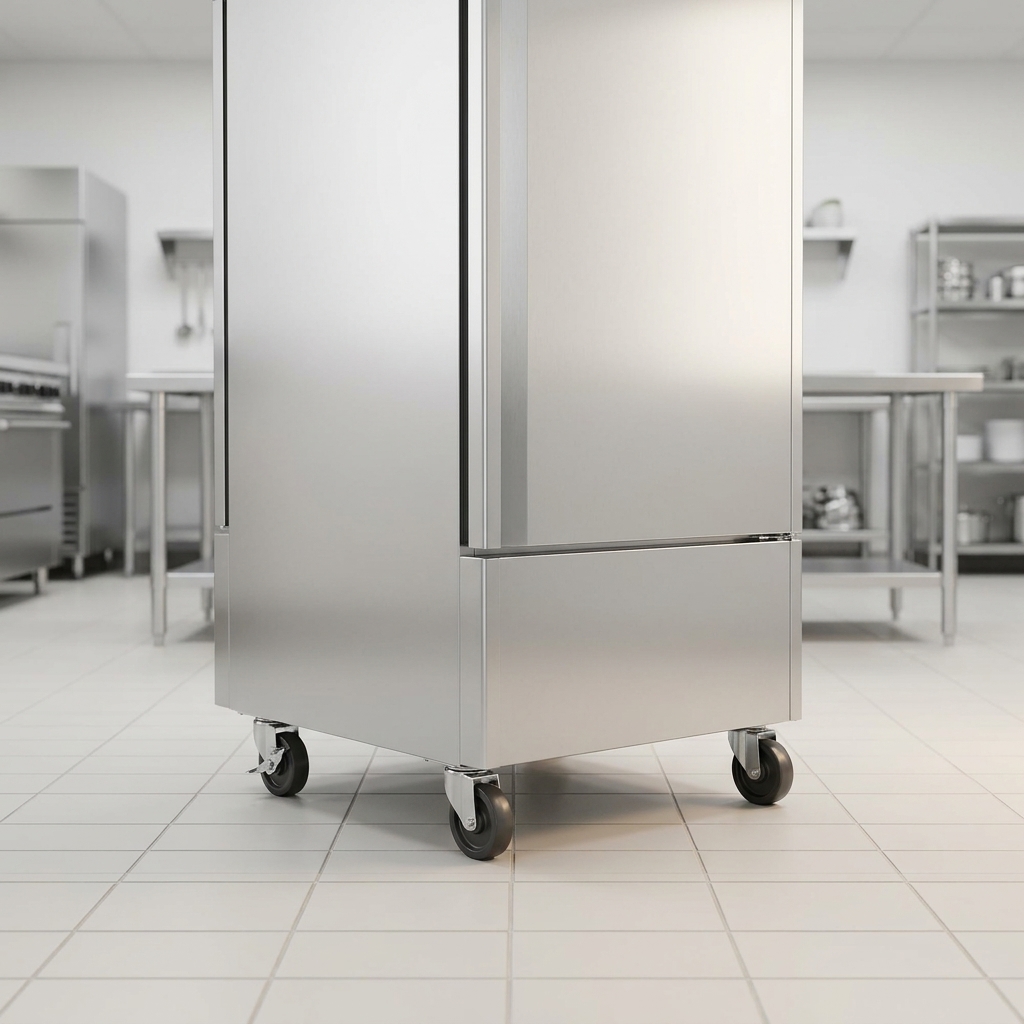

Automatic Hot Gas Condensate Evaporator
Automatically evaporates condensate using hot gas, eliminating the need for external drain connections.
Precise Temperature Control
Maintains a standard operating temperature of 0°F to -5°F, with the ability to adjust as low as -10°F in a 90°F ambient environment.
Polyurethane Foam Insulation
Features 3-inch non-CFC polyurethane foam insulation for superior temperature retention and energy efficiency.
Ergonomic Doors
Equipped with smooth, polished chrome workflow door handles, cam-action lift-off hinges, and self-closing doors for ease of use. Magnetic snap-in Santoprene™ door gaskets ensure a tight seal.
Door Security
Cylinder locks are installed on the doors to secure contents.
Heavy-Duty Shelving
Includes heavy-duty, epoxy-coated steel shelves supported by heavy-duty pilaster strips, providing robust storage capacity.
Adjustable Stainless Steel Legs
Comes standard with 6-inch adjustable stainless steel legs for leveling and easy cleaning underneath the unit.
LED Interior Lighting
Interior is illuminated with energy-efficient LED lighting for clear visibility of stored items.
Electronic Control with Automatic Defrost
Features an electronic control system with a digital display and automatic electric defrost for consistent performance and minimal manual intervention.
Optimized Air Distribution
Top and side air distribution ducts ensure uniform temperatures throughout the cabinet.
Field Serviceability
Cabinet upper side panels and the refrigeration 'plug' system are designed to be removable and reinstalled at the job site for easier service and maintenance.
Specifications
| Type | Pass-Thru Freezer |
|---|---|
| Style | Wide Full-Height Solid Doors |
| Installation Type | Floor Model (With 6" Legs) |
| Compartments | 2 |
| Net Capacity | 52 Cubic Feet |
| Pan Capacity | 24 (Tray Slides per Section) |
| Number of Doors | 4 |
| Number of Shelves | 6 |
| Shelf Area | 40.8 Square Feet |
| Exterior Finish | Stainless Steel |
| Interior Finish | Stainless Steel |
| Material | Stainless Steel |
| Refrigeration Type | Self-Contained |
| Refrigerant Type | R-290 |
| Condensing Unit Size | 1 HP |
| BTU | 2470 BTU/hr |
| Temperature Range | 0 to -10°F |
| Controls | Electronic with Digital Display |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 9.7 Amps |
| Defrost Amps | 5.2 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 Feet |
| Shipping Height | 85.5 Inches |
| Shipping Width | 64 Inches |
| Shipping Depth | 42 Inches |
| Shipping Weight | 700 lb. |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
57.0"W x 39.0"D x 83.25"HProduct Weight:
800.0 lbWarranty & Protection
7 Year Parts, Labor, and Compressor Warranty
