Description

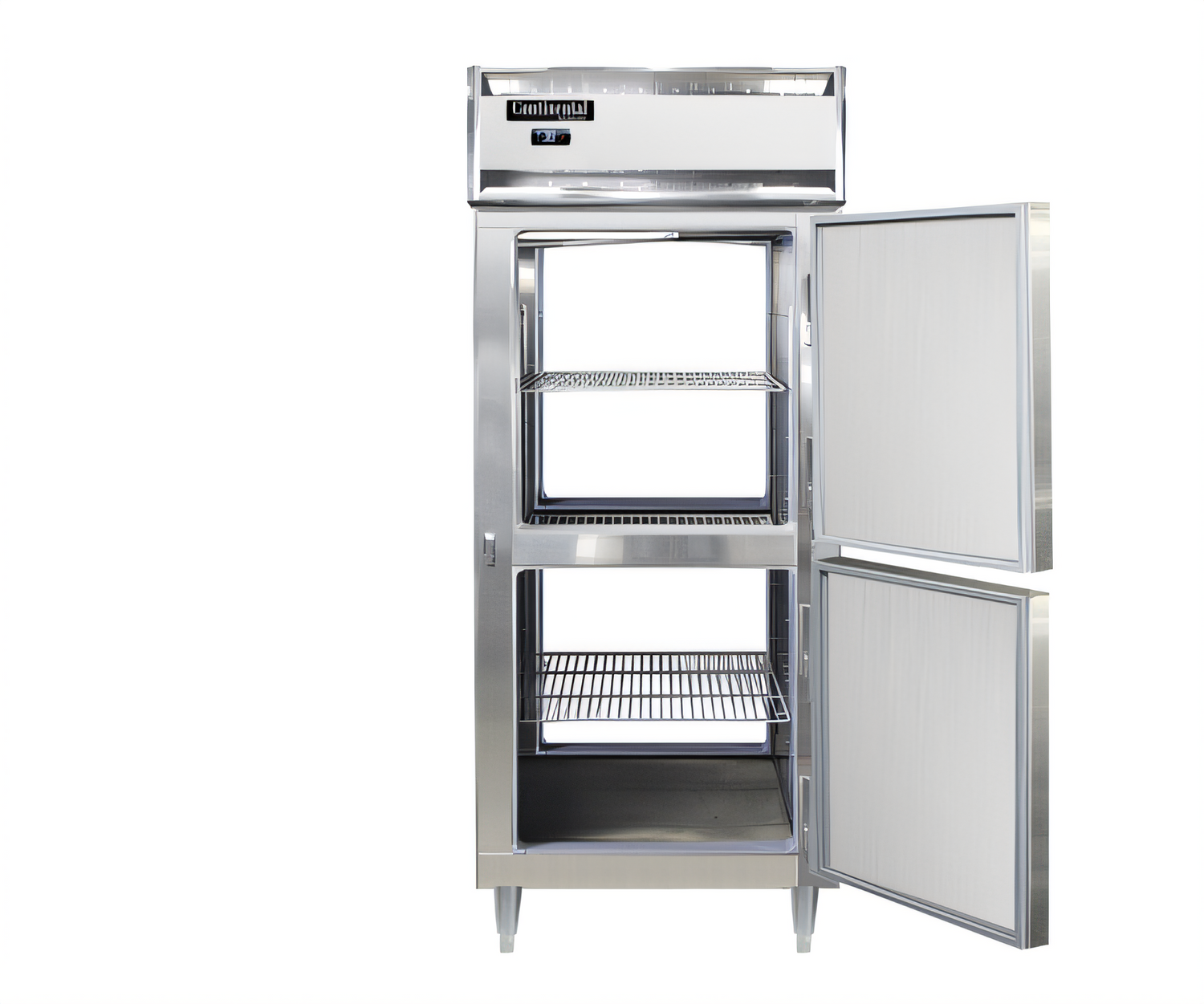

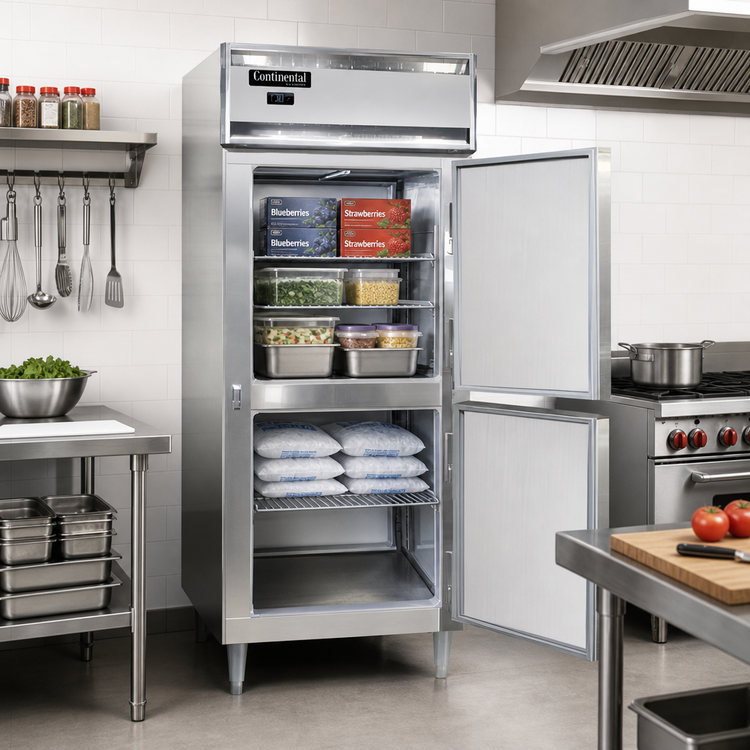

Designer Line Extra-Wide Pass-Thru Freezer — 36¼″ One-Section
Model D1FXNSAPTHDBuilt for busy prep areas that demand uninterrupted workflow, Continental Refrigerator’s Designer Line Pass-Thru Freezer lets you load on one side and serve from the other without sacrificing temperature consistency. A space-saving “plug” refrigeration system, full stainless exterior, and energy-smart R-290 refrigerant combine to give you rock-solid 0 °F performance in the toughest 90 °F kitchens.
Why You’ll Love It

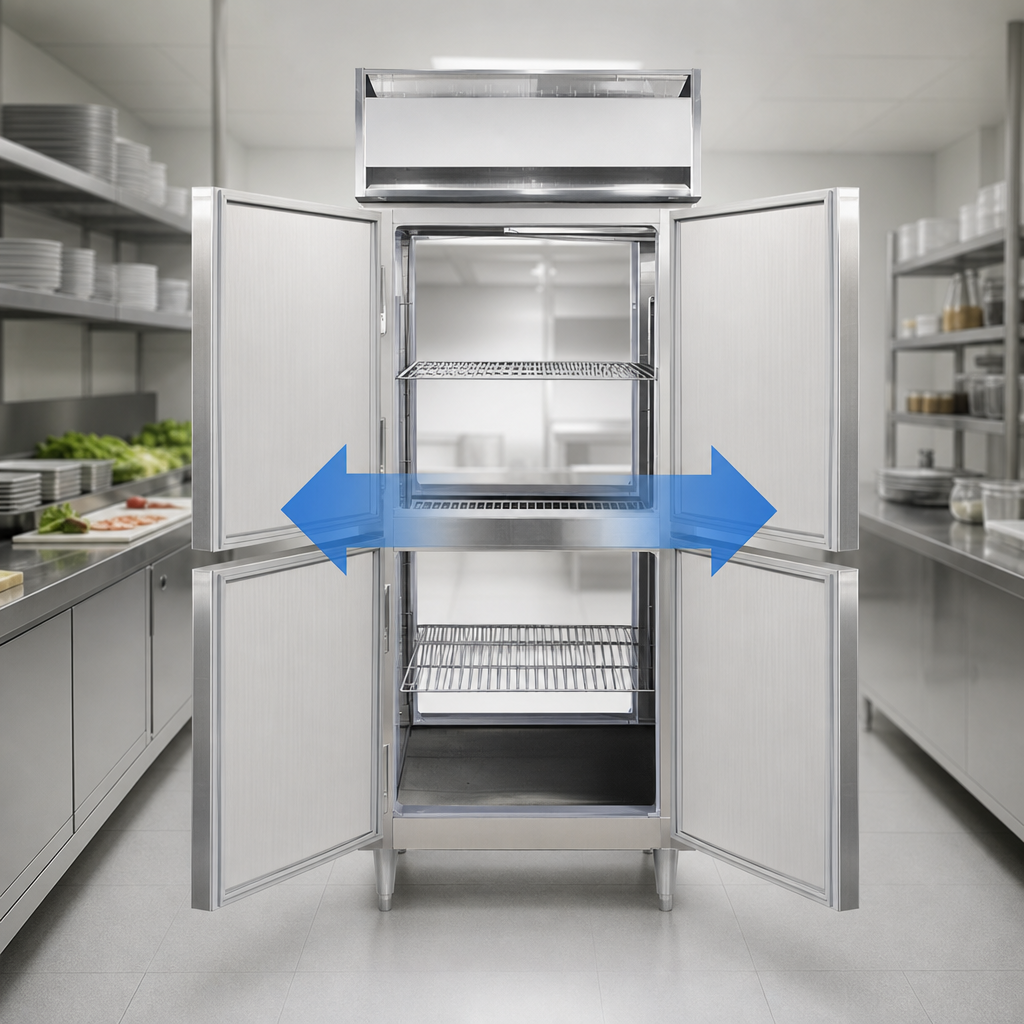

- Pass-thru design streamlines back- and front-of-house operations.
- Wide half-height solid doors (2 per side) reduce cold-air loss during quick grabs.

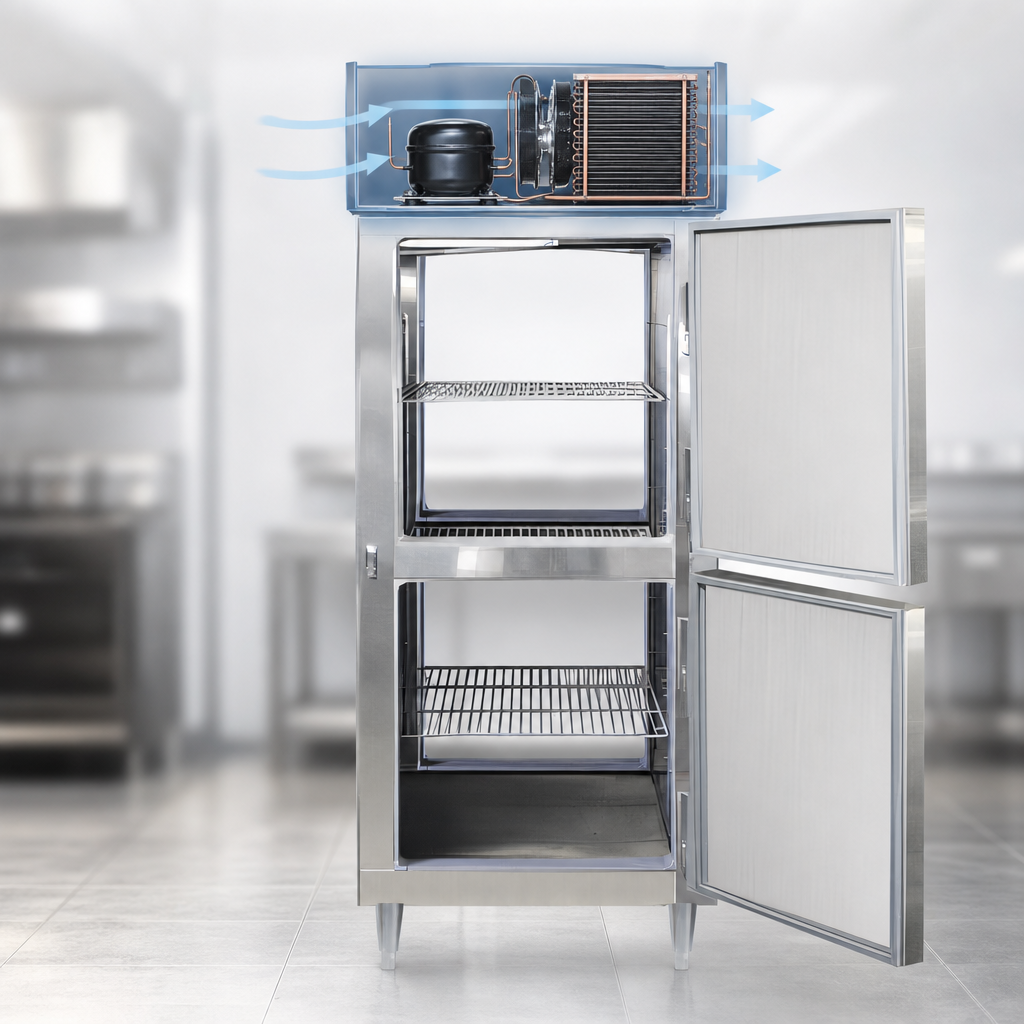

- Top-mounted, self-contained 1 HP “plug” refrigeration module—easy to service without entering the food zone.
- Natural R-290 hydrocarbon refrigerant for maximum efficiency & regulatory compliance.
- Electronic control with digital temperature read-out, hi/low alarm & automatic electric defrost.
- 3″ foamed-in-place, CFC-free polyurethane insulation locks in 0 °F / -18 °C temperatures (adjustable to -10 °F).
- LED interior lighting & three heavy-duty epoxy-coated shelves for 24.4 ft² of storage.
- Cylinder locks, lift-off cam hinges & magnetic Santoprene™ gaskets for secure, worry-free operation.
- 6″ adjustable stainless steel legs deliver rock-steady support and easy floor cleaning.
- cETLus & NSF listed; proudly designed & assembled in the USA.
Capacity & Footprint
| Net capacity | 32 cu ft | 906 L |
|---|---|
| Shelf area | 24.4 ft² | 2.3 m² (3 shelves) |
| Overall width | 36 ¼″ | 921 mm |
| Overall depth (inc. handle) | 35 ⅜″ | 899 mm |
| Depth with door at 90° | 66″ | 1,676 mm |
| Overall height (with 6″ legs) | 83 ¼″ | 2,115 mm |
| Clear door opening (W × H) | 29 ⅝″ × 58 ⅝″ |
| Shipping weight | ≈510 lb | 232 kg (stainless model) |
Refrigeration & Electrical
| Operating range | 0 to -5 °F (-17.8 °C), adjustable to -10 °F |
|---|---|
| Refrigerant | R-290 (natural, low GWP) |
| Compressor | 1 HP, top-mounted |
| Heat rejection | 1,840 BTU/hr @ 90 °F ambient |
| Defrost | Automatic electric with hot-gas condensate evaporator |
| Voltage | 115 V / 60 Hz / 1-ph (NEMA 5-15P, 10 ft cord) |
| Amperage | 6.9 A (running) | 4.3 A (defrost) |
Included With Your Freezer
- Three adjustable epoxy-coated wire shelves.
- LED interior lighting.
- Hi/low temperature alarm & door-open alert.
- Field-removable refrigeration “plug” module for fast service swaps.
Popular Factory Options (lead time & upcharge may apply)
- Heavy-duty pilaster strips or shelves.
- Wine racks, chrome or stainless shelves.
- Casters in place of legs.
- Correctional packages (one-way screws, locking hasp, mesh covers).
- Custom laminates or coverless hinges.
Peace-of-Mind Coverage
- cETLus & NSF certified for safety and sanitation.
- 7-Year parts, labor & compressor warranty for all R-290 models in the USA & Canada.
- Backed by Continental Refrigerator’s nationwide service network.
Installation note: Maintain adequate top clearance to
remove the self-contained “plug” refrigeration system for servicing.
Follow the Installation & Operations Manual for monthly condenser
coil cleaning to keep your warranty intact.
Features & Specs
Features & Specs
Manufacturer
Continental Refrigerator
Brand_name
Designer Line
Height
86.75in
Width
36.25in
Depth
39.0in
Shipping Weight
500.0lbs
Door Style
half door(s), wide
Capacity
24 - 37 cu. ft.
Door Type
solid
Refrigeration
self-contained, top mounted
Exterior Finish
all stainless steel exterior
Compressor HP
1/2 HP
Size
1 section
Specifications
Designer Extra-Wide Freezer, pass-thru, 36-1/4"W, one-section, self-contained refrigeration, stainless steel exterior, aluminum interior, stainless steel front, standard depth cabinet, wide half-height solid doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" adjustable stainless steel legs, R290 hydrocarbon refrigerant, 1 HP, cETLus, NSF
