Continental Refrigerator

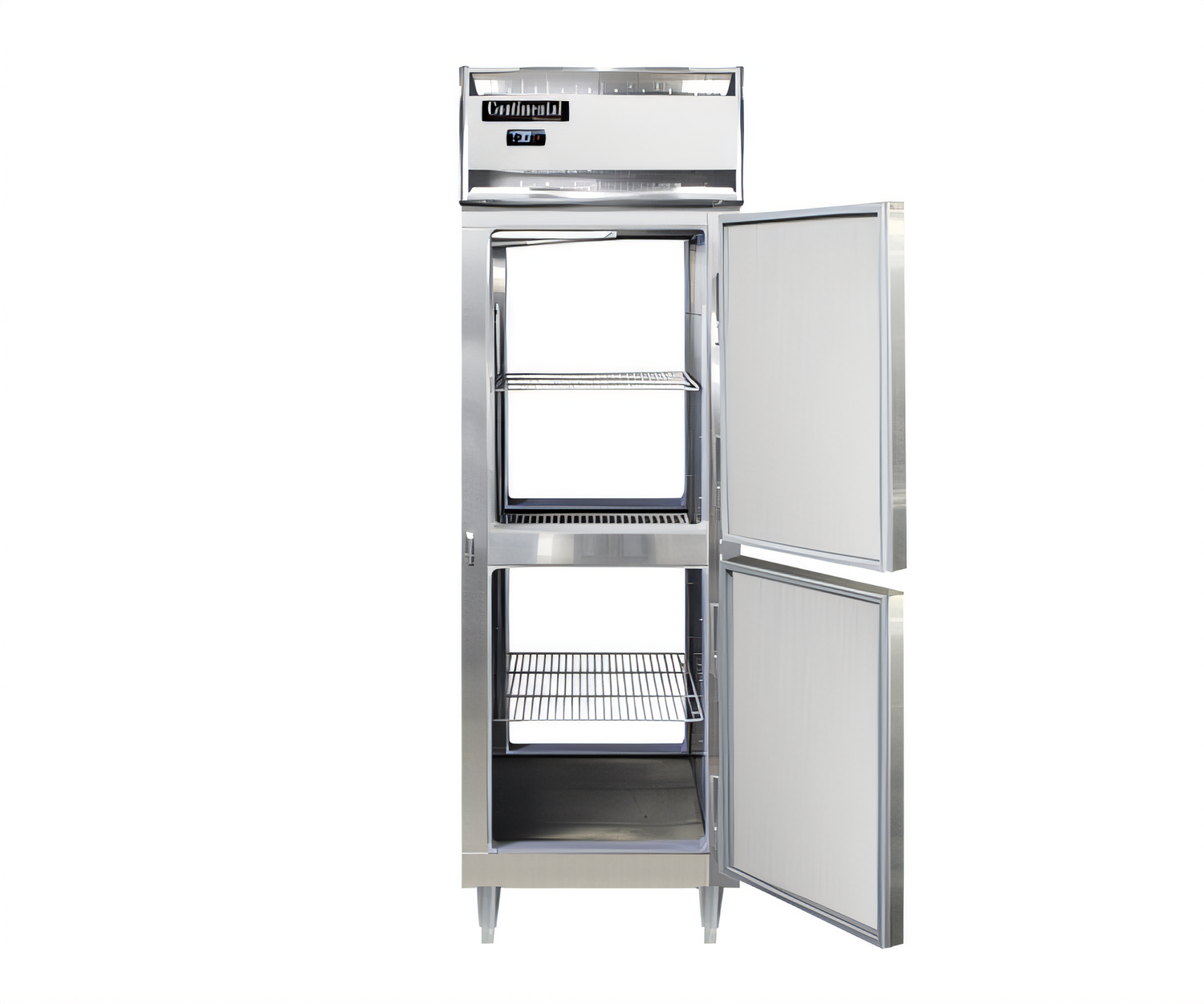

Continental Refrigerator D1FNSAPTHD Designer Line 1-Section Pass-Thru Commercial Freezer with Half Solid Doors

SKU: D1FNSAPTHD
$13,067.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Continental Refrigerator D1FNSAPTHD Designer Line 1-Section Pass-Thru Commercial Freezer with Half Solid Doors

Full-Size, 21 Cu. Ft. Capacity, Stainless Steel Exterior, Aluminum Interior

Engineered for high-volume commercial kitchens, the Continental D1FNSAPTHD pass-thru freezer ensures optimal frozen storage with its durable construction, energy efficiency, and precise temperature control.

  • ENERGY STAR® Qualified for superior energy efficiency, reducing operational costs.
  • Pass-thru design allows convenient loading and unloading from both sides, enhancing workflow.
  • Utilizes natural R-290 hydrocarbon refrigerant for environmental safety and high performance.
  • Features a robust stainless steel exterior and corrosion-resistant aluminum interior for lasting durability.
  • Equipped with self-closing half-height solid doors, cylinder locks, and magnetic snap-in gaskets for security and optimal temperature retention.
  • Electronic control with digital display and hi-low alarm ensures precise temperature management from 0 to -5°F, adjustable to -10°F.
  • Designed and assembled with pride in the U.S.A.

Refrigeration System

Self-contained, performance-rated "plug" refrigeration system with natural, environmentally safe, high-efficiency R-290 refrigerant. System is readily accessible on top of cabinet, separate from the "food zone".

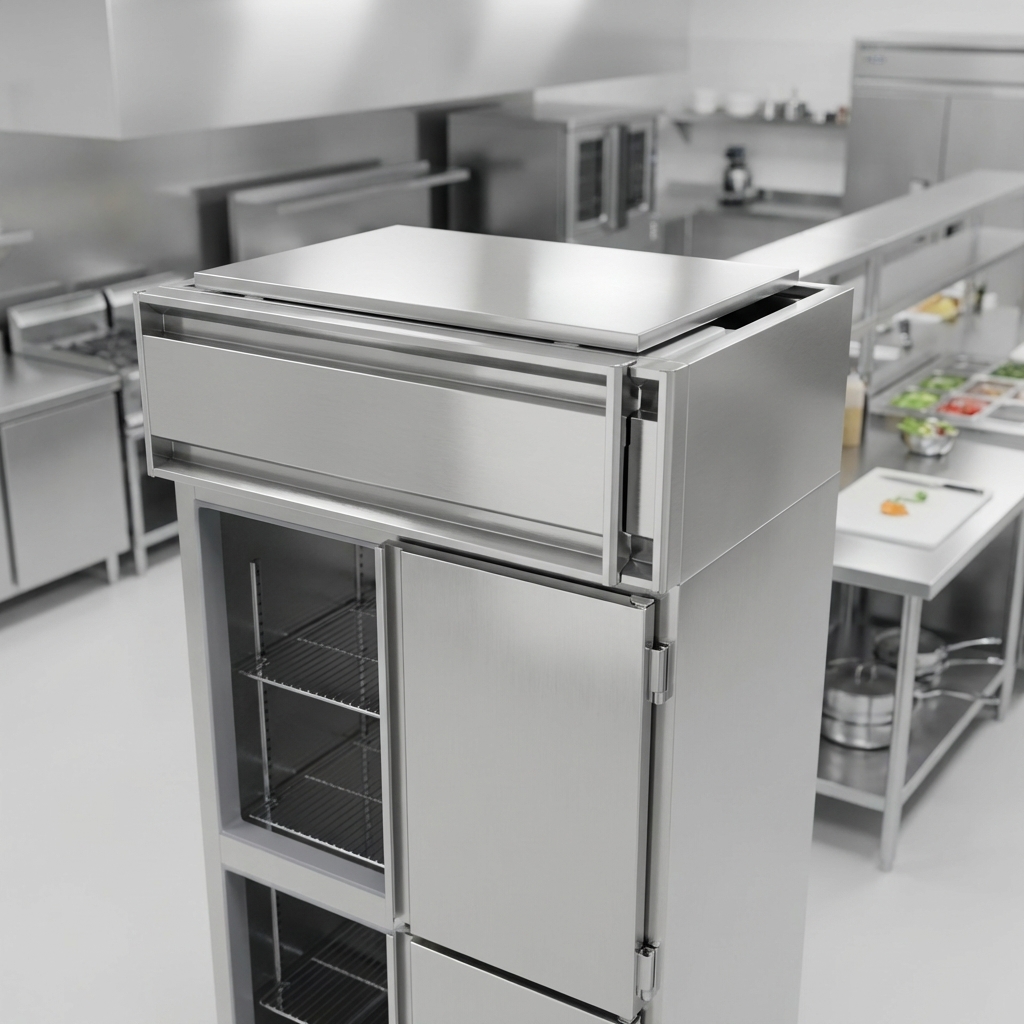

This image highlights the easily accessible, top-mounted refrigeration system designed for superior performance and maintenance efficiency.

Automatic Condensate Evaporator

Hot gas condensate evaporator eliminates the need for external drain connections.

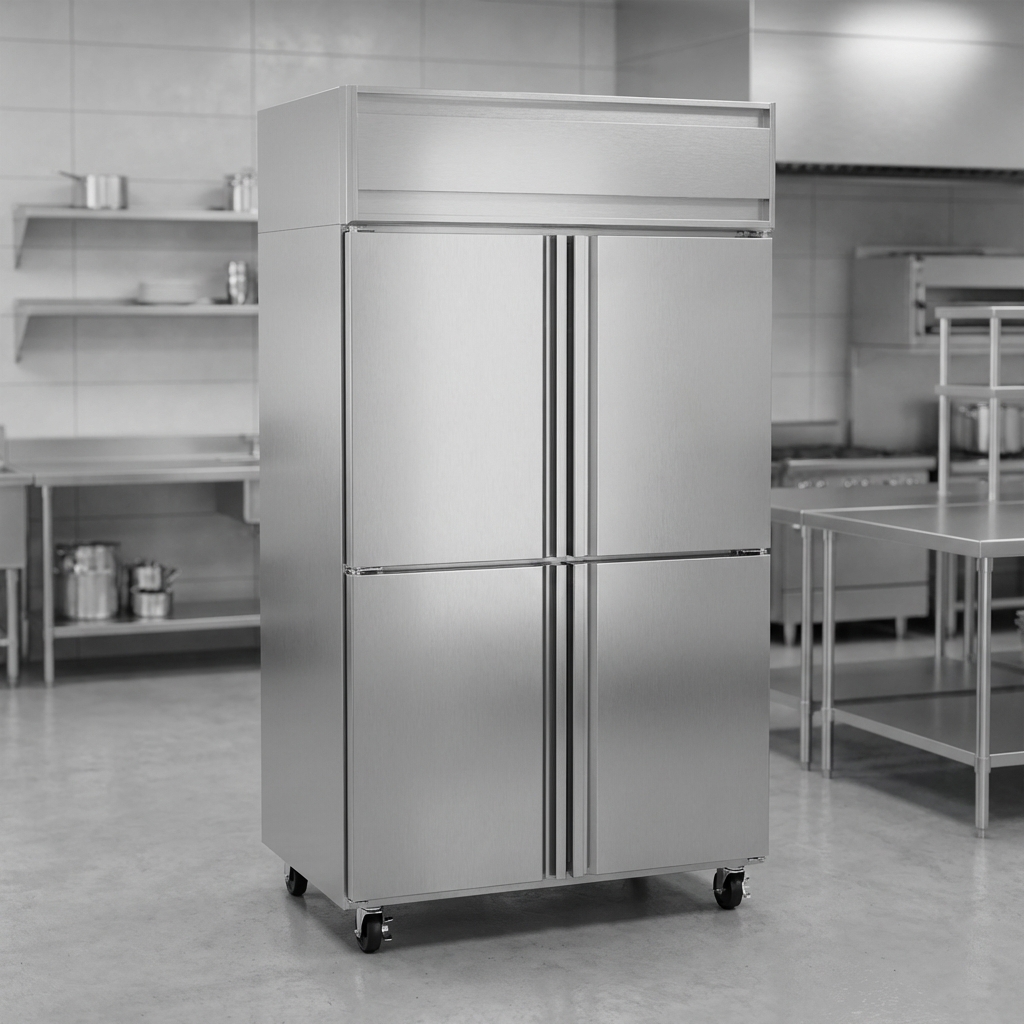

This commercial freezer features an automatic condensate evaporator, eliminating the need for external drain connections for a cleaner, simpler installation.

Cabinet Insulation

3-inch non-CFC polyurethane foam insulation for superior thermal efficiency and temperature retention.

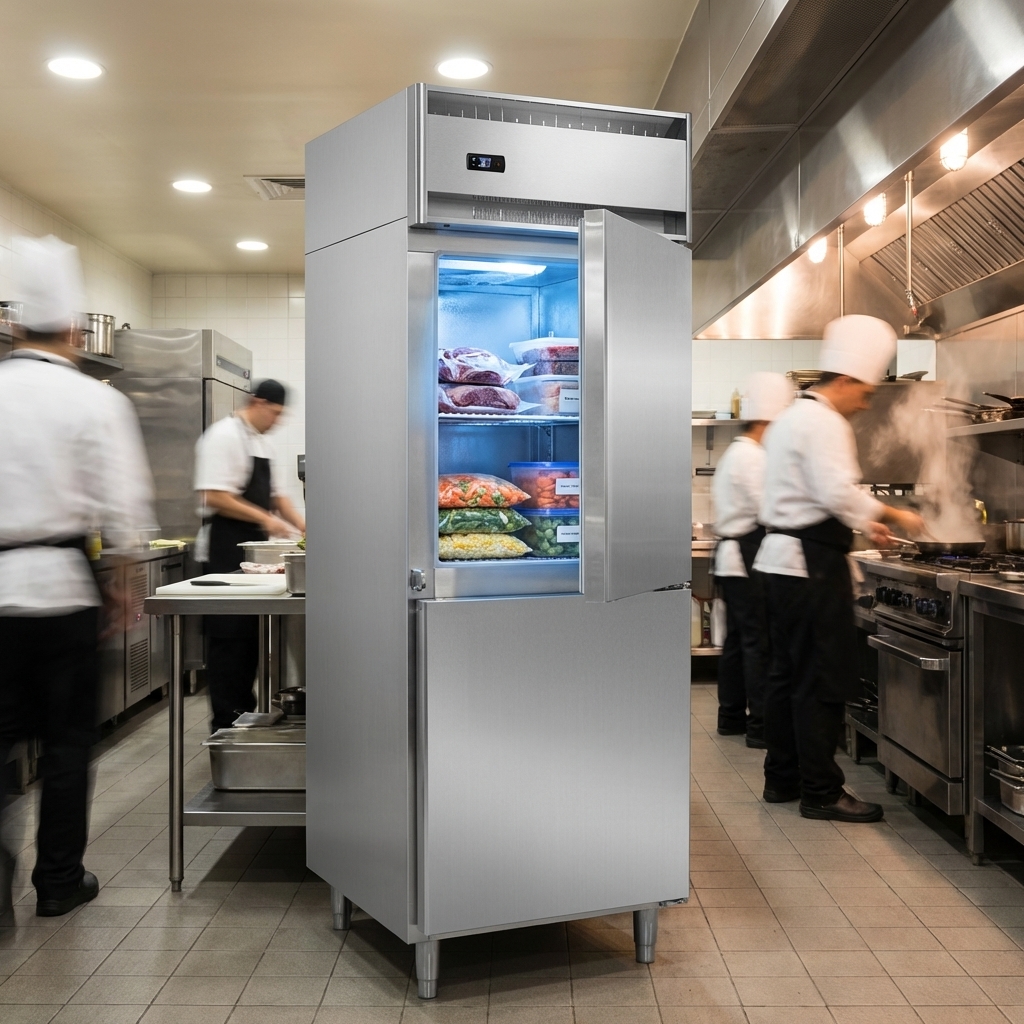

The freezer's robust cabinet insulation ensures consistent temperature retention, keeping contents perfectly frozen in a busy kitchen environment.

Door Design

Smooth, polished chrome workflow door handles, cam action lift-off hinges, and self-closing doors for convenience and durability. Magnetic snap-in Santoprene™ door gaskets ensure a tight seal and are easy to replace.

Security

Cylinder lock included in each door for product security.

Shelving

Heavy-duty, epoxy-coated steel shelves supported by heavy-duty pilaster strips, providing robust storage capacity.

Interior Lighting

LED interior lighting provides clear visibility of contents.

Electronic Control

Features an electronic control with digital display, automatic electric defrost, and a hi-low alarm for accurate temperature monitoring and maintenance.

Air Distribution

Top and side air distribution ducts ensure uniform temperature throughout the cabinet.

Field Removable Components

Cabinet upper side panels and the refrigeration "plug" system can be easily removed and reinstalled at the job site for service or tight installations.

Specifications

Type Freezer
Style Pass-Thru
Installation Type Floor Model (With Legs)
Compartments 1
Number of Doors 2
Door Style Half Door
Door Type Solid
Capacity 21 Cubic Feet
Pan Capacity 24 (2" centers)
Number of Shelves 3
Refrigerant Type R-290 Hydrocarbon
Refrigeration Type Self-Contained, Top Mounted
Temperature Range 0 to -5°F (adjustable to -10°F)
BTU 1590 BTU per hour
Compressor HP 1/2 HP
Exterior Finish Stainless Steel
Interior Finish Aluminum
Material Stainless Steel (Exterior), Aluminum (Interior)
Controls Electronic with Digital Display and Hi-Low Alarm
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 6.9 Amps
Defrost Amps 4.3 Amps
Plug Type NEMA 5-15P
Cord Length 10 ft.
Shipping Width 31 5/8 Inches
Shipping Depth 42 Inches
Shipping Height 85 1/2 Inches
Shipping Weight 440 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

26.0"W x 39.0"D x 83.25"H

Product Weight:

405.0 lb
Manufacturer Continental Refrigerator
Brand name Designer Line
Height 83.25in
Width 26.0in
Depth 39.0in
Shipping Weight 405.0lbs
Compressor HP 1/3 HP
Exterior Finish all stainless steel exterior
Door Type solid
Capacity 10 - 23 cu. ft.
Refrigeration self-contained, top mounted
Door Style half door(s)
Size 1 section
Specifications Designer Line Freezer, pass-thru, one-section, self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth cabinet, half-height solid doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" stainless steel legs, R290 hydrocarbon refrigerant, 1/2 HP, cETLus, NSF

Frequently Asked Questions

The standard operating temperature range for this freezer is 0 to -5°F, and it can be adjusted to operate as low as -10°F in a 90°F ambient environment.
No, the D1FNSAPTHD features an automatic hot gas condensate evaporator, eliminating the need for an external drain connection.
This model uses natural, environmentally safe, and high-efficiency R-290 hydrocarbon refrigerant.
Yes, the D1FNSAPTHD is equipped with LED interior lighting for improved visibility.
If the cabinet is located under a low ceiling, a minimum clearance of 12 inches is required on top and 3 inches on the sides for adequate air circulation.
This product comes with a seven (7) year parts, labor, and compressor warranty. It covers defects in material and workmanship under normal use and proper maintenance, valid for the original purchaser in the USA & Canada.
