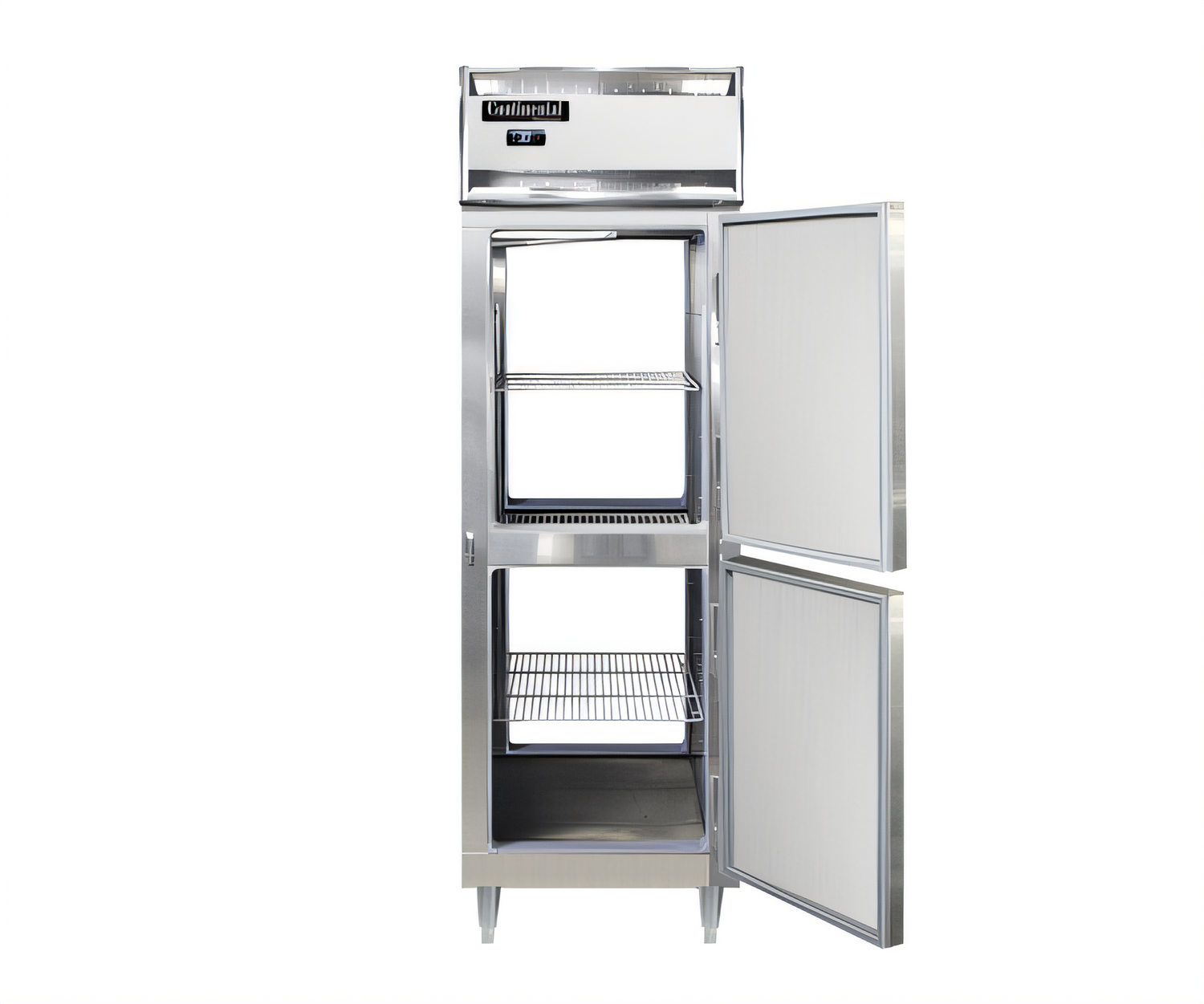

Continental D1FNPTHD Designer Line 1-Section Pass-Thru Freezer with Half Doors
Continental D1FNPTHD Designer Line 1-Section Pass-Thru Freezer with Half Doors
1-Section, Pass-Thru, Half-Height Solid Doors, Standard Depth, R-290 Hydrocarbon Refrigerant
Engineered for optimal performance and energy efficiency, the Continental D1FNPTHD freezer offers reliable pass-thru storage with a robust design and environmentally safe R-290 refrigerant.
- One-section pass-thru design with half-height solid doors for convenient access from both sides.
- Utilizes natural, environmentally safe R-290 hydrocarbon refrigerant for high efficiency.
- Durable construction with stainless steel front, aluminum end panels, and aluminum interior.
- Equipped with an electronic control, digital display, hi-low alarm, and LED interior lighting.
- Features automatic electric defrost and a self-contained, top-mounted refrigeration system for easy maintenance.
- ENERGY STAR® Qualified for reduced energy consumption and operational costs.
- Proudly designed and assembled in the U.S.A.

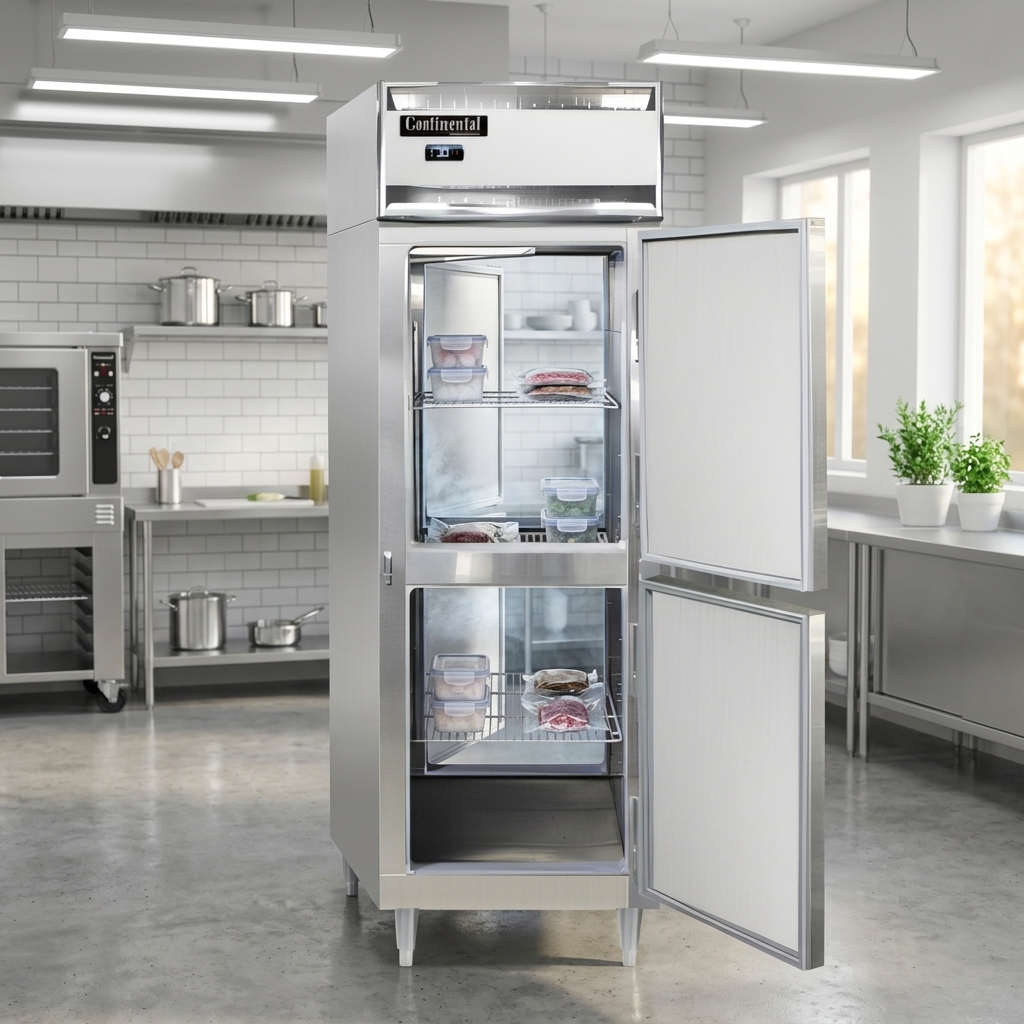

R-290 Hydrocarbon Refrigerant
Natural, environmentally safe, high-efficiency refrigerant meeting all federal and state regulatory requirements.

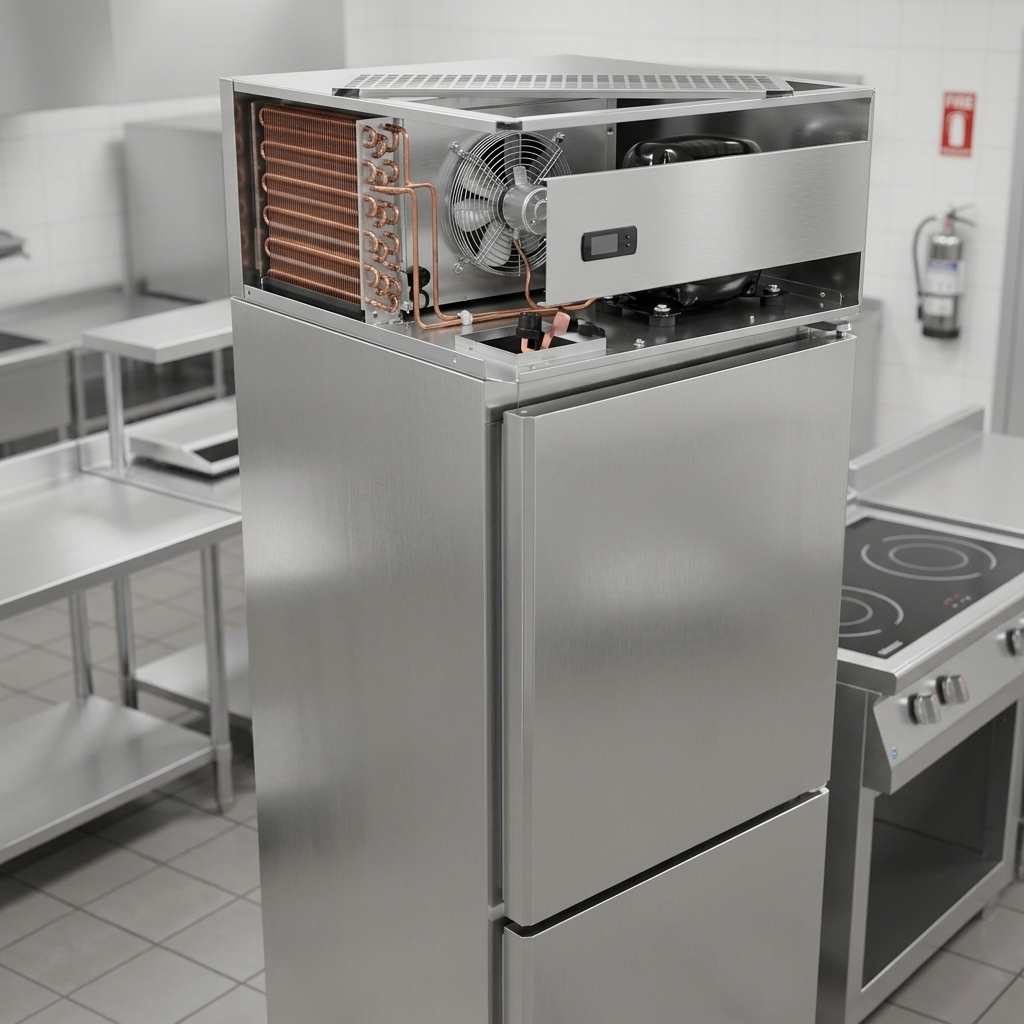

Self-Contained Refrigeration System
Performance-rated 'plug' refrigeration system that is readily accessible on top of the cabinet, separate from the 'food zone', for easy servicing.

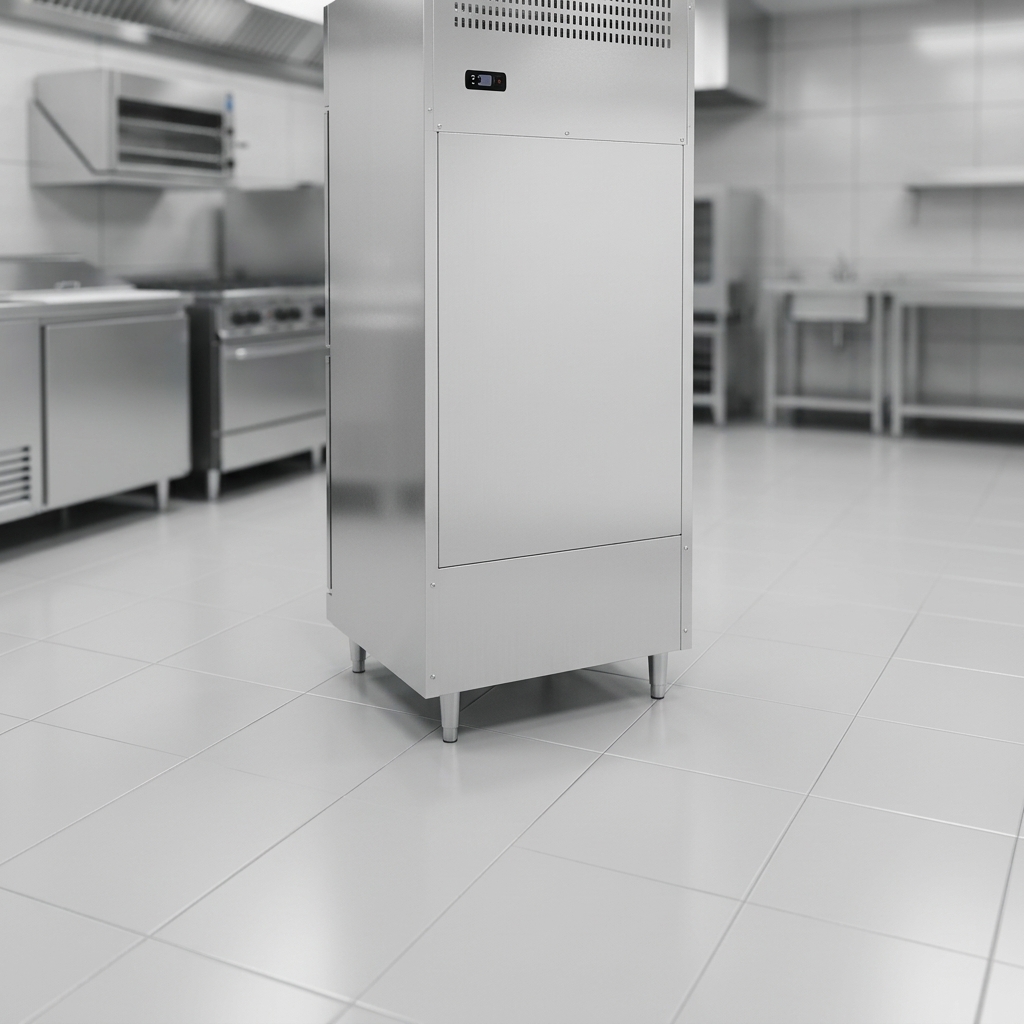

Automatic Hot Gas Condensate Evaporator
Eliminates the need for external drain connections by evaporating condensate automatically.
Electronic Control with Digital Display
Provides precise temperature management with an easy-to-read digital display and a hi-low alarm for critical temperature monitoring.
Automatic Electric Defrost
Ensures consistent performance and reduces ice buildup without manual intervention.
Durable Cabinet Construction
Features 3-inch non-CFC polyurethane foam insulation, a stainless steel front, aluminum end panels, and an aluminum interior for long-lasting durability and superior temperature retention.
Self-Closing Half-Height Solid Doors
Equipped with polished chrome workflow door handles, cam-action lift-off hinges, magnetic snap-in Santoprene™ door gaskets, and cylinder locks for security.
LED Interior Lighting
Illuminates the cabinet interior for improved visibility of contents.
Adjustable Shelving
Includes heavy-duty, epoxy-coated steel shelves supported by heavy-duty pilaster strips, allowing for flexible storage configurations.
Removable Cabinet Panels
Upper side panels and refrigeration 'plug' system can be removed and reinstalled at the job site for easier maneuverability and servicing.
Specifications
| Type | Pass-Thru Freezer |
|---|---|
| Style | 1-Section, Half Doors |
| Installation Type | Floor Model (With 6" Legs) |
| Capacity | 21 Cubic Feet |
| Temperature Range | 0 to -5°F (Adjustable to -10°F) |
| Gas Type | R-290 Hydrocarbon |
| Refrigeration Type | Self-Contained |
| Compressor HP | 1/2 HP |
| BTU | 1590 BTU per hour |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 6.9 Amps |
| Defrost Amps | 4.3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 Feet |
| Exterior Finish | Stainless Steel Front, Aluminum Sides |
| Interior Finish | Aluminum |
| Insulation | 3" Non-CFC Polyurethane Foam |
| Doors | 2 |
| Shelves | 3 |
| Pan Capacity | 24 (2" centers) |
| Controls | Electronic with Digital Display |
| Shipping Height | 85.5 Inches |
| Shipping Width | 31.625 Inches |
| Shipping Depth | 42 Inches |
| Shipping Weight | 370 lb. |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
26.0"W x 39.0"D x 83.25"HProduct Weight:
365.0 lbWarranty & Protection
7-Year Parts, Labor, and Compressor Warranty
