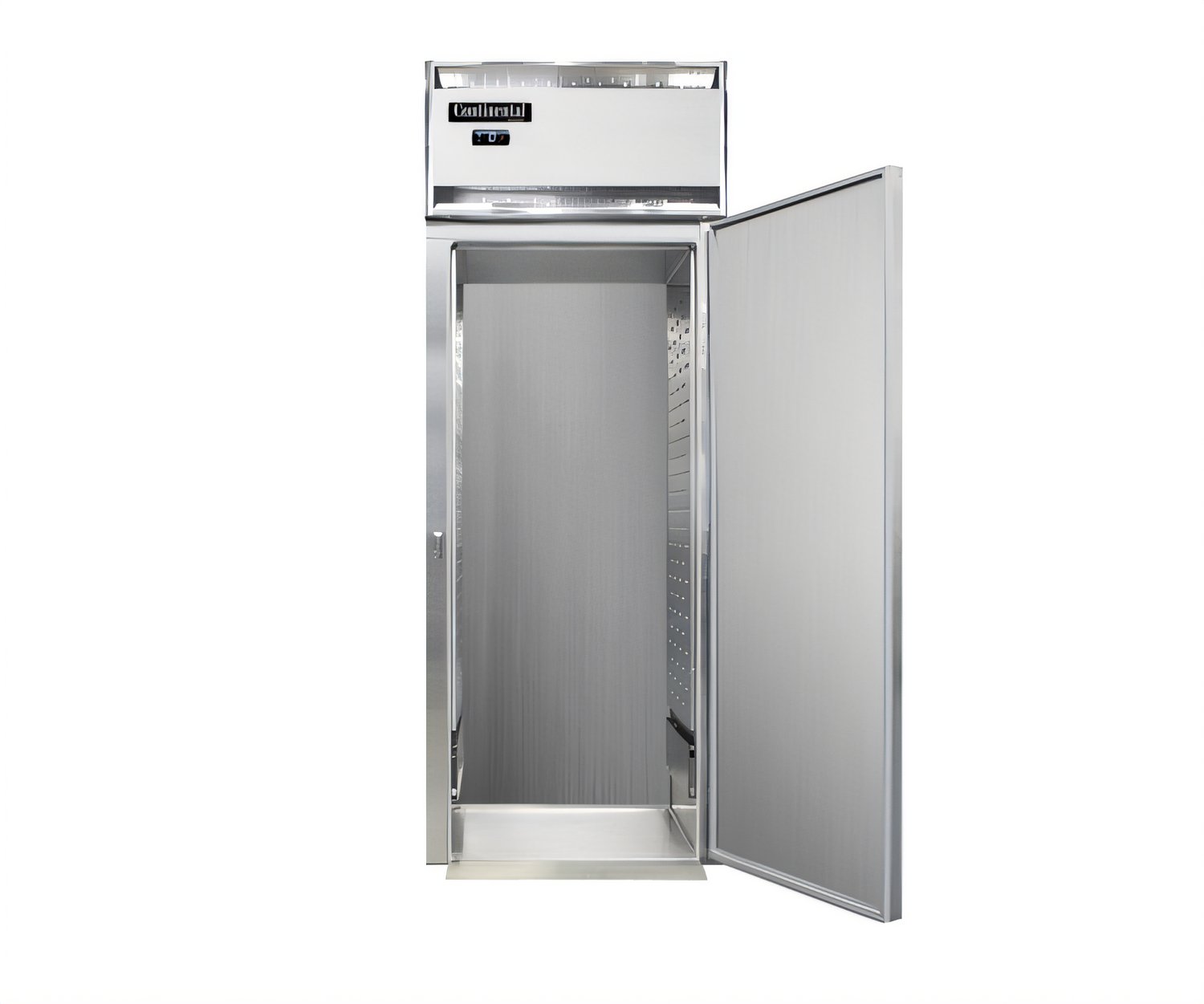

Continental Refrigerator Designer Line D1FIN 1-Section Roll-In Freezer with 66-1/4" Cart Capacity
Continental Refrigerator Designer Line D1FIN 1-Section Roll-In Freezer with 66-1/4" Cart Capacity
Self-Contained, R-290 Hydrocarbon Refrigerant, Stainless Steel Front
Experience superior performance and energy efficiency with this 1-section roll-in freezer, designed for high-volume commercial kitchens.
- Equipped with a self-contained, high-efficiency R-290 hydrocarbon refrigeration system.
- Designed to accommodate a 66-1/4 inch high roll-in cart for maximum convenience and capacity.
- Features a durable stainless steel front, aluminum end panels, and a reinforced stainless steel interior floor.
- Precision electronic control with digital display and a built-in hi-low alarm for accurate temperature management.
- Includes a cylinder door lock and self-closing door for enhanced security and energy savings.
- Proudly designed and assembled in the U.S.A., ensuring quality and reliability.

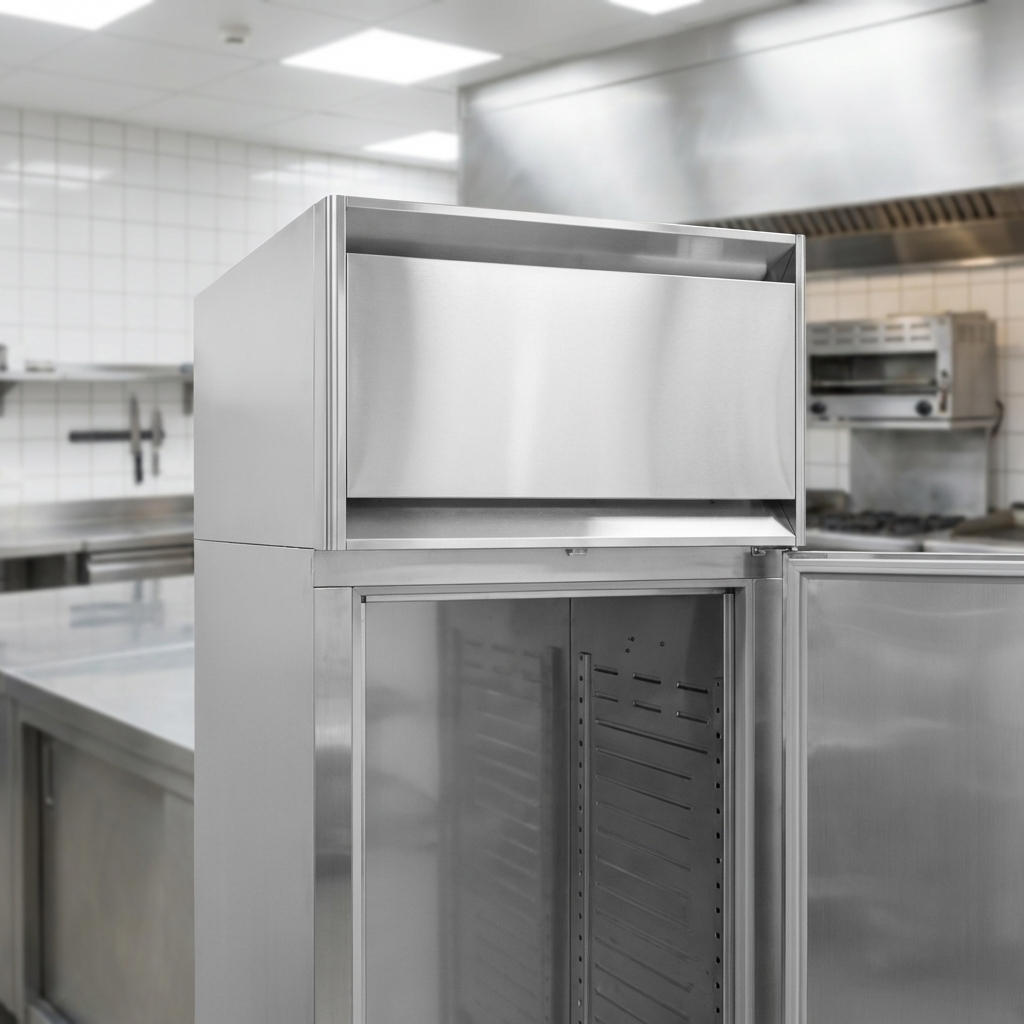

Self-Contained R-290 Refrigeration
Utilizes natural, environmentally safe, and high-efficiency R-290 hydrocarbon refrigerant in a readily accessible top-mounted 'plug' system, separate from the food zone, with an automatic hot gas condensate evaporator.

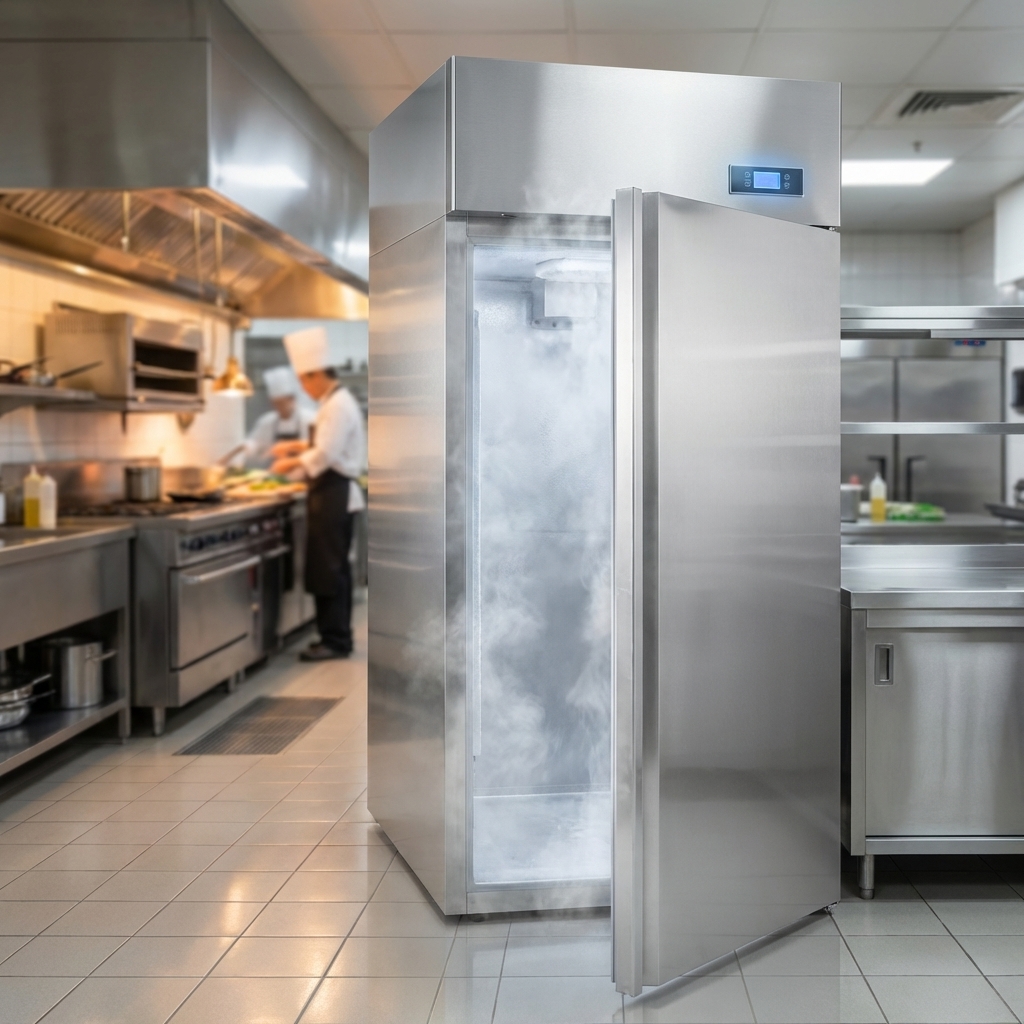

Optimal Temperature Range
Maintains a standard operating temperature of 0°F to -5°F, adjustable to as low as -10°F in a 90°F ambient environment.

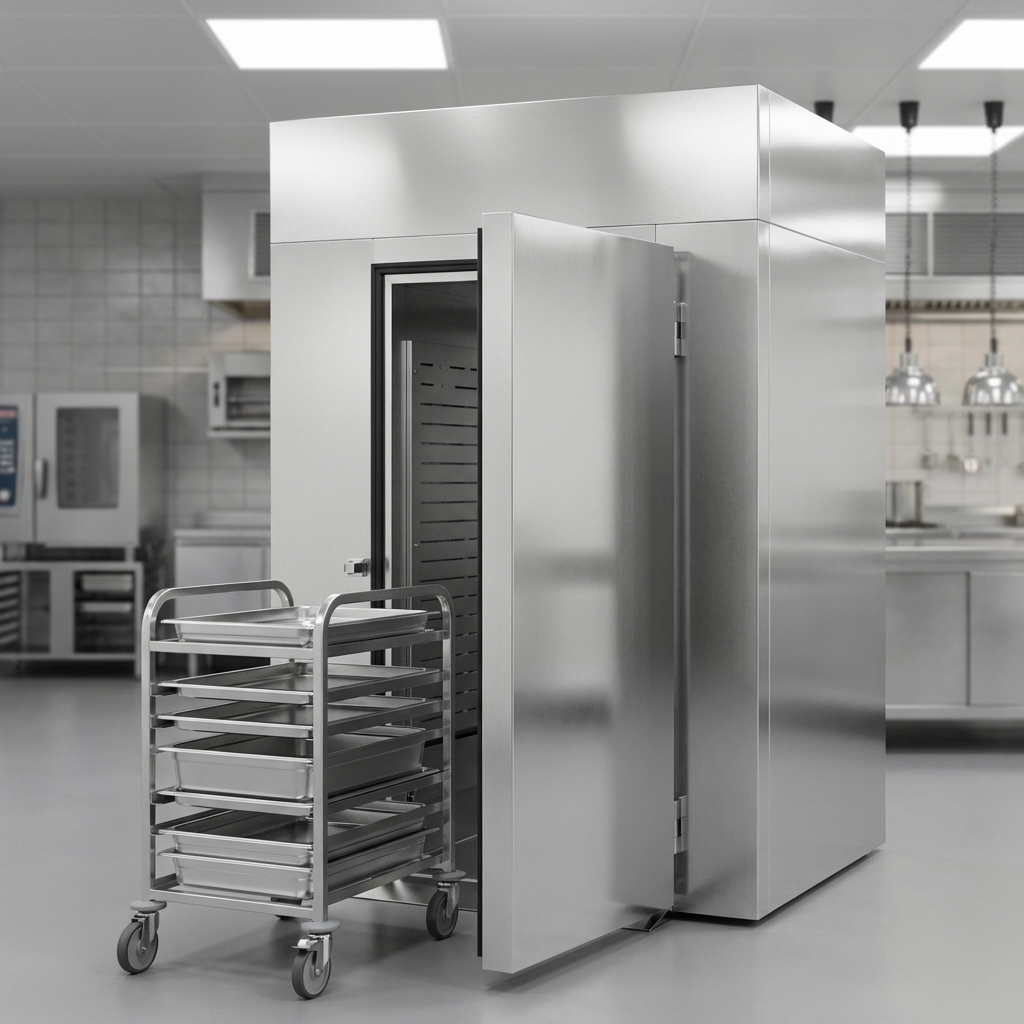

Robust Cabinet Construction
Features 3 inches of non-CFC polyurethane foam insulation for excellent temperature retention and structural integrity.
User-Friendly Door Design
Equipped with a smooth, polished chrome workflow door handle, cam action lift-off hinges, and a magnetic snap-in Santoprene™ door gasket for a tight seal. The door is self-closing to prevent energy loss.
Enhanced Security
A cylinder lock on the door helps secure contents against unauthorized access.
Advanced Electronic Controls
Comes with an electronic control system, off-cycle defrost, digital display, and a hi-low alarm to ensure precise temperature monitoring and easy operation.
Optimized Air Distribution
Top and side air distribution ducts ensure uniform cooling throughout the cabinet, maintaining consistent temperatures for all stored items.
Durable Interior Components
Includes removable stainless steel rack guides, a removable stainless steel ramp for easy cart access, and a reinforced stainless steel floor for longevity and sanitation.
LED Interior Lighting
Bright LED lighting illuminates the interior, improving visibility and reducing energy consumption.
Specifications
| Type | Roll-In Freezer |
|---|---|
| Style | 1-Section |
| Installation Type | Floor Model |
| Capacity | 32 Cubic Feet |
| Rack Capacity | 1 (66-1/4"H Cart) |
| Compartments | 1 |
| Gas Type | Not Applicable |
| Refrigerant Type | R-290 Hydrocarbon |
| Condensing Unit Size | 1 HP |
| BTU | 3530 BTU |
| Temperature Range | 0 to -5°F (Adjustable to -10°F) |
| Voltage | 115/208-230 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 6.3 Amps (115V), 4.1 Amps (208-230V) |
| Plug Type | NEMA L14-20P |
| Cord Length | 10 Feet |
| Controls | Electronic with Digital Display and Hi-Low Alarm |
| Exterior Front Material | Stainless Steel |
| Exterior Side Material | Aluminum |
| Interior Finish | Aluminum |
| Floor Material | Reinforced Stainless Steel |
| Door Hinging | Hinged |
| Insulation | 3 Inch Non-CFC Polyurethane Foam |
| Shipping Width | 36 Inches |
| Shipping Depth | 36 Inches |
| Shipping Height | 86 Inches |
| Shipping Weight | 475 lb. |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
35.5"W x 35.38"D x 86.0"HProduct Weight:
475.0 lbWarranty & Protection
7 Year Parts, Labor and Compressor Warranty
