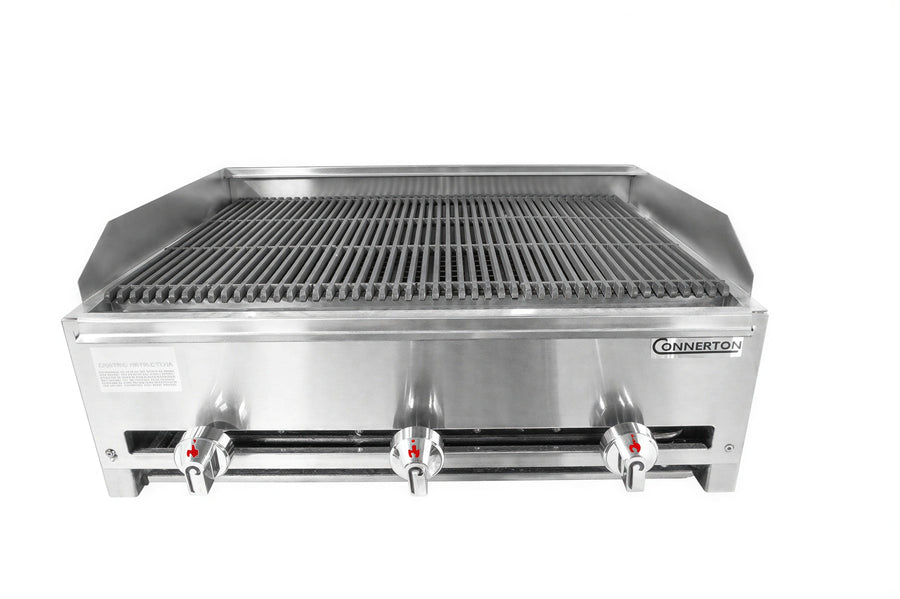

Connerton RLRB-23-47L Countertop Gas Charbroiler, 47"W, Lava-Rock, Cast-Iron Grates, Manual Controls
The Connerton RLRB-23-47L is a countertop gas charbroiler with lava-rock heating, cast-iron grates, and manual controls.
- Grates: Cast-iron bottom grates and cast-iron top grates with rear height adjustment.
- Burner output: Four burners provide 112,000 BTU total input.
- Construction: Fully welded #304 stainless steel body with a removable fire box and stainless steel drip pan.
- Connection: Rear 3/4-inch NPT gas connection.
For non-combustible locations only; the cutsheet specifies 0-inch clearance at the sides and back.
Overall Dimensions:
47.0"W x 23.0"D x 13.0"HProduct Weight:
295.0 lbLava-rock heating
Uses a lava-rock heating system with cast-iron bottom grates.
Cast-iron top grates
Top grates are cast iron and include rear height adjustment.
Manual controls
The charbroiler uses manual controls.
Four-burner configuration
Four cast-iron H burners provide 112,000 BTU total input.
Welded stainless steel body
The body is fully welded 18-gauge #304 stainless steel.
Removable fire box
The fire box is removable for cleaning and maintenance.
Stainless steel drip pan
The drip pan is made of 18-gauge #304 stainless steel.
Rear gas connection
The unit has a rear 3/4-inch NPT gas connection.
Certifications & Compliance
Warranty & Protection
Two-year limited warranty for the original owner when properly installed for commercial use in a static location; the second year covers parts only.
