Connerton

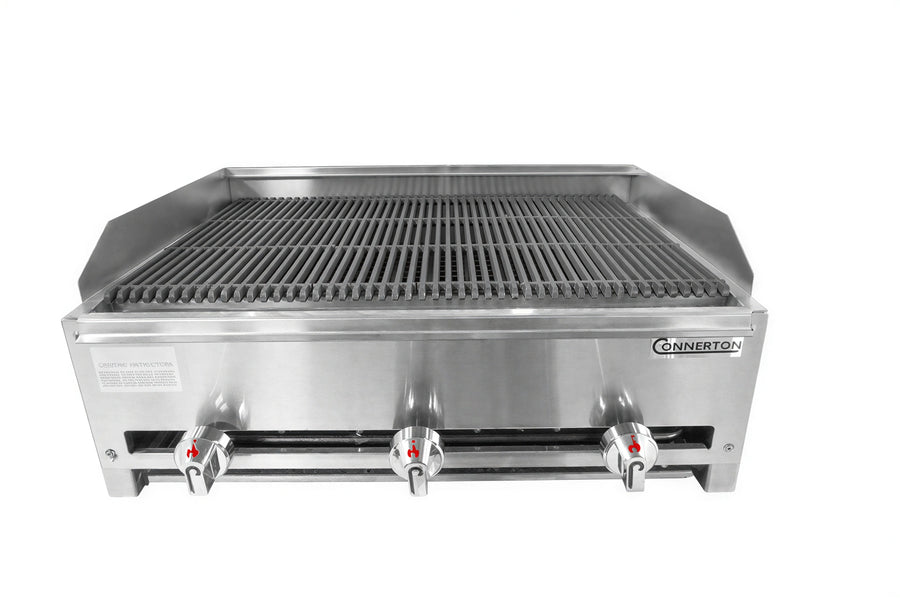

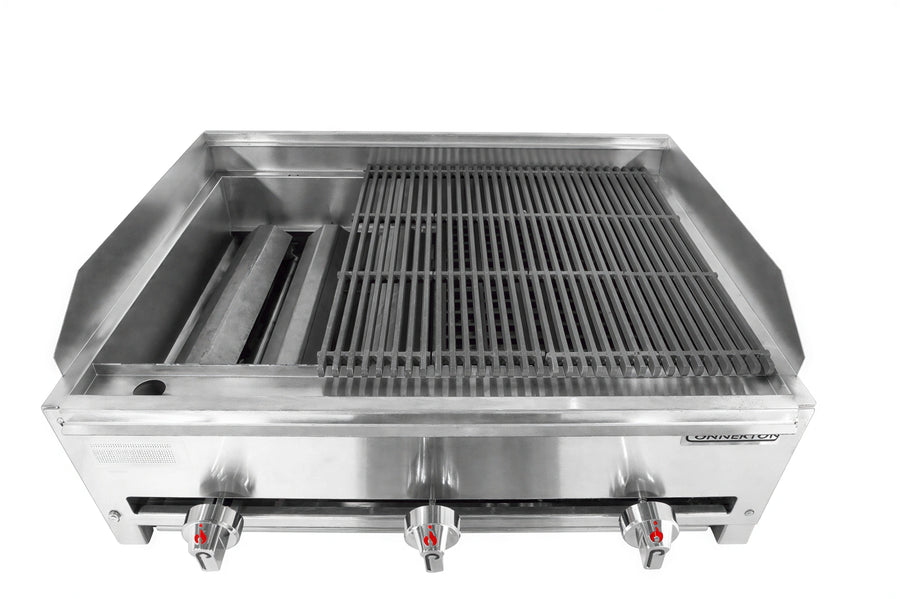

Connerton RLRB-23-37R Countertop Gas Charbroiler, 37"W, Radiant, Cast Iron Grates, Manual Controls

SKU: RLRB-23-37R
$3,744.73
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Connerton Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment

The Connerton RLRB-23-37R is a 37-inch countertop gas charbroiler with radiant heating, manual controls, and 84,000 BTU input.

It features heavy-duty cast iron top grates with rear height adjustment, 12-gauge stainless steel radiants, and a fully welded #304 stainless steel body.

  • Construction: The body and removable fire box are made from fully welded #304 stainless steel.
  • Cleaning access: The removable fire box supports cleaning and maintenance.
  • Connection: A 3/4-inch NPT rear gas connection is provided.

Overall Dimensions:

37.0"W x 23.0"D x 13.0"H

Product Weight:

175.0 lb

Radiant heating

Uses 12-gauge stainless steel radiants.

Adjustable cast iron grates

Heavy-duty cast iron top grates have rear height adjustment.

Manual controls

Equipped with manual controls.

Stainless steel construction

The body is fully welded #304 stainless steel; the fire box is fully welded #304 stainless steel and removable.

High heat output

Provides 84,000 BTU input through three burners.

Rear gas connection

Includes a 3/4-inch NPT rear gas connection.

Product type Countertop gas charbroiler
Heating source Radiant
Overall width 37 in.
Overall depth 23 in.
Overall height 13 in.
Weight 175 lb.
BTU input 84,000 BTU
Burners 3
Controls Manual
Radiants 12-gauge stainless steel
Top grates Heavy-duty cast iron with adjustable rear height
Body material 18-gauge #304 stainless steel, fully welded
Fire box material 16-gauge #304 stainless steel, fully welded
Front panel Removable 18-gauge #304 stainless steel
Drip pan material 18-gauge #304 stainless steel
Gas connection 3/4-inch NPT rear gas connection
Gas pressure 4.0 in. water column natural gas; 10.0 in. water column propane

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Limited warranty for defects in materials and workmanship for two years from purchase, not exceeding 30 months from shipment, for properly installed static commercial units.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit is 37 inches wide, 23 inches deep, and 13 inches high.
The RLRB-23-37R uses radiant heating with 12-gauge stainless steel radiants.
The product has heavy-duty cast iron top grates with rear height adjustment.
It uses a 3/4-inch NPT rear gas connection.
The RLRB-23-37R is certified by CSA and NSF.
For properly installed static units, the limited warranty covers defects in materials and workmanship for two years from purchase, not exceeding 30 months from shipment; the second year covers parts only. Broiler grates and radiants are covered for parts only for 90 days.
