Key specifications

BTU
84,000 BTU
Dimensions
37.0"W × 23.0"D × 13.0"H
Type
Charbroiler
Installation Type
Countertop
Material
304 Stainless Steel
Heating Source
Lava Rock
Spec sheet
Connerton SKU: RLRB-23-37L

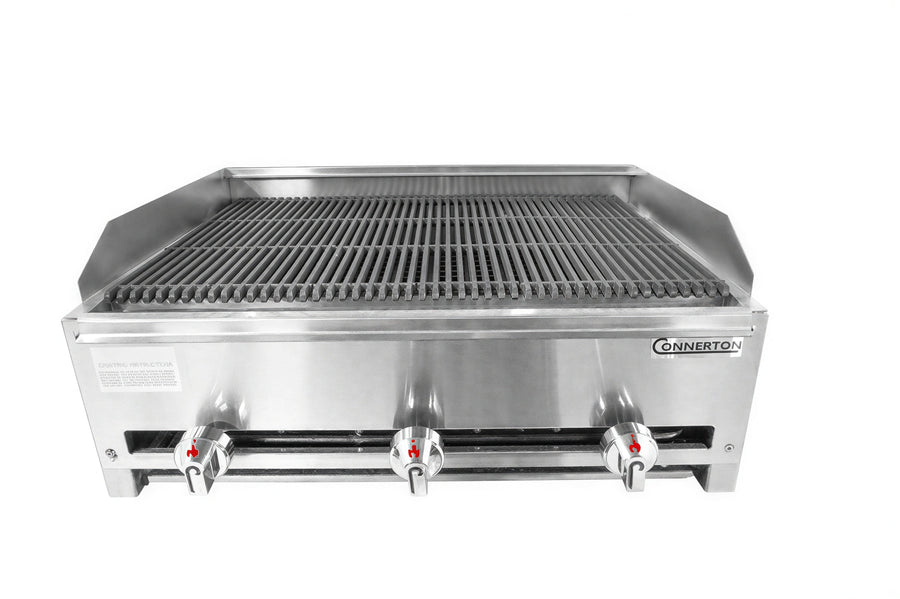

Connerton RLRB-23-37L 37 in Countertop Gas Charbroiler

$1,737.86
/each
Estimated to ship in 3–6 business days Free Shipping
Width
Gas typeRequired
Installation
Top grates
Gas Connector
Included: Connerton warranty Two-year limited warranty from the date of purchase, not exceeding 30 months from the date of shipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $161/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material 304 Stainless Steel
Heating Source Lava Rock
Controls Manual
Width 37 in
Depth 23 in
Height 13 in
Weight 225 lb
BTU 84,000 BTU
Burner Count 3
Burner Type Cast Iron H Burner
Grate Material Cast Iron
Grate Adjustment Rear Height
Gas Connection 3/4 in NPT, Rear
Gas Pressure 4.0 in. W.C. Natural Gas; 10.0 in. W.C. Propane
Body Construction Fully Welded
Fire Box Removable
Drip Pan Material 304 Stainless Steel
Front Panel Removable

Description

The Connerton RLRB-23-37L is a 37 in countertop gas charbroiler with lava-rock heat, cast-iron top and bottom grates, and manual controls.

Its fully welded 304 stainless steel body includes a removable fire box, front panel, and drip pan. Three burners provide 84,000 BTU total, and the top grates have rear height adjustment.

The charbroiler measures 37 in W x 23 in D x 13 in H and has a rear 3/4 in NPT gas connection. It is specified for non-combustible locations only, with 0 in clearance at the sides and back.

Overall Dimensions:

37.0"W x 23.0"D x 13.0"H

Product Weight:

225.0 lb

Lava-Rock Heat

Uses lava rock as the heating source.

Cast-Iron Grates

Includes cast-iron top and bottom grates with rear height adjustment.

Three-Burner Output

Three burners provide 84,000 BTU total.

Manual Controls

The charbroiler uses manual controls.

304 Stainless Steel Body

The body is fully welded 304 stainless steel.

Removable Fire Box

The fire box is removable.

Rear Gas Connection

The unit has a rear 3/4 in NPT gas connection.

Installation Requirement

Specified for non-combustible locations only, with 0 in clearance at the sides and back.

Frequently Asked Questions

Yes. It is specified as a countertop charbroiler.
The charbroiler has three burners with 84,000 BTU total output.
It uses lava rock as the heating source.
It uses a 3/4 in NPT gas connection at the rear.
The unit is 37 in wide, 23 in deep, and 13 in high, with a listed weight of 225 lb.
The specifications list gas pressure values for Natural Gas and Propane, and state that the gas type must be specified.
Yes. The cast-iron top grates have rear height adjustment.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
