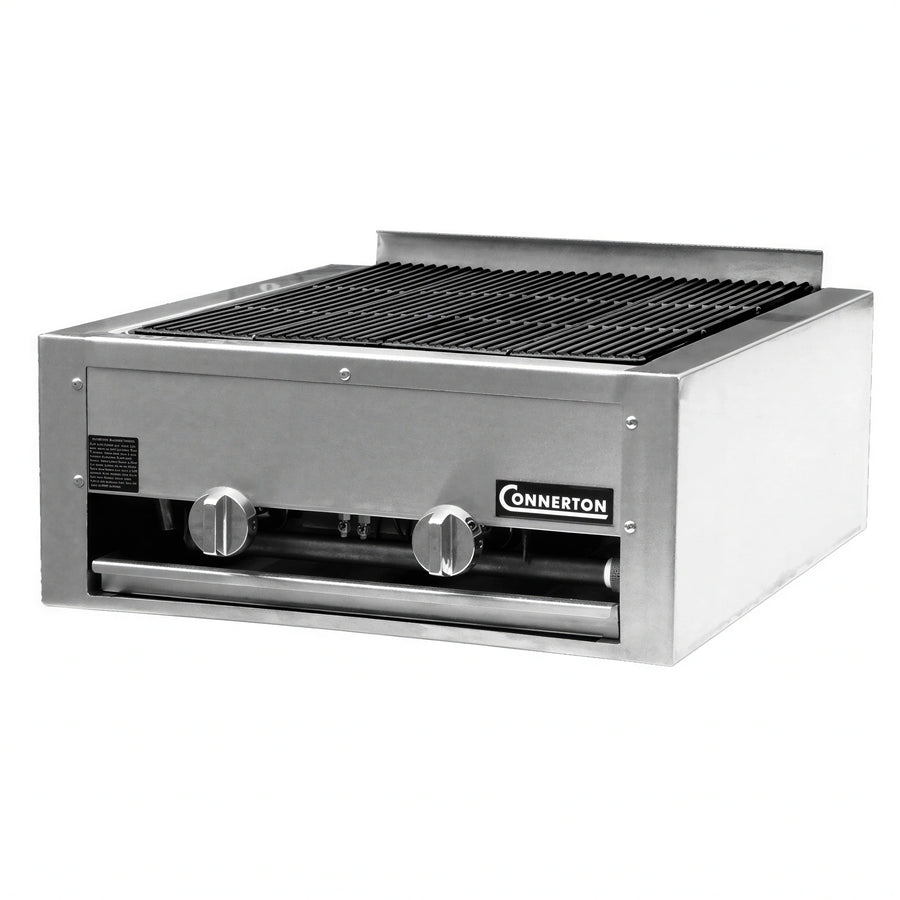

Connerton LRB-18-F Gas Floor Charbroiler, 18"W, Lava Rock, Cast Iron Grates, Stainless Steel Body

SKU: LRB-18-F
$4,152.06
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Connerton Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment

The Connerton LRB-18-F is a gas floor charbroiler with lava rock heat, cast iron grates, manual controls, and a fully welded stainless steel body.

  • Provides 40,000 BTU of heat input.
  • Includes cast iron top grates with rear height adjustment and cast iron bottom grates.
  • Features a rear 3/4 in NPT gas connection.
  • Built with a firebox, front panel, drip pan, undershelf, and adjustable legs.

Overall Dimensions:

18.0"W x 27.0"D x 36.0"H

Product Weight:

130.0 lb

Lava rock heat

Uses lava rock as the specified heat medium.

Cast iron grates

Includes cast iron bottom grates and cast iron top grates with rear height adjustment.

Manual controls

Equipped with manual controls.

Stainless steel construction

Features a fully welded stainless steel body.

Floor-model base

Open stand configuration with an undershelf and adjustable legs.

Rear gas connection

Uses a 3/4 in NPT rear gas connection.

40,000 BTU input

Specified gas input is 40,000 BTU.

Product type Gas floor charbroiler
Width 18 in
Depth 27 in
Height 36 in
Weight 130 lb
Heat Lava rock
Heat input 40,000 BTU
Controls Manual
Top grates Cast iron with rear height adjustment
Bottom grates Cast iron
Gas connection 3/4 in NPT, rear
Body Fully welded stainless steel
Base Open stand
Exterior finish All stainless steel exterior
Components Firebox, front panel, drip pan, undershelf, and adjustable legs

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Two-year limited warranty for the original owner; the second year covers parts only.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The charbroiler measures 18 in wide, 27 in deep, and 36 in high, with a listed weight of 130 lb.
It uses lava rock heat and has a specified input of 40,000 BTU.
It has cast iron top and bottom grates. The top grates include rear height adjustment.
It has a rear 3/4 in NPT gas connection.
Yes. It has an open stand, undershelf, and adjustable legs.
The product is listed with CSA and NSF certifications.
The supplied warranty provides a two-year limited warranty for the original owner, with the second year covering parts only. Broiler grates and radiants are covered for parts for 90 days.
