Key specifications

BTU
300,000 BTU
Gas Type
Natural Gas / Propane
Dimensions
72.0"W × 28.0"D × 14.0"H
Type
Kabob Broiler
Material
304 Stainless Steel
Overall Width
72 Inches
Spec sheet
Connerton SKU: KABOB-72

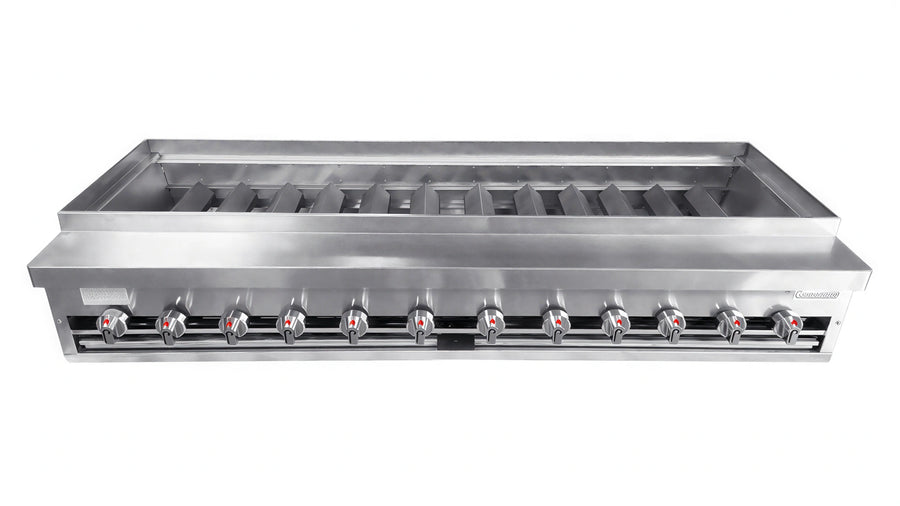

Connerton KABOB-72 72-Inch Gas Kabob Broiler

$3,651.21
/each
Estimated to ship in 16–19 business days Free Shipping
Width
Gas typeRequired
Model typeRequired
Broiler type
Grates
Gas Connector

Need something else? Contact us.

Included: Connerton warranty Limited commercial warranty for the original owner covering properly installed units in static locations for two years from purchase, not exceeding 30 months from shipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $338/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Kabob Broiler
Material 304 Stainless Steel
Overall Width 72 Inches
Overall Depth 28 Inches
Burner Count 12
BTU 300,000 BTU
Burner BTU 25,000 BTU Each
Burner Spacing 6 Inches
Heating Source Radiant
Controls Manual
Radiant Type Angled
Cooking Surface Depth 19.5 Inches
Gas Type Natural Gas / Propane
Gas Inlet 3/4 NPT
Natural Gas Pressure 5.0 Inches Water Column
Propane Pressure 11.0 Inches Water Column
Drip Pan Removable
Legs 4 Inches Adjustable Stainless Steel
Grates Optional
Required Location Non-Combustible Only

Description

The Connerton KABOB-72 is a gas kabob broiler measuring 72 inches wide by 28 inches deep. It has 12 stainless steel tubular burners spaced every 6 inches and rated at 25,000 BTU each.

Angled radiants control flare-up across the 19.5-inch-deep cooking surface. The unit includes a removable crumb tray and 4-inch stainless steel adjustable legs. Grates are optional.

  • Manual controls with radiant heating
  • 304 stainless steel construction
  • Gas pressure regulator supplied and must be installed
  • For non-combustible locations only

Overall Dimensions:

72.0"W x 28.0"D x 14.0"H

Product Weight:

540.0 lb

Burner Configuration

Twelve stainless steel tubular burners are spaced every 6 inches and rated at 25,000 BTU each.

Radiant Heating

Angled radiants control flare-up.

Cooking Surface

The cooking surface is 19.5 inches deep.

Crumb Management

A removable crumb tray is provided.

Adjustable Legs

The unit has 4-inch stainless steel adjustable legs.

Controls

Manual controls.

Gas Compatibility

The specification sheet lists natural gas and propane pressure settings.

Grates

Heavy-duty grates are optional.

Gas Regulator

A gas pressure regulator is supplied and must be installed.

Frequently Asked Questions

It has 12 stainless steel tubular burners, each rated at 25,000 BTU and spaced every 6 inches.
The specification sheet lists natural gas and propane, with gas pressure settings of 5.0 inches water column for natural gas and 11.0 inches water column for propane.
The cutsheet identifies the grates as optional; included status for this catalog item is not specified.
The product measures 72 inches wide by 28 inches deep by 14 inches high and weighs 540 pounds.
The specification notes that the broiler is for non-combustible locations only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
