Key specifications

BTU
175,000 BTU
Dimensions
42.0"W × 28.0"D × 14.0"H
Type
Kabob Broiler
Style
Radiant
Material
304 Stainless Steel
Weight
265 Pounds
Spec sheet
Connerton SKU: KABOB-42

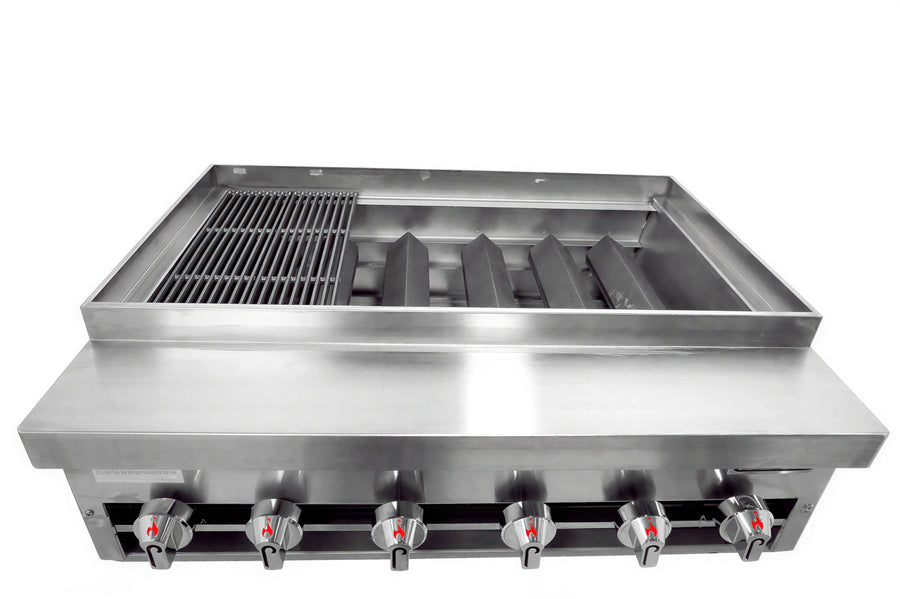

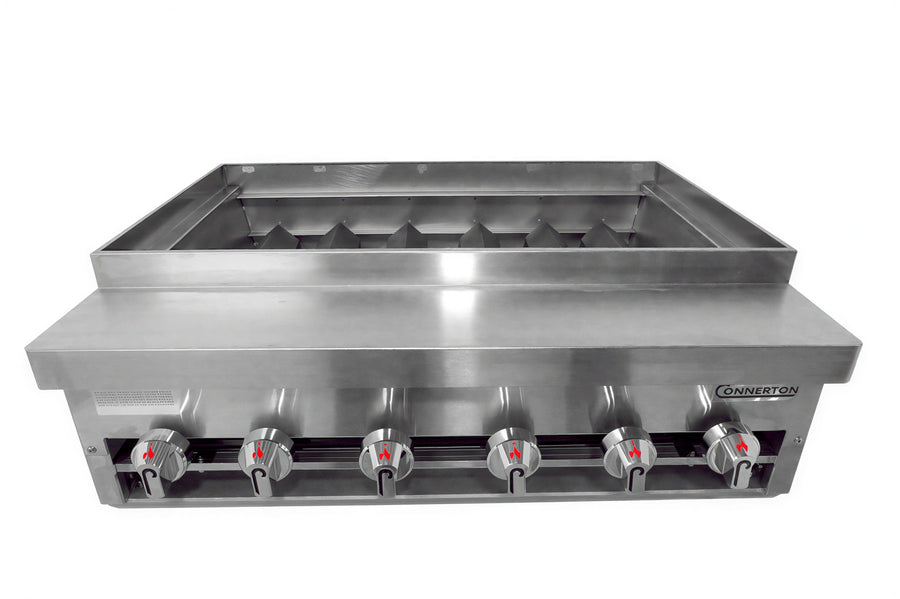

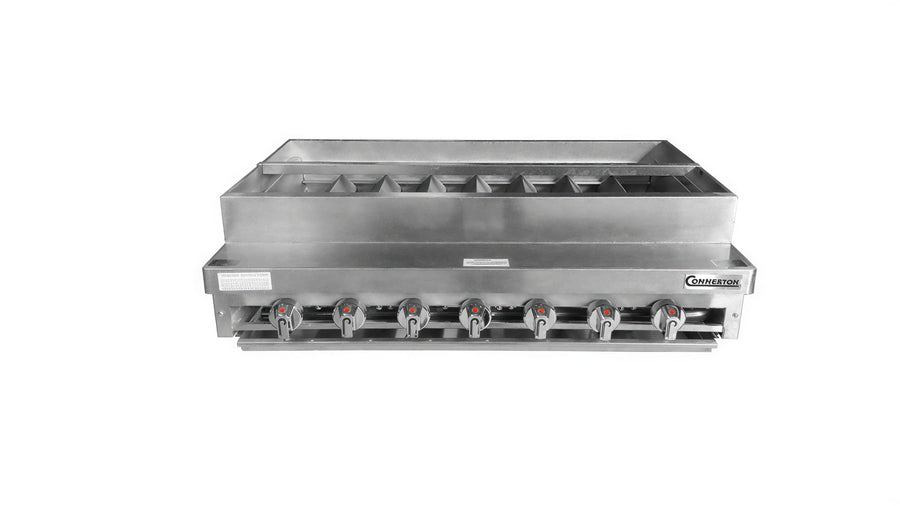

Connerton KABOB-42 42-Inch Gas Kabob Broiler, 7 Burners

$2,233.06
/each
Estimated to ship in 3–6 business days Free Shipping
Width
Gas typeRequired
Installation typeRequired
Broiler type
Grates
Gas Connector
Included: Connerton warranty Two-year limited warranty for properly installed commercial units in a static location; the second year covers parts only

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $207/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Kabob Broiler
Style Radiant
Material 304 Stainless Steel
Width 42 Inches
Depth 28 Inches
Height 14 Inches
Weight 265 Pounds
Burner Count 7
Burner Type Stainless Steel Tubular Burner
Burner Spacing 6 Inches
BTU 175,000 BTU
BTU Per Burner 25,000 BTU
Control Type Manual Controls
Cooking Surface Depth 19.5 Inches
Crumb Tray Removable

Description

The Connerton KABOB-42 is a gas kabob broiler measuring 42 inches wide and 28 inches deep. It has seven stainless steel burners, each rated at 25,000 BTU, for a listed total of 175,000 BTU.

Angled radiants are specified to control flare-up, while the burners are spaced every 6 inches. Manual controls, a removable crumb tray, and a 19.5-inch-deep cooking surface provide defined operating features.

The cutsheet specifies welded #304 stainless steel construction.

Overall Dimensions:

42.0"W x 28.0"D x 14.0"H

Product Weight:

265.0 lb

Seven Burners

The unit has seven stainless steel burners rated at 25,000 BTU each.

Angled Radiants

Angled radiants are specified to control flare-up.

Manual Controls

The category attributes identify manual controls.

Six-Inch Burner Spacing

The burners are spaced every 6 inches.

Removable Crumb Tray

The authoritative specifications identify a removable crumb tray.

304 Stainless Steel Construction

The cutsheet specifies welded #304 stainless steel construction.

19.5-Inch Cooking Surface

The cutsheet specifies a 19.5-inch-deep cooking surface.

Frequently Asked Questions

It has seven stainless steel burners.
The listed total input is 175,000 BTU, with 25,000 BTU per burner.
The KABOB-42 uses manual controls.
Yes. The authoritative specifications identify a removable crumb tray.
The product measures 42 inches wide by 28 inches deep by 14 inches high and weighs 265 pounds.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
