Key specifications

BTU
125,000 BTU
Dimensions
30.0"W × 28.0"D × 14.0"H
Type
Kabob Broiler
Material
304 Stainless Steel
Heating Source
Radiant
Controls
Manual Controls
Spec sheet
Connerton SKU: KABOB-30

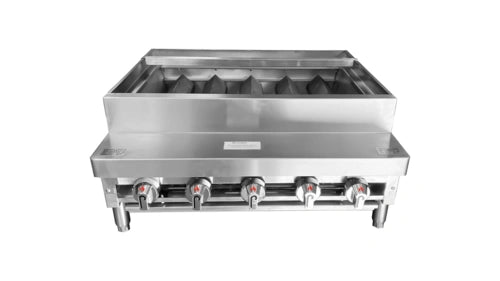

Connerton KABOB-30 30-Inch Gas Kabob Broiler, 5 Burners

$1,548.10
/each
Estimated to ship in 16–19 business days Free Shipping
Width
Gas typeRequired
Model typeRequired
Broiler medium
Grates
Gas Connector
Included: Connerton warranty Two-year limited warranty for the original owner on properly installed units in a static location, limited to 30 months from shipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $143/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Kabob Broiler
Material 304 Stainless Steel
Heating Source Radiant
Controls Manual Controls
Burner Count 5
Burner Spacing 6 in
BTU 125,000 BTU
Cooking Surface Depth 19.5 in
Grate Status Optional
Gas Inlet 3/4 in. NPT
Width 30 in
Depth 28 in
Height 14 in
Weight 200 lb

Description

The Connerton KABOB-30 is a gas kabob broiler with five controlled stainless steel straight burners spaced every 6 inches. Each burner is rated at 25,000 BTU, for 125,000 BTU total.

  • Angled radiants control flare-up.
  • A removable crumb tray is specified for the unit.
  • Product specifications list manual controls and a 19.5-inch-deep cooking surface.
  • Four-inch stainless steel adjustable legs are specified.
  • Top grates are optional.

Overall Dimensions:

30.0"W x 28.0"D x 14.0"H

Product Weight:

200.0 lb

Five Stainless Steel Burners

Five controlled stainless steel straight burners are spaced every 6 inches.

Angled Radiants

Angled radiants control flare-up.

Manual Controls

The product category data lists manual controls.

Removable Crumb Tray

A removable crumb tray is specified for the product.

Adjustable Legs

The product specifications list four-inch stainless steel adjustable legs.

304 Stainless Steel Construction

The product documentation identifies 304 stainless steel for the body and other structural components.

Optional Grates

The cutsheet states that top grates are optional.

Cooking Surface

The cutsheet identifies a 19.5-inch-deep cooking surface.

Frequently Asked Questions

The KABOB-30 has five controlled stainless steel straight burners.
Each burner is rated at 25,000 BTU, for a total of 125,000 BTU.
The cutsheet states that the top grates are optional.
The product measures 30 inches wide by 28 inches deep by 14 inches high and weighs 200 pounds.
The product category data lists manual controls.
The manufacturer provides a limited warranty for the original owner covering properly installed units in a static location for two years from purchase, not exceeding 30 months from shipment. The second year covers parts only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
