Key specifications

BTU
100,000 BTU
Dimensions
24.0"W × 28.0"D × 14.0"H
Type
Kabob Broiler
Style
Radiant
Material
304 Stainless Steel
Controls
Manual Controls
Spec sheet
Connerton SKU: KABOB-24

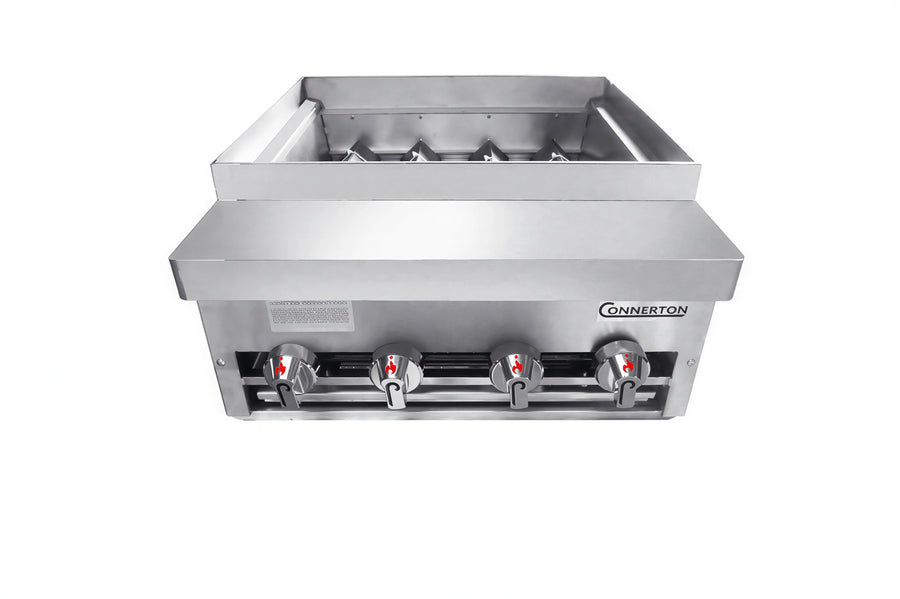

Connerton KABOB-24 24-Inch Radiant Kabob Broiler, 4-Burner

$1,335.17
/each
Estimated to ship in 3–6 business days Free Shipping
Width
Gas typeRequired
Model type
Broiler type
Gas Connector
Included: Connerton warranty Two-year limited warranty for the original owner when the unit is properly installed in a static location; the second year covers parts only

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $124/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Kabob Broiler
Style Radiant
Material 304 Stainless Steel
Controls Manual Controls
Heating Source Radiant
Width 24 in.
Depth 28 in.
Height 14 in.
Weight 165 lb
Burner Count 4
Burner Spacing 6 in.
BTU 100,000 BTU
BTU Per Burner 25,000 BTU
Cooking Surface Depth 19.5 in.
Crumb Tray Removable
Grate Status Optional
Grate Material Cast Iron
Radiant Material Cast Iron
Gas Inlet 3/4 NPT
Gas Pressure 5.0 in. W.C. Natural Gas; 11.0 in. W.C. Propane

Description

The KABOB-24 is a 24-inch radiant gas kabob broiler with four stainless steel straight burners rated at 25,000 BTU each. Angled radiants help control flare-up, while manual controls support straightforward operation.

  • 304 stainless steel body construction
  • Removable crumb tray
  • Burners spaced every 6 inches
  • 4-inch adjustable stainless steel legs
  • Grates are optional

Overall Dimensions:

24.0"W x 28.0"D x 14.0"H

Product Weight:

165.0 lb

Radiant Heating

The broiler uses radiant heating for the cooking surface.

Four Burners

Four controlled stainless steel straight burners are spaced every 6 inches and rated at 25,000 BTU each.

Angled Radiants

Angled radiants help control flare-up.

304 Stainless Steel Body

The body, fire box, front, and drip pan specifications identify 304 stainless steel construction.

Manual Controls

The product is specified with manual controls.

Removable Crumb Tray

A removable crumb tray is specified.

Adjustable Legs

The product specifications list 4-inch stainless steel adjustable legs.

Optional Grates

The cutsheet lists grates as optional.

Frequently Asked Questions

It has four stainless steel straight burners, each rated at 25,000 BTU.
The total rating is 100,000 BTU.
It uses radiant heating with angled radiants.
Yes. The product is specified with manual controls.
The cutsheet lists grates as optional.
The product is 24 inches wide, 28 inches deep, and 14 inches high.
