Connerton CEG-52-T Countertop Gas Griddle, 52"W x 19"D Smooth 3/4" Steel Plate, Thermostatic Controls

SKU: CEG-52-T
$7,142.74
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

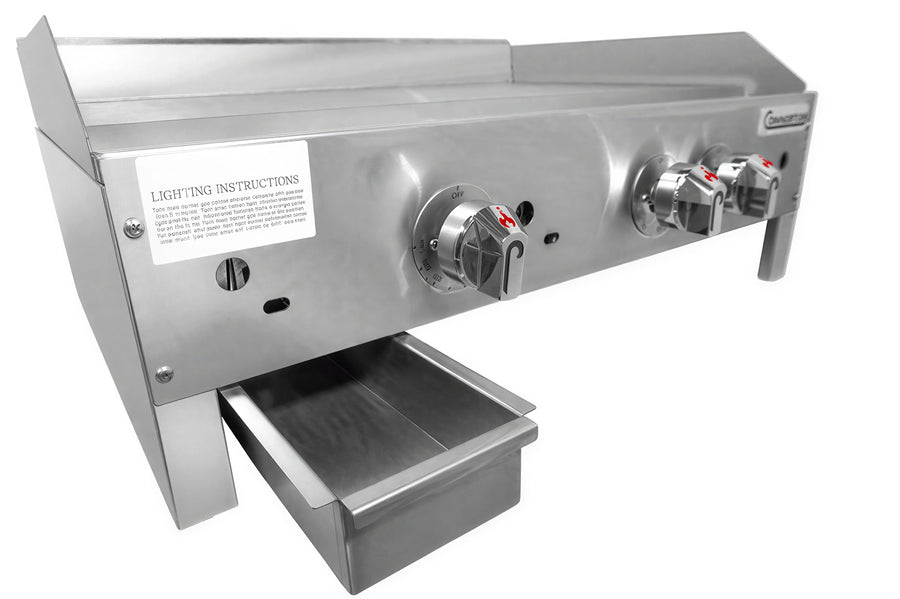

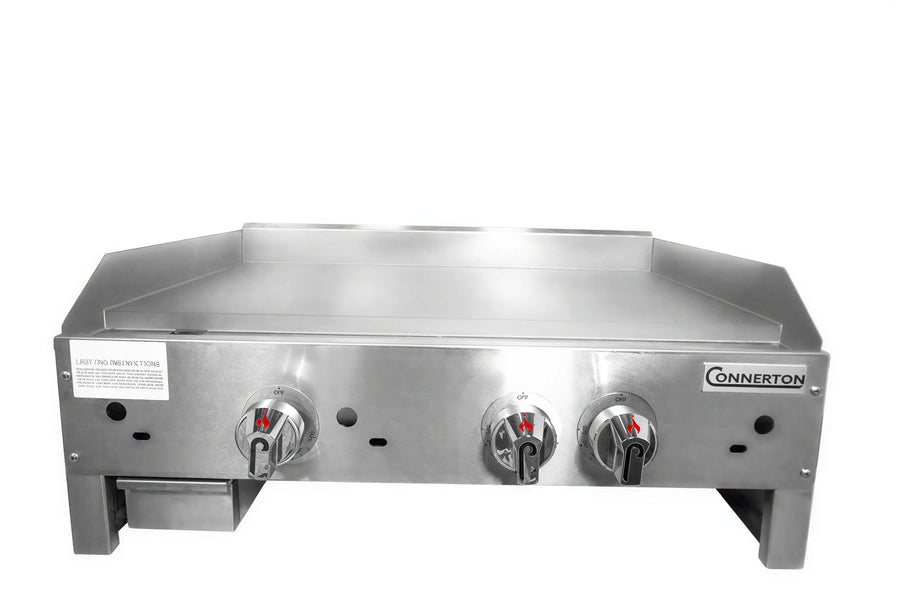

The Connerton CEG-52-T is a countertop gas griddle with a 52-inch-wide by 19-inch-deep cooking surface and smooth steel plate.

It features three thermostatic controls, five burners with 140,000 BTU total input, a stainless steel body and front panel, plus a drip pan, fire box, gutter, and 3-inch-high splash.

Overall Dimensions:

52.0"W x 23.0"D x 13.13"H

Product Weight:

275.0 lb

Countertop gas format

Specified as a countertop gas griddle for non-combustible locations.

Cooking surface

The cooking surface is listed at 52 inches wide by 19 inches deep with a smooth steel finish.

Thermostatic controls

Three thermostatic controls are specified.

Burner system

Five U-type tubular burners are listed at 28,000 BTU each, for 140,000 BTU total input.

Stainless steel construction

The body is fully welded stainless steel, and the front panel is stainless steel.

Drip and splash components

The specifications include a drip pan, fire box, gutter, and 3-inch-high splash.

Rear gas connection

A 3/4-inch NPT rear gas connection is specified.

Related Searches

Best Sellers Commercial Griddles Commercial Griddles Commercial Grills Connerton Cooking Equipment Equipment Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment
Series Budget Series
Installation Type Countertop
Fuel Type Gas
Cooking Surface Width 52 in
Cooking Surface Depth 19 in
Plate Finish Smooth steel
Controls 3 thermostatic controls
Total Input 140,000 BTU
Burner Count 5
Burner Type U-type tubular
Burner Input 28,000 BTU each
Gas Connection 3/4 in NPT, rear
Body Construction Fully welded stainless steel
Front Panel Material Stainless steel
Fire Box Included
Drip Pan Included
Splash Height 3 in
Gas Pressure 5.0 in water column natural gas; 11.0 in water column propane
Installation Clearance 4 in sides; 6 in back
Installation Location Non-combustible locations only
Gas Pressure Regulator Supplied; must be installed

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Two-year limited warranty from the date of purchase, not to exceed 30 months from the date of shipment; the second year covers parts only.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle is 52 inches wide, 23 inches deep, and 13.13 inches high. Listed weight is 275 pounds.
The cooking surface is 52 inches wide by 19 inches deep.
The CEG-52-T has five U-type tubular burners and 140,000 BTU total input.
It uses three thermostatic controls.
The specification lists a 3/4-inch NPT rear gas connection.
CSA and NSF certifications are listed.
The limited warranty is two years from the date of purchase, not to exceed 30 months from the date of shipment; the second year covers parts only.
