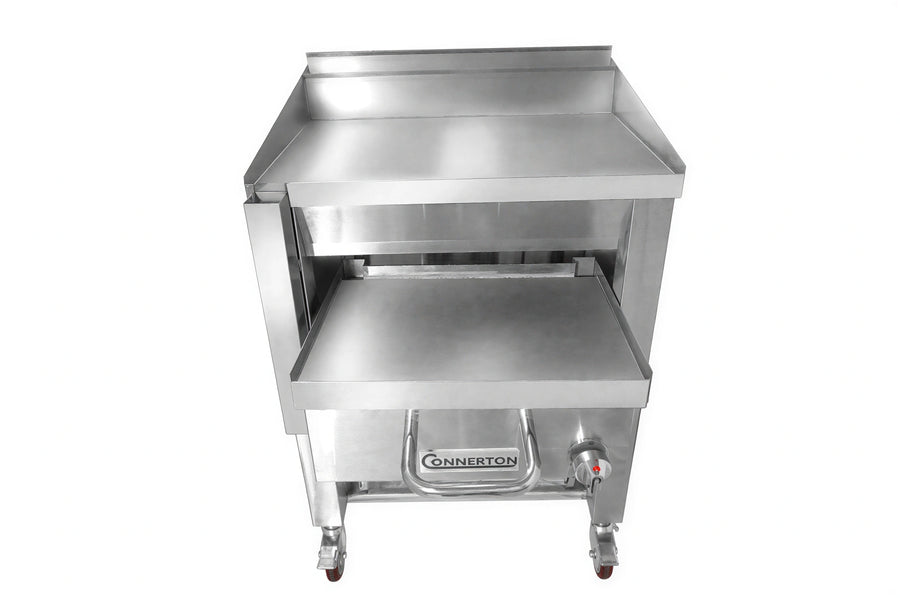

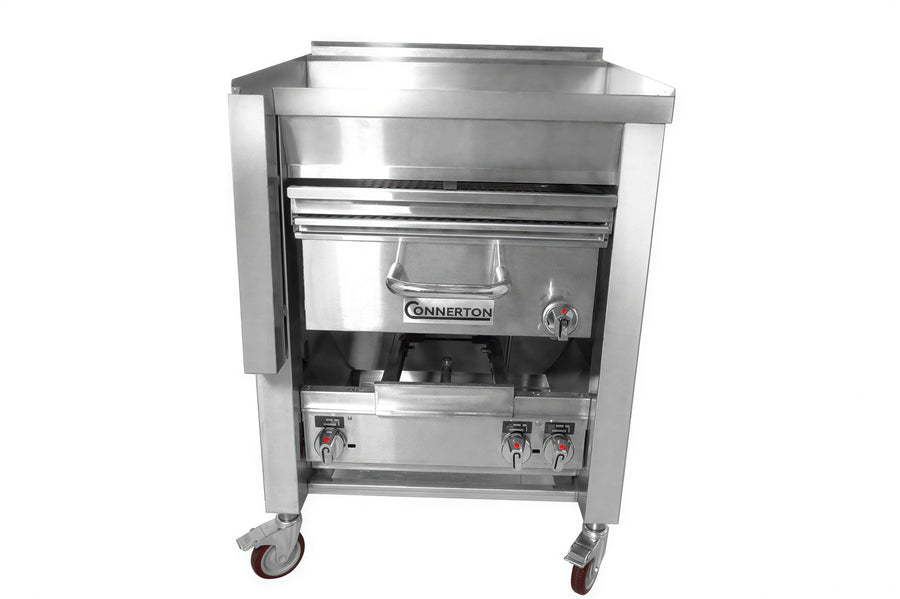

Connerton A-4F-24 Gas Griddle/Overfire Broiler Combination, Floor Model, Stainless Steel, 24"W
The Connerton A-4F-24 is a floor-model gas griddle and overfire broiler combination with a stainless steel body, inner liner, drip pan, stainless steel legs, and adjustable feet.
- Top cast iron burners use ceramic radiants, while the bottom burners are stainless steel.
- The griddle includes a 3/4 in top highly polished steel plate and a 5/8 in bottom highly polished steel plate.
- The broiler mechanism is removable for cleaning and moves on heavy-duty ball-bearing rollers.
- The unit has a maximum input of 72,000 BTU and a rear 3/4 in NPT gas connection.
Overall Dimensions:
24.0"W x 25.0"D x 47.38"HProduct Weight:
530.0 lbCombination cooking equipment
Combines a gas griddle with an overfire broiler in a floor-model unit.
Two-level griddle plates
Uses a 3/4 in top highly polished steel plate and a 5/8 in bottom highly polished steel plate.
Burner configuration
Top cast iron burners use ceramic radiants, and bottom burners are short straight tubular stainless steel burners.
Pull-out broiler drawer
The broiler rack is an adjustable-height pull-out drawer with a 15 in pull-out distance.
Removable broiler mechanism
The broiler griddle mechanism assembly is removable for easier cleaning.
Stainless steel construction
Features a stainless steel body and inner liner, stainless steel legs, and adjustable feet.
Ball-bearing rollers
The broiler mechanism moves on heavy-duty ball-bearing rollers.
Certifications & Compliance
Warranty & Protection
Limited two-year warranty from the date of purchase for properly installed commercial units in static locations, not exceeding 30 months from the date of shipment.
