Comstock-Castle TS2941SF Donut Fryers
Comstock-Castle TS2941SF Donut Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Comstock-Castle TS2941SF Donut Fryers
Description

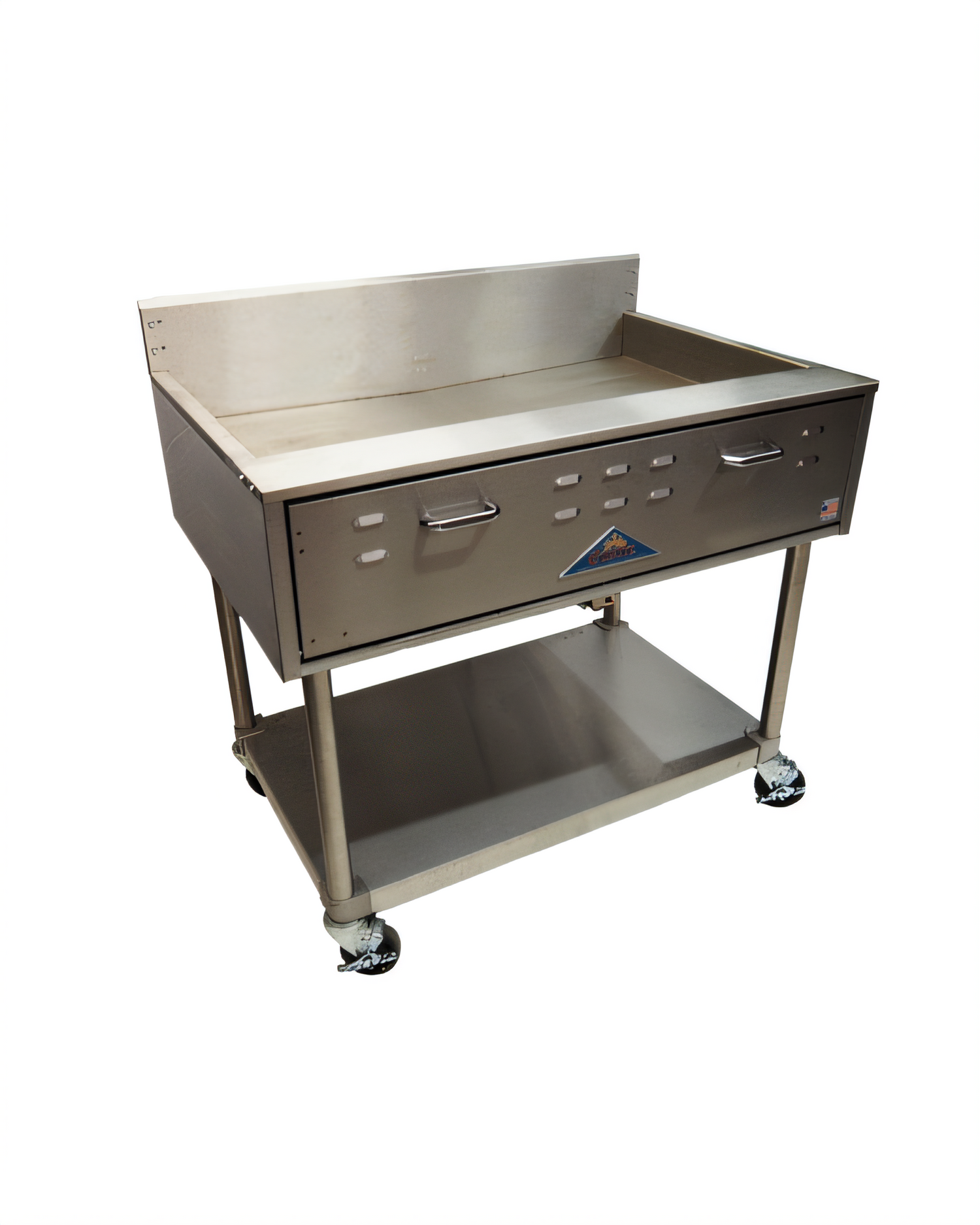

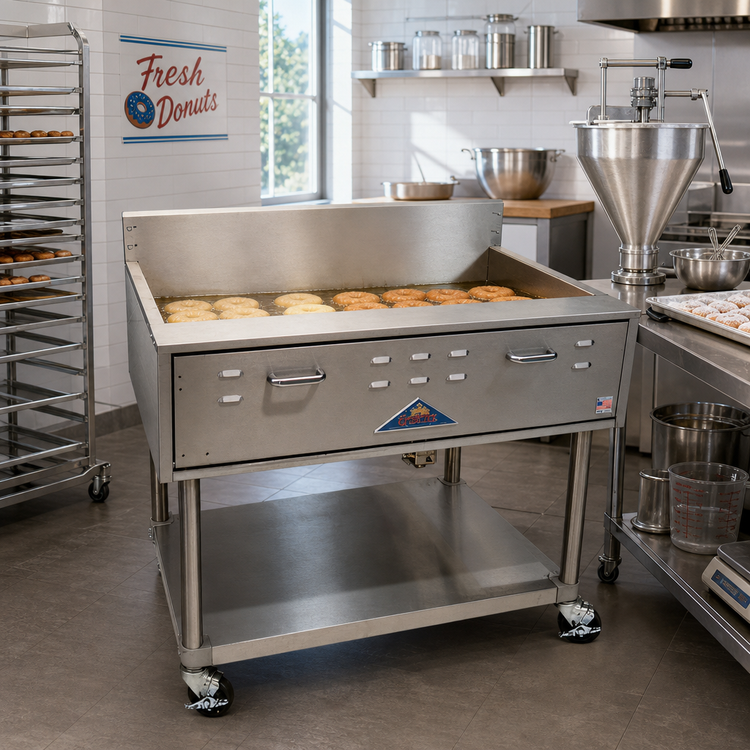

Comstock-Castle TS2941SF 41" Gas Funnel-Cake / Doughnut Fryer – Floor Model
100,000 BTU • Fries up to eight 9" funnel cakes per batch • NSF & cULus listedBuilt by America’s oldest stove company (Est. 1838), the Comstock-Castle TS2941SF is engineered for carnivals, concession stands and high-volume kitchens that refuse to keep customers waiting. Its powerful burner system recovers temperature almost instantly, while the all-stainless body wipes clean in minutes—so you can keep the cakes (or doughnuts) flying.
Why You’ll Love It
- 41 in. wide fry tank holds up to 8 standard 9" cakes at once.
- 100,000 BTU cast-iron “H” burner + angled “V” tank = fast, even heat distribution.
- Snap-action modulating thermostat (200–400 °F) for precise temperature control.
- Redundant high-limit safety automatically shuts off gas if the oil overheats.

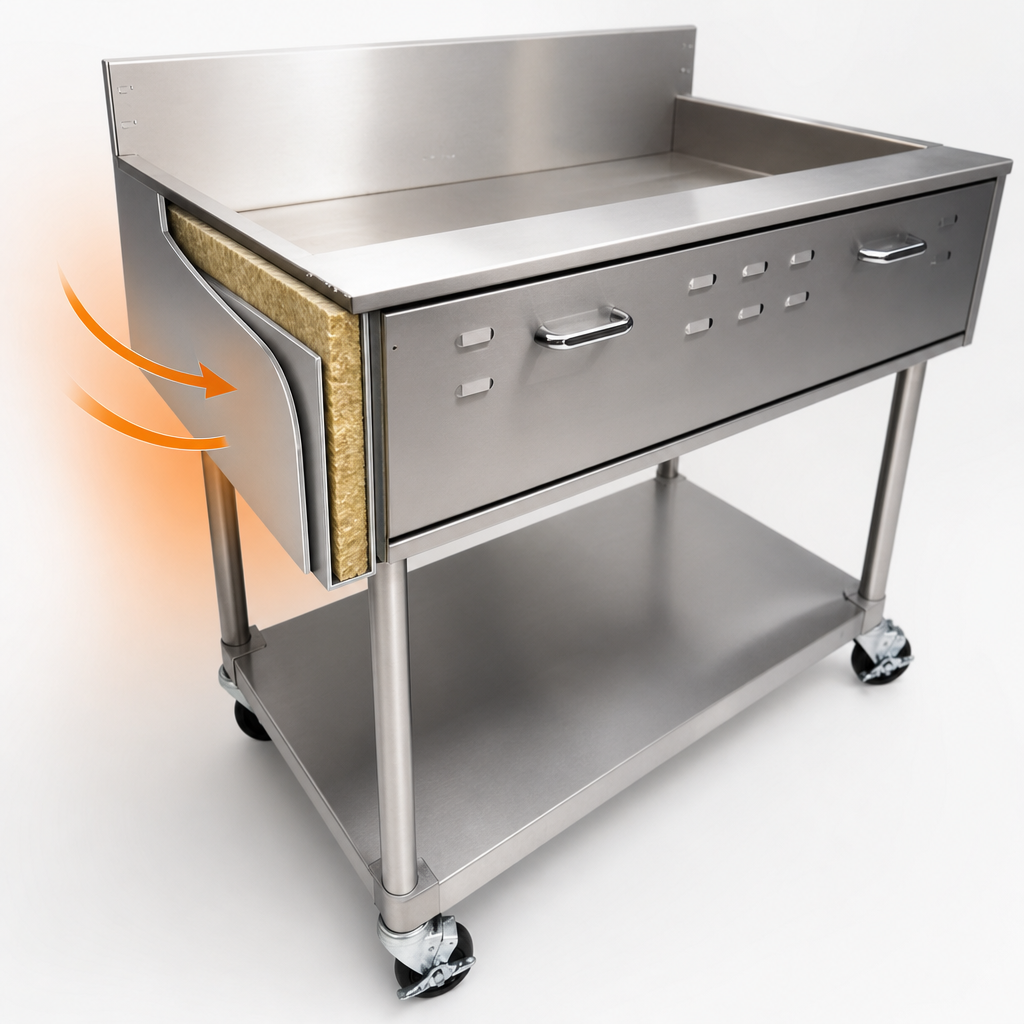

- Double-wall insulation and special flue design keep exterior surfaces cooler.

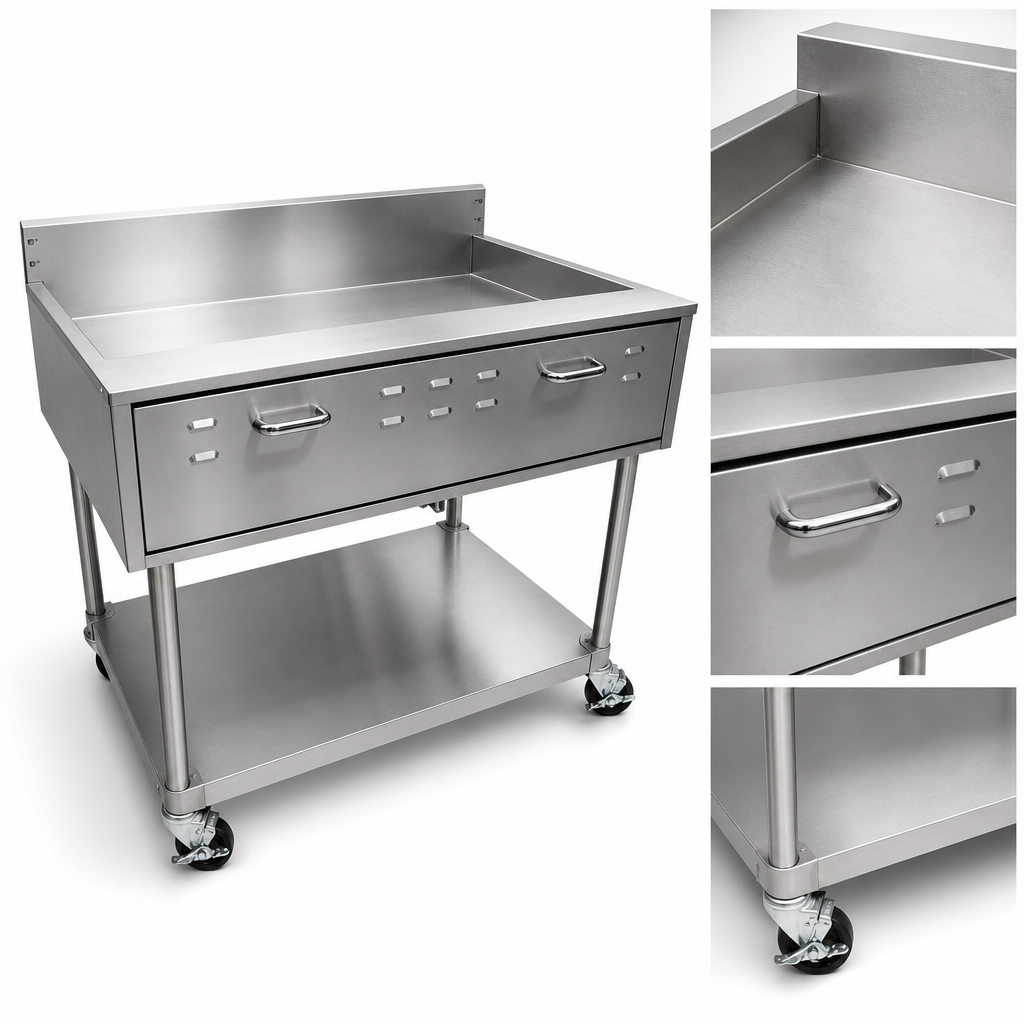

- All-stainless tank, front, sides, legs & undershelf resist corrosion and simplify cleanup.
- Factory-set for natural gas; field convertible to LP. 3⁄4" NPT connection included.
- Adjustable 4" stainless legs raise the tank surface to an ergonomic 36" working height.
- Hinged front door protects the controls yet opens wide for easy service access.
Capacity Guide
| Oil capacity | 4.75 – 6 gal • 18 – 23 L |
|---|---|
| Batch output* | Up to 8 × 9" funnel cakes or similar doughnuts |
*Actual production varies with batter, temperature and operator technique.
Specifications
| Model | TS2941SF |
|---|---|
| Overall width | 41 in (1,054 mm) |
| Overall depth | 28.5 in (724 mm) |
| Height to tank rim | 20 in (508 mm) |
| Height to fry surface | 36 in with supplied floor legs |
| Tank interior (W × L × H) | 38.25 × 21 × 4.25 in |
| Heat input | 100,000 BTU/hr |
| Gas connection | 3⁄4" NPT (nat. gas or LP convertible) |
| Shipping weight | ≈175 lb (79 kg) |
Installation Clearances
- Non-combustible surfaces: 2" sides, 6" rear
- Combustible surfaces: 6" sides, 6" rear
Popular Accessories (Sold Separately)
- Stainless tank cover & side drain board
- Crumb-screen scoop & fry tank lid
- Funnel-cake rings & drip screen
- Mobile carts, casters, gas hoses & LP regulators
Warranty
1-year limited parts & labor warranty (60 days labor / 120 days parts when installed on mobile food units). Must be installed by a licensed gas professional.
