Comstock-Castle TS2923SF Donut Fryers
Description

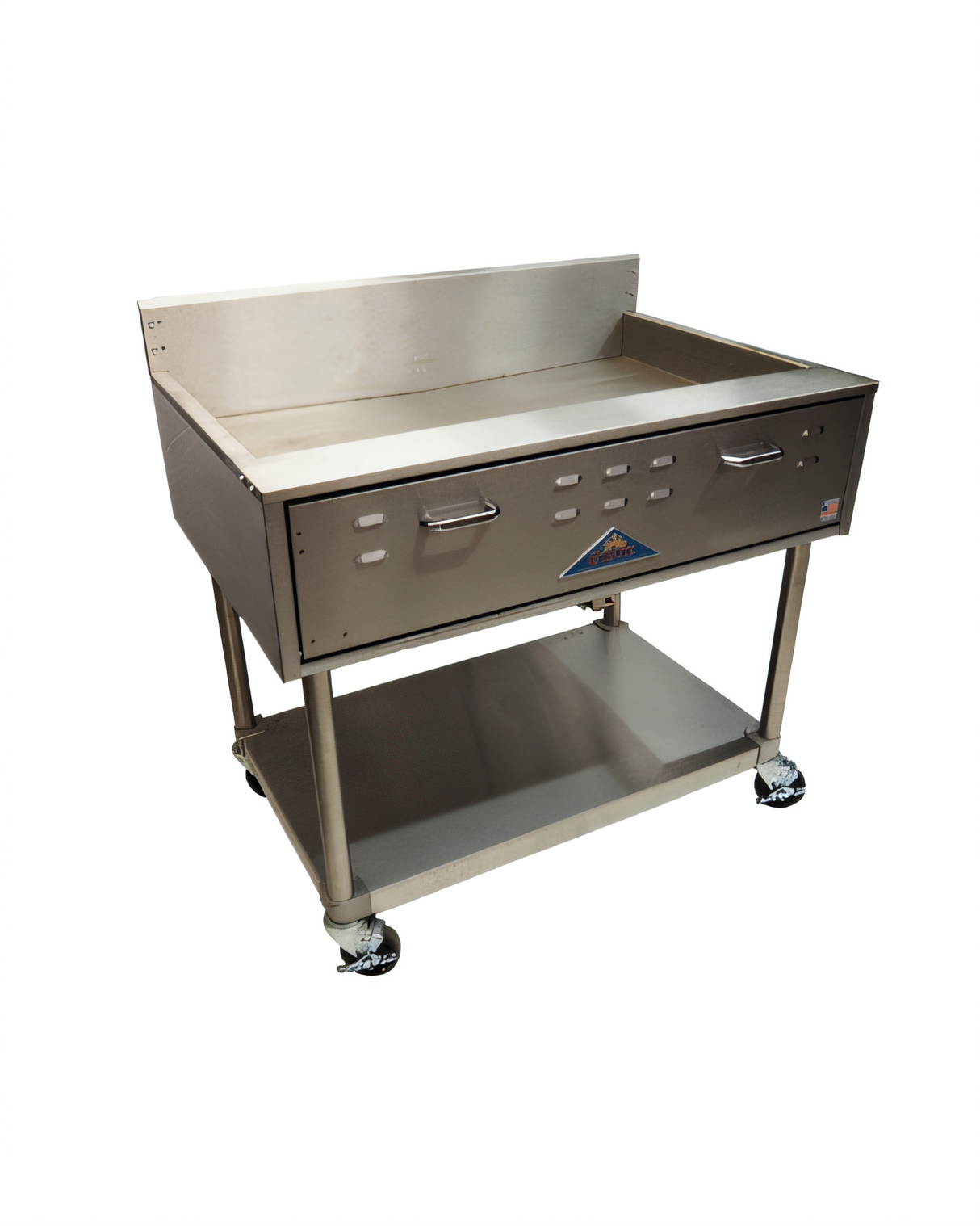

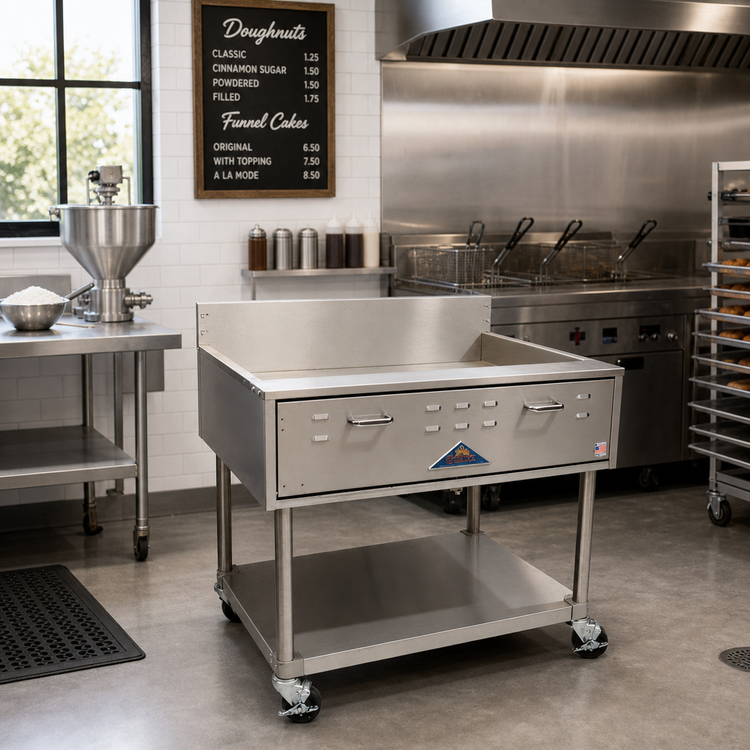

Comstock-Castle TS2923SF Gas Funnel-Cake / Doughnut Fryer
23" Floor Model • 50,000 BTU • NSF & cULus ListedServe crowd-pleasing funnel cakes, doughnuts and other fried favorites fast with the Comstock-Castle TS2923SF. Engineered for instant heat recovery and rock-solid temperature consistency, this 23 inch floor model keeps up with high-volume concession stands, food trailers and commercial kitchens—anywhere electricity is limited and gas is king.
Why you’ll love it
- 50,000 BTU cast-iron “H” burner + V-shaped tank for even heat distribution.

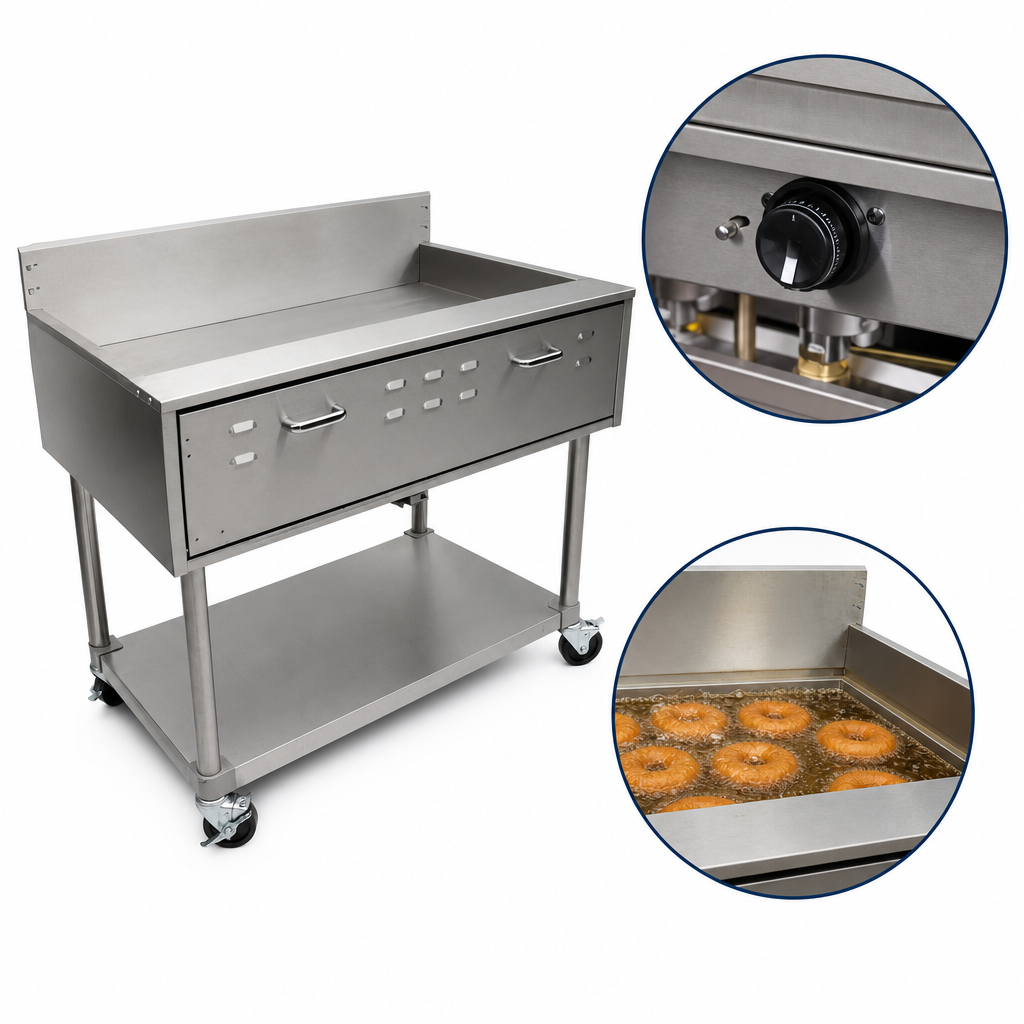

- Snap-action thermostat (modulating) with 100 % safety shut-off and built-in high-limit control.

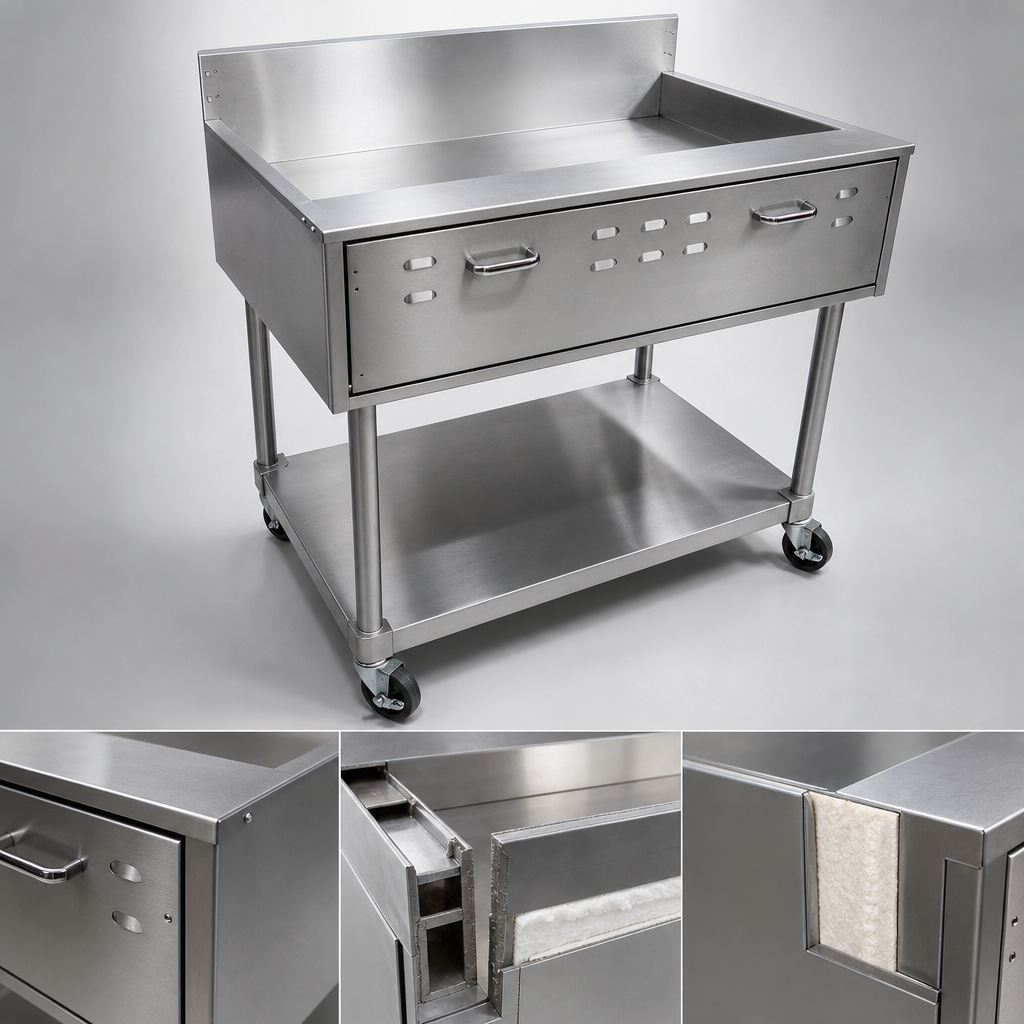

- All-stainless fry tank, front, sides & legs—wipes clean and resists corrosion.
- Tubular stainless legs & undershelf bring fry surface to a comfortable 36" working height.
- Fry up to four 9" funnel cakes simultaneously; 2.5–3 gal (10–11.5 L) oil capacity.
- Factory-preset for natural gas; easily field convertible to propane (LP).
- 3/4" NPT rear gas connection with regulator included.
- NSF® & cULus certified for commercial kitchens.
- Made in the USA and backed by a 1-year parts & labor warranty.
Specifications
| Model | TS2923SF (Floor) |
|---|---|
| Overall width | 23 in / 584 mm |
| Overall depth | 28.5 in / 724 mm |
| Height to fry surface | 36 in (with supplied legs & undershelf) |
| Tank dimensions (W × L × H) | 20.25 in × 21 in × 4.25 in |
| Oil capacity | 2.5 – 3 gal / 10 – 11.5 L |
| Input | 50,000 BTU/hr |
| Gas type & pressure | Natural 4" WC (preset) • LP 10" WC (field convertible) |
| Gas connection | 3/4" NPT (rear) |
| Shipping weight | 125 lb / 57 kg (approx.) |
| Safety listings | NSF, cULus |
| Warranty | 1 year parts & labor (see warranty terms) |
Installation & clearances
- Non-combustible surfaces: 2" sides, 6" rear
- Combustible surfaces: 6" sides, 6" rear
- Must be installed by a licensed gas technician; use a calibrated manometer to verify operating pressure.
- 3/4" gate valve provided for rapid oil drainage.
Comstock-Castle equipment installed on mobile concessions (trucks, trailers, tents, or outdoor locations) carries 60 days labor / 120 days parts coverage. See full warranty documentation for complete terms, exclusions and return policy.
