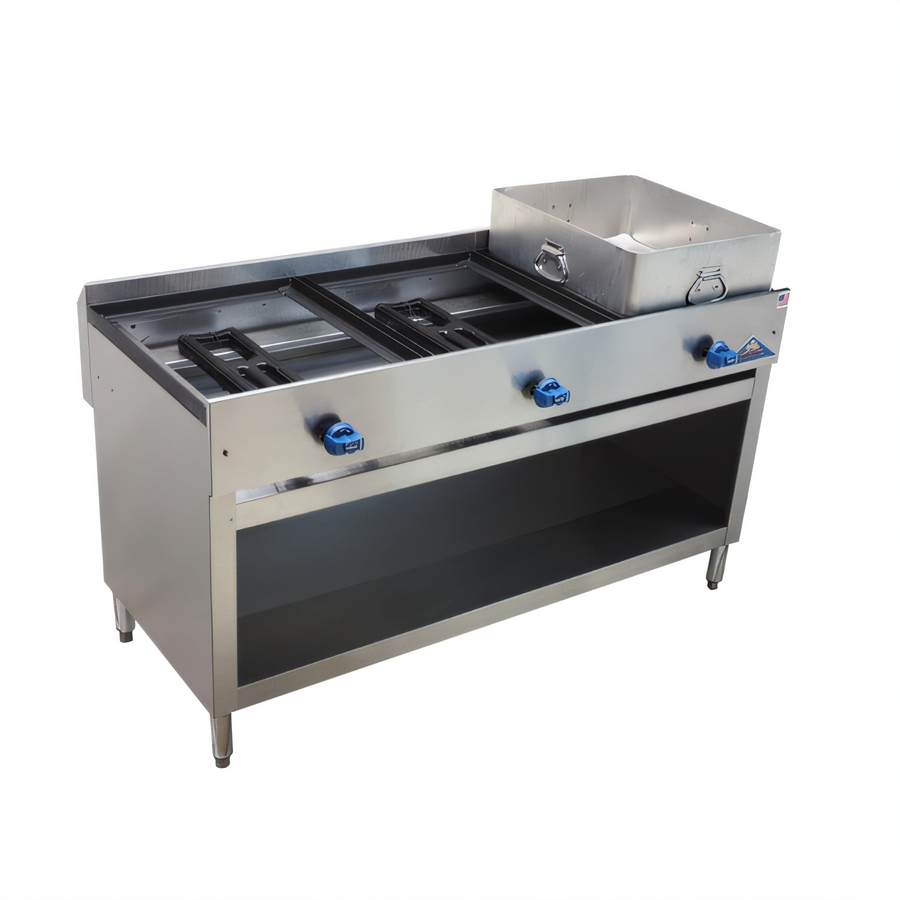

Comstock-Castle T-3 Gas Taco Range, 56-Inch Wide, 3-Burner, Stainless Steel Open Front Cabinet Base

105,000 BTU Total, 3/4-Inch Gas Connection, 6-Inch Adjustable Legs

Built for high-volume Mexican cooking, this 56-inch gas taco range delivers 105,000 BTU across three 35,000 BTU burners in a durable stainless steel cabinet base.

  • 56-inch-wide floor model taco range with an open front cabinet base
  • Three 35,000 BTU cast iron burners for 105,000 BTU total output
  • Stainless steel finish for easy cleaning and corrosion resistance
  • Brass gas valves and automatic standing pilots for reliable operation
  • 6-inch adjustable legs help level the range on uneven floors
  • 3/4-inch NPT gas connection for standard installation
  • Designed to accommodate military field pans; optional round burners are available

Overall Dimensions:

56.0"W x 25.0"D x 32.0"H

Product Weight:

300.0 lb

Stainless Steel Construction

Easy-clean, corrosion-resistant stainless steel finish with a sturdy cabinet frame.

Three H-Pattern Burners

Three 35,000 BTU cast iron burners provide 105,000 BTU total and are designed to accommodate military field pans.

Open Front Cabinet Base

Open front cabinet base provides accessible under-range storage and a rugged support structure.

Brass Gas Valves and Standing Pilots

Equipped with brass gas valves and automatic standing pilots for dependable startup and operation.

Factory-Set Pressure Regulators

Pressure regulators are set at the factory for the specified gas and installed pressure requirements.

6-Inch Adjustable Legs

Adjustable legs help level the range during installation.

3/4-Inch NPT Gas Connection

Standard 3/4-inch NPT manifold connection for gas supply hook-up.

Installation Clearances

Requires 0-inch clearance to noncombustible sides and rear, and 6-inch clearance to combustible sides and rear.

Type Taco Range
Style Open Front Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Burners 3
Burner Type Cast Iron H-Pattern
Burner BTU 35,000 BTU Each
BTU 105,000 BTU
Controls Brass Gas Valves, Standing Pilots
Legs 6-Inch Adjustable
Gas Connection Size 3/4 Inch NPT
Selling Unit Each
Units Per Case 1
Shipping Width 56 Inches
Shipping Depth 25 Inches
Shipping Height 32 Inches
Shipping Weight 300 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty PDF Download

Frequently Asked Questions

The T-3 has three 35,000 BTU burners for a total output of 105,000 BTU.
It uses long-life cast iron H-pattern burners designed to accommodate military field pans.
The range uses a 3/4-inch NPT gas connection.
Noncombustible surfaces require 0-inch clearance on the sides and rear, while combustible surfaces require 6-inch clearance on the sides and rear.
It includes a 1-year parts and labor warranty from the original installation date, with limited coverage for food trucks, trailers, tents, and outdoor installations.
Available accessories include casters, military pans, safety pilots, gas hoses, storage shelves, and round burners.
