Comstock-Castle R4 Gas Ranges
Description

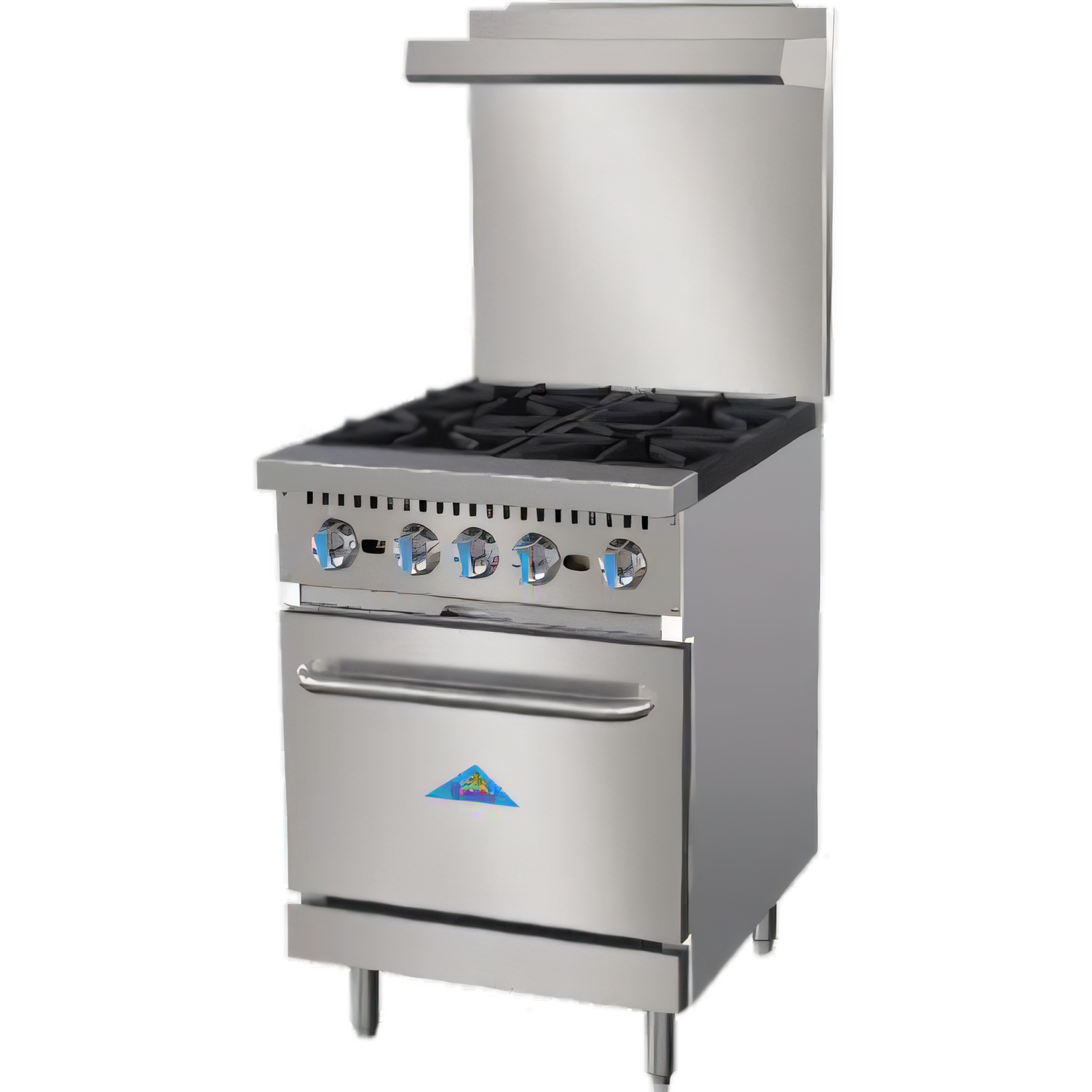

Comstock-Castle R4 24" 4-Burner Gas Range with Space-Saver Oven – 150,000 BTU
Full-size power in a compact 24" footprintBuilt for demanding commercial kitchens, the Comstock-Castle R-Series R4 delivers a combined 150,000 BTU of dependable cooking power while taking up just two feet of line space. Four open burners handle everything from rapid boils to delicate sautés, and the space-saving oven below turns out perfectly baked, roasted, or finished dishes without slowing down service.
Highlights

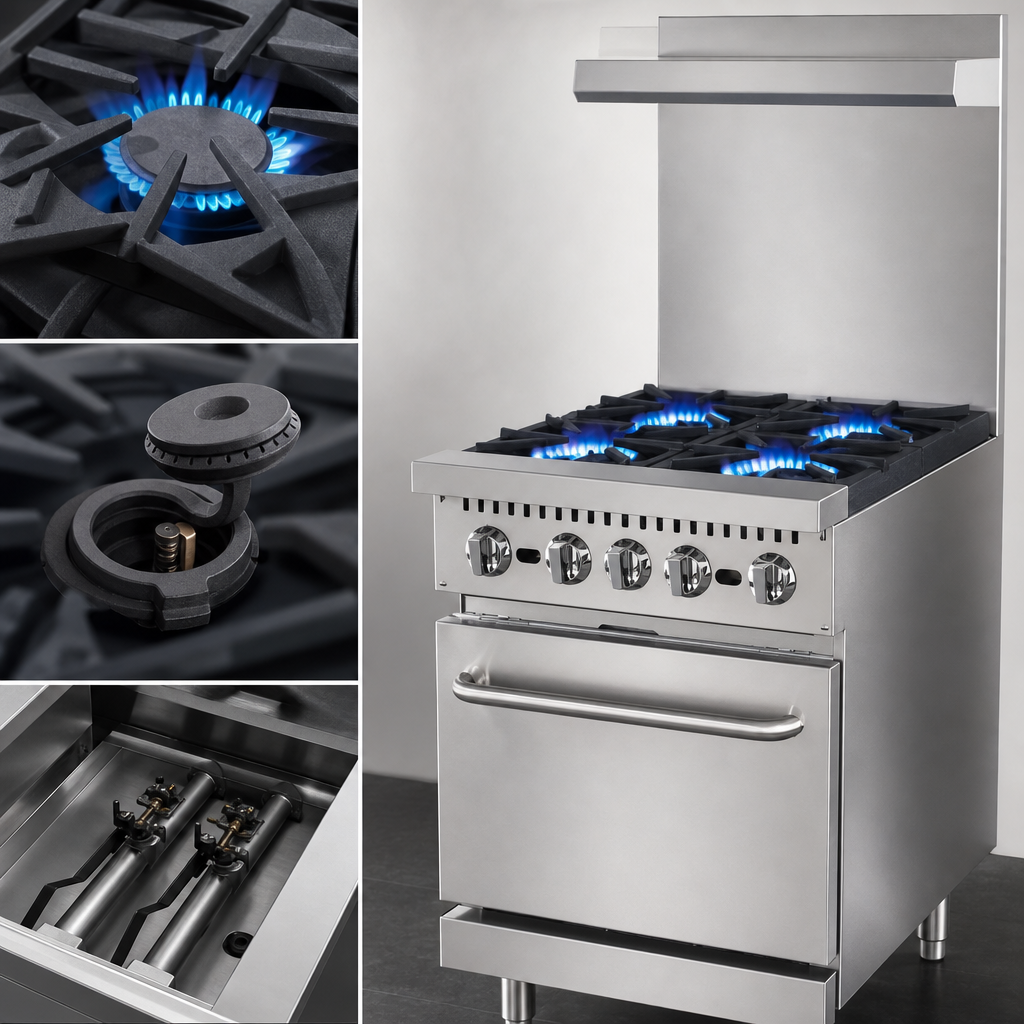

- (4) 30,000 BTU open burners with lift-off heads for quick cleaning

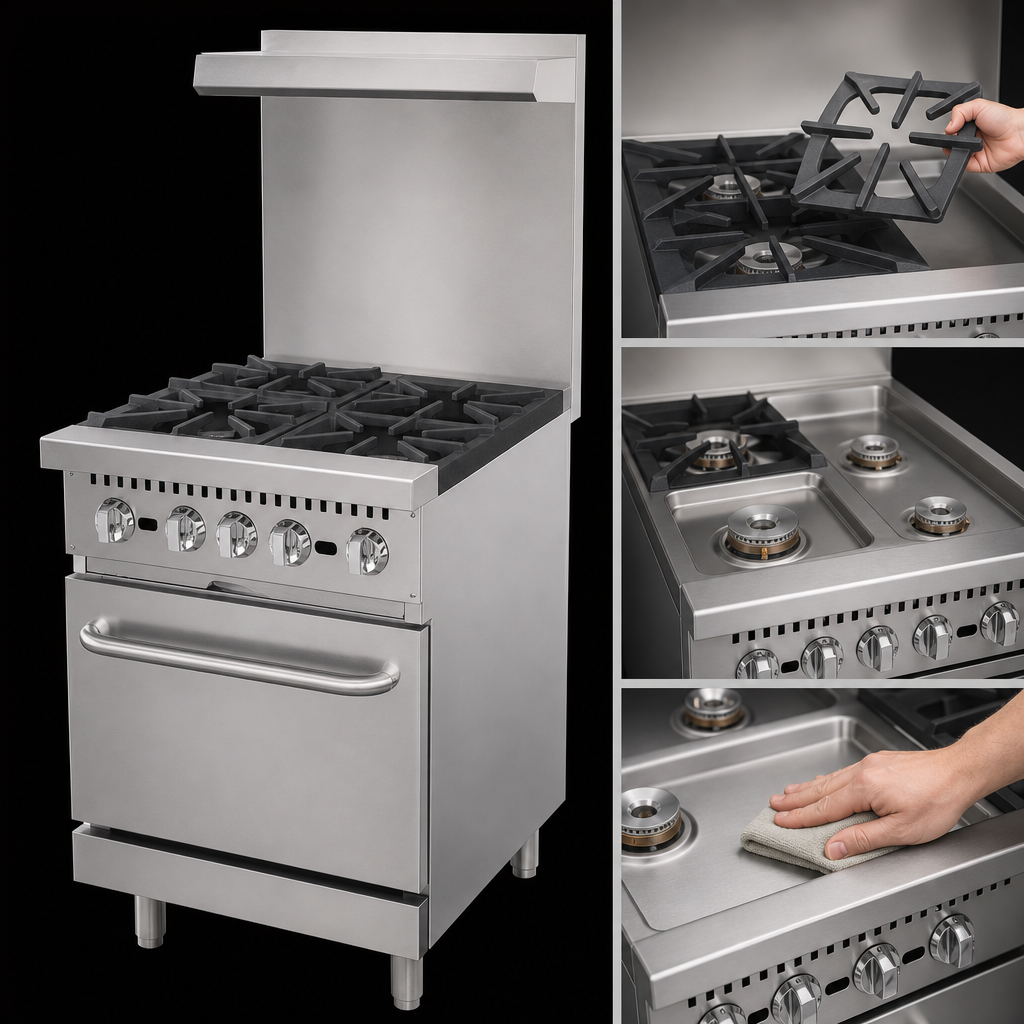

- 12" × 12" heavy-duty cast-iron grates – strong enough for stock pots, easy to remove
- Individual standing pilots and flame-adjustable control knobs for precise heat management
- 30,000 BTU space-saver oven lined in stainless steel & porcelain enamel for fast wipe-down
- Two chrome-plated racks included; 4 rack positions
- Oven thermostat adjustable from 200 °F to 500 °F
- Compression-spring door system with cool-touch handle
- Stainless steel front, door, 24.75" back riser & high shelf; G90 galvanized sides
- 6" adjustable stainless steel legs – 37" working height to cooking surface
- Full-width removable crumb tray keeps the deck clean
- 3/4" rear gas connection with factory-supplied pressure regulator
- NSF listed & ETL certified for gas safety and sanitation
Why kitchens love the R4
- Compact profile is perfect for food trucks, concession stands, and crowded cook lines
- Heavy-gauge steel frame built to withstand years of high-volume use
- Lift-off burner heads and porcelain oven liner minimize daily clean-up time
- Separate pilots let you relight a single burner without shutting down the rest of the range
Specifications
| Model | R4 (R-Series) |
|---|---|
| Total BTU | 150,000 BTU/hr (120,000 BTU top + 30,000 BTU oven) |
| External dimensions (W × D × H) | 24" × 32.6" × 60.7" (37" to cook surface, 24.8" back riser) |
| Oven interior (W × D × H) | 20.6" × 25.8" × 13.7" |
| Burner rating | 30,000 BTU each (open top) |
| Grate size | 12" × 12" removable cast iron |
| Oven thermostat range | 200 °F – 500 °F |
| Gas connection | 3/4" NPT (rear) |
| Crated weight | ≈ 356 lb |
| Certifications | NSF, ETL Sanitation & ETL Gas |
| Warranty | 1 year parts & labor (commercial use) |
Looking for a different size or burner layout? Explore other Comstock-Castle R-Series models or chat with our equipment specialists for help configuring your cook line.
