Comstock-Castle  |  SKU: HG60T-1-C

Comstock-Castle HG60T-1-C Gas Griddles

$7,144.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Comstock-Castle 60" Chrome Countertop Gas Griddle

Model CCHG-60T  |  HG-T-1-C Series

Deliver high-volume, high-precision searing to your cook line with Comstock-Castle’s flagship 60" chrome griddle. Five independent zones, a mirror-polished 1" plate and rugged stainless construction give the CCHG-60T the power and consistency busy diners, cafés and institutions demand.

Key Features

  • Expansive 60" W × 22.5" D cooking surface handles multiple menu items simultaneously.
  • 1" thick cold-rolled alloy steel plate with reflective chrome finish for faster recovery, even heat and easy clean-up.
  • Five stainless “U” burners (30,000 BTU each) deliver a total of 150,000 BTU/hr.

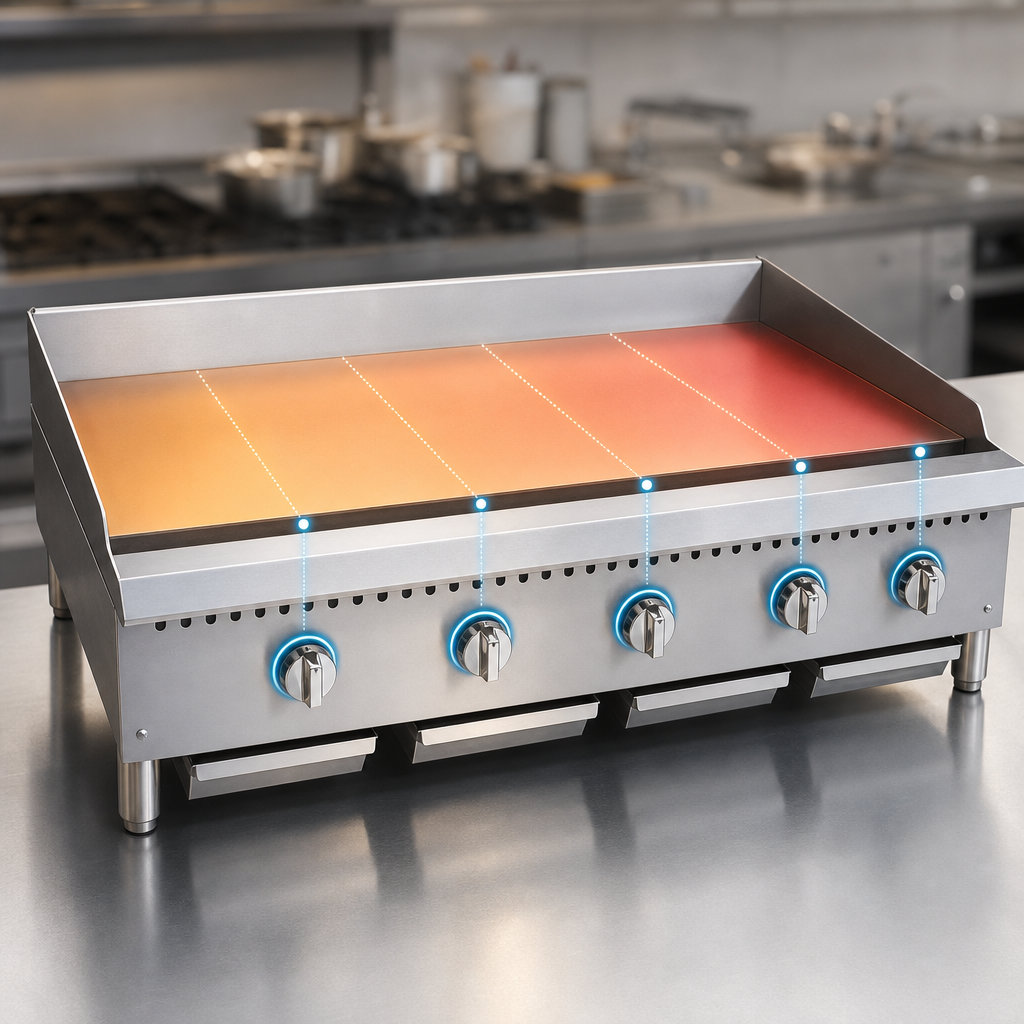

  • Thermostatic control every 12" lets you set five independent zones from 200 °F – 450 °F.
  • 4" welded splash guards on back & sides keep grease contained.
  • Full-width 3" front grease trough plus large removable stainless grease drawer.
  • All-stainless exterior, double-wall body and 3 ¼" bull-nose landing for plating safety.
  • 4" adjustable stainless steel legs for easy leveling and sanitation clearance.
  • 3/4" rear gas manifold with built-in pressure regulator (5" WC NG / 10" WC LP).
  • NSF, cETLus & ETL-Sanitation certified for commercial kitchens.

Specifications

Cooking surface 60" W × 22.5" D (1524 × 572 mm)
Overall dimensions 60" W × 30" D × 16.5" H to plate (1524 × 762 × 419 mm)
Plate thickness 1" (25 mm) polished chrome
Thermostat range 200 °F – 450 °F (93 °C – 232 °C)
Burners 5 stainless “U” burners @ 30,000 BTU each
Total BTU 150,000 BTU/hr
Gas connection 3/4" NPT (right rear)
Splash guard height 4" (102 mm) rear & sides
Grease management 3" trough + removable drawer
Construction Stainless steel exterior, double-wall
Legs 4" adjustable stainless steel
Net / shipping weight 520 lb / 610 lb (236 kg / 277 kg)
Certifications NSF, cETLus, ETL-Sanitation
Warranty 1-year parts & labor (commercial)

What's in the Box

  • Comstock-Castle CCHG-60T chrome griddle
  • Factory-installed thermostatic controls & standing pilots
  • Built-in gas pressure regulator
  • 4 × stainless steel adjustable legs (mounted)
  • Owner’s / installation manual

Need a different size? HG-T-1-C chrome griddles are also available in 24", 36" and 48" widths.

Professional installation required. A licensed gas technician must install and test this appliance with a gas pressure manometer to maintain warranty coverage and ensure safe operation.

Features & Specs

Manufacturer

Comstock-Castle

Certifications

NSF, cETLus, ETL-Sanitation

Height

16.5in

Width

60.0in

Depth

31.0in

Shipping Weight

610.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Exterior Finish

all stainless steel exterior

Cooking Surface Width (side - side)

55" - 60"

Controls

thermostat / solid state controls

Griddle Plate Finish

chrome plated

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 60" wide x 30" deep frame, 60" x 22.5" x 1" thick, smooth polished chrome griddle plate, (5) thermostat controls, 4" splash guard on back & ends, 3" wide front grease trough, removable grease drawer, stainless steel exterior, 4" stainless steel legs, 150,000 BTU, NSF, cETLus, ETL-Sanitation
