Key specifications

BTU
170,000 BTU
Dimensions
60.0"W × 28.0"D × 10.75"H
Type
Combination Range
Installation Type
Countertop
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Comstock-Castle SKU: FHP60-24T-2RB

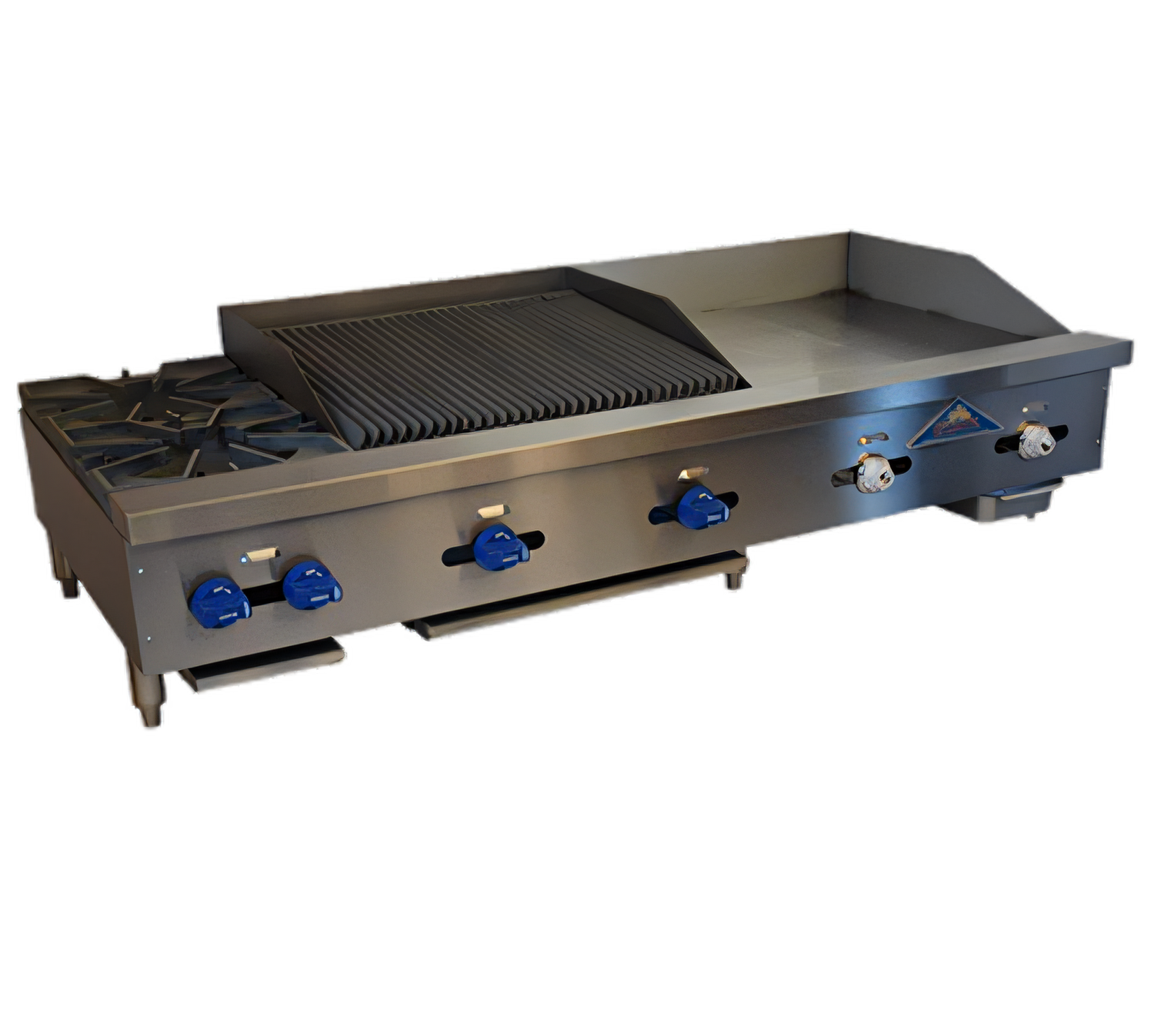

Comstock-Castle FHP60-24T-2RB 2-Burner Griddle/Char-Broiler

$6,484.50
/each
Estimated to ship in 11–14 business days
Griddle and broiler layout
Finish
Gas type
Char-broiler burner output
Pilot controls
Factory Add-Ons
Gas Connector

Need something else? Contact us.

Included: Comstock-Castle warranty One year of parts and labor from the original installation date

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $600/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Combination Range
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Open Burners 2
Burner Type Star
Broiler Type Radiant
Broiler Area 24 x 21 Inches
Plate Thickness 3/4 Inch
Griddle Controls Thermostatic
Controls 4 Manual; 2 Thermostatic Griddle
BTU 170,000 BTU
Gas Connection Size 3/4 Inch
Char-Broiler Grate Material Cast Iron
Radiant Material Iron
Leg Height 4 Inches
Width 60 Inches
Depth 28 Inches
Height 10.75 Inches
Weight 490 lb

Description

The Comstock-Castle FHP60-24T-2RB is a countertop gas combination range with two open star burners, a 24-inch griddle plate, and a 24-inch char-broiler area.

It features a stainless steel exterior, four manual controls, two griddle thermostat controls, cast iron char-broiler grates, iron radiants, and 170,000 BTU total input.

  • 60-inch wide by 28-inch deep frame
  • 3/4-inch-thick griddle plate
  • Four-inch stainless steel legs
  • 3/4-inch gas connection

Overall Dimensions:

60.0"W x 28.0"D x 10.75"H

Product Weight:

490.0 lb

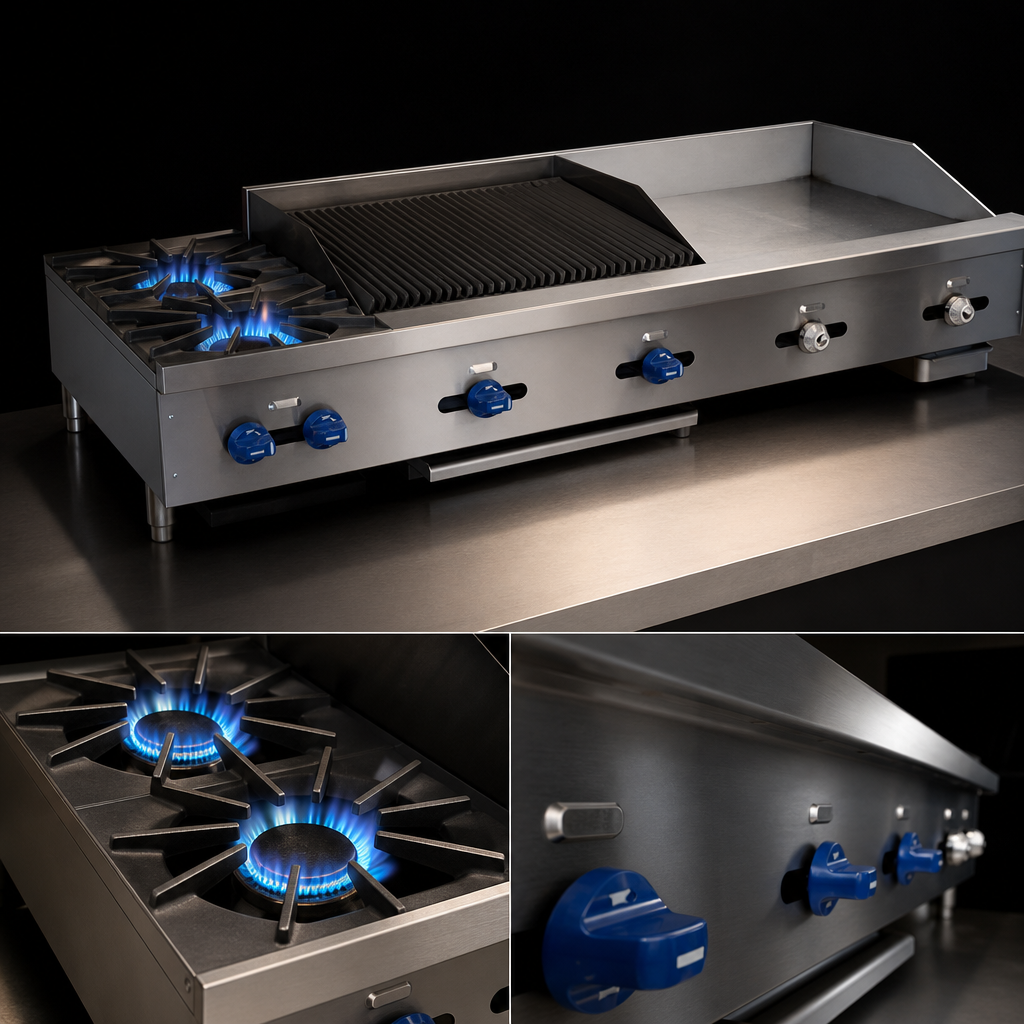

Open Burners

The unit has two star burners: a 24,000 BTU front burner and a 30,000 BTU rear burner.

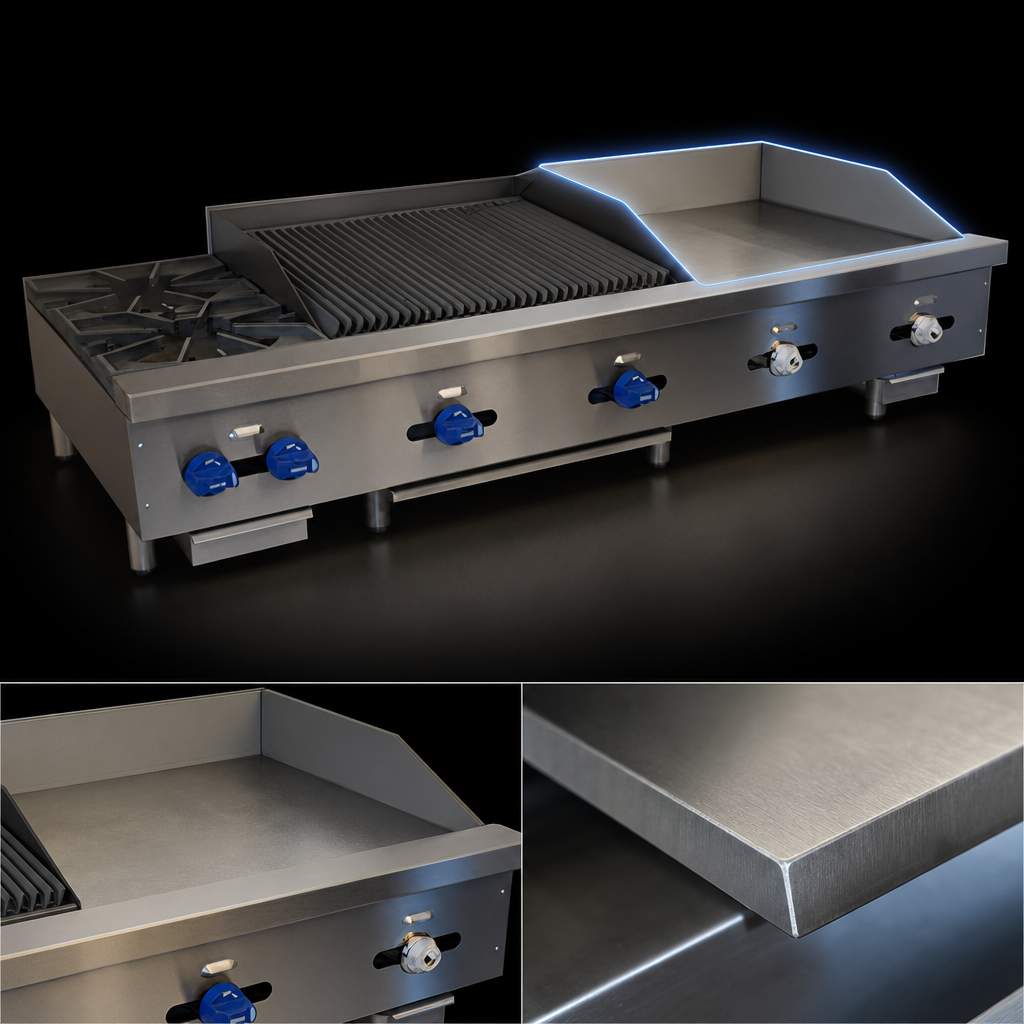

Griddle Section

The griddle section has a 24-inch plate with 3/4-inch thickness and thermostat controls.

Char-Broiler Section

The 24-inch by 21-inch broil area uses cast iron char-broiler grates and iron radiants.

Manual Controls

The unit includes four manual controls in addition to two griddle thermostat controls.

Stainless Steel Construction

The exterior is stainless steel, and the unit has four-inch stainless steel legs.

Gas Input

Total input is 170,000 BTU with a 3/4-inch gas connection.

Frequently Asked Questions

It has two star burners: a 24,000 BTU front burner and a 30,000 BTU rear burner.
The unit includes a 24-inch griddle plate and a 24-inch by 21-inch cooktop broil area with cast iron char-broiler grates and iron radiants.
Yes. The unit has two griddle thermostat controls.
The total input is 170,000 BTU.
The product measures 60 inches wide by 28 inches deep by 10.75 inches high and weighs 490 pounds.
The product is specified with NSF and ETL certifications.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
