Comstock-Castle FHP54-24-1.5RB Gas Charbroilers
Description

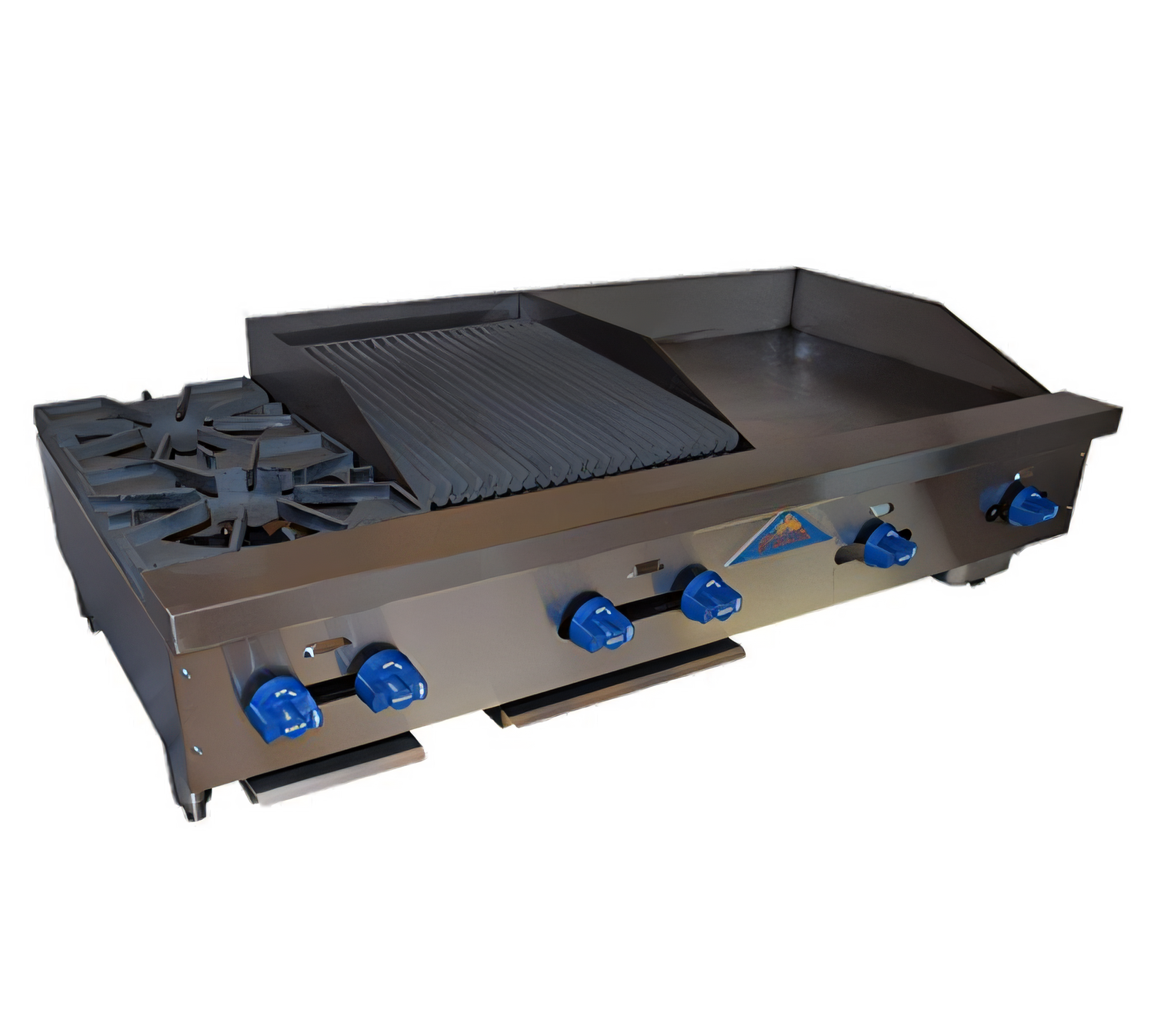

Comstock-Castle 54" Countertop Char-Broiler / Griddle Combo – 144,000 BTU

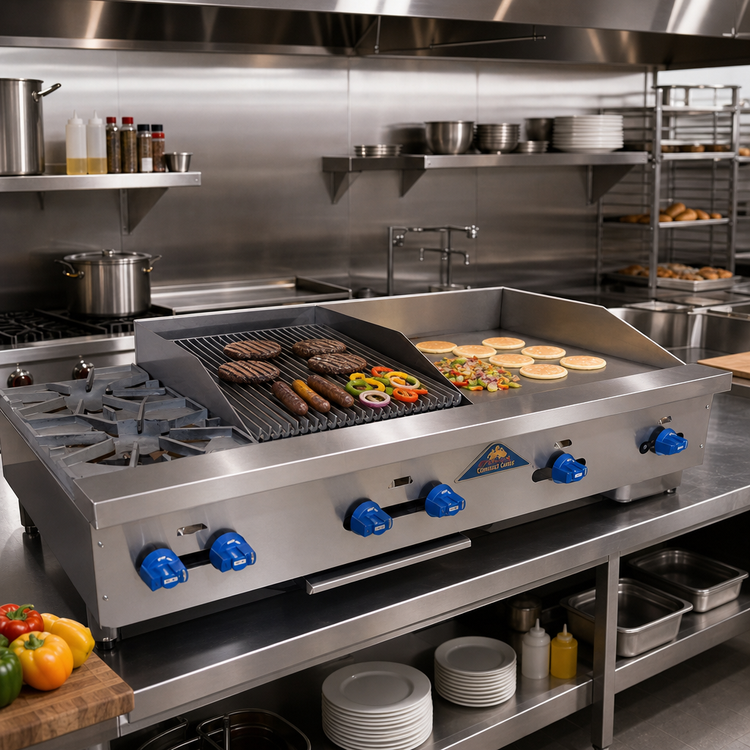

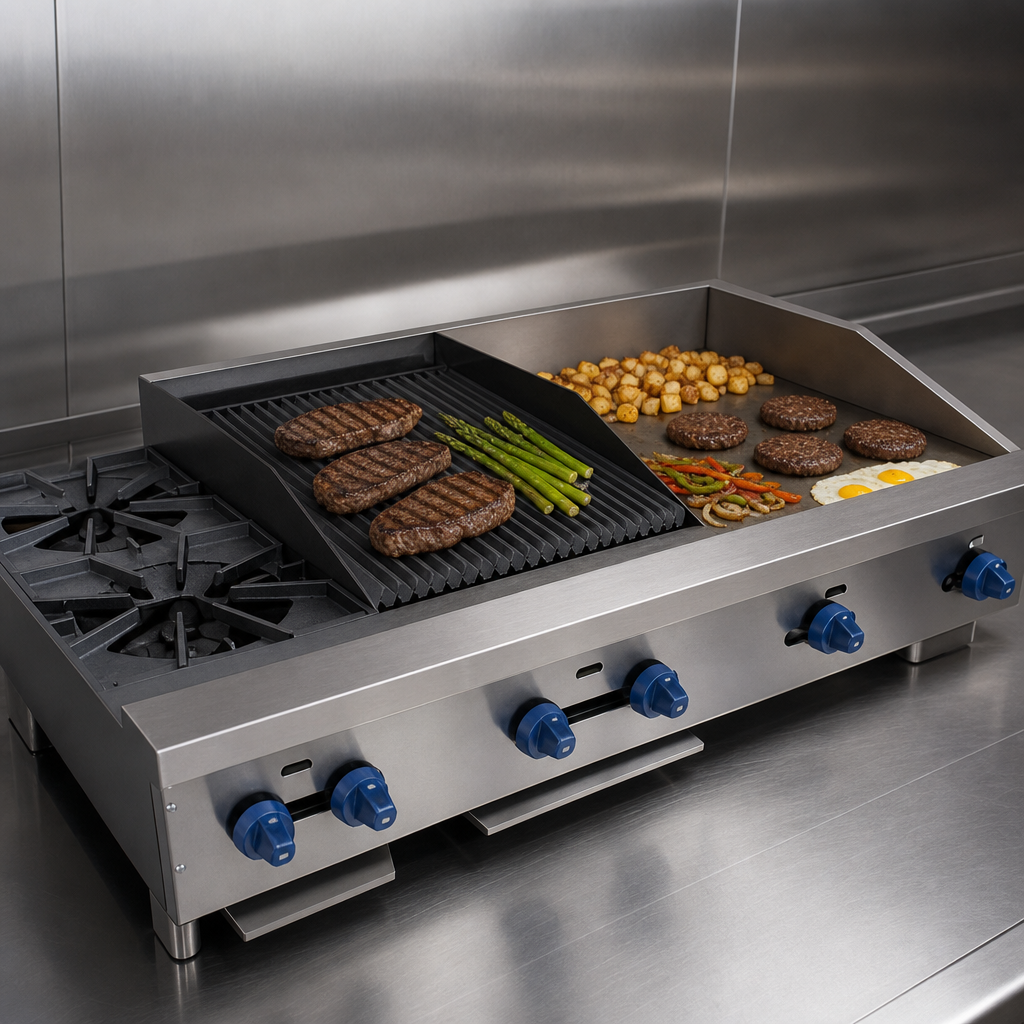

FHP Series | NSF & ETL ListedGive your cookline the versatility of a full-size flattop and a powerful radiant broiler in one space-saving appliance. Built on a rugged 54" stainless-steel chassis, this Comstock-Castle combo lets you sear steaks, toast buns, flip pancakes and finish delicate proteins simultaneously – all from a single ¾" gas connection.
Key Features
- One-piece, 54" W × 28" D countertop cabinet – ideal for busy lines or food-truck service windows.
- 24" × 21" × ¾" highly-polished griddle plate resists sticking and wipes clean fast.
- 18" × 21" radiant char-broiler with heavy, reversible cast-iron grates (sloped or level).

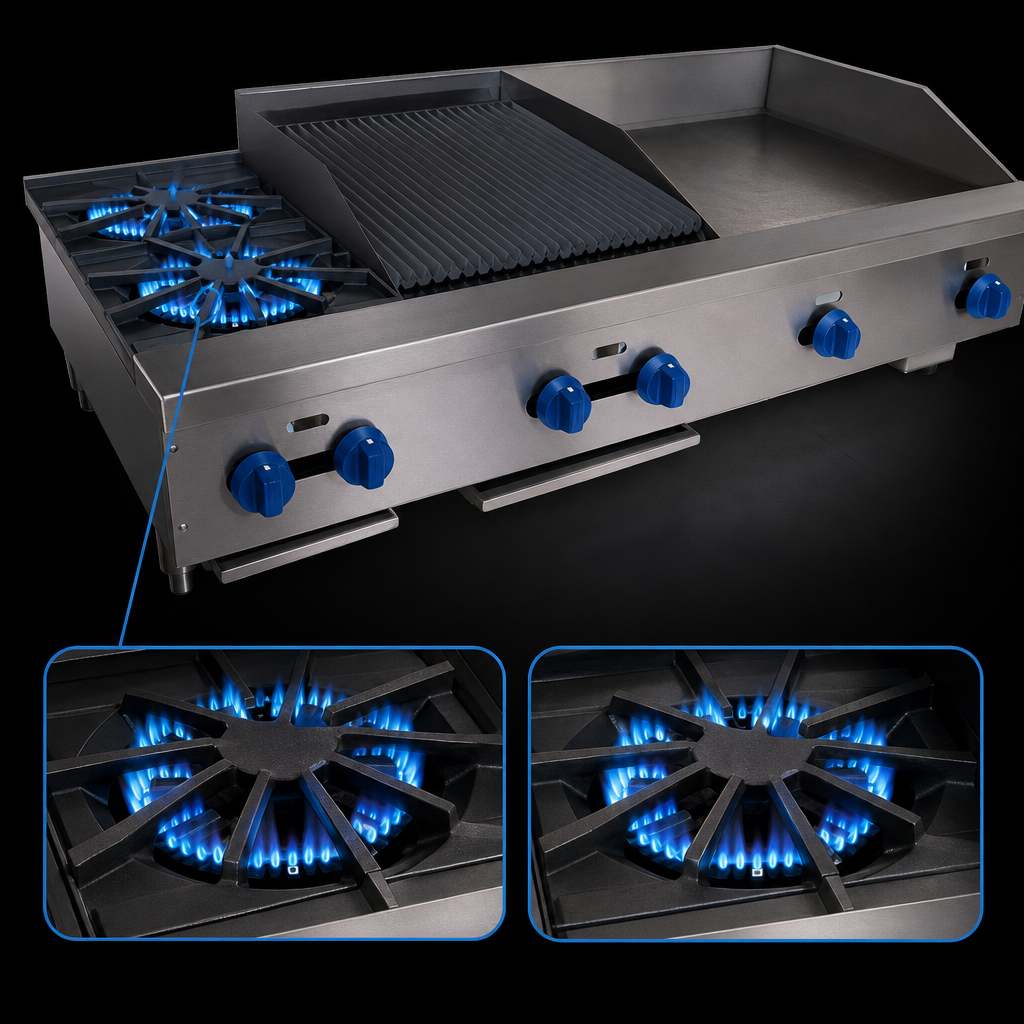

- Two cast-iron star burners deliver 24,000 BTU (front) & 30,000 BTU (rear) for consistent edge-to-edge heat.
- Iron “V” radiants even out burner heat, enhance flavor and reduce flare-ups.
- Six independent brass gas valves with standing pilots – precise zone control at a touch.
- 3-sided 4" splash guards and a deep, front cold-zone grease trough feed a removable drawer for fast clean-up.
- Bull-nose rail keeps hands cool and gives you a staging shelf for utensils or plates.
- 4" adjustable stainless legs level the unit on any surface and allow safe clearance for sanitation.
- Total input: 144,000 BTU/hr through a single ¾" NPT rear gas manifold (factory-set for Natural or LP).
Product Specifications
| Model | 54" Char-Broiler / Griddle Combination (FHP Series) |
|---|---|
| Overall dimensions | 54" W × 28" D frame |
| Cooking surfaces | 24" griddle & 18" broiler – each 21" deep |
| Plate thickness | ¾" (19 mm) steel |
| Total BTU | 144,000 BTU/hr |
| Individual burners | Front star 24,000 BTU • Rear star 30,000 BTU • Additional sectional burners to capacity |
| Controls | 6 manual gas valves with standing pilots |
| Gas connection | ¾" NPT (rear) |
| Construction | Stainless exterior, welded frame, insulated double walls |
| Legs | 4" stainless, height-adjustable |
| Listings | NSF, ETL |
| Warranty | 1 year parts & labor (commercial use) |
Why Comstock-Castle?
- Manufacturing professional cooking equipment in the USA since 1838.
- Factory-tested gas pressure – eliminates risky field conversions.
- Energy-efficient insulation keeps kitchen temperatures lower and operators comfortable.
- Optional upgrades: chrome or grooved plates, safety pilots, gas hoses, matching equipment stands and more.
Installation must be performed by a licensed gas technician in a non-combustible location. Refer to the owner’s manual for required clearances and startup procedures.
