Comstock-Castle FHP42-24-1.5RB Gas Charbroilers
Description

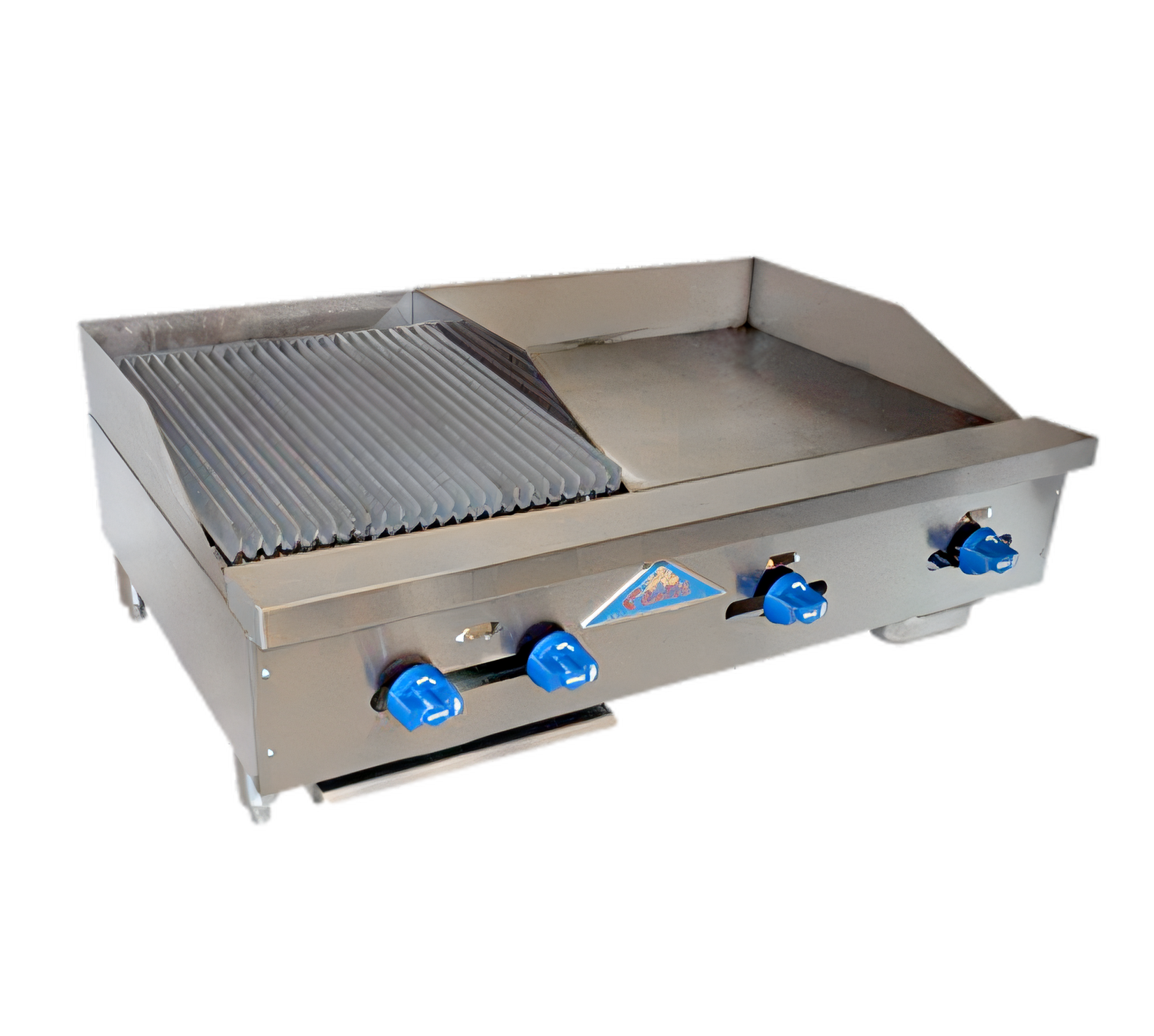

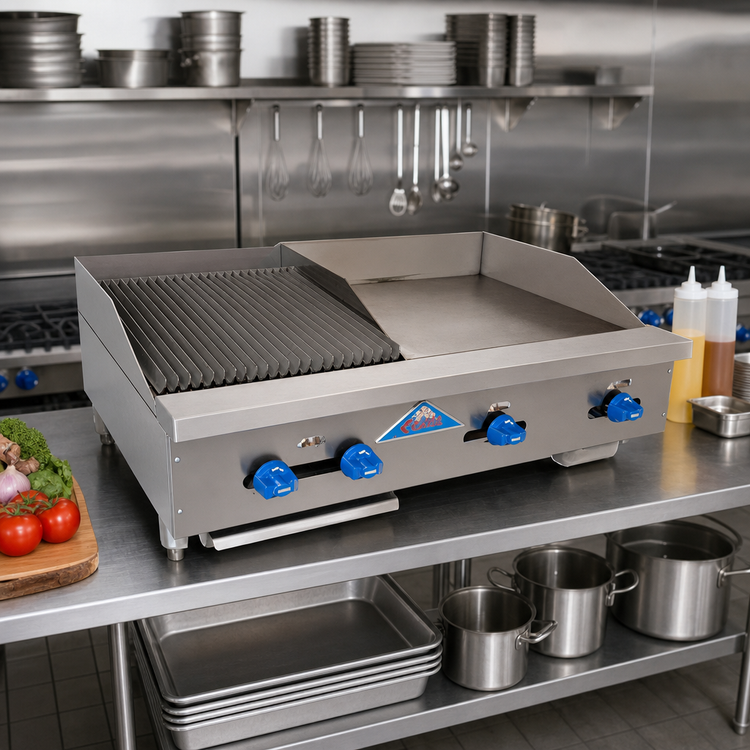

Comstock-Castle FHP42-24-1.5RB Countertop Char-Broiler / Griddle Combo

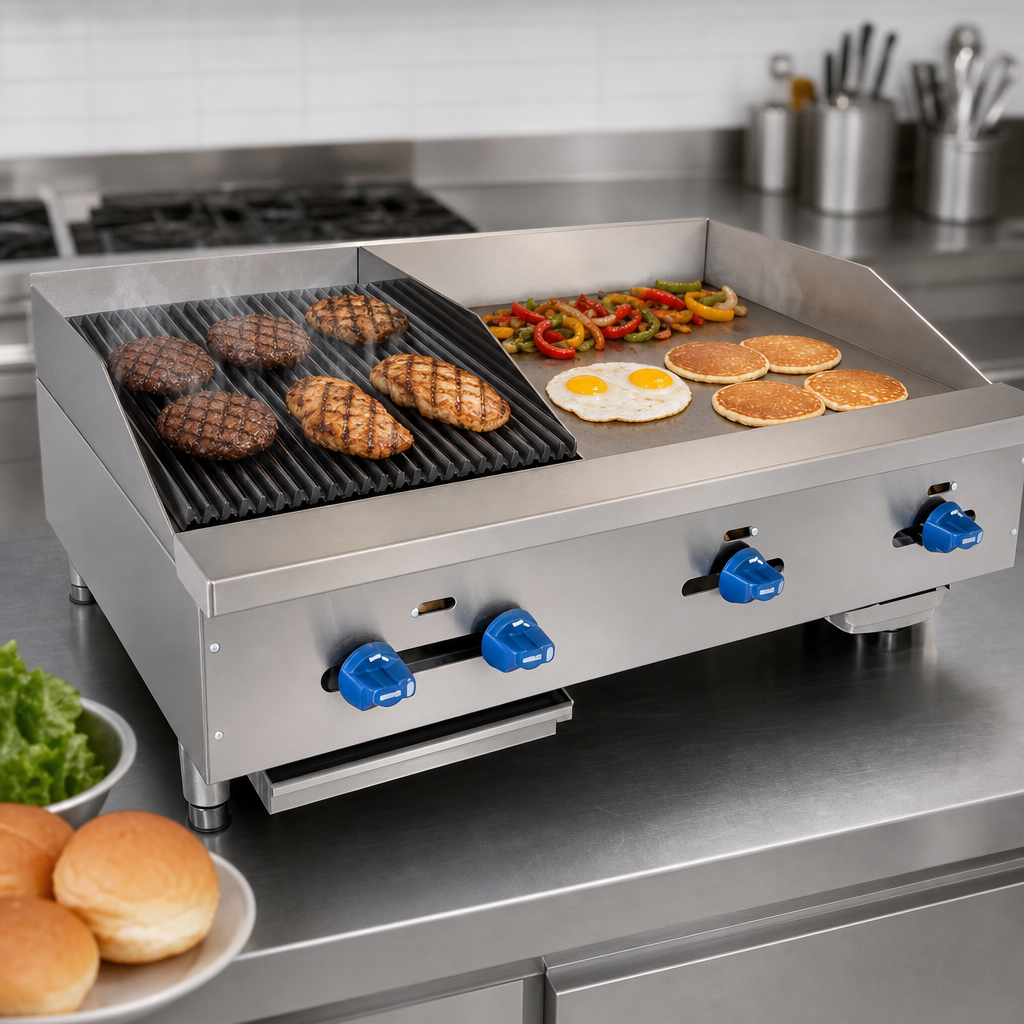

42" wide – gas powered – NSF & ETL certifiedGive your line cooks the power of two workhorses in one space-saving appliance. The Comstock-Castle FHP42-24-1.5RB combines an 18" radiant char-broiler and a 24" heavy-duty griddle on a single, fully welded stainless platform—perfect for searing steaks while flipping pancakes, all with just one gas hook-up.
Key Features

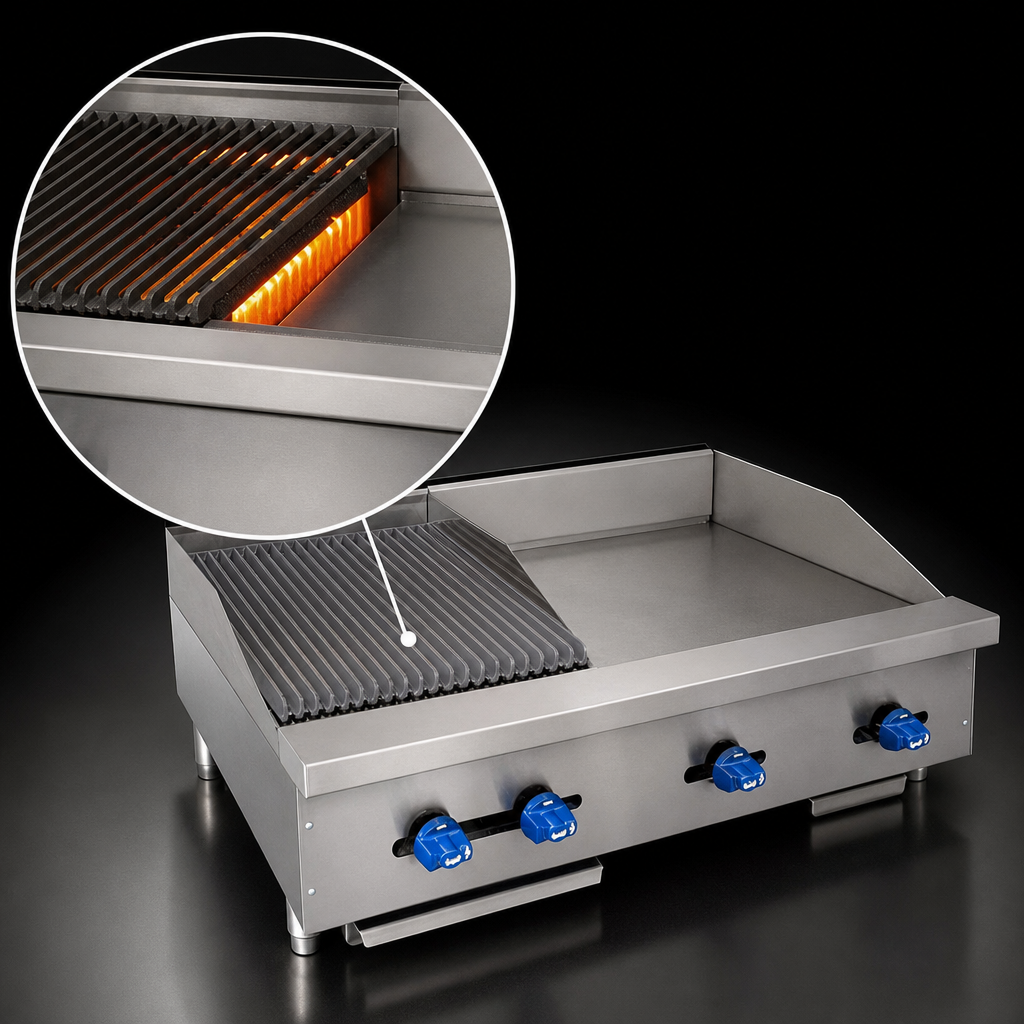

- 18" x 21" char-broiler section with cast-iron, sloped/flat reversible grates for perfect branding and efficient grease runoff.
- 24" x 21" griddle surface, ¾" thick, highly polished to resist sticking and maintain even heat.
- Four manual brass valves—two dedicated “H” burners under the griddle and two “I” burners beneath the broiler—delivering up to 90,000 BTU/hr of total cooking power.
- Inverted “V” iron radiants distribute heat uniformly and minimize flare-ups.
- 3-sided stainless-steel splash guards (approx. 4 – 4½" high) keep adjacent surfaces clean.
- Front bull-nose rail doubles as a landing edge and protects controls.
- Deep, seamless grease drawer and cast-in grate troughs channel away fats for easy cleanup.
- Fully welded, double-wall insulated chassis with easy-clean stainless exterior.
- Adjustable 4" stainless pipe legs for quick leveling on any countertop.
- Factory-set for Natural or LP gas with included pressure regulator; ¾" NPT rear gas connection (1" from right side).
At-a-Glance Specs
| Model | FHP42-24-1.5RB |
|---|---|
| Overall width | 42" (1067 mm) |
| Overall depth | 28" (711 mm) |
| Overall height | 15.75" (400 mm) to cook surface |
| Cooking surfaces | Char-broiler – 18" x 21" | Griddle – 24" x 21" x ¾" |
| Total BTU | Up to 90,000 BTU/hr |
| Gas inlet | ¾" NPT (right-rear) |
| Controls | 4 manual valves, standing pilots, factory regulator |
| Certifications | NSF Listed, ETL Sanitation & Safety |
| Ship weight | Approx. 365 lb / 166 kg |
Included & Optional Accessories
- Standing pilots and factory-set pressure regulator (included)
- Safety pilot valves or thermostatic control (optional)
- Chrome-plated or grooved griddle plates (optional)
- Tall splash guards, flanged feet, quick-disconnect gas hose (optional)
- Cleaning tools, grill scrapers & carrying handles (optional)
Warranty
Comstock-Castle backs this unit with a 1-year parts & labor warranty (60 day labor / 120 day parts when installed in mobile or outdoor applications). Warranty valid only with professional installation by a licensed gas technician.
