Comstock-Castle F3430 Gas Ranges
Description

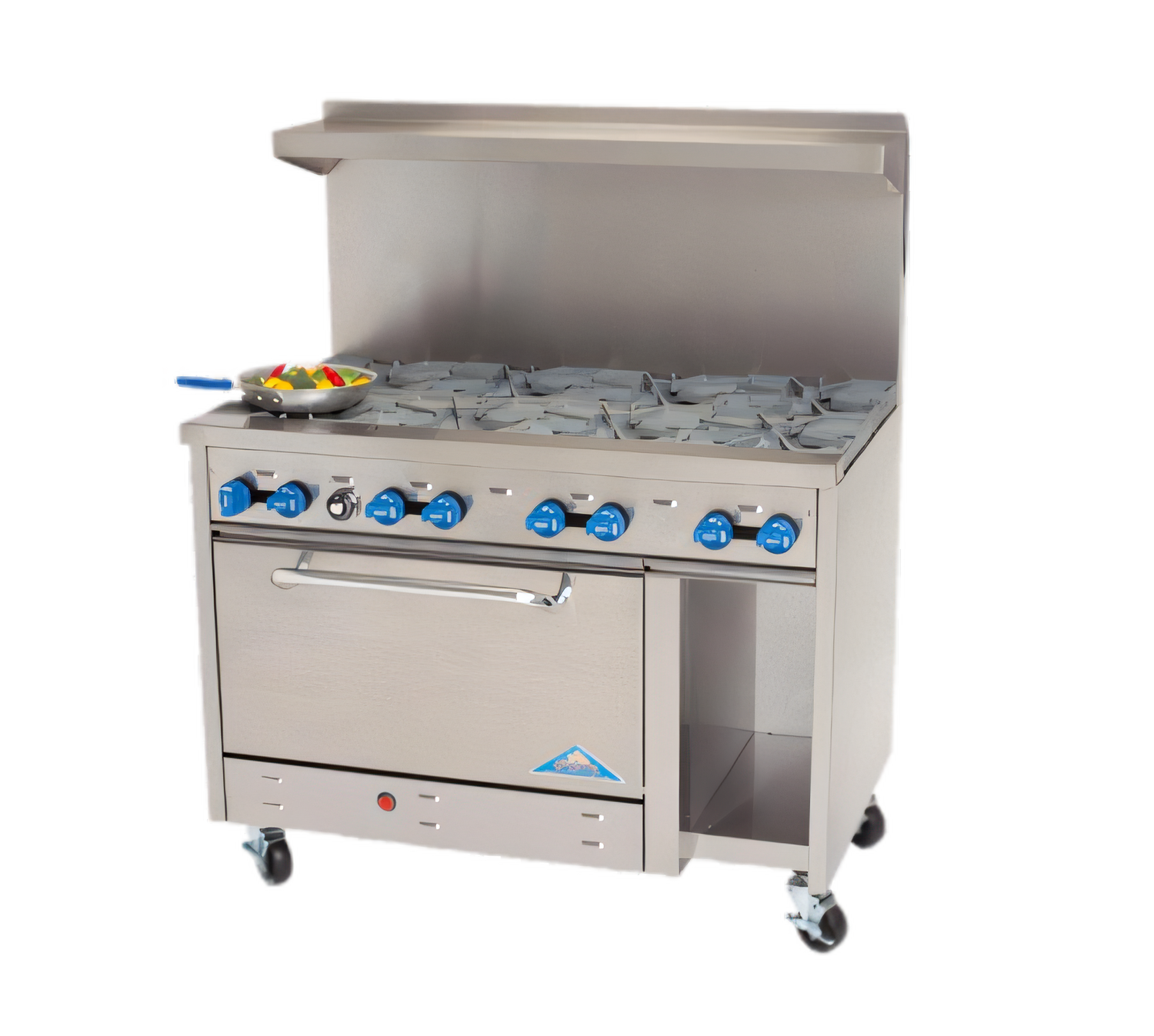

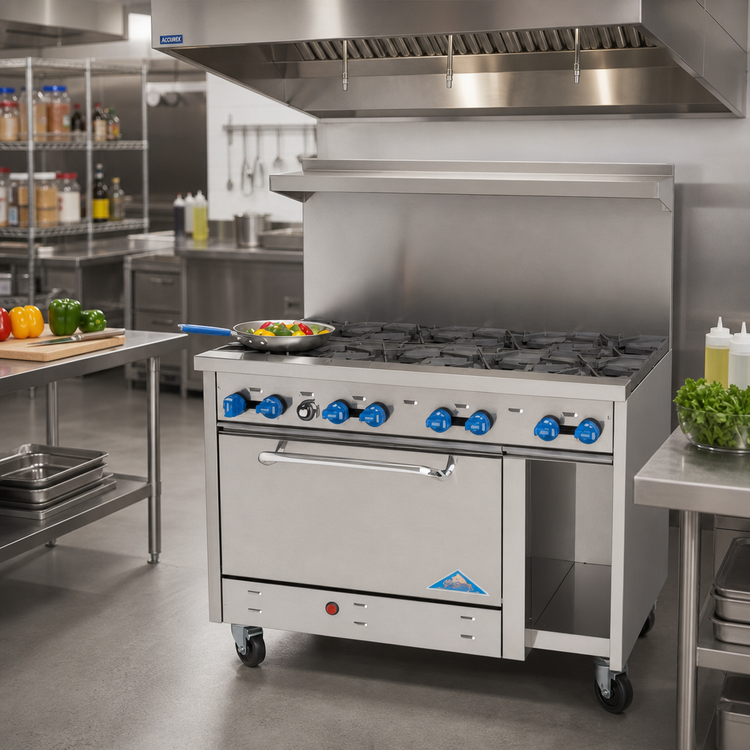

Comstock-Castle 48" Gas Range – 8-Burner / 31" Oven & Storage Base
246,000 BTU powerhouse with oversized star burners & stainless steel durabilityBuilt for busy commercial kitchens that refuse to compromise on speed or consistency, this 48-inch range pairs Comstock-Castle’s legendary 7" star-pattern burners with an extra-wide oven and a handy open storage cabinet. From rapid sautéing to high-volume baking, every detail is engineered for day-in, day-out reliability.
Highlights

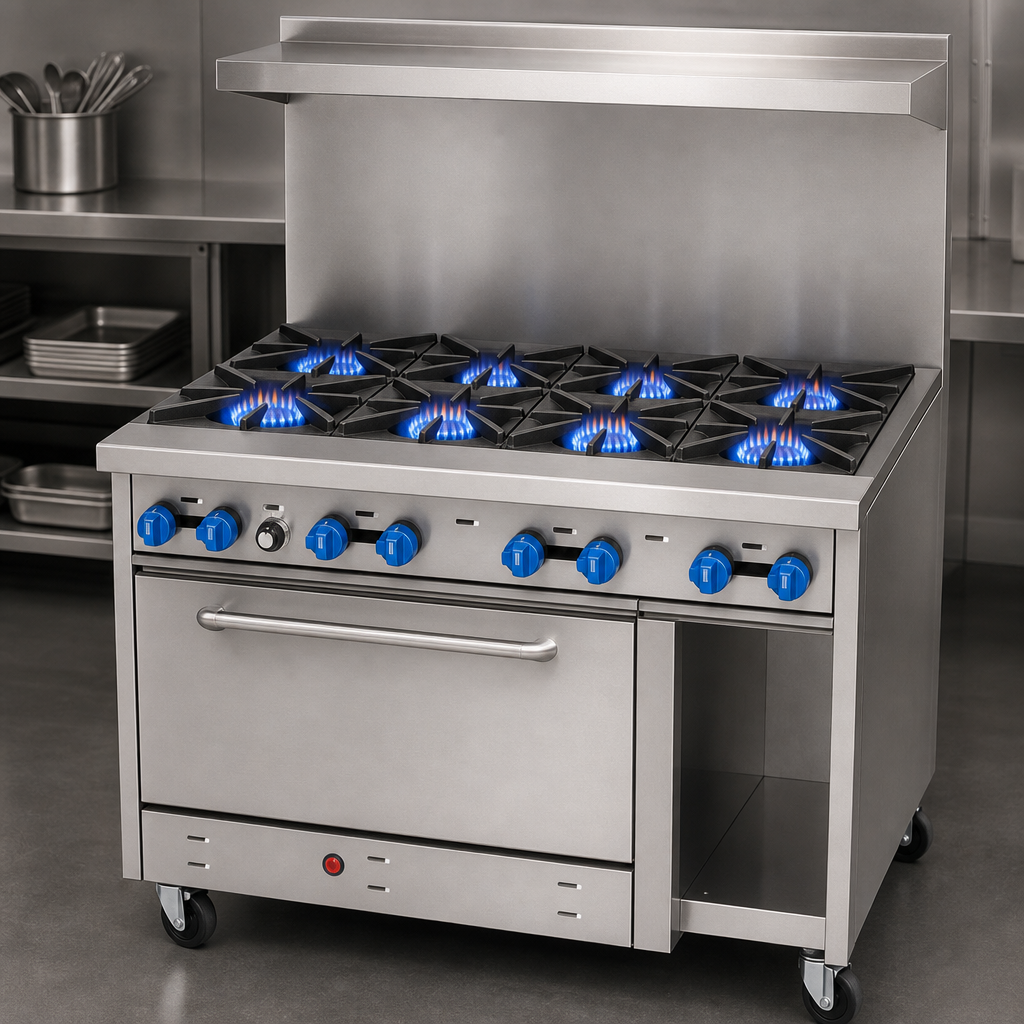

- Eight open star burners – front row 24,000 BTU, rear row 30,000 BTU for a blistering 216,000 BTU cooktop

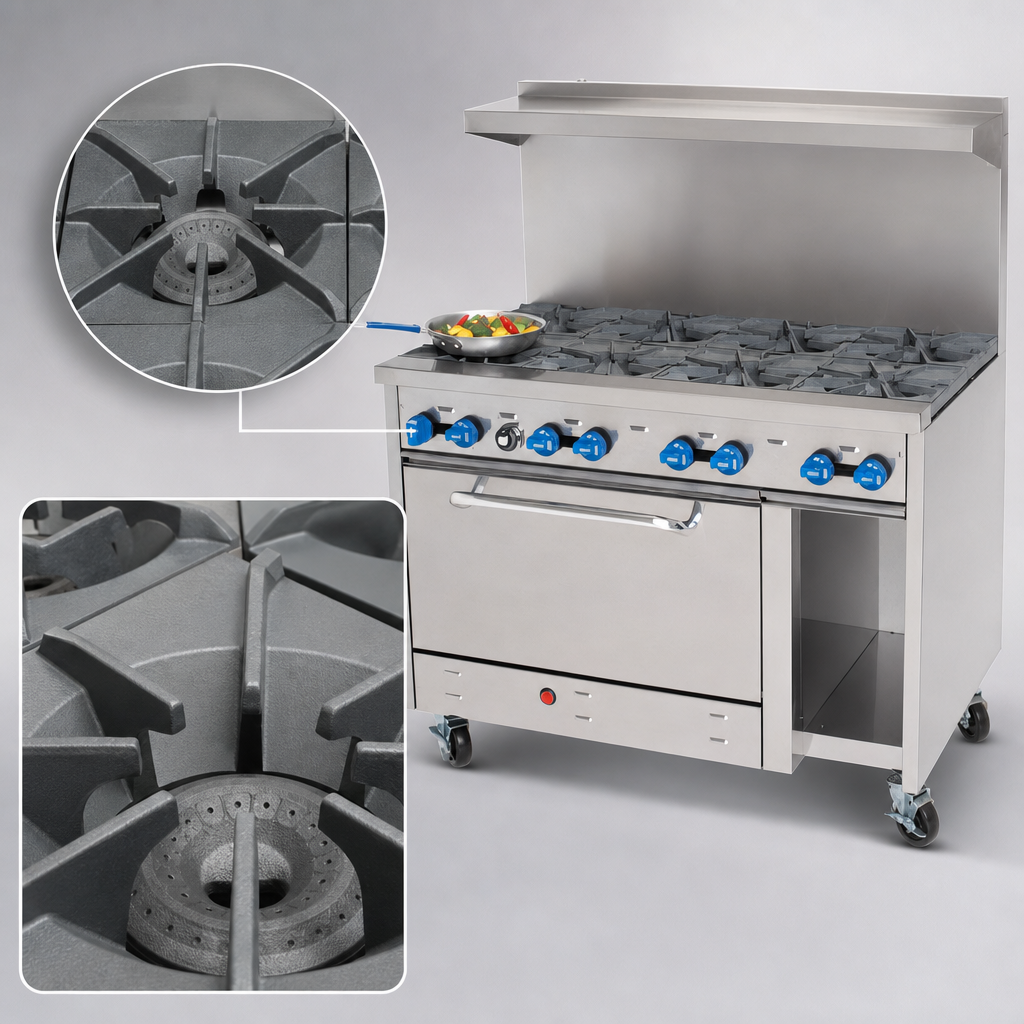

- 12" × 12" cast-iron grates with spill-over bowls for superior heat reflection and easy pan movement
- Full-width slide-out crumb tray simplifies end-of-shift clean-ups
- 31.5"-wide porcelain-lined oven (30,000 BTU H-burner) with 1 chrome rack | 3 rack positions
- Convenient open cabinet keeps sheet pans, lids or smallwares within arm’s reach
- Stainless steel front, sides, back riser & 10" high shelf resist corrosion and wipe clean fast
- 6" stainless pipe legs with adjustable feet for fast, rock-solid leveling
- Flush bull-nose rail stays cool and doubles as a plating shelf
- Factory-installed 500 °F thermostat, standing pilots, 100 % safety shut-off & ¾" pressure regulator
- Zero-clearance installation against non-combustible surfaces
Performance at a Glance
| Total BTU Input | 246,000 BTU/hr (216,000 BTU top + 30,000 BTU oven) |
|---|---|
| Number of Burners | 8 star burners | 24 k BTU front, 30 k BTU rear |
| Oven Interior (WxDxH) | 31.5" × 22" × 14" (800 × 559 × 356 mm) |
| Cook Surface Height | 37" (940 mm) |
| Overall Dimensions (WxDxH) | 48" × 28" × 59" (to top of high shelf) |
| Gas Connection | ¾" NPT, 4" WC Natural | 10" WC LP (field convertible) |
| Certifications | NSF · cETLus |
| Warranty | 1 year limited parts & labor (commercial) |
What’s in the box
- Comstock-Castle 48" gas range with back riser & shelf
- (1) chrome oven rack
- ¾" gas pressure regulator (factory set for specified gas)
- Owner’s / installation manual & warranty registration card
Need extra oven racks, casters, or a convection fan kit? Contact us for factory-approved accessories.
